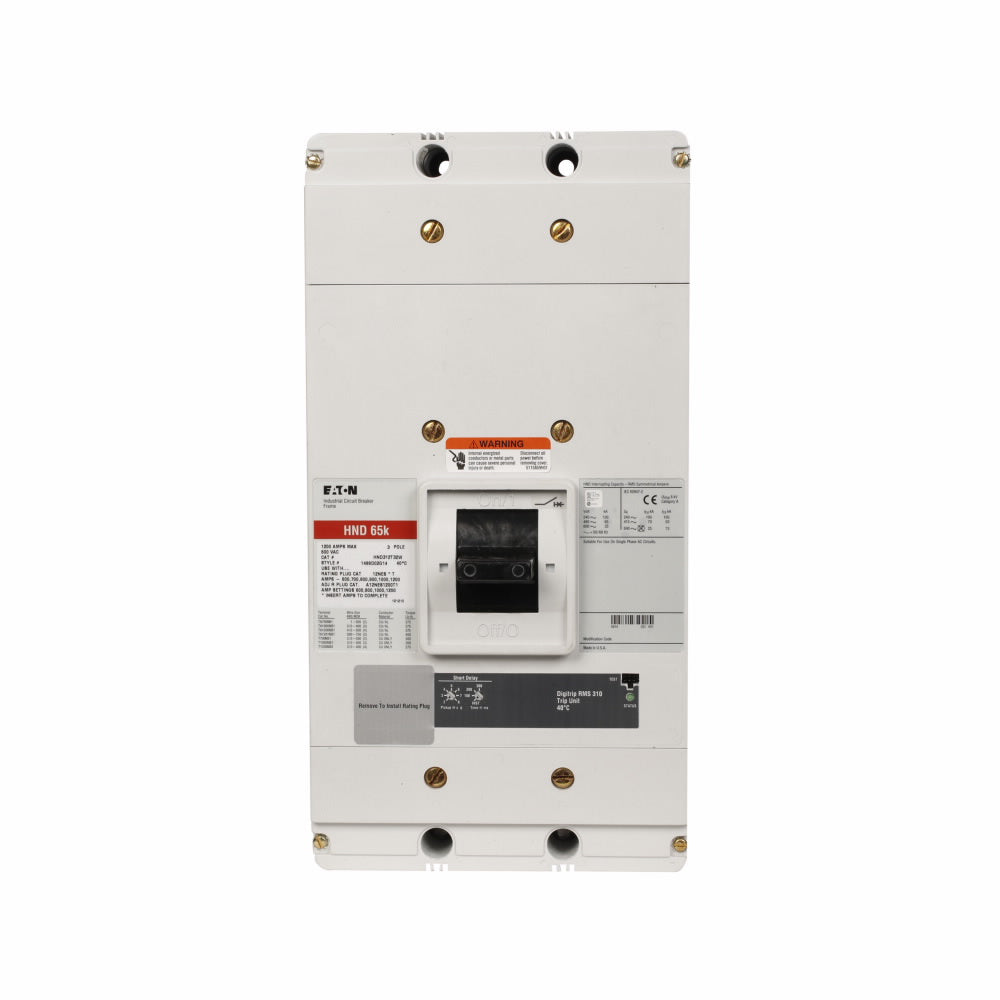

CHND3800T33W - Eaton Series C Molded Case Circuit Breaker 800A 600VAC 3-Pole Electronic LS

CHND3800T33W

CHND3800T33W is an Eaton Series C electronic molded case circuit breaker designed for high-capacity power distribution applications requiring reliable overcurrent protection. This three-pole breaker combines robust construction with advanced electronic trip technology for precise fault detection and interruption.Technical OverviewCHND3800T33W features an NG-frame design with Digitrip 310 RMS electronic trip unit and Electronic LS (Load Sense) technology. The breaker is rated for 800 amperes at 600 volts AC with 100 kAIC interrupt capacity at 240 VAC and 65 kAIC at 480 VAC, making it suitable for industrial and commercial power systems. The non-interchangeable trip unit ensures proper coordination and prevents misapplication. Packaged weight is 48 pounds with dimensions of 5-1/2 x 8-1/4 x 8-1/4 inches.

Key Specifications
• Part Number: CHND3800T33W
• Manufacturer: Eaton (Cutler-Hammer Division)
• Type: CHND Molded Case Circuit Breaker
• Amperage Rating: 800 A
• Voltage Rating: 600 VAC
• Poles: 3
• Frame: NG-Frame
• Trip Unit: Digitrip 310 RMS Electronic LS
• Interrupt Rating: 100 kAIC at 240 VAC / 65 kAIC at 480 VAC
• Duty Rating: 100 Percent
• Dimensions: 5-1/2 x 8-1/4 x 8-1/4 inches
• Weight: 48 pounds

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CHND3800T33W
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : CHND
• Voltage : 600
• Amperage : 800
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LS - Long-Time and Short-Time Trip
• Frame Size : N Frame
• Protection : Solid State

Product Data

• UPC : 786679264164
• GTIN : 00786679264164
• Country of Origin : United States
• Dimensions : 5.5 in x 8.25 in x 8.25 in (Length/Depth x Height x Width)
• Weight : 45
• Certification : HACR Rated
