Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
CHH2200H4X

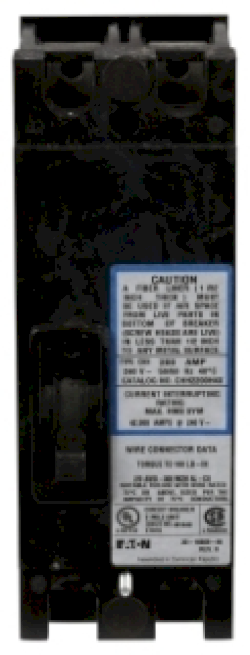

CHH2200H4X is a Cutler Hammer 200 Amp, 2-Pole, 240 Volt bolt-on circuit breaker with a 42 kA interrupt rating, designed for reliable circuit protection.CHH2200H4X features a thermal magnetic trip unit with long time and instantaneous trip functions, suitable for single-phase applications. It is compatible with 1MP, 1MM, 3MM 200 Amp or 35MM, 35SS modular metering stacks and includes load side lugs for feed-thru connections.
- Amperage: 200A
- Voltage: 120/240 VAC
- Poles: 2
- Mounting Type: Bolt-On
- Interrupt Rating: 42 kAIC @ 240V
- Frame/Series: CHH
- Trip Unit: Thermal Magnetic with long time and instantaneous trip
- Application: Tenant Circuit Breaker, Single Phase
- Includes Load Side Lugs
- Feed-Thru Capability
- Certifications: Eaton standard compliance
Specifications
- Part Number: CHH2200H4X
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : CHH Series
- Type : CHH
- Voltage : 240
- Amperage : 200
- Phase : 1
- Poles : 2
- AIC rating : 42kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 782113032177
- GTIN : 00782113032177
- Dimensions : 4.5 in x 9 in x 5.5 in (Length/Depth x Height x Width)
- Weight : 4.5
