Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
CHFN115DF

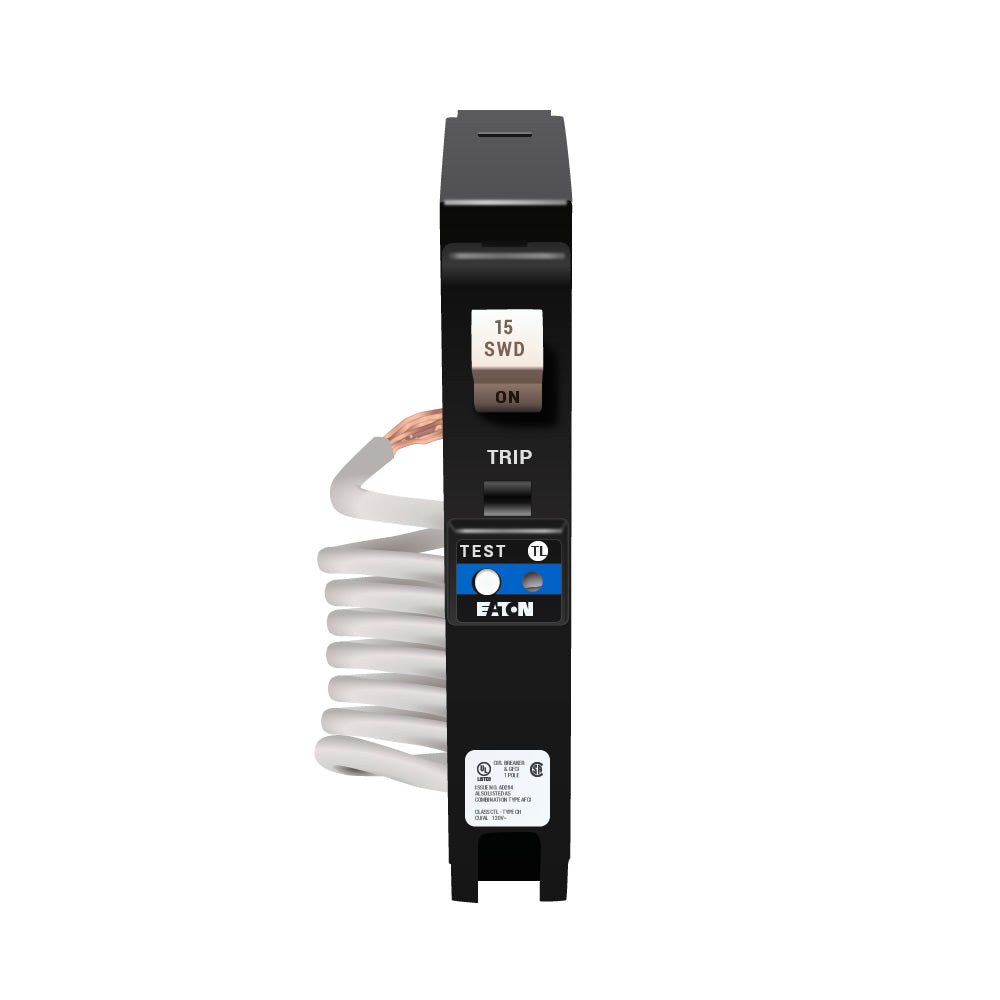

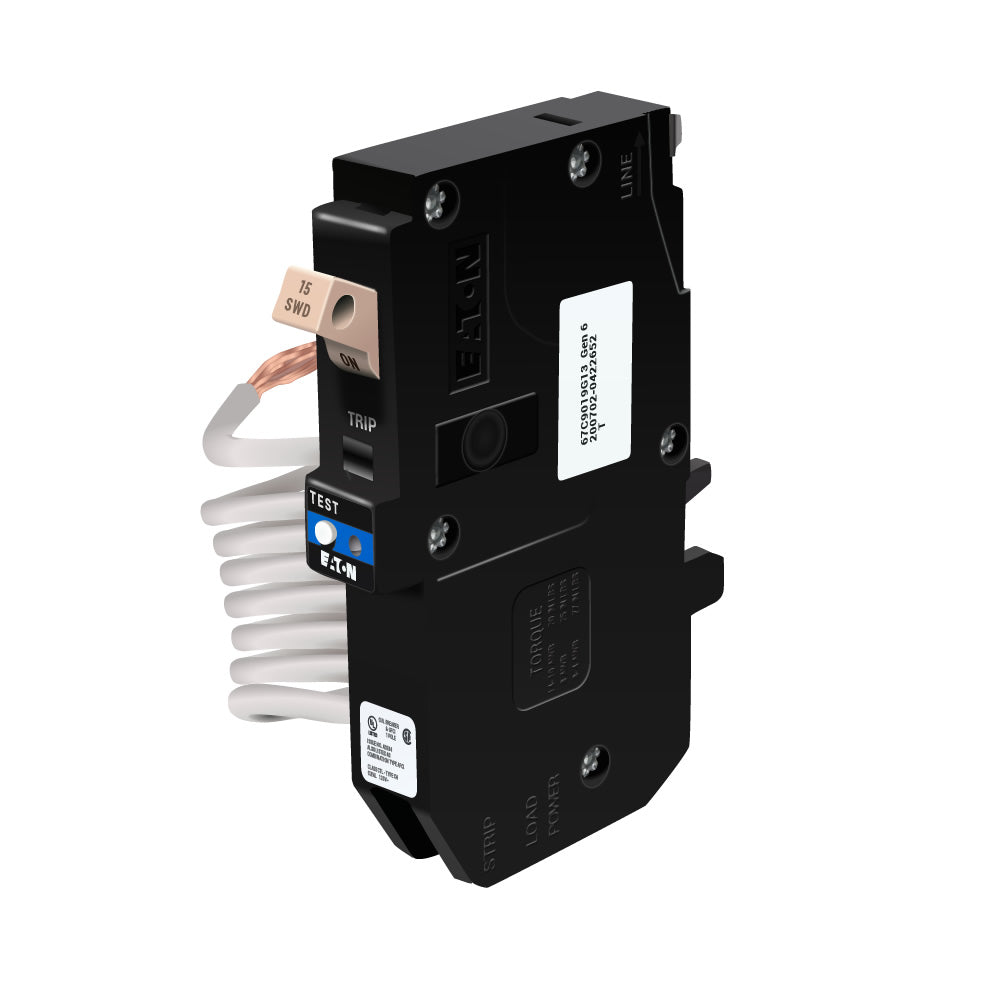

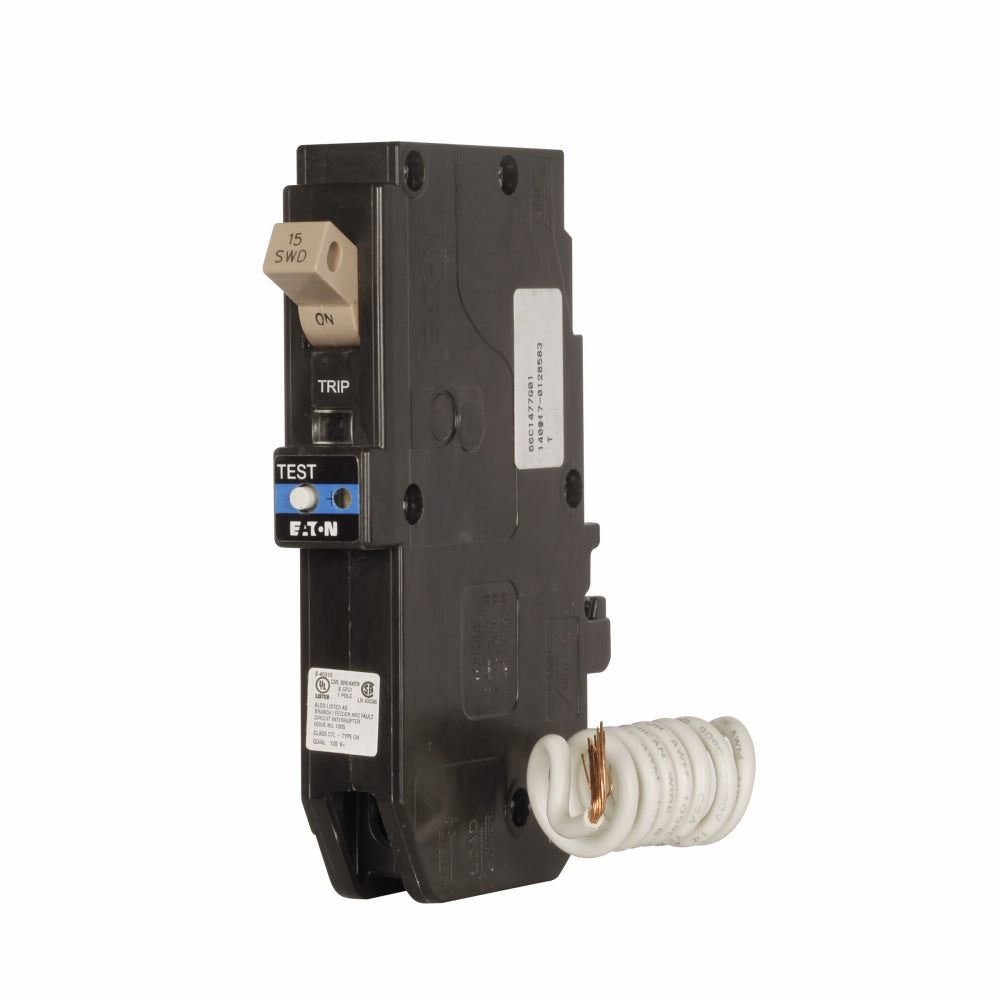

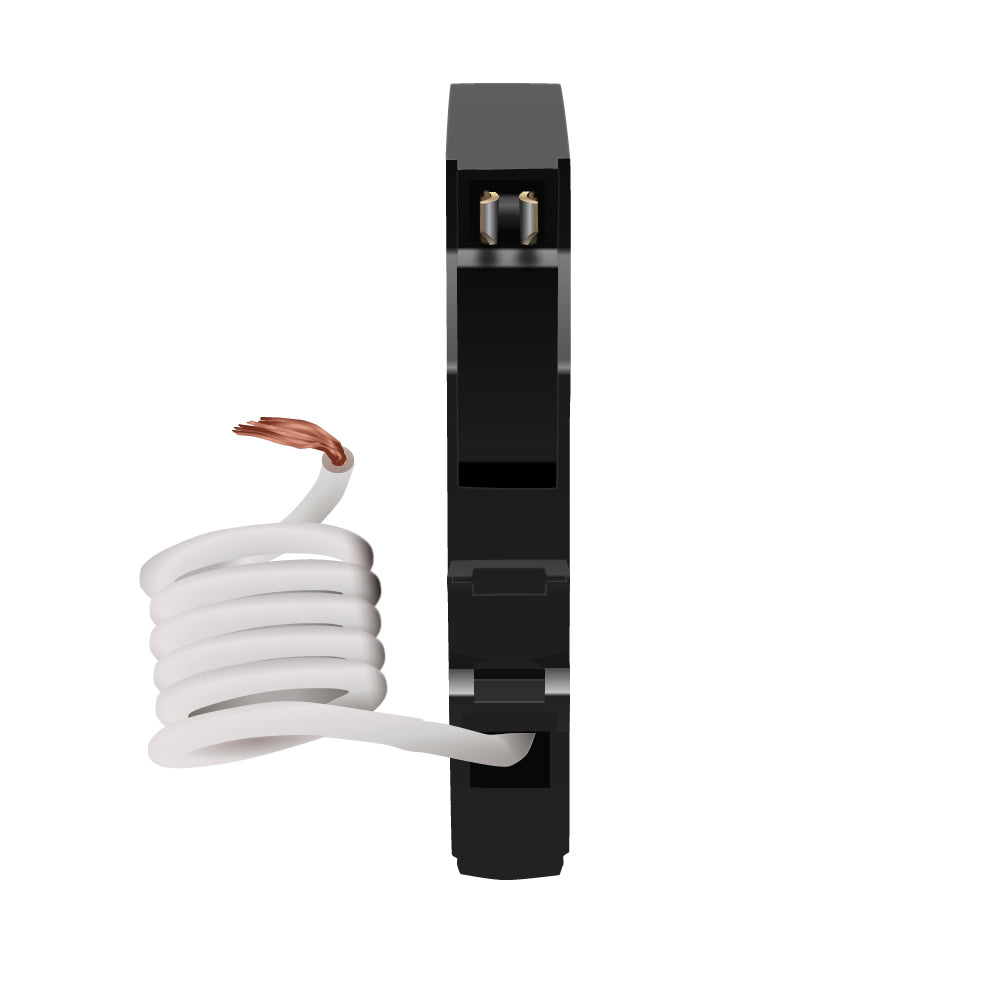

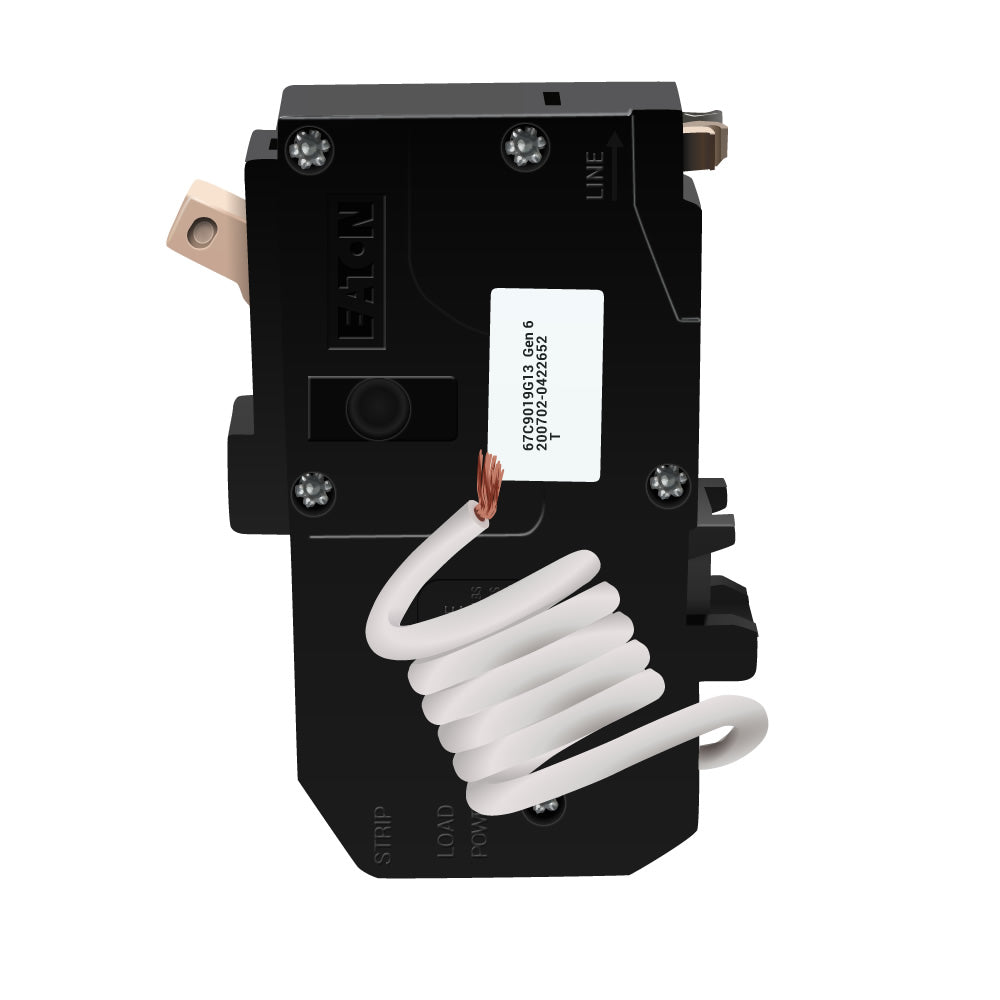

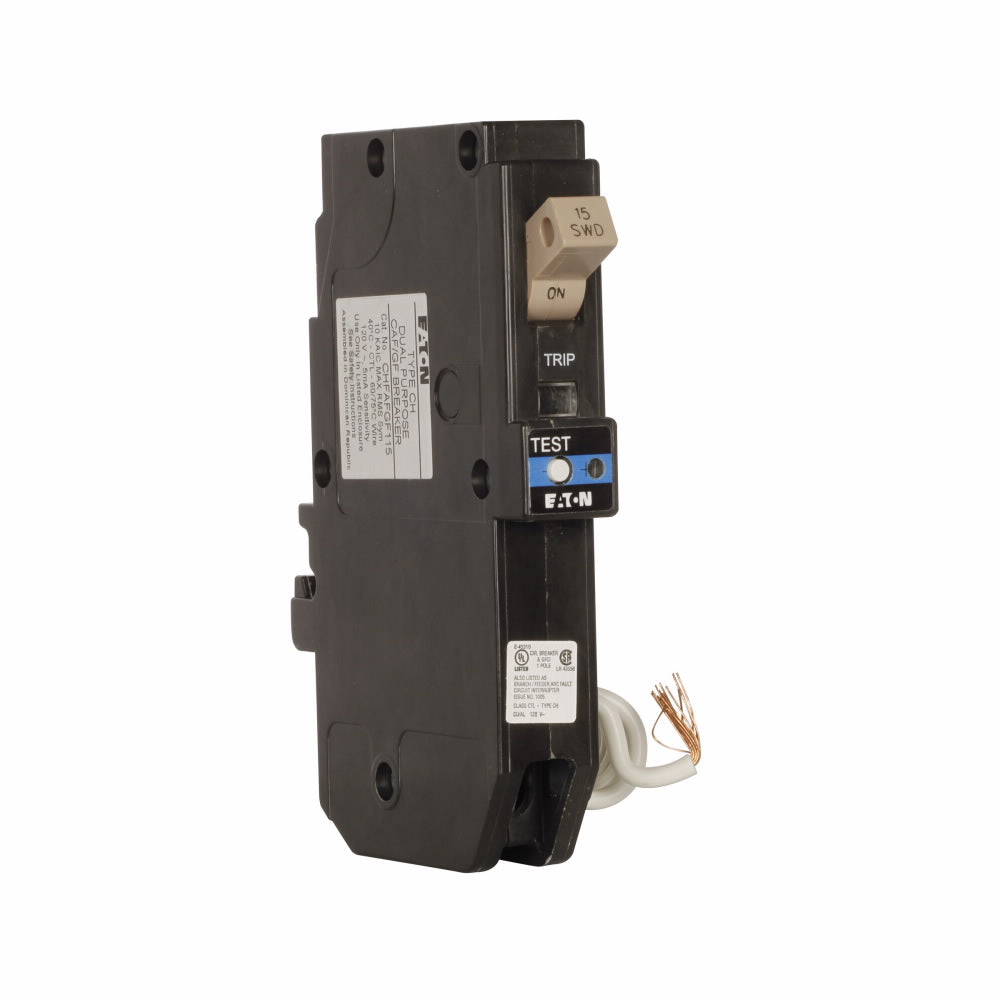

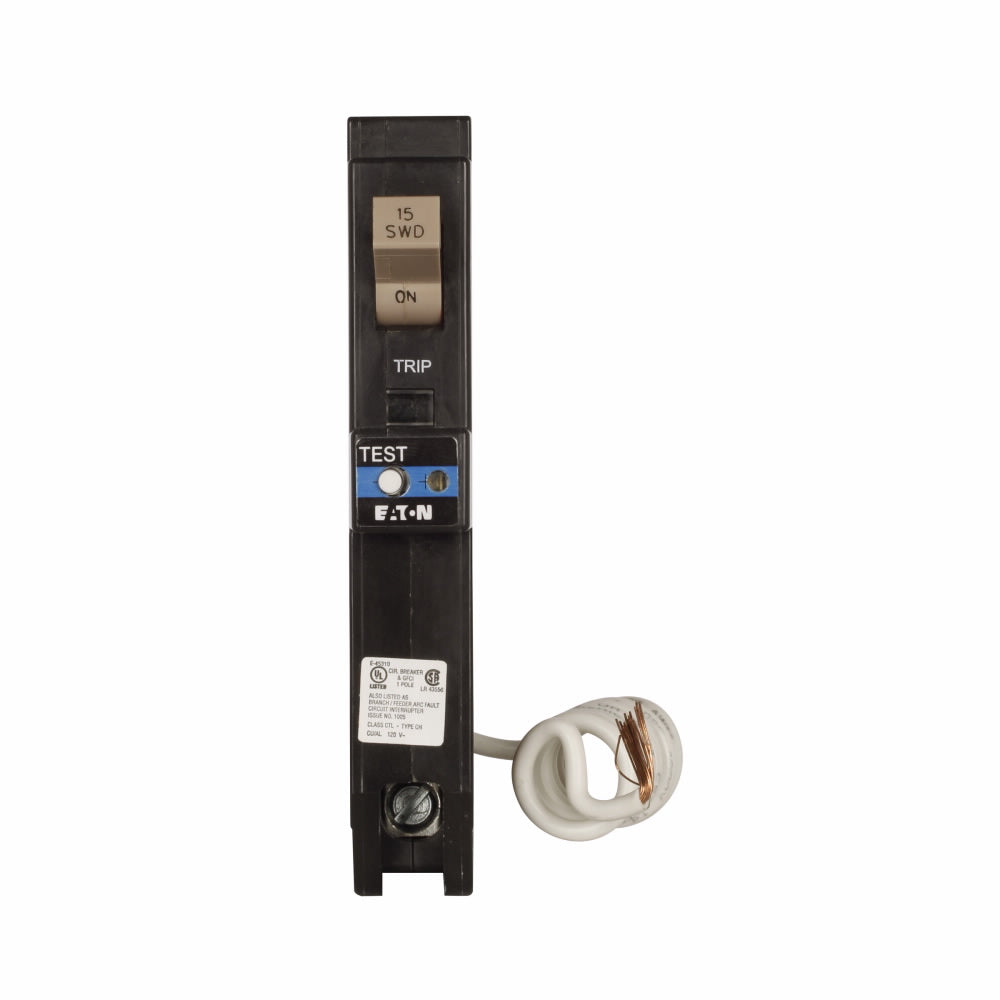

CHFN115DF is a 1 pole, 15 amp, 120/240 volt dual function circuit breaker from Eaton designed for plug-on mounting with a 10kA interrupting rating.This Eaton CHFN115DF circuit breaker features dual function arc fault and ground fault protection, a thermal magnetic trip unit, and a plug-on branch feeder mounting type. It is UL listed and HACR rated, suitable for residential, commercial, and industrial applications, providing reliable overcurrent and fault interruption with a 10 kAIC interrupt rating.
- Manufacturer: Eaton
- Series: CHFN
- Amperage: 15 A
- Voltage: 120/240 V AC
- Poles: 1
- Mounting Type: Plug-On
- Interrupting Rating: 10 kAIC
- Trip Unit: Thermal Magnetic Dual Function (AFCI & GFCI)
- Connection Type: Pigtail Neutral
- Certifications: UL Listed, HACR Rated
- Phase: Single
- Frame Type: CH
Specifications
- Part Number: CHFN115DF
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Type : CHFN
- Voltage : 145
- Amperage : 15
- Phase : 1
- Poles : 1
- AIC rating : 10kA@120V
- Connection : Plug-In
- Functions : ALSIG - Arcflash Reduction, Long-Time, Short-Time, Instantaneous and Ground Fault
Product Data
- UPC : 786689058807
- GTIN : 00786689058807
- Dimensions : 4.5 in x 3.25 in x 0.75 in (Length/Depth x Height x Width)
- Weight : 0.5
- Certification : UL
