Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
CHFN115AF

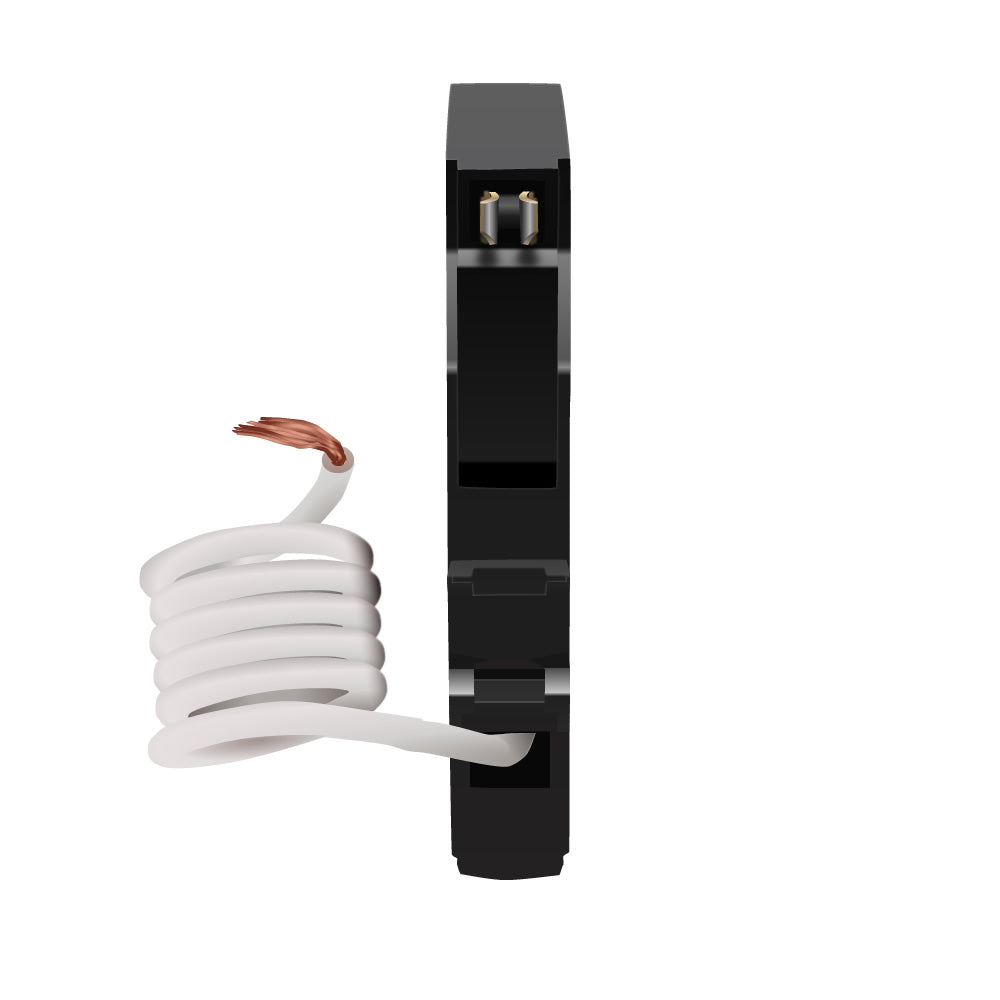

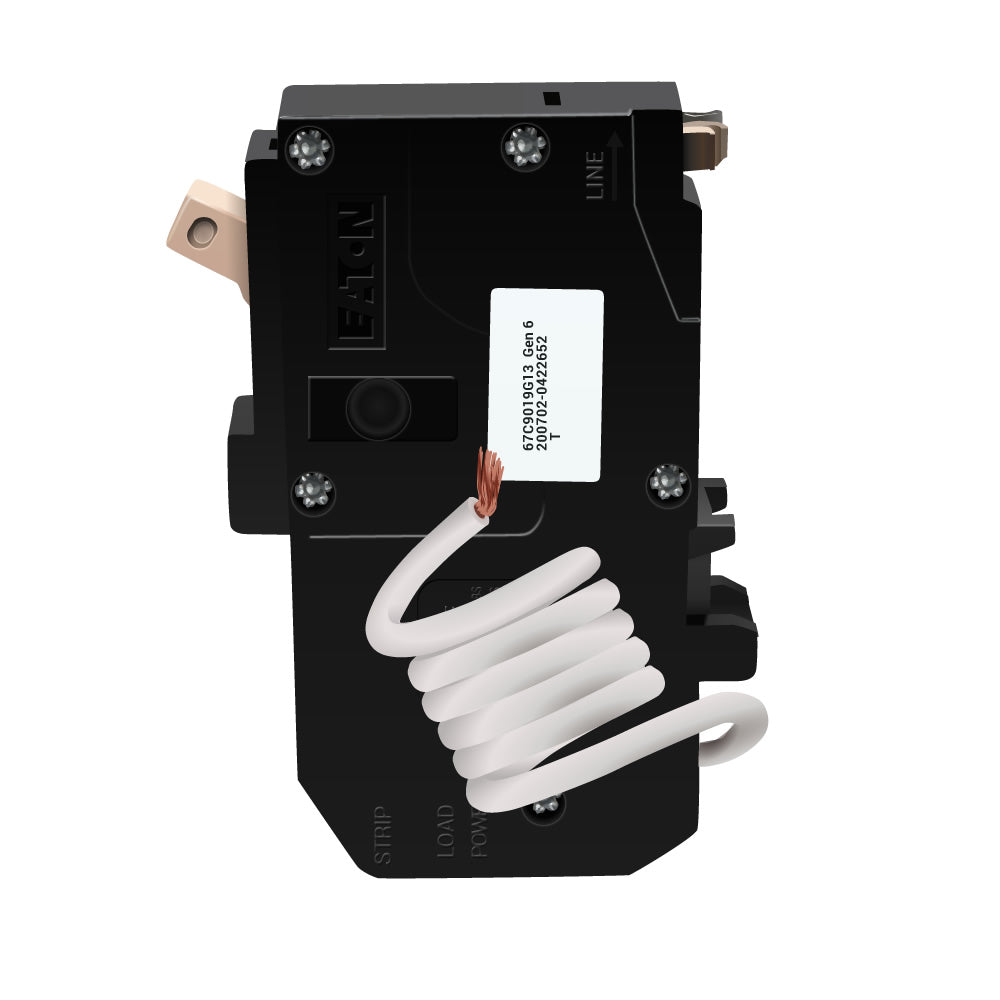

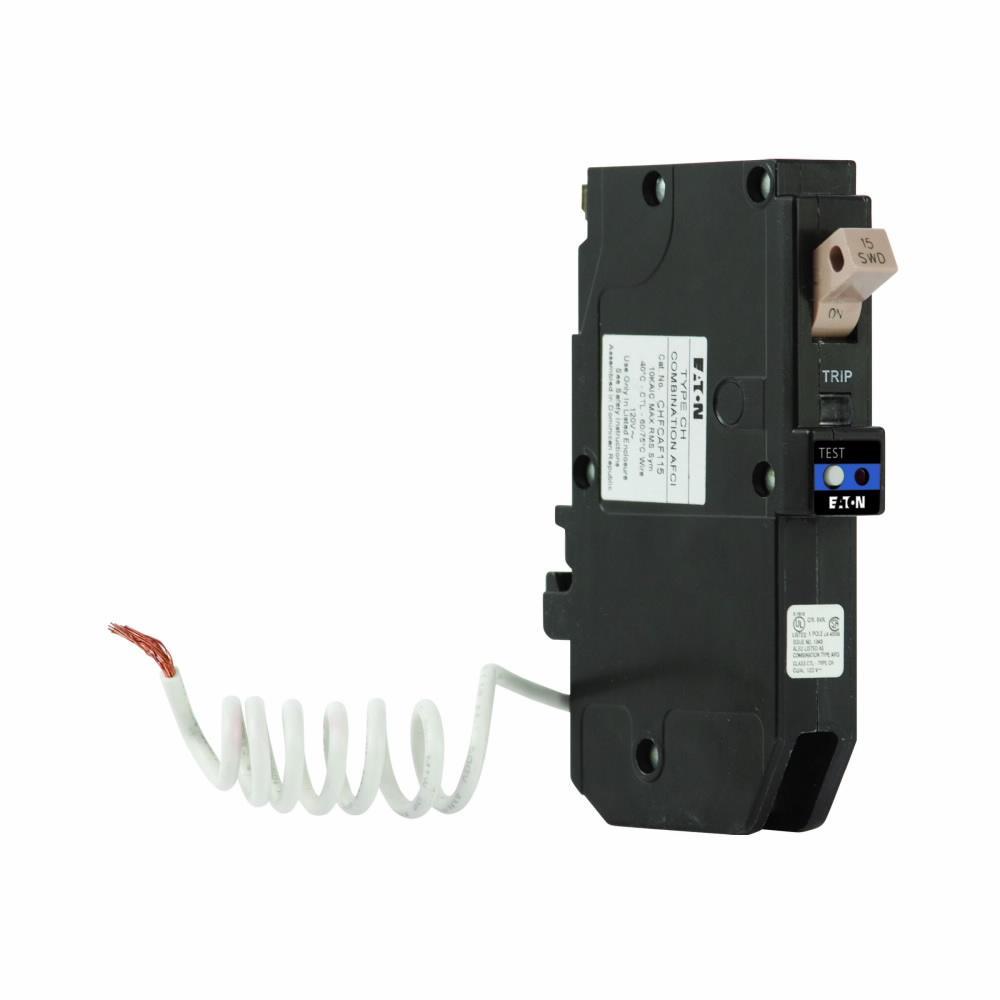

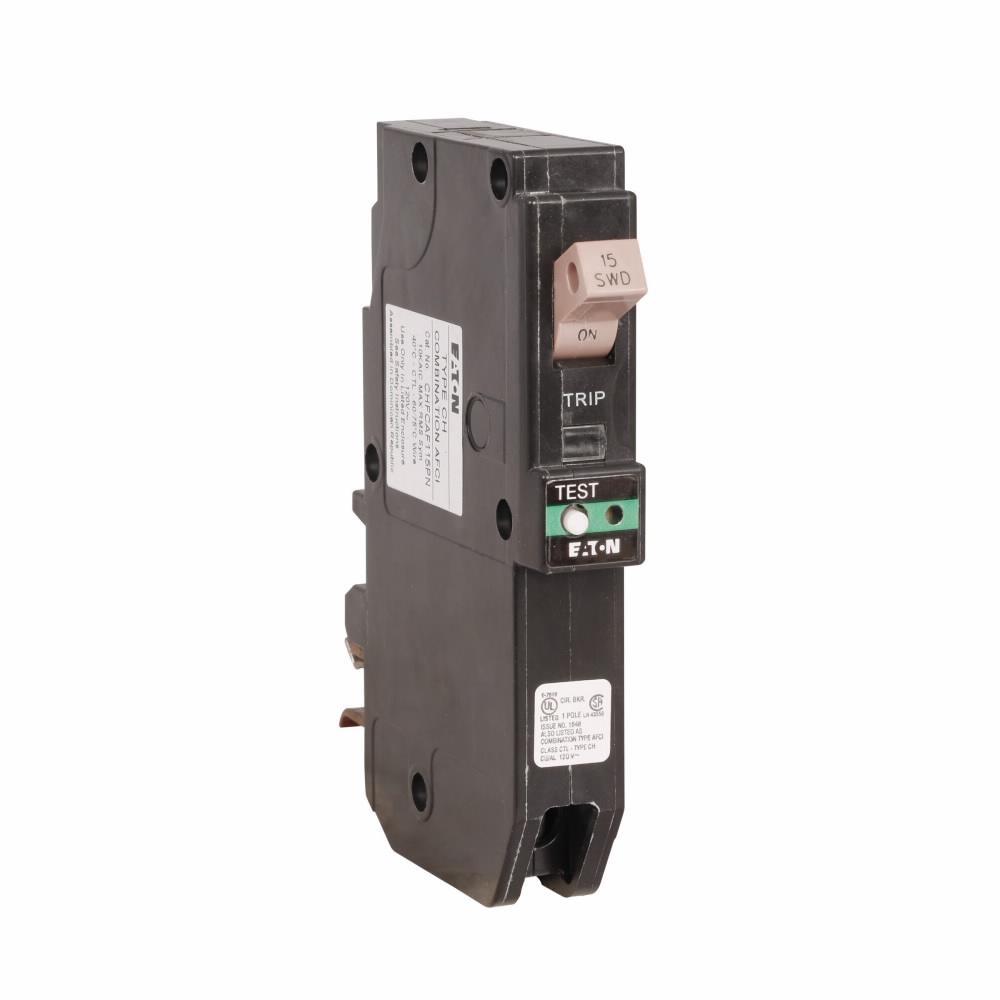

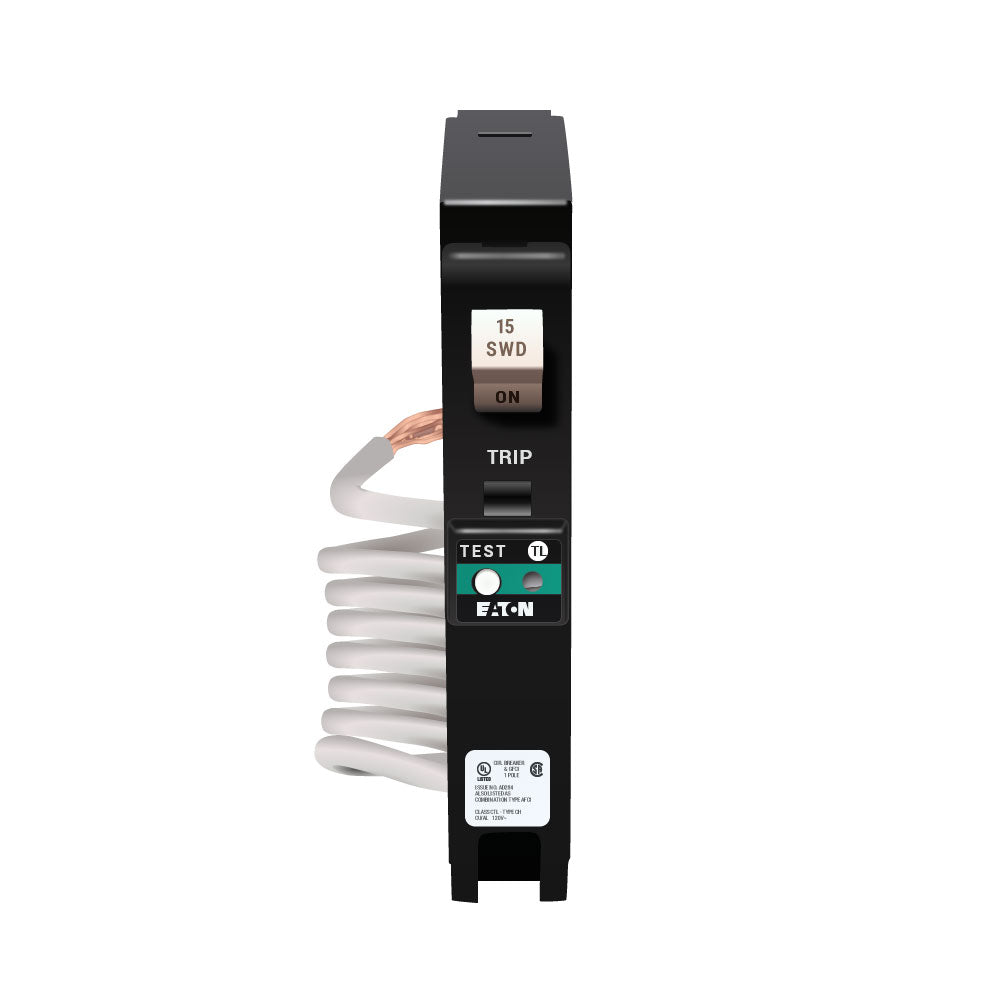

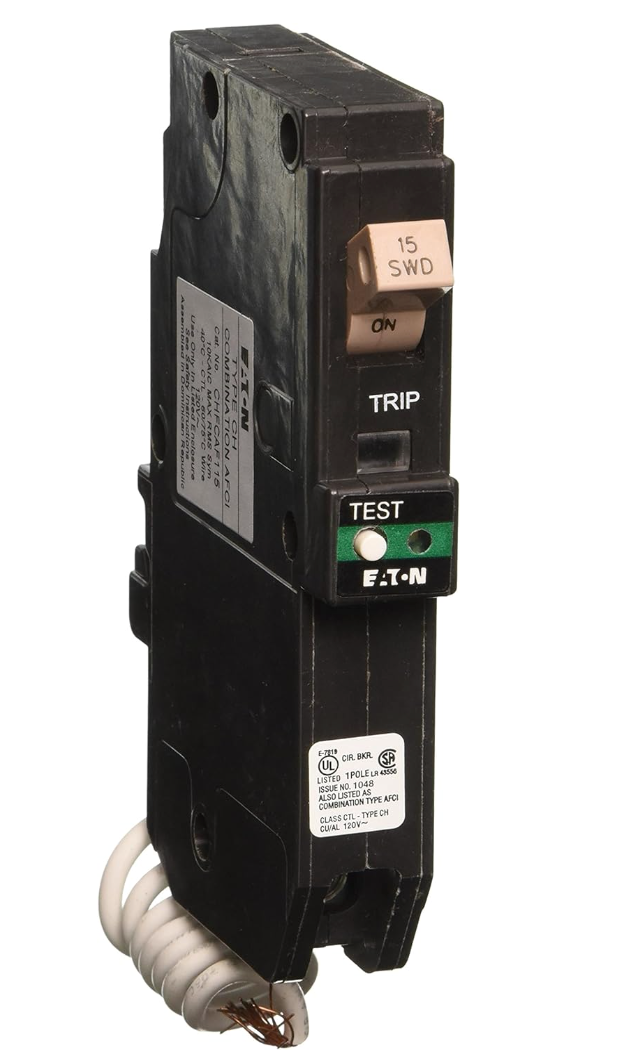

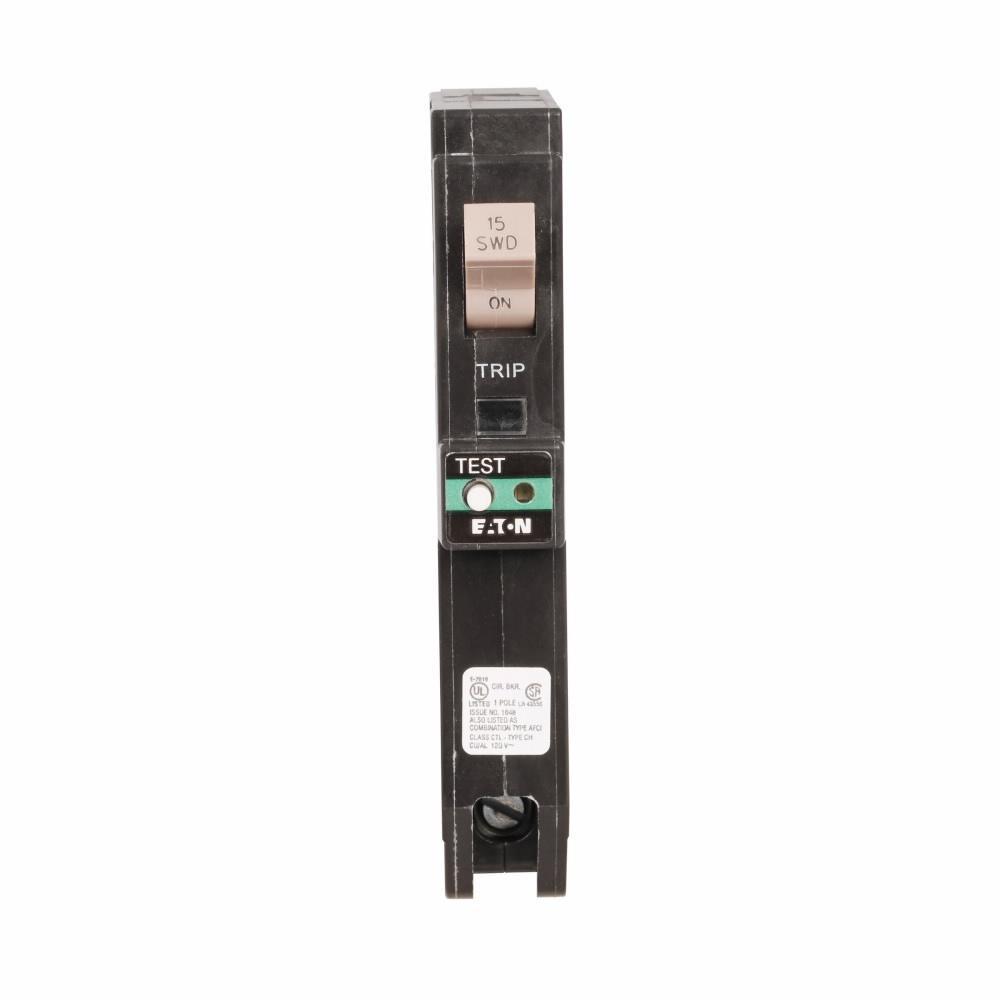

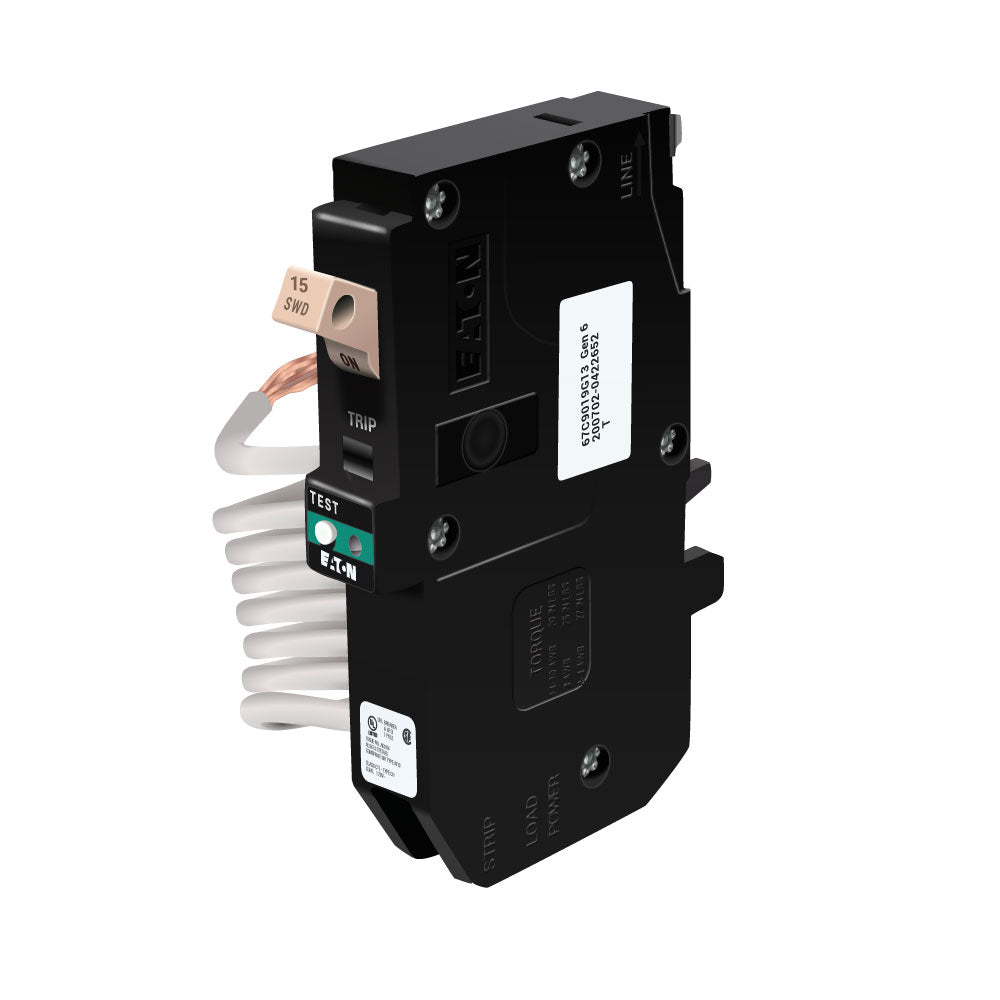

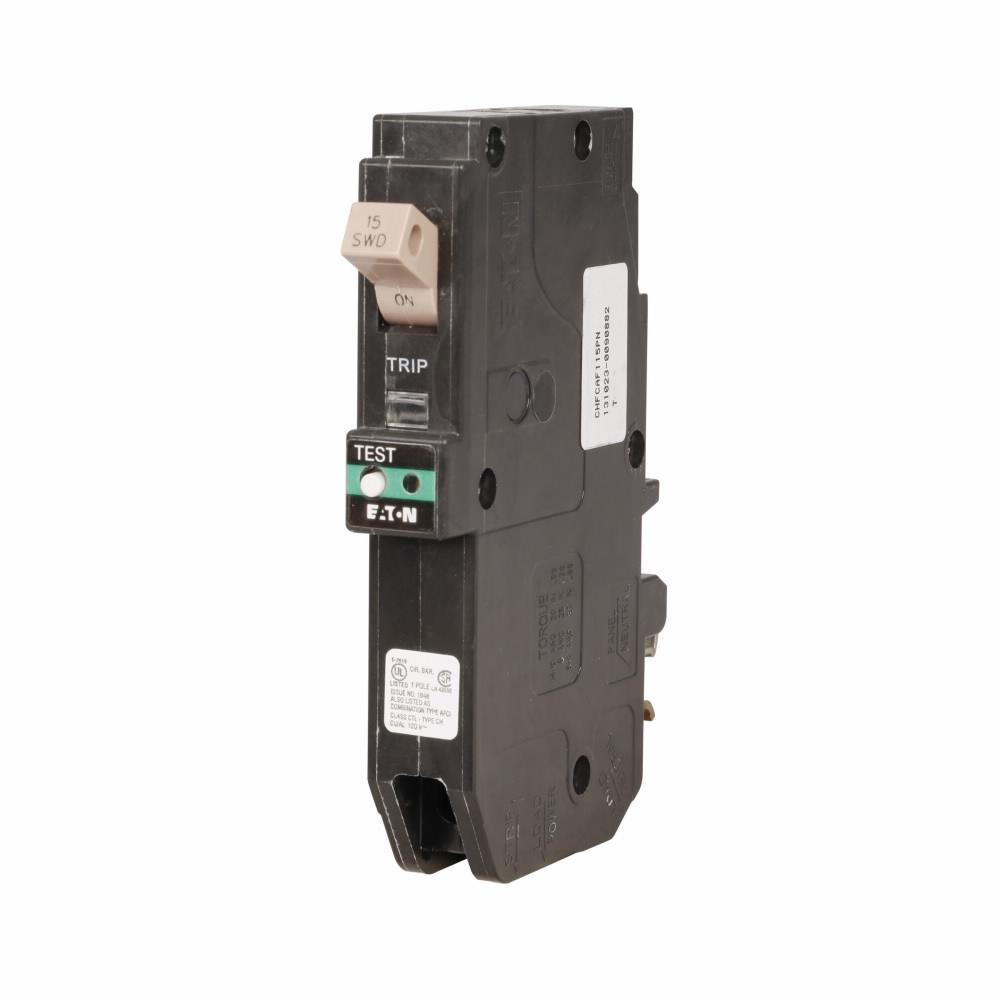

CHFN115AF is a 15 Amp, 1-pole Eaton CH Combo Arc Fault Circuit Breaker designed for 120/240 Volt applications with a 10 kA interrupt rating and pigtail connection.This Eaton CHFN115AF circuit breaker features a plug-on mounting type with long time and instantaneous trip functions. It is UL listed and part of the CH series frame, providing reliable arc fault protection for residential and commercial electrical systems.
- Amperage: 15 A
- Voltage Rating: 120/240 V
- Number of Poles: 1
- Interrupt Rating: 10 kAIC
- Mounting Type: Pigtail
- Series/Frame: CH
- Trip Unit: Long time and instantaneous trip
- Certifications: UL Listed
- Circuit Breaker Type: CH Combo AFCI
- Connection Type: Pigtail
- Dimensions: 4.5 in L x 0.75 in W x 1.2 in H
- Weight: 0.45 lb
Specifications
- Part Number: CHFN115AF
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : CHFN
- Type : CHFN
- Voltage : 1
- Amperage : 15
- Phase : 1
- Poles : 1
- AIC rating : 10kA@120V
- Connection : Plug-In
- Functions : Long Time and Instantaneous Trip
- Terminal Connection : Pigtail
- MCM Size : Min. Wire Size 14 AWG Max. Wire Size 6 AWG
- Breaker Type : CH
- Protection : Thermal Magnetic
Product Data
- UPC : 786689058814
- GTIN : 00786689058814
- Country of Origin : Dominican Republic
- Dimensions : 4.5 in x 1.2 in x 0.75 in (Length/Depth x Height x Width)
- Weight : 0.45 lb
- Panel Type : Type CH Loadcenters
- Standards : UL Listed, HACR Rated
- Certification : UL 489, HACR Rated
