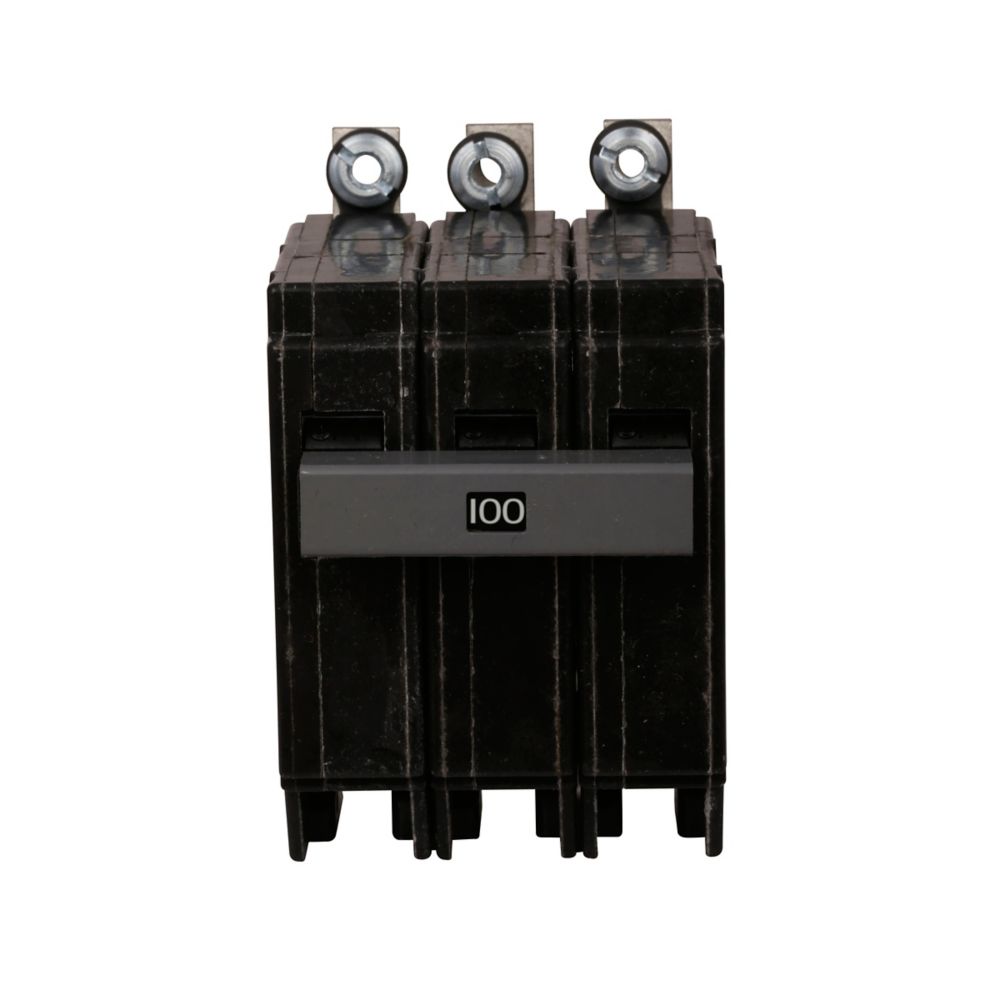

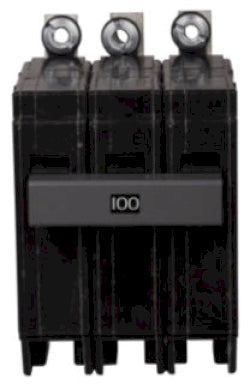

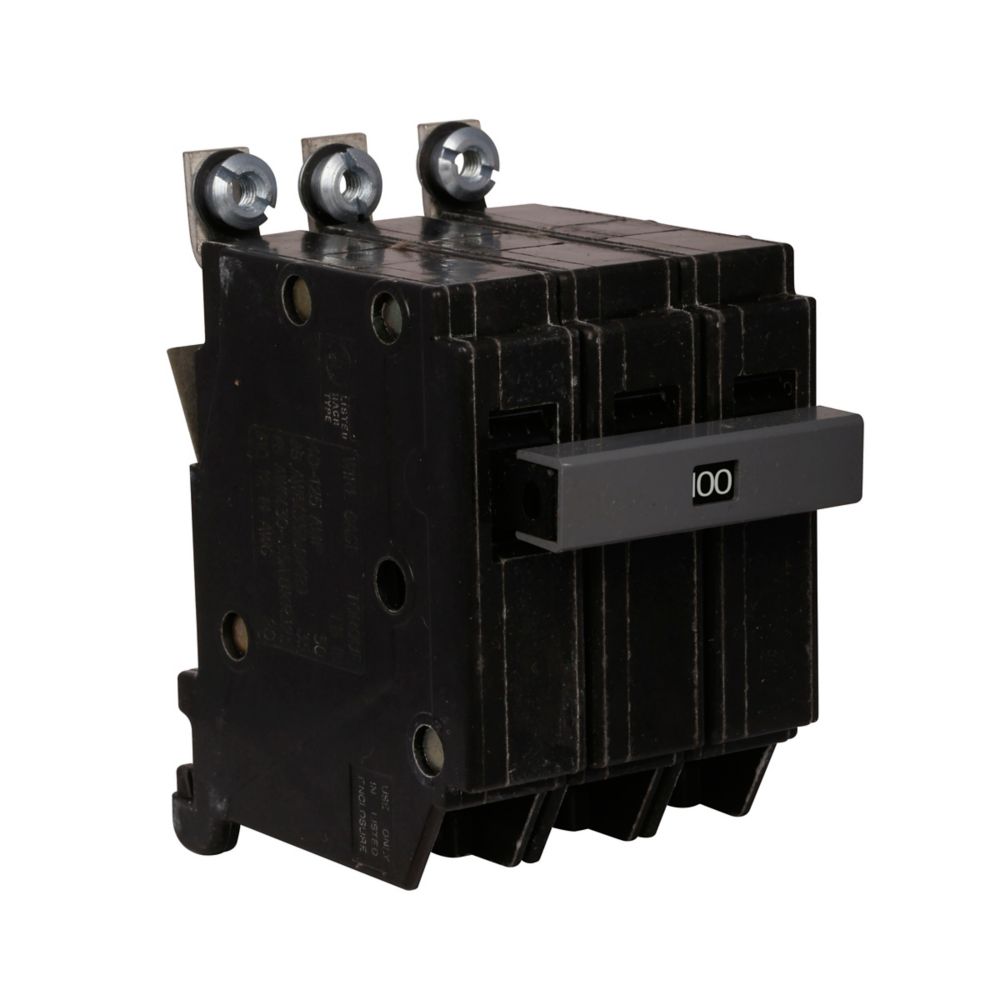

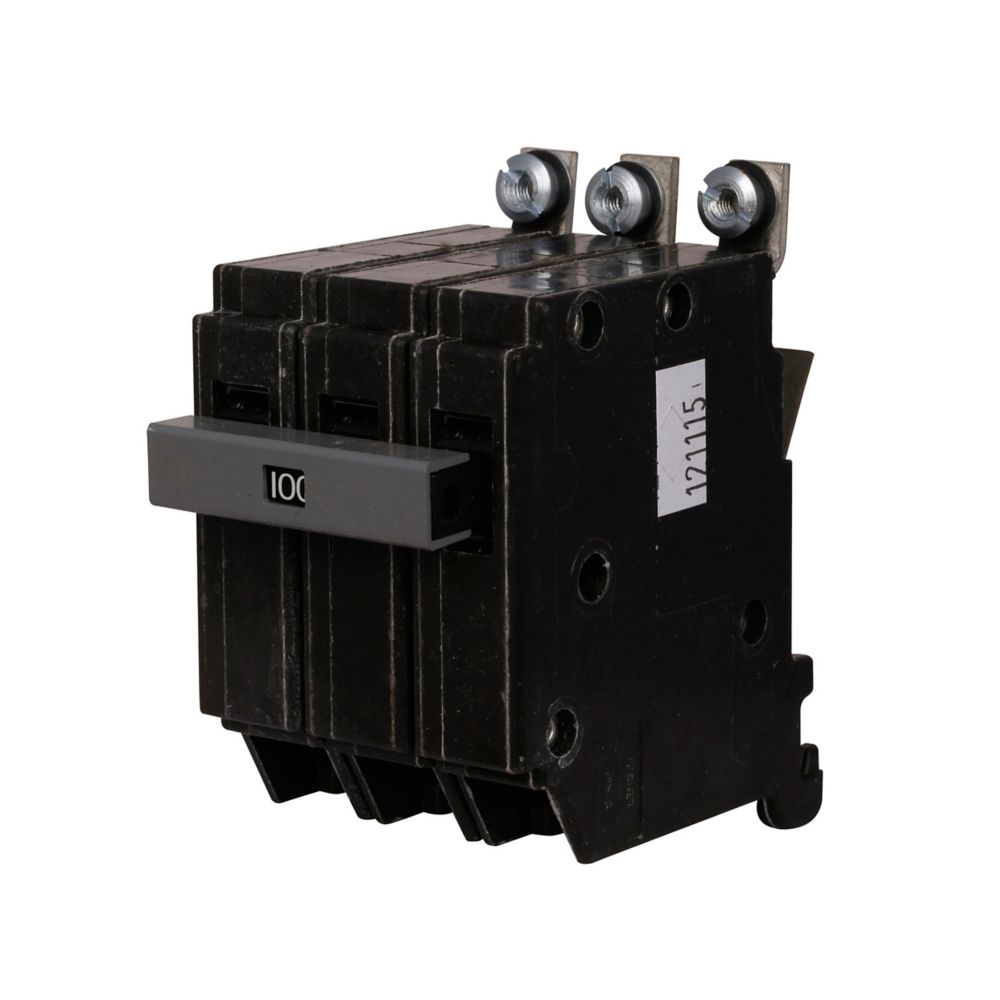

CHB3100 - Cutler Hammer 100A 240V 3 Pole Bolt-On Circuit Breaker Type CHB Frame

CHB3100

CHB3100 is a Cutler Hammer 3 pole circuit breaker rated for 100 amps and 240 volts AC with bolt-on mounting.This Type CHB thermal magnetic circuit breaker features a 10kA interrupt rating, suitable for industrial panelboard applications. It supports wire sizes from 14 to 8 AWG and provides long time and instantaneous trip functions. The breaker is UL and CSA certified, ensuring compliance with safety standards.

• Manufacturer: Cutler Hammer (Eaton)
• Amperage: 100A
• Voltage: 240 VAC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 10kA
• Frame/Series: CHB
• Trip Unit: Thermal Magnetic
• Wire Size Range: 14-8 AWG
• Certifications: UL and CSA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CHB3100
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : CHB Series
• Type : CHB
• Voltage : 240
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 782113112701
• GTIN : 00782113112701
• Dimensions : 5.9 in x 2.2 in x 3.8 in (Length/Depth x Height x Width)
• Weight : 0.9 lb
• Wire Size : 14-8 AWG (Aluminum/Copper)
