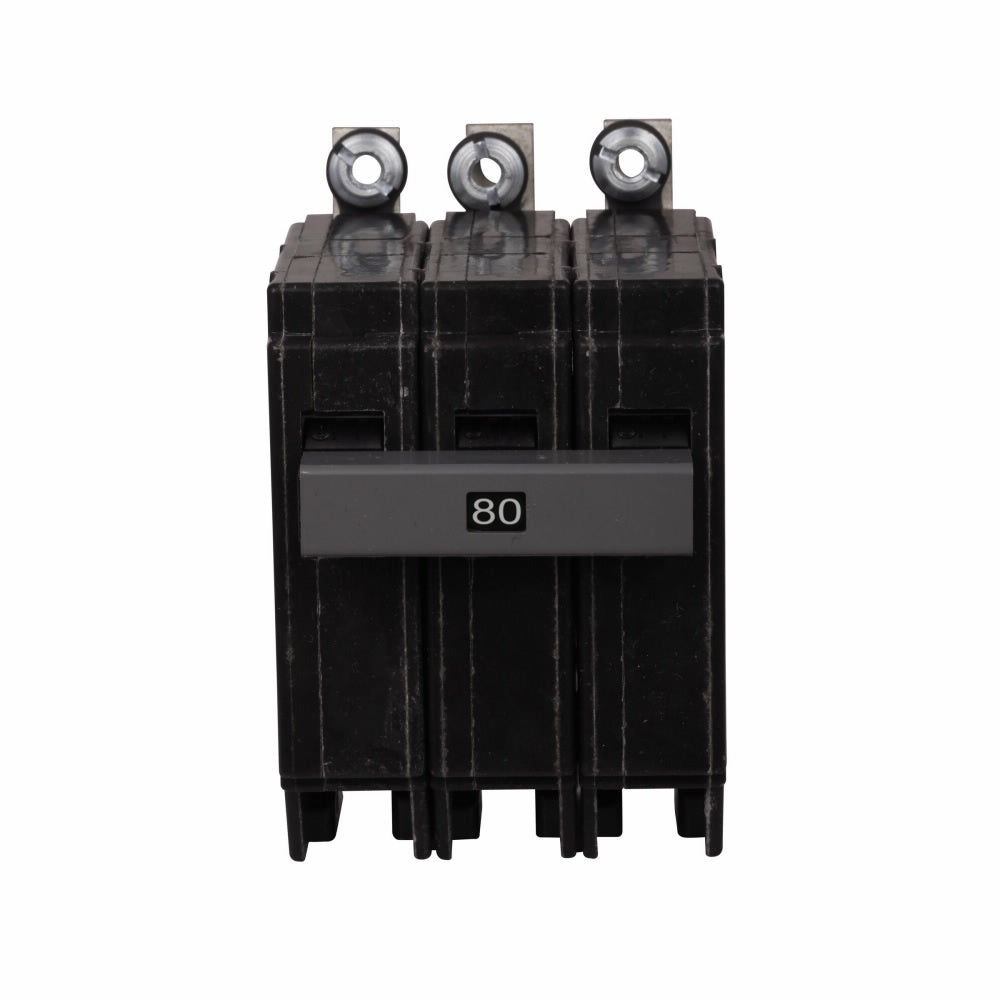

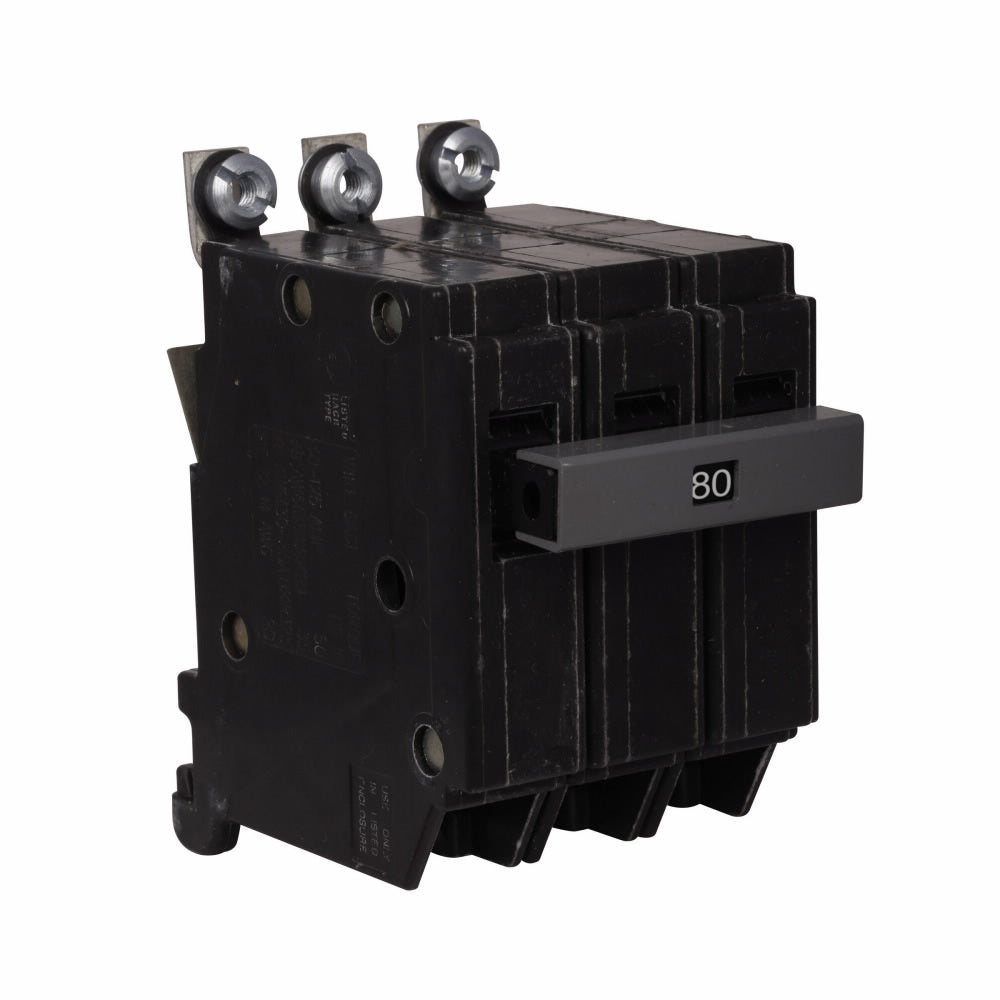

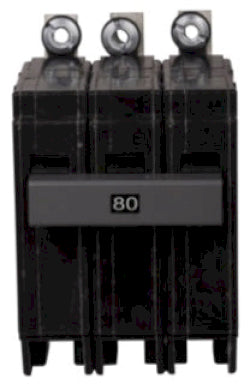

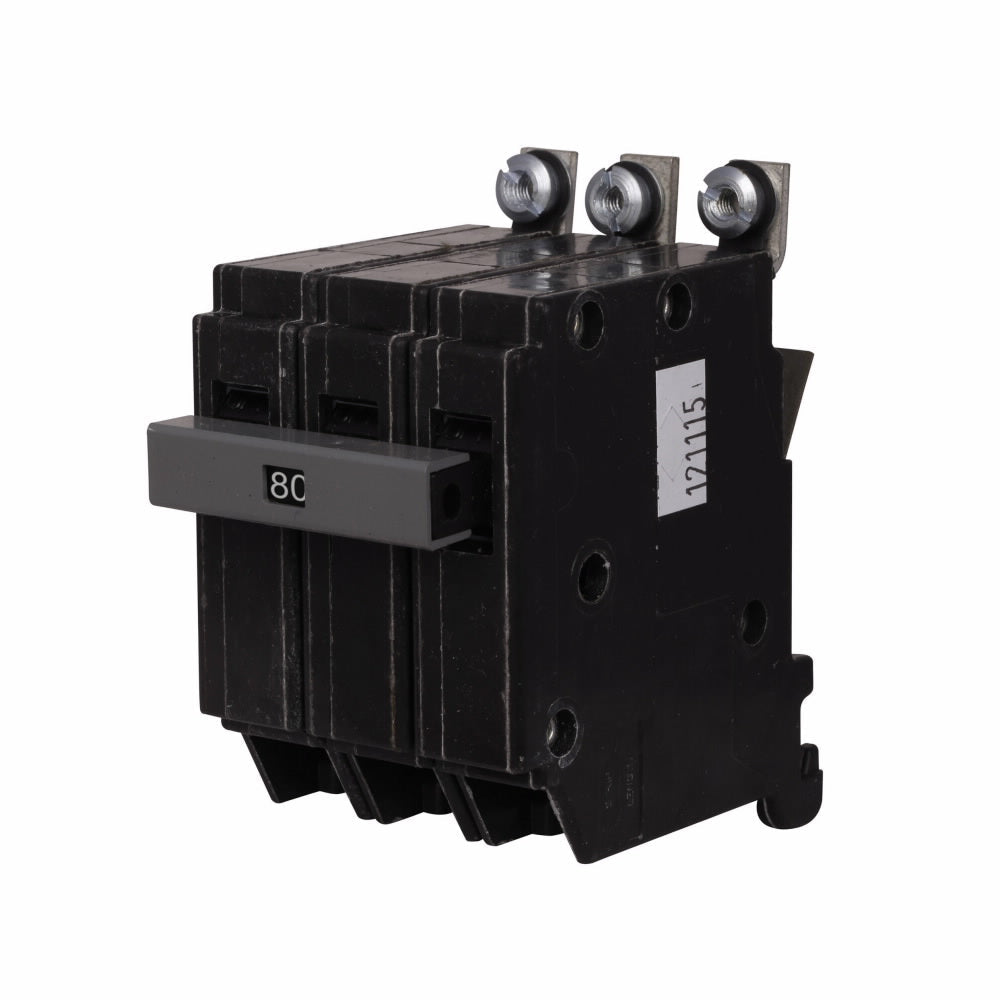

CHB3080 - Cutler Hammer 80 Amp 3 Pole 240V Thermal Magnetic Circuit Breaker CHB Frame

CHB3080

CHB3080 is a Cutler Hammer 80 Amp 3 Pole thermal magnetic circuit breaker designed for 240 Volt applications with a CHB frame.This bolt-on molded case circuit breaker features a 10 kA interrupt rating at 240V, suitable for use in CH Loadcenters and PB panelboards. It supports wire sizes from #4 to 1/0 AWG and provides reliable long-time and instantaneous trip protection. Certified to UL 489 standards, it offers a compact 2 inch by 2 inch by 2 inch form factor and weighs 0.9 lb.

• Amperage Rating: 80 A
• Voltage Rating: 240 V AC
• Number of Poles: Three-pole
• Interrupt Rating: 10 kAIC at 240 V
• Mounting Type: Bolt-On
• Frame/Series: CHB
• Trip Unit: Thermal Magnetic
• Wire Size Range: #4 to 1/0 AWG
• Certifications: UL 489
• Dimensions: 2 in x 2 in x 2 in (H x W x D)
• Weight: 0.9 lb
• Used With: CH Loadcenters, PB Panelboards

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CHB3080
• Manufacturer : Cutler Hammer
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : CH Series
• Type : CHB
• Voltage : 240
• Amperage : 80
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 782113146751
• GTIN : 00782113146751
• Country of Origin : Dominican Republic
• Dimensions : 2 in x 2 in x 2 in (Length/Depth x Height x Width)
• Weight : 0.9
• Certification : UL 489
• Wire Size : AWG 4 to AWG 1/0
