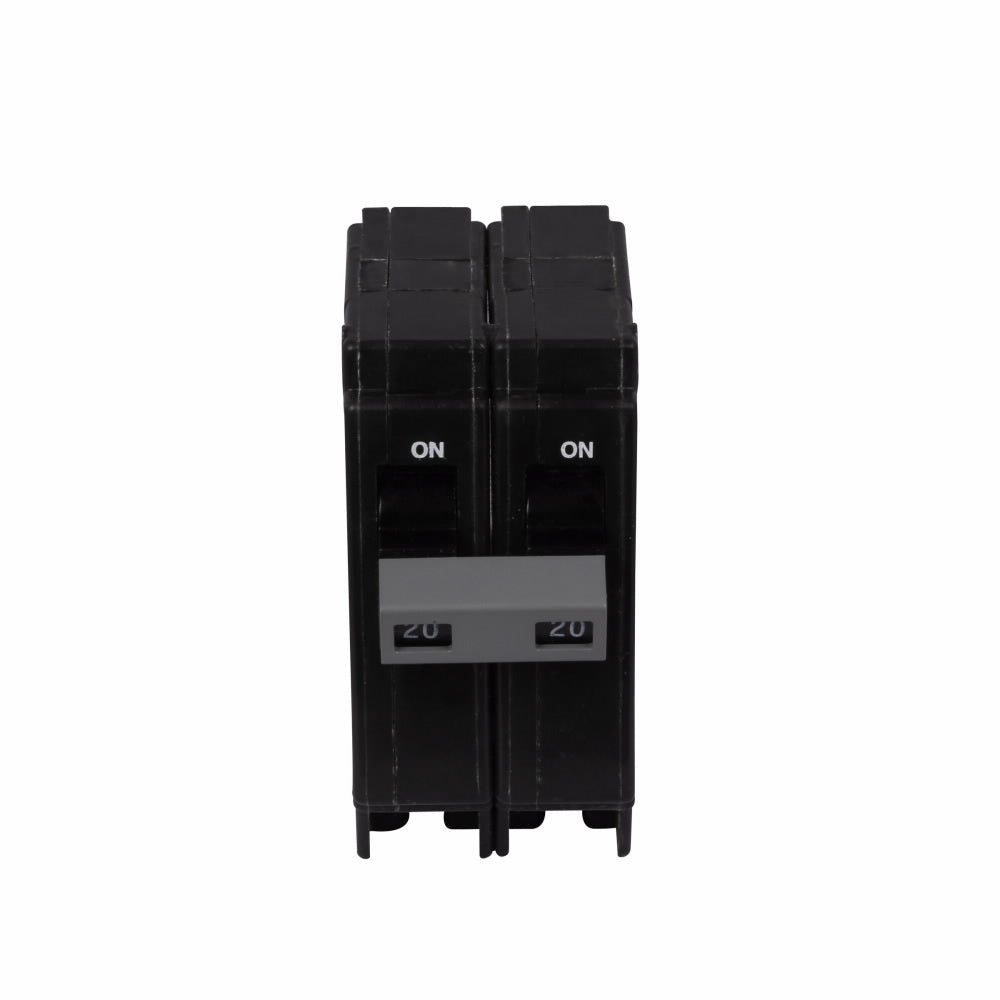

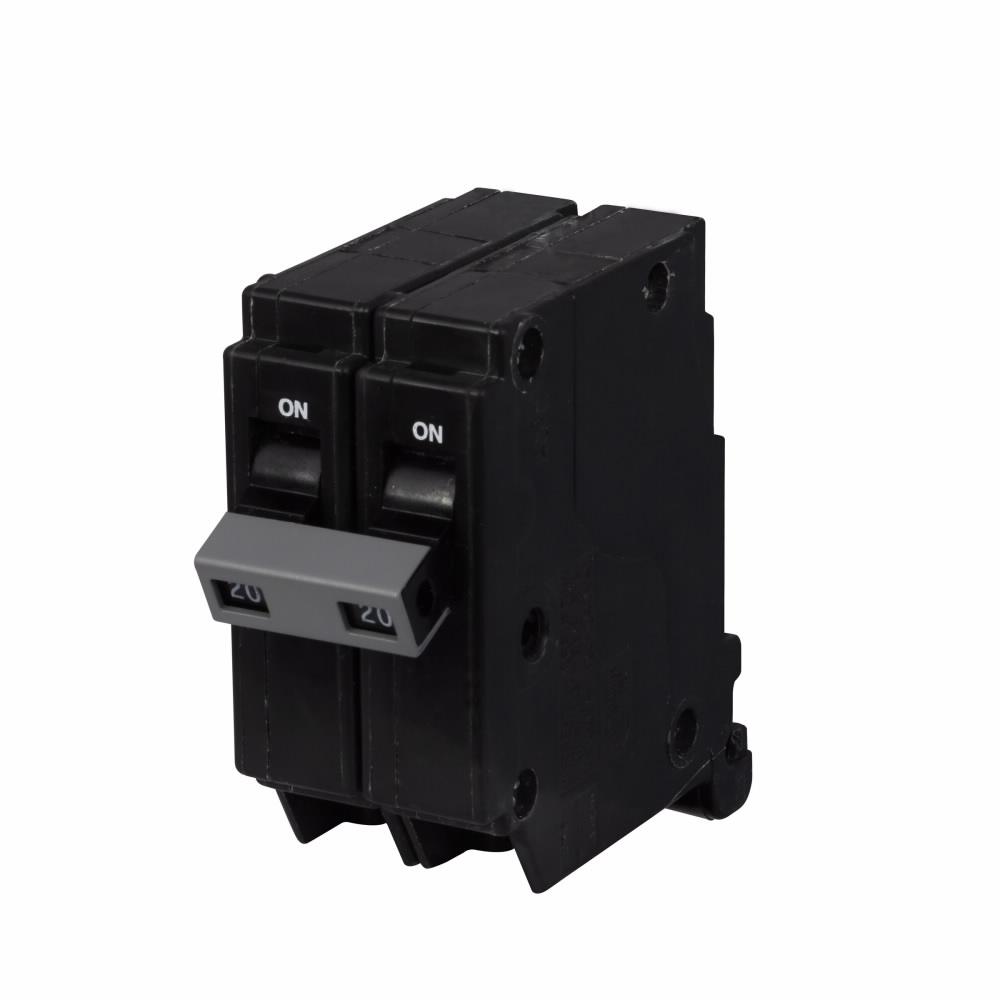

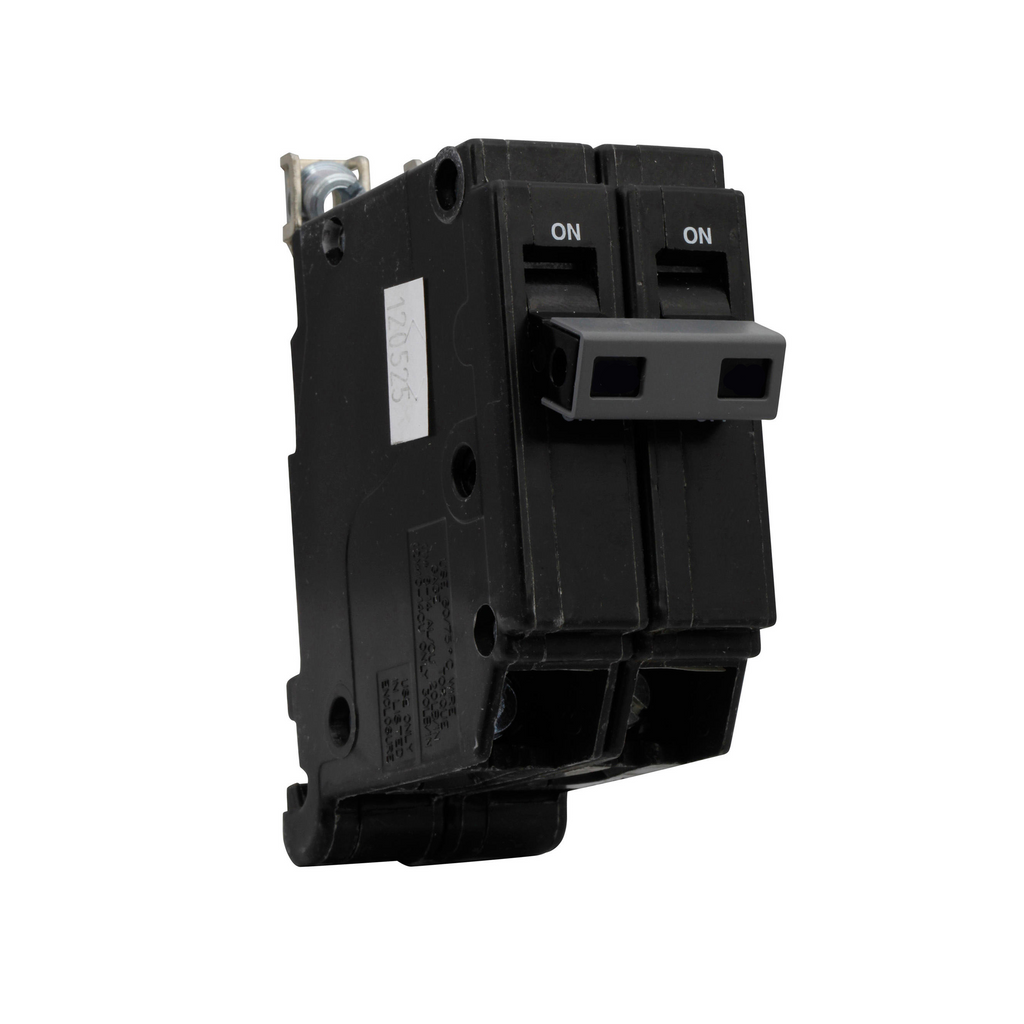

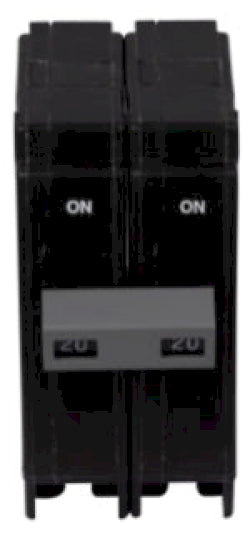

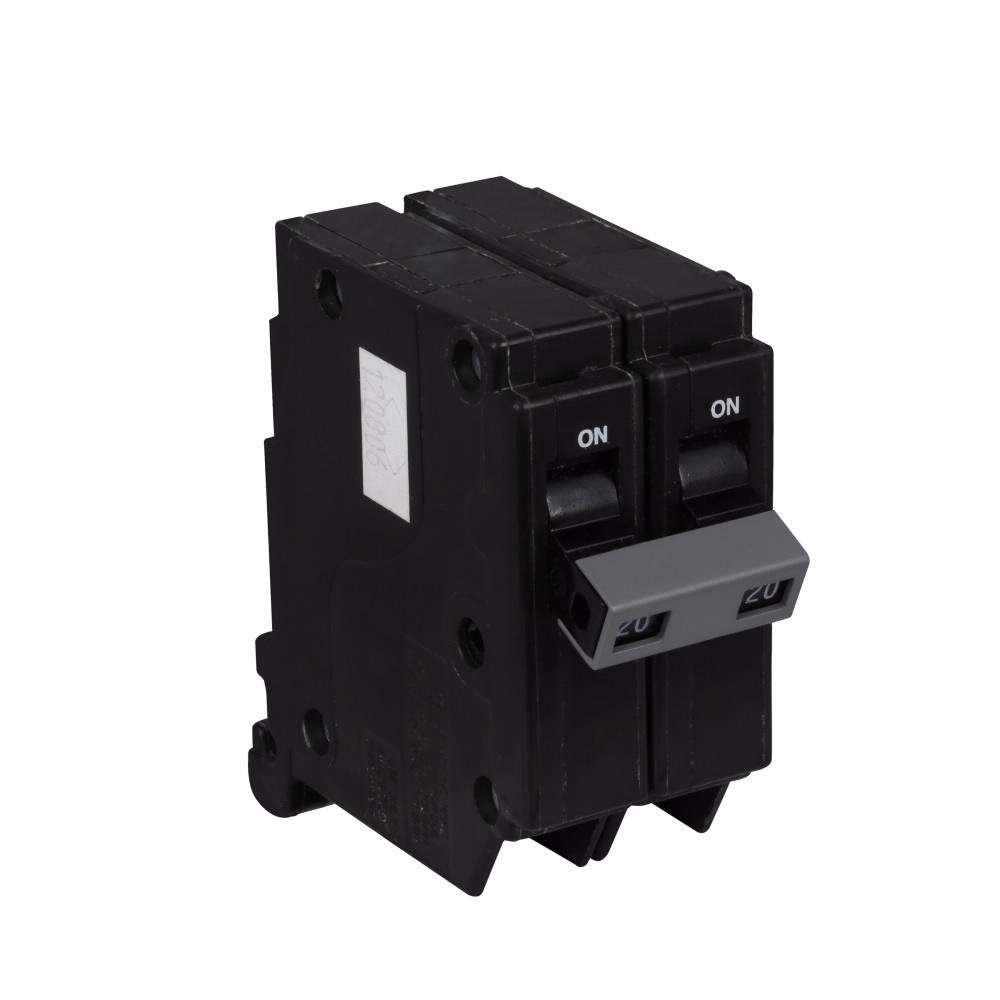

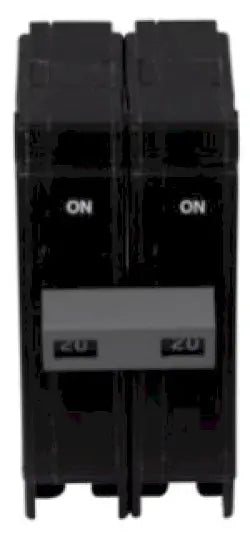

CHB220 - Cutler Hammer 20 Amp 2 Pole 120/240V Thermal Magnetic Circuit Breaker Bolt-On 10kAIC CHB Frame

CHB220

CHB220 is a Cutler Hammer 20 Amp, 2 Pole thermal magnetic circuit breaker designed for 120/240V applications with bolt-on mounting.This CHB220 circuit breaker features a 10kA interrupting rating at 240V, long-time and instantaneous trip functions, and supports wire sizes from AWG 14 to AWG 8. It is UL and CSA certified and fits CH load centers with a compact frame size of 3.7 in length, 1.5 in width, and 3.4 in height.

• Manufacturer: Cutler Hammer (Eaton)
• Part Number: CHB220
• Amperage: 20 A
• Voltage: 120/240 VAC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 10 kAIC at 240V
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Trip
• Wire Size: AWG 14 to AWG 8
• Frame/Series: CHB
• Certifications: UL 489, CSA
• Dimensions: 3.7" L x 1.5" W x 3.4" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CHB220
• Manufacturer : Cutler Hammer
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : CHB Series
• Type : CHB
• Voltage : 240
• Amperage : 20
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 782113112435
• GTIN : 00782113112435
• Country of Origin : Dominican Republic
• Dimensions : 3.7 in x 3.4 in x 1.5 in (Length/Depth x Height x Width)
• Weight : 0.6
• Wire Size : AWG 14 to AWG 8
