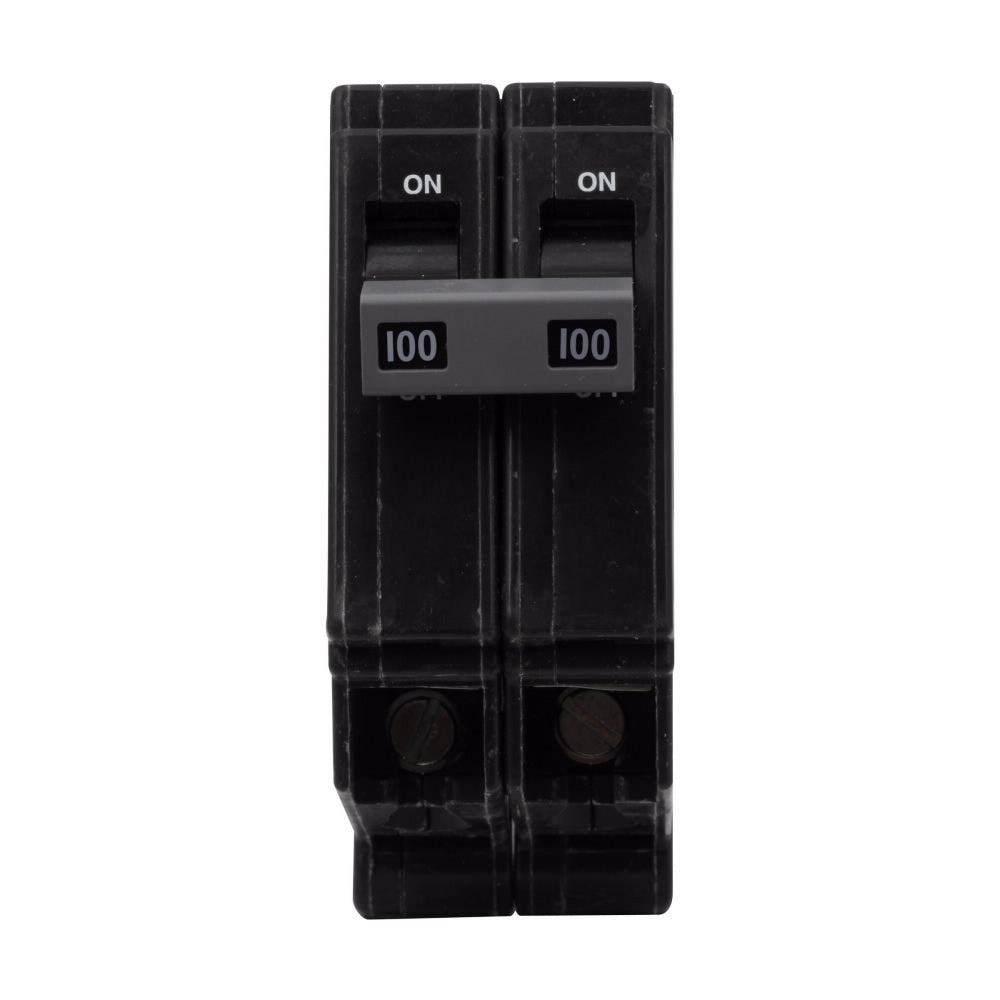

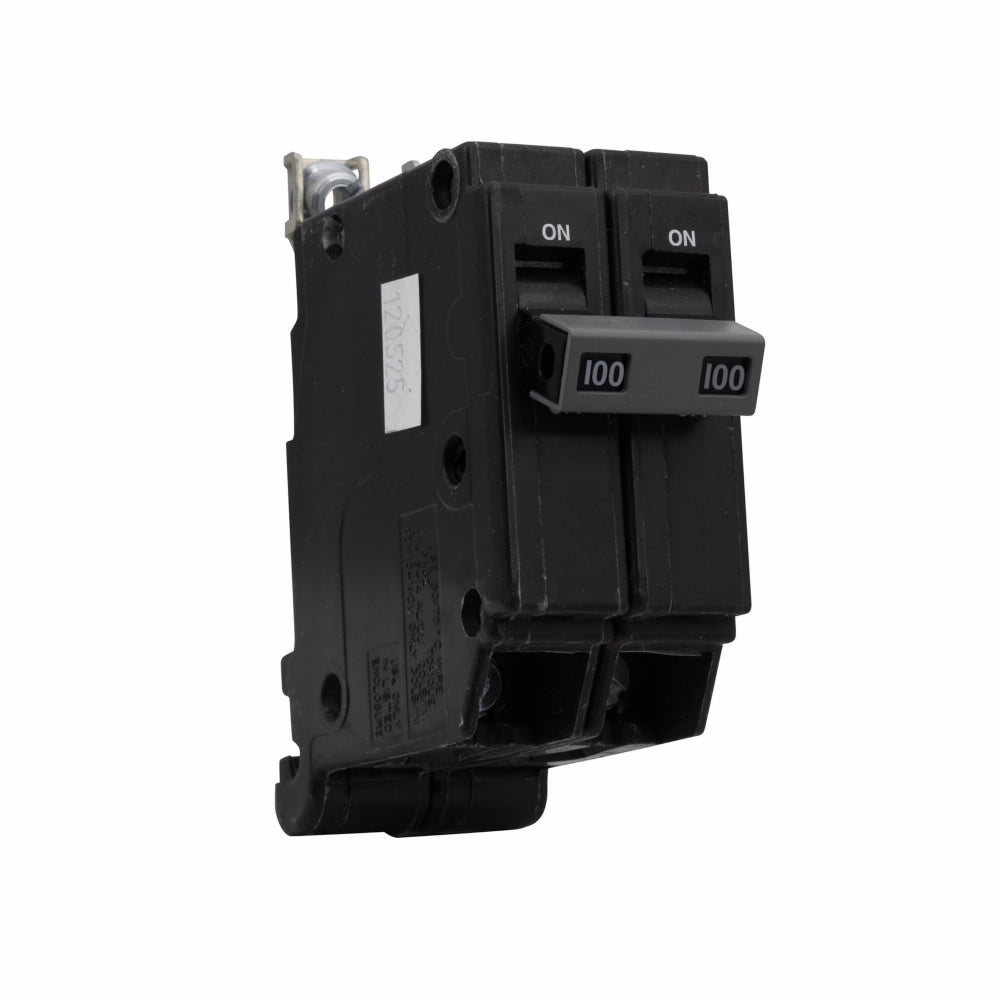

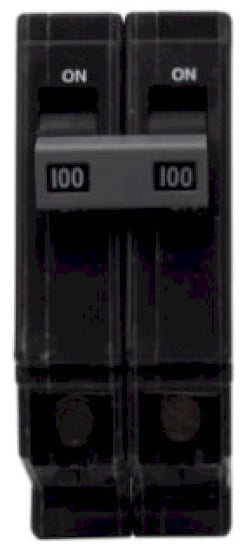

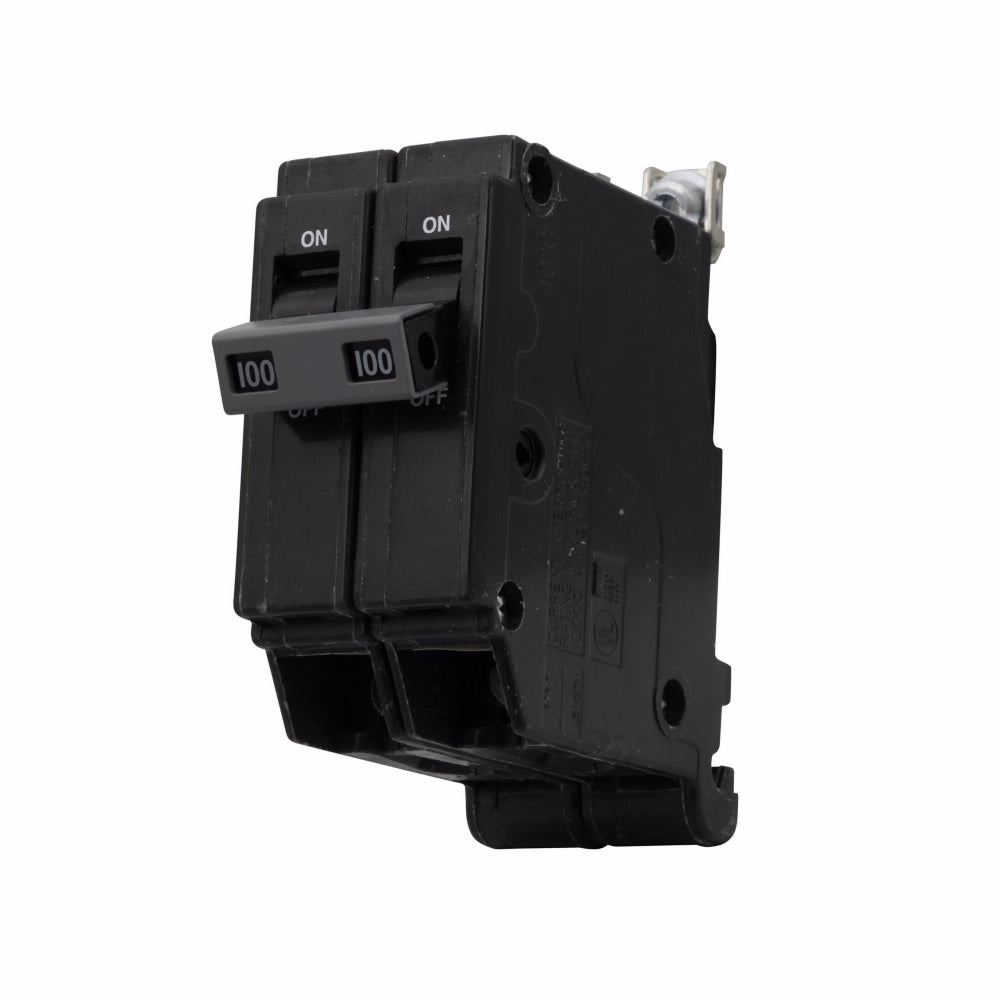

CHB2100 - Cutler Hammer 100A 120/240V 2-Pole Molded Case Circuit Breaker, 10kA Interrupt, Bolt-On Mount

CHB2100

CHB2100 is a Cutler Hammer 2-pole molded case circuit breaker rated for 100 amps and 120/240 volts AC with a 10 kA interrupt rating.This Eaton Cutler Hammer CHB2100 circuit breaker features a thermal magnetic trip unit (LI trip), bolt-on mounting, and is designed for use in single-phase applications. It supports wire sizes from #4 to 1/0 AWG and has a compact size of 3.6 x 1.5 x 3.5 inches. The breaker is UL 489 certified and suitable for CH loadcenters, providing reliable overcurrent protection with a sintered silver tungsten contact design.

Key Specifications
• Amperage: 100 A
• Voltage Rating: 120/240 V AC
• Number of Poles: 2
• Interrupt Rating: 10 kAIC
• Trip Unit: Thermal Magnetic (LI Trip)
• Mounting Type: Bolt-On
• Wire Size Range: #4 to 1/0 AWG
• Dimensions: 3.6" L x 1.5" W x 3.5" H
• Certifications: UL 489
• Phase: Single-phase
• Contact Material: Sintered Silver Tungsten
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: CHB2100
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : CHB Series
• Type : CHB
• Voltage : 240
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic



Product Data

• UPC : 782113112671
• GTIN : 00782113112671
• Country of Origin : Dominican Republic
• Dimensions : 3.6 in x 3.5 in x 1.5 in (Length/Depth x Height x Width)
• Weight : 0.55
• Certification : UL 489
• Wire Size : AWG 4 to AWG 1/0
