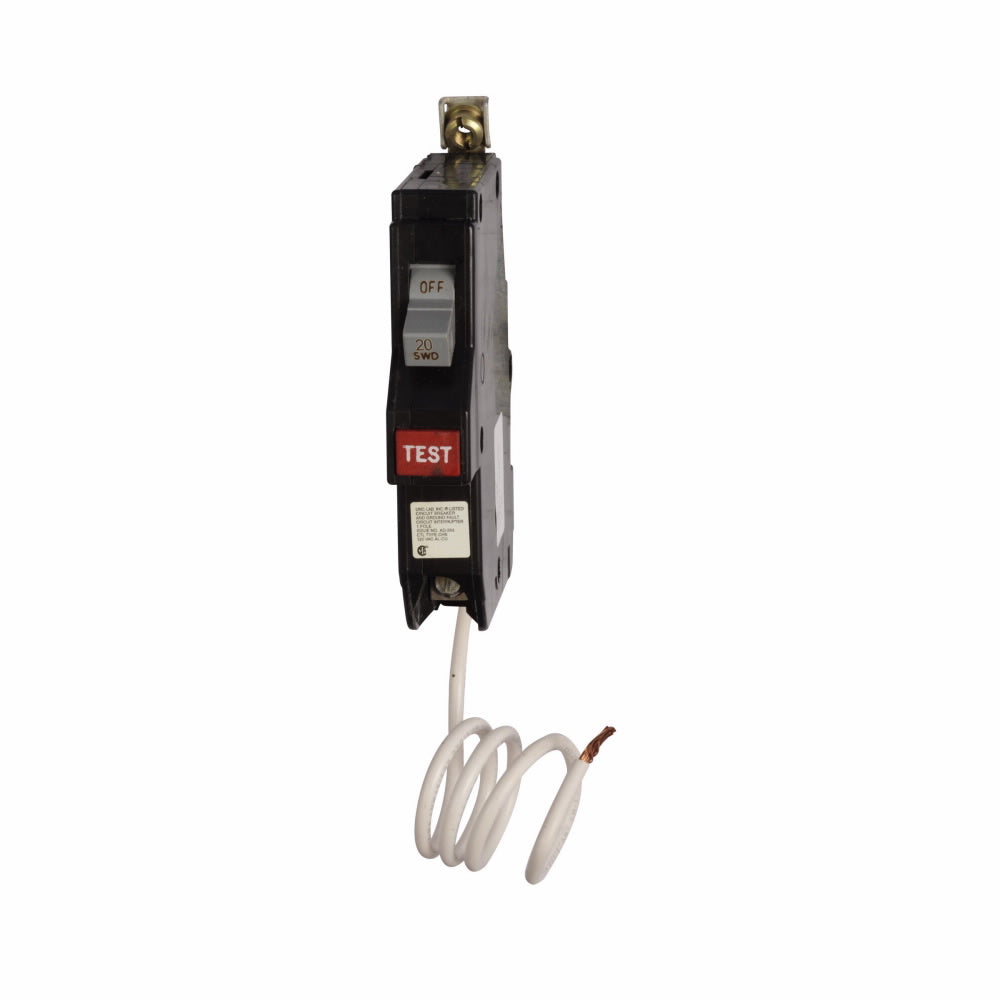

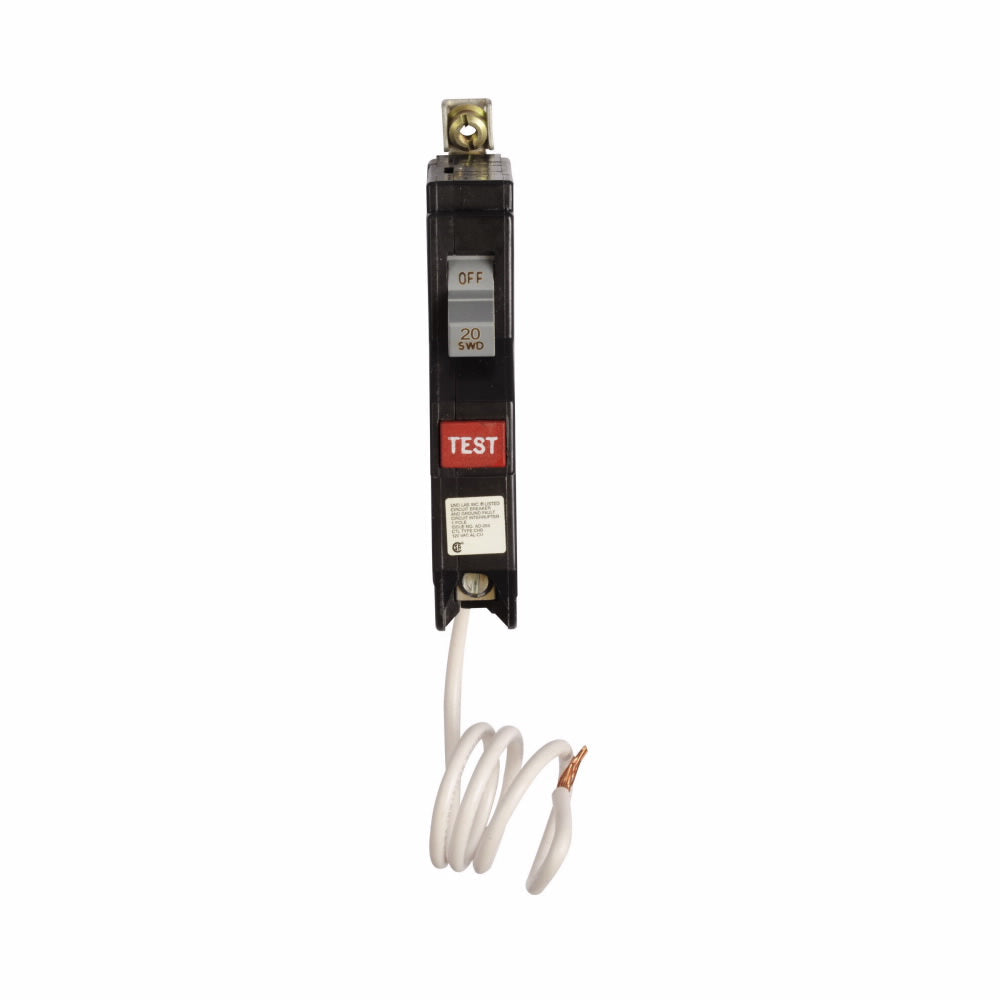

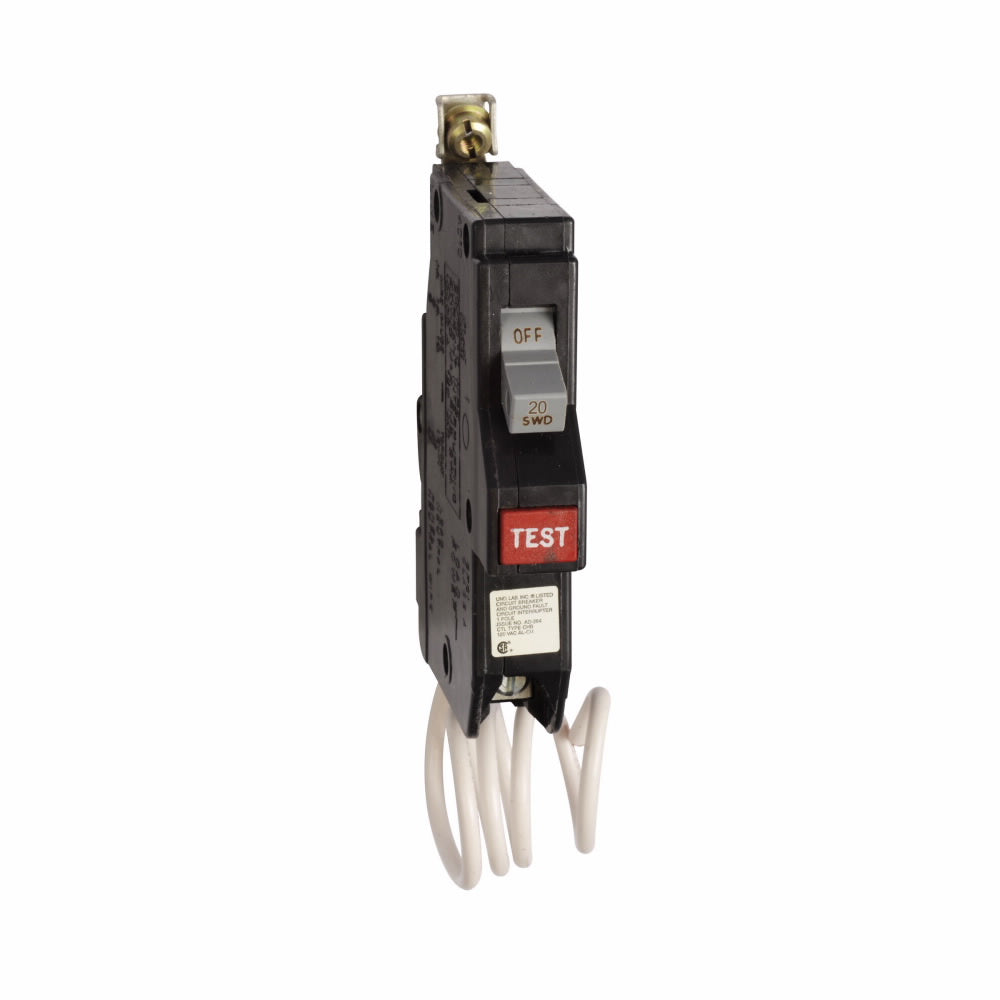

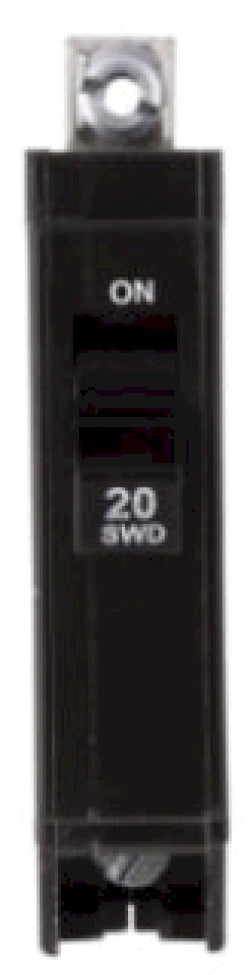

CHB120GF - Cutler Hammer 20A 120/240V Single-Pole Ground Fault Circuit Breaker Bolt-On Mount

CHB120GF

CHB120GF is a Cutler Hammer 20 Amp, 120/240 Volt single-pole ground fault circuit breaker designed for reliable protection in electrical systems.CHB120GF features a thermal magnetic trip unit with a 10 kA interrupt rating and 5 mA ground fault sensitivity. It supports wire sizes from #14 to #8 AWG and mounts with a bolt-on type for use in CH Loadcenters and PB panelboards. Certified to UL 489 standards, this breaker provides dependable ground fault protection for residential and commercial applications.

Key Specifications
• Amperage: 20 A
• Voltage Rating: 120/240 V
• Number of Poles: Single-pole
• Mounting Type: Bolt-On
• Interrupt Rating: 10 kAIC
• Trip Unit: Thermal Magnetic with 5 mA Ground Fault
• Wire Size: #14-8 AWG
• Series/Frame: CHB
• Certifications: UL 489
• Product Dimensions: 3.6" L x 2.7" H x 0.7" W
• Weight: 0.25 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CHB120GF
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : CHB Series
• Type : CHB
• Voltage : 120
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 782113270616
• GTIN : 00782113270616
• Dimensions : 3.6 in x 2.7 in x 0.7 in (Length/Depth x Height x Width)
• Weight : 0.25
• Wire Size : #14 to 8 AWG
