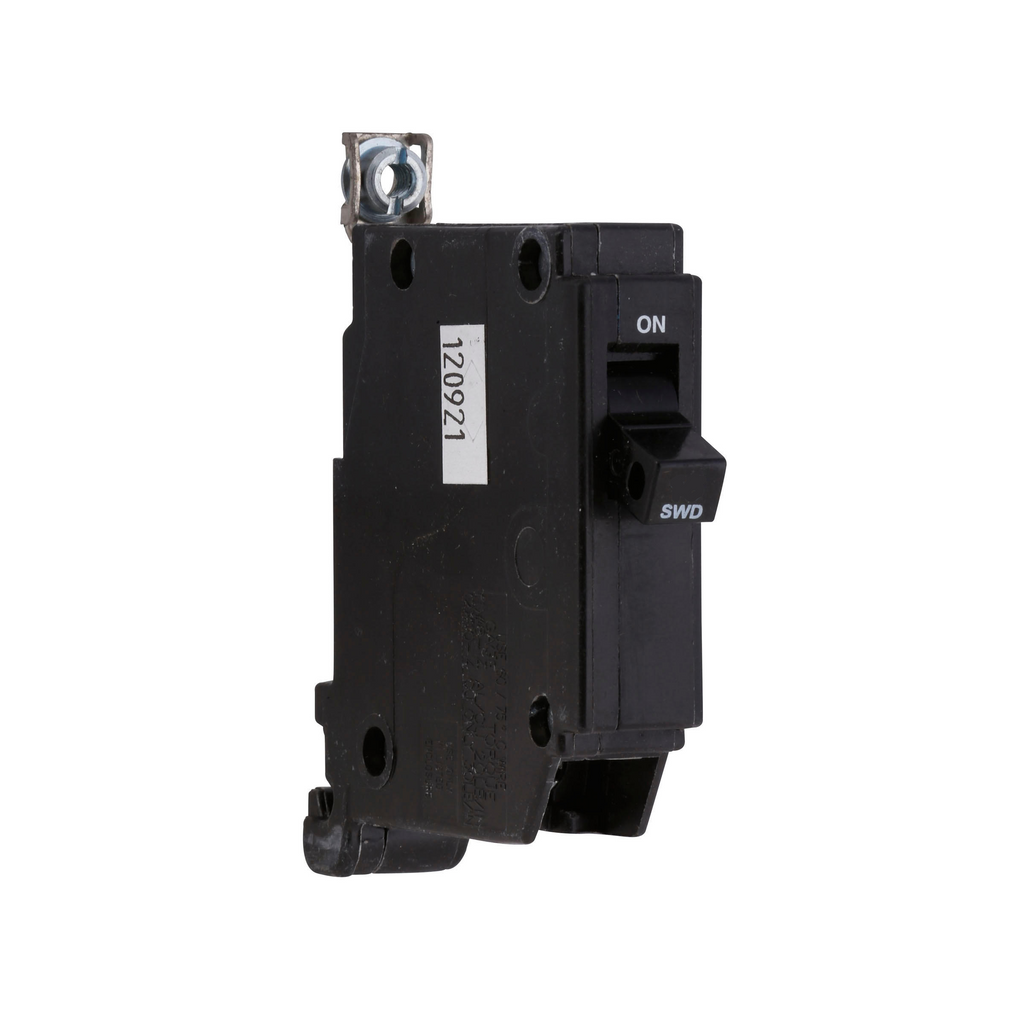

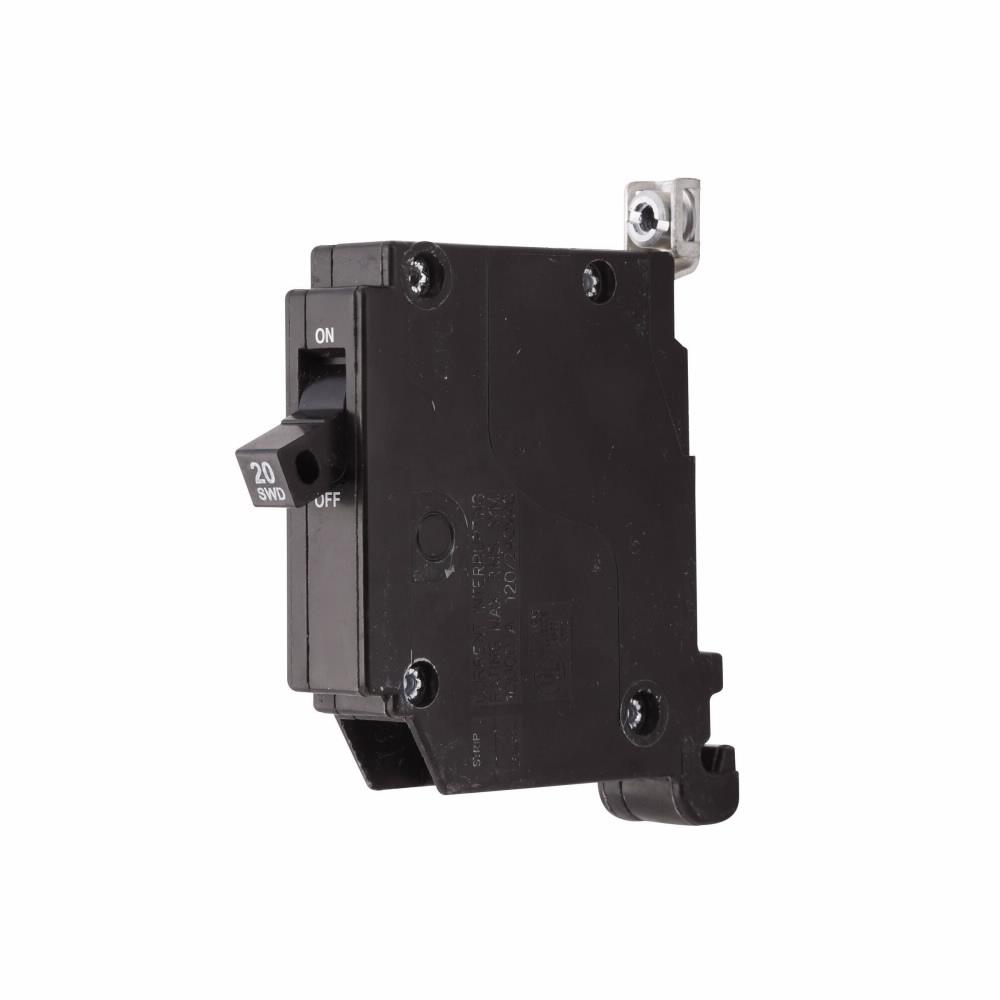

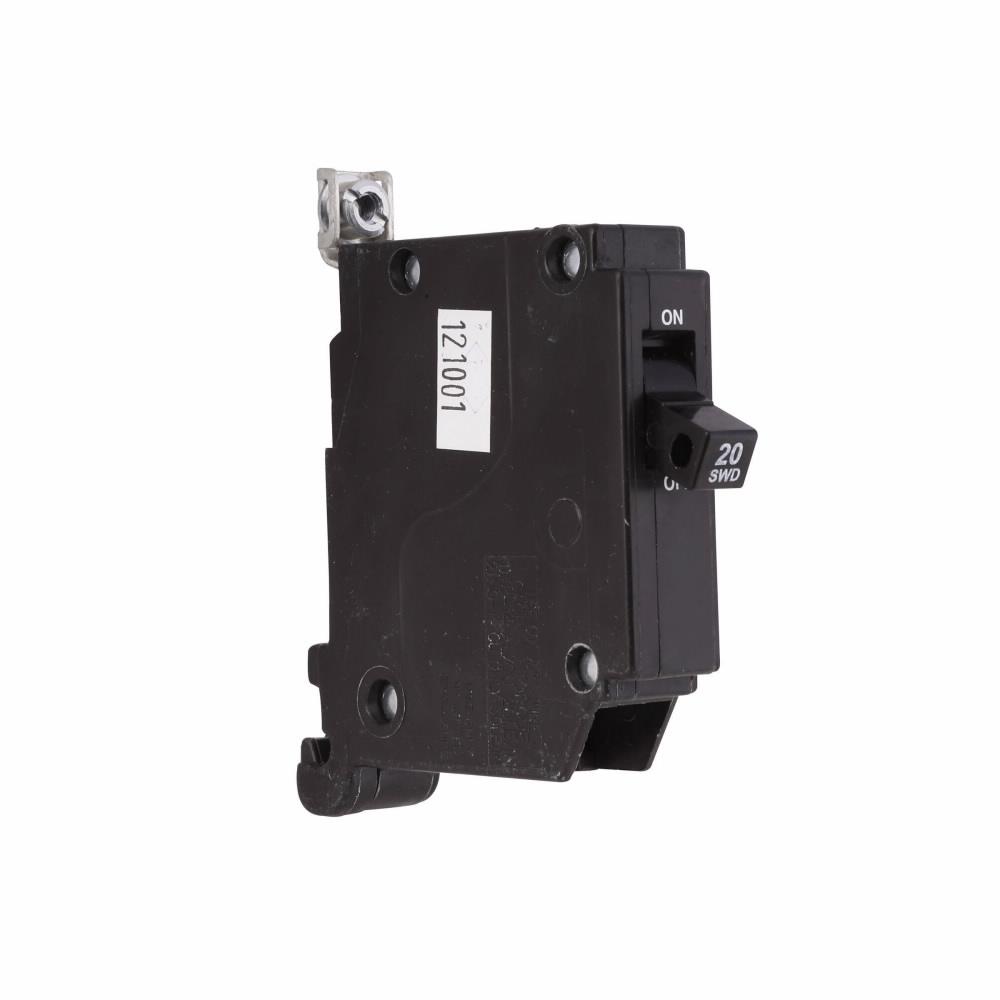

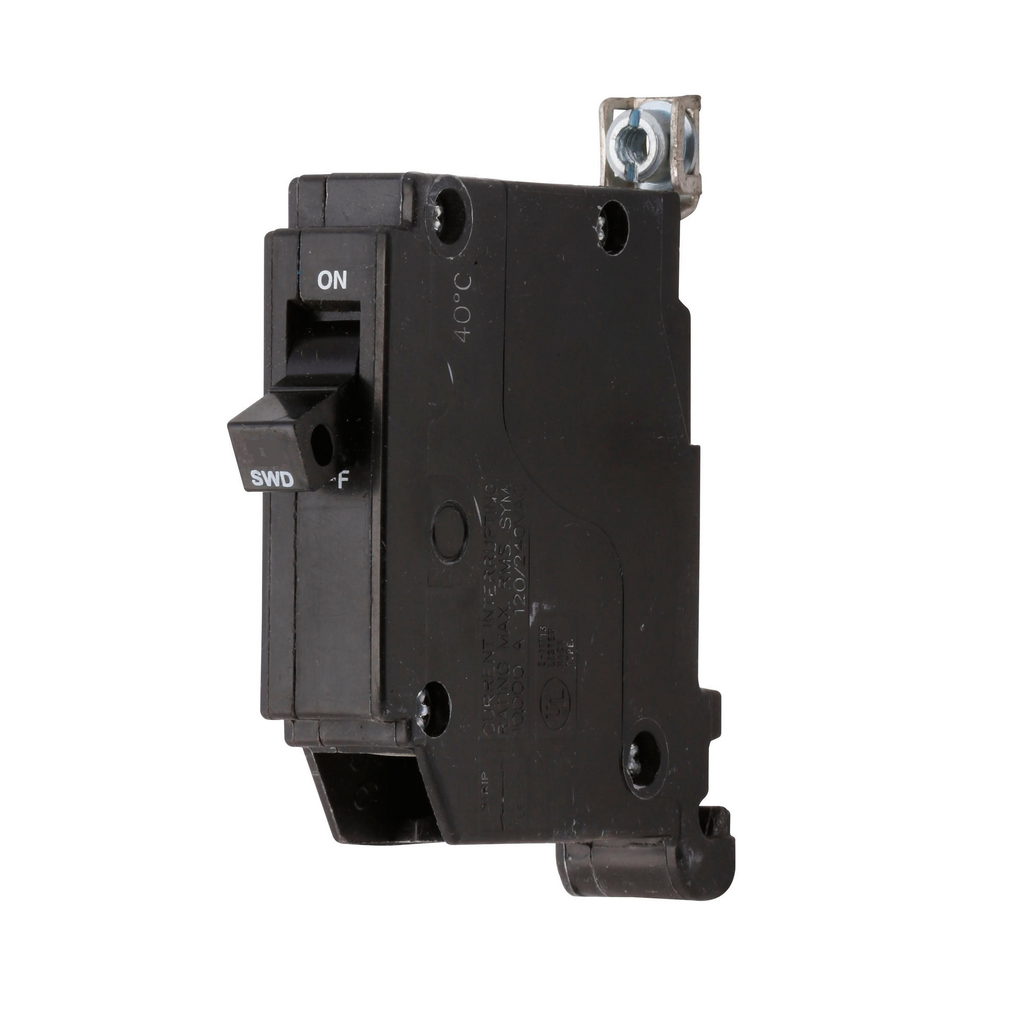

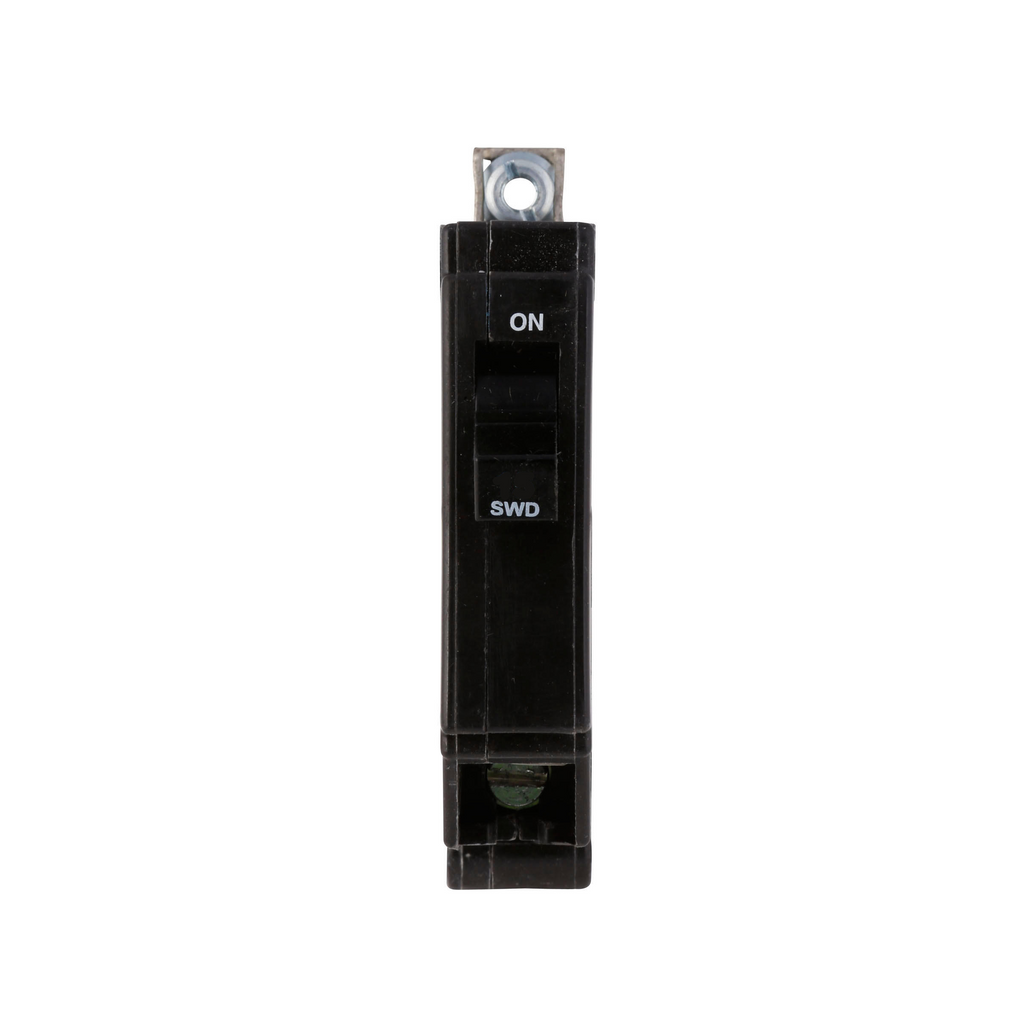

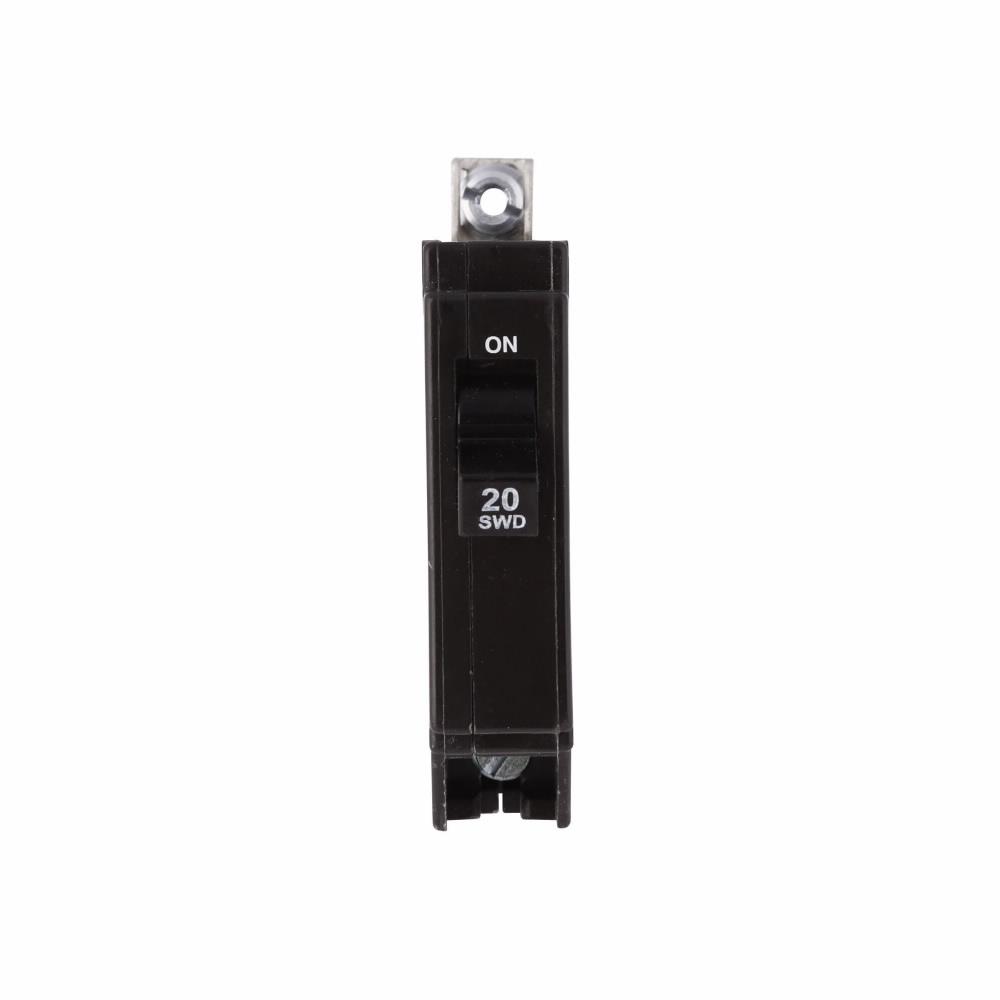

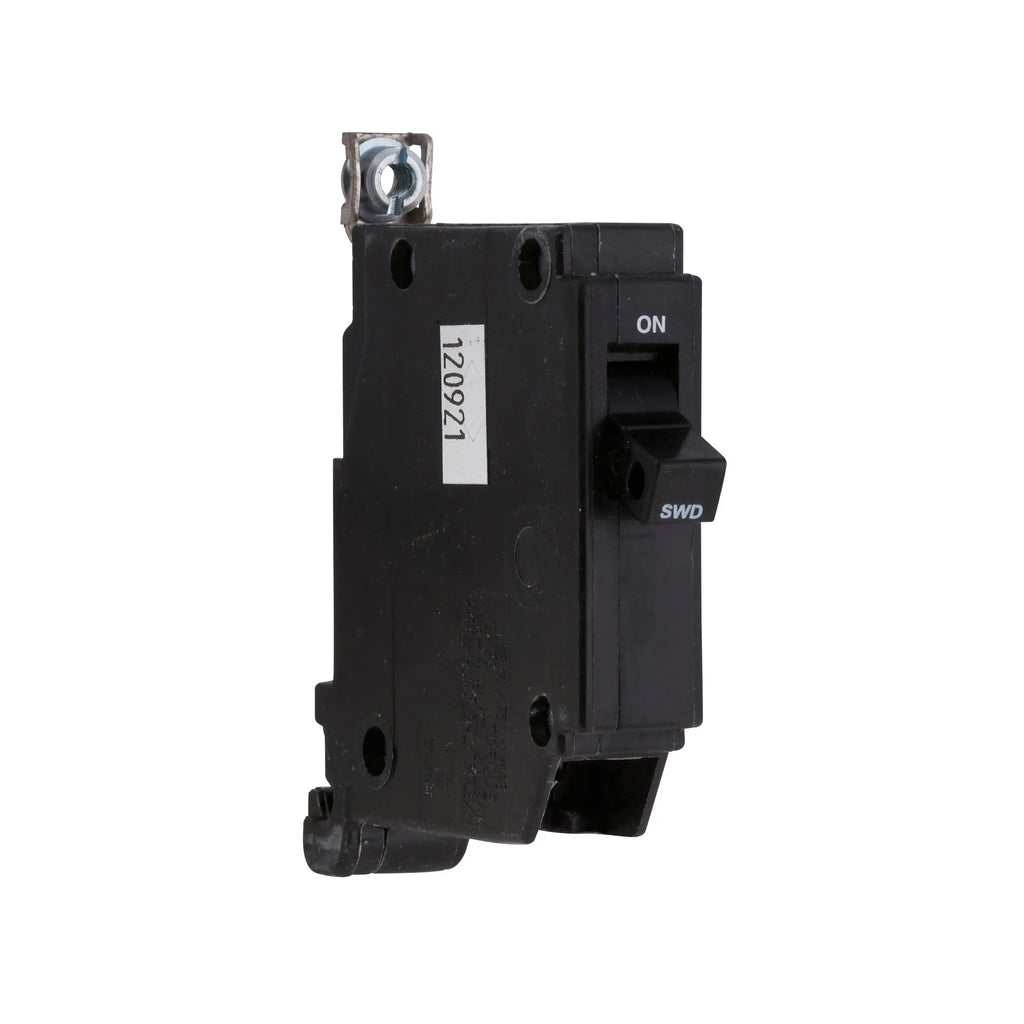

CHB120 - Cutler Hammer 20 Amp 120/240V Single-Pole CHB Circuit Breaker 10 kAIC Bolt-On

CHB120

CHB120 is a Cutler Hammer 20 Amp, 120/240 Volt, single-pole CHB thermal magnetic circuit breaker designed for reliable protection in residential and commercial electrical systems.This CHB120 circuit breaker features a 10 kA interrupt rating, bolt-on mounting type, and a 5 mA ground fault trip unit for enhanced safety. It supports wire sizes from #14 to #8 AWG and is UL 489 certified. Ideal for use with CH Loadcenters, it provides long time/instantaneous trip protection.

Key Specifications
• Amperage Rating: 20 Amps
• Voltage Rating: 120/240 Volts
• Number of Poles: Single-pole
• Interrupt Rating: 10 kAIC
• Mounting Type: Bolt-On
• Trip Unit: Thermal Magnetic with 5 mA Ground Fault
• Wire Size: #14-8 AWG
• Series/Frame: CHB
• Certifications: UL 489
• Compatible with CH Loadcenters
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: CHB120
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : CHB Series
• Type : CHB
• Voltage : 120
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic



Product Data

• UPC : 782113112350
• GTIN : 00782113112350
• Country of Origin : Dominican Republic
• Dimensions : 8.3 in x 4.4 in x 4.5 in (Length/Depth x Height x Width)
• Weight : 0.2
• Certification : UL
