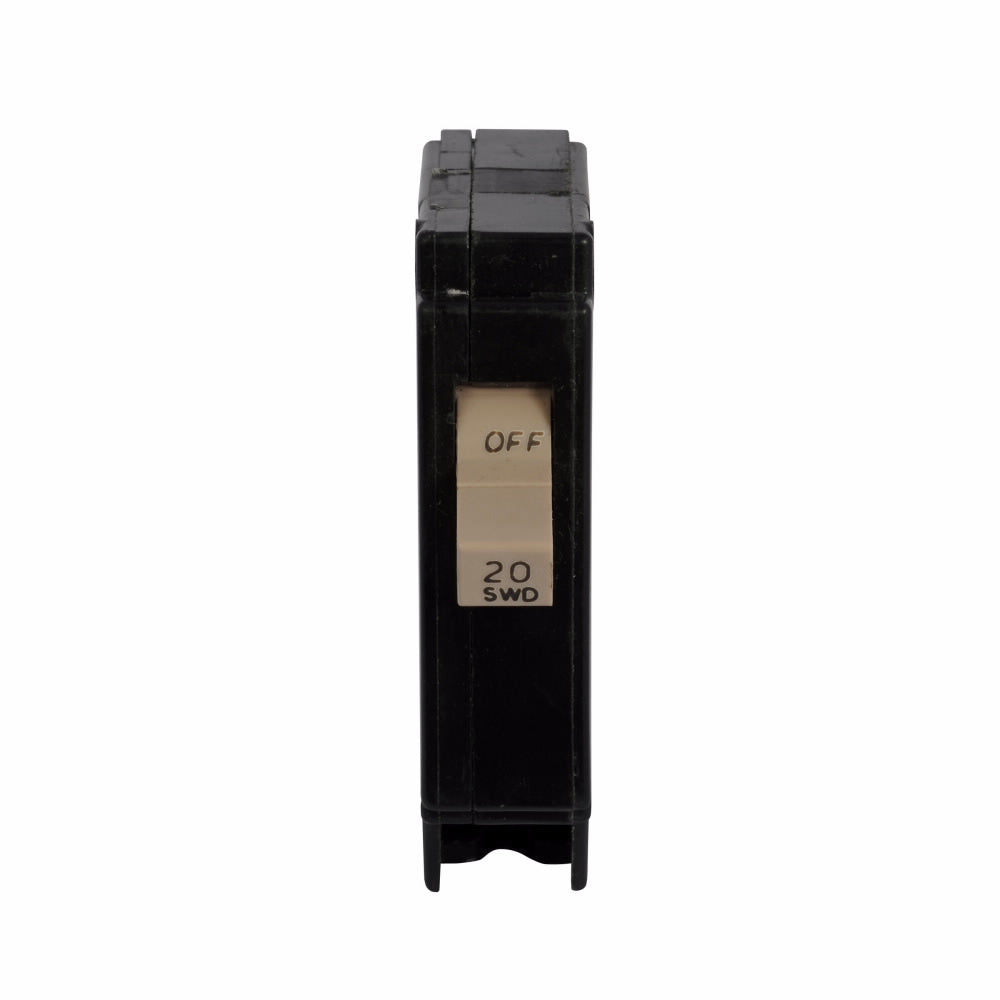

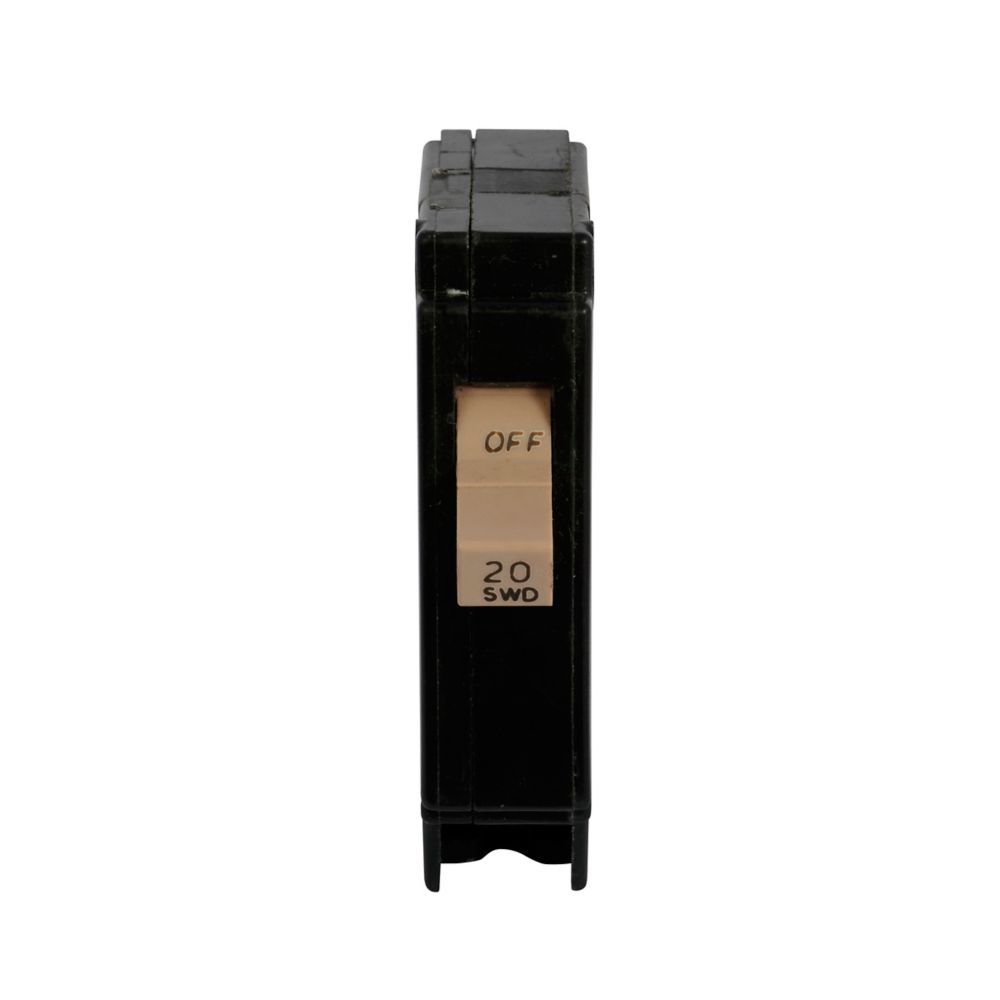

CH120HM - Eaton 20A 120/240V Single-Pole Type CH High-Magnetic Circuit Breaker 10 kAIC

CH120HM

CH120HM is a single-pole, high-magnetic circuit breaker designed for Eaton Type CH load centers, offering reliable protection for residential and light commercial applications. This breaker features a 20A amperage rating, 120/240V voltage rating, and a 10 kAIC interrupt rating for robust performance. It is plug-on mounting and compatible with Type CH panels, providing fast, dependable circuit protection. Engineered for safety and durability, the CH120HM breaker is UL 489 listed and suitable for use in standard 3/4-inch spaces. Its high-magnetic trip unit ensures quick response to short circuits, while its compact design fits seamlessly into Eaton CH loadcenters. The breaker accepts wire sizes #14-8 AWG (1) and #14-10 AWG (2) copper or aluminum conductors.

• Part Number: CH120HM
• Manufacturer: Eaton
• Amperage Rating: 20A
• Voltage Rating: 120/240V
• Number of Poles: Single-pole
• Interrupt Rating: 10 kAIC
• Series/Frame: Type CH
• Mounting Type: Plug-On
• Wire Size: (1) #14-8 AWG, (2) #14-10 AWG Cu/Al
• Trip Unit: High-Magnetic
• Certifications: UL 489
• Used With: Type CH Loadcenters

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CH120HM
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : CH Series
• Type : CH
• Voltage : 240
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 782113101651
• GTIN : 00782113101651
• Country of Origin : Dominican Republic
• Weight : 0.8
• Certification : UL 489
