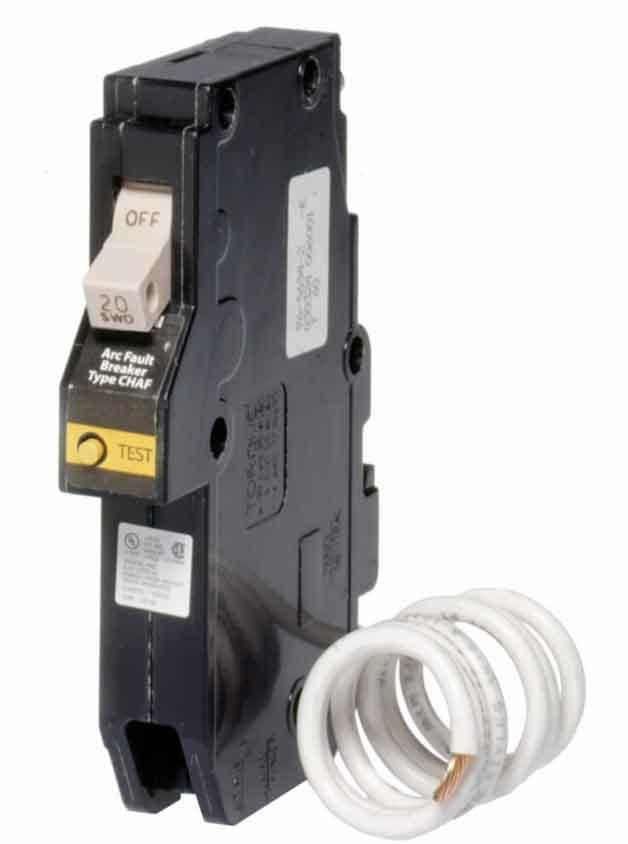

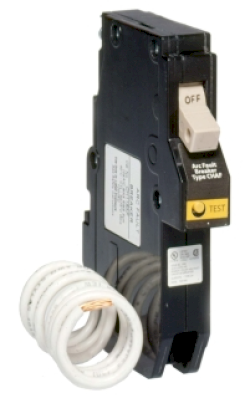

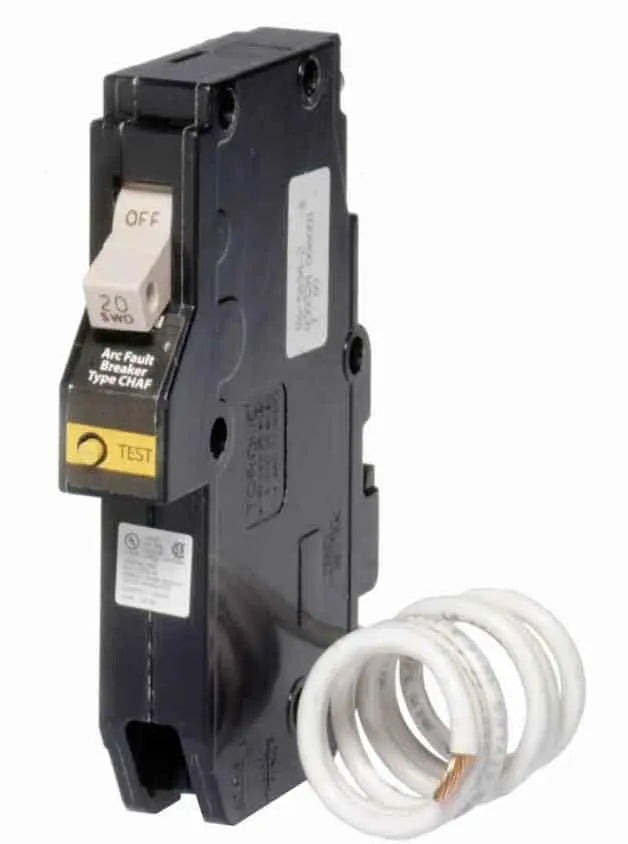

CH120AF - Cutler Hammer 20A 120/240V 1 Pole Plug-In AFCI Circuit Breaker

CH120AF

CH120AF is a 20 amp, 120/240 volt, 1 pole arc fault circuit breaker from Cutler Hammer designed for plug-in mounting.This circuit breaker features thermal magnetic trip protection with long-time and instantaneous trip functions, a 10kA interrupting rating at 120V, and is compatible with Type CH loadcenters. It is UL listed and provides reliable arc fault protection for residential and commercial electrical systems.

• Manufacturer: Cutler Hammer
• Part Number: CH120AF
• Amperage: 20 Amps
• Voltage: 120/240 VAC
• Poles: 1
• Mounting Type: Plug-In
• Interrupting Rating: 10,000 AIC at 120V
• Series/Frame: CH
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Trip
• Certifications: UL Listed
• Compatible with Type CH Loadcenters
• Breaker Type: AFCI (Arc Fault Circuit Interrupter)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CH120AF
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : CH Series
• Type : CH
• Voltage : 120
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 782114231487
• GTIN : 00782114231487
• Dimensions : 4 in x 3.5 in x 0.75 in (Length/Depth x Height x Width)
• Weight : 0.5 lb
• Certification : UL Listed
