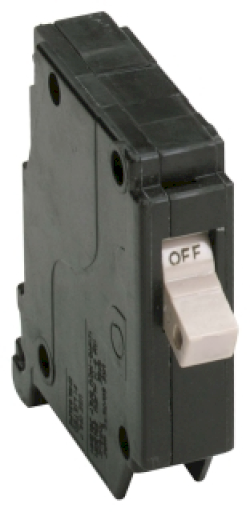

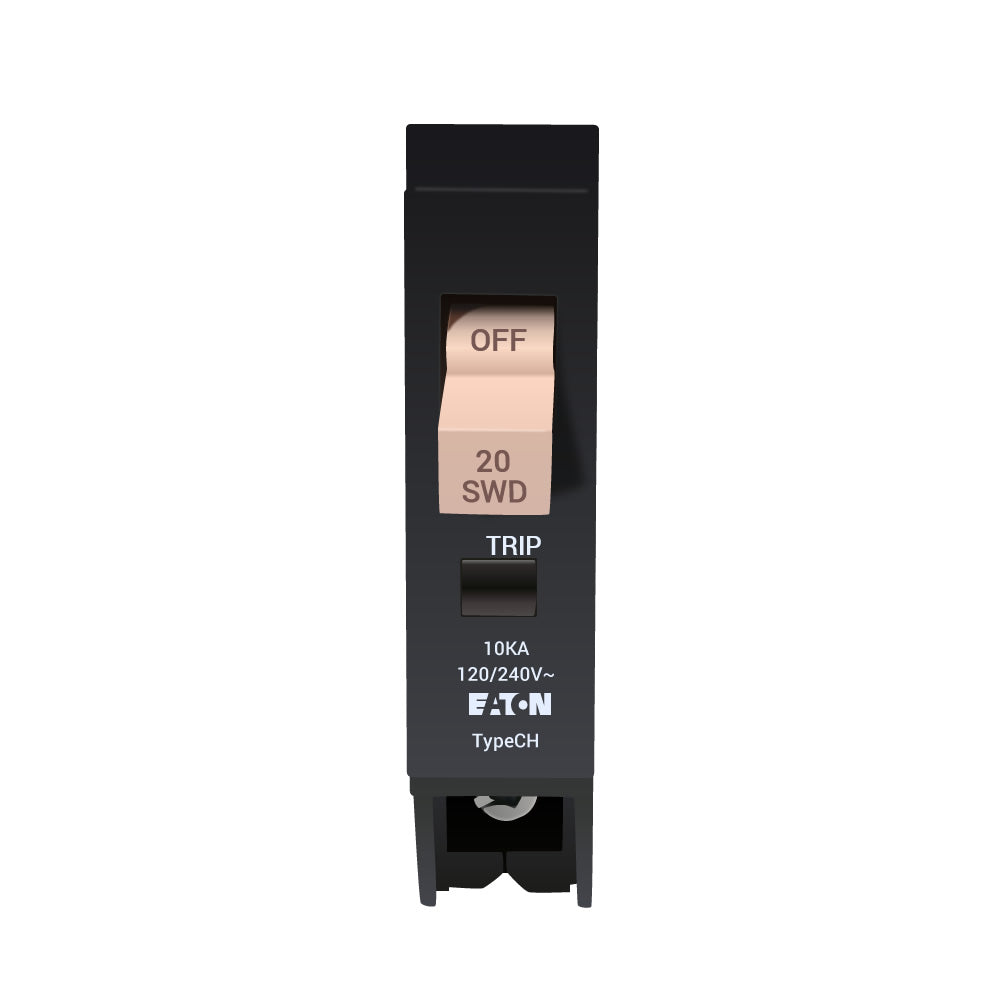

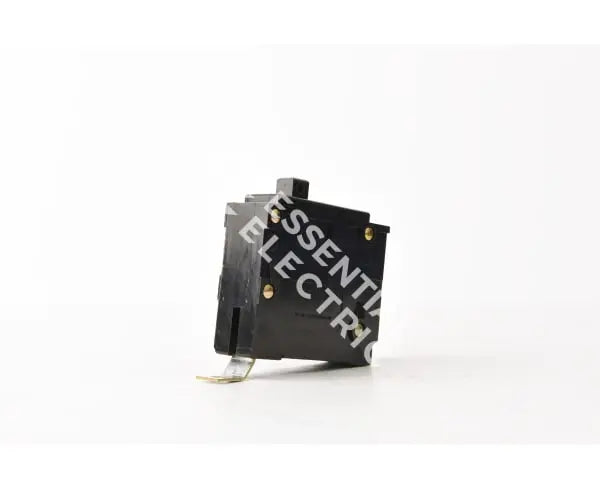

CH120 - Cutler Hammer 20 Amp 120/240V 1-Pole Thermal Magnetic Circuit Breaker CH Frame Plug-On

CH120

CH120 is a Cutler Hammer 20 Amp, 120/240 Volt, 1-pole thermal magnetic circuit breaker designed for reliable electrical protection.This CH frame breaker features a plug-on mounting type, 10 kA interrupting rating at 120V, and is UL and CSA certified. It supports wire sizes of (1) #14-8 AWG and (2) #14-10 AWG copper/aluminum conductors, suitable for residential and light commercial applications.

Key Specifications
• Amperage: 20 Amps
• Voltage Rating: 120/240 VAC
• Number of Poles: 1
• Mounting Type: Plug-On
• Interrupt Rating: 10 kAIC at 120V
• Frame/Series: CH
• Trip Unit: Thermal Magnetic
• Certifications: UL 489, CSA
• Wire Gauge: (1) #14-8 AWG, (2) #14-10 AWG Cu/Al
• Phase: Single
• Connection Type: Plug-In
• Protection Functions: Long-Time and Instantaneous
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: CH120
• Manufacturer : Cutler Hammer
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : CH Series
• Type : CH
• Voltage : 120
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size (2) 14 AWG (Cu/Al) Max. Wire Size (2) 10 AWG (Cu/Al)
• Breaker Type : CH
• Protection : Thermal Magnetic



Product Data

• UPC : 782113101644
• GTIN : 00782113101644
• Country of Origin : United States
• Dimensions : 3.5 in x 3 in x 5 in (Length/Depth x Height x Width)
• Weight : 0.27
• Panel Type : Type CH Loadcenters
• Standards : UL 489
• Certification : UL 489
• Wire Size : 2x 14-10 AWG, Cu/Al, 1x 14-8 AWG
