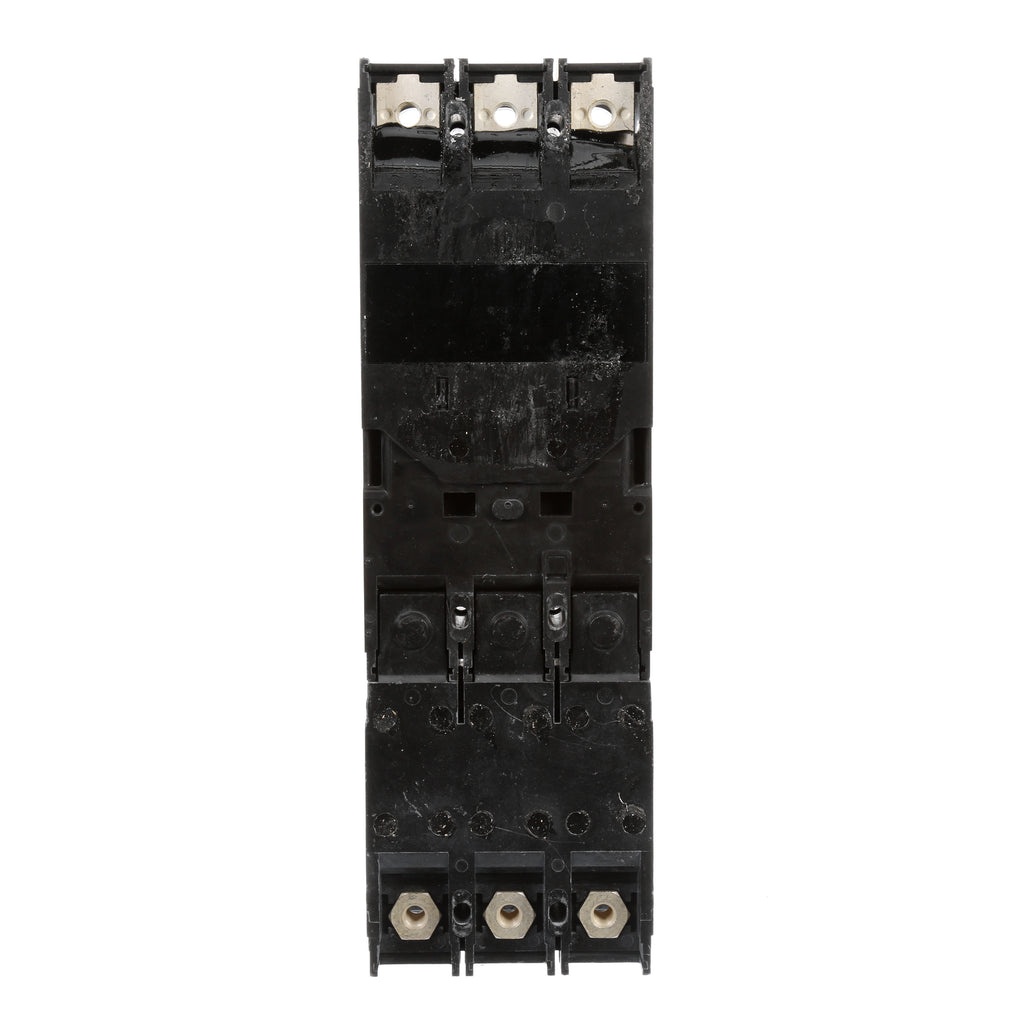

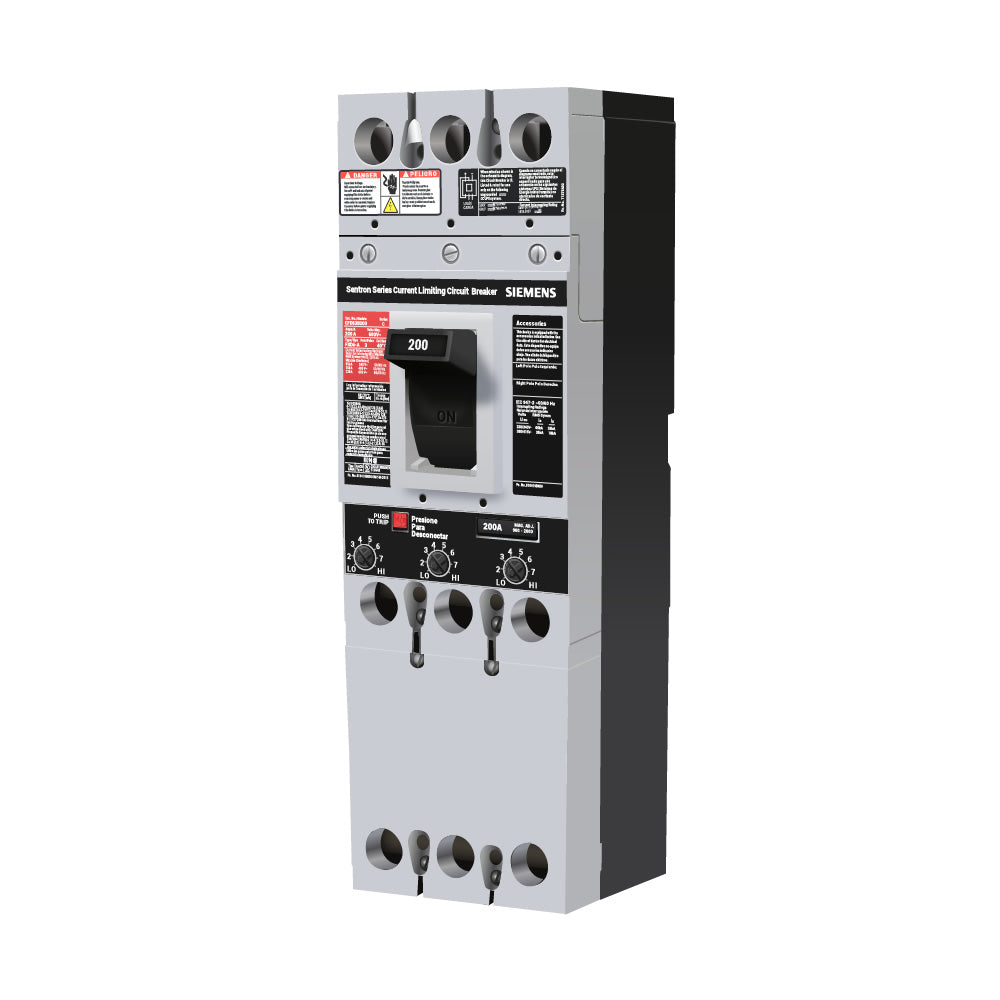

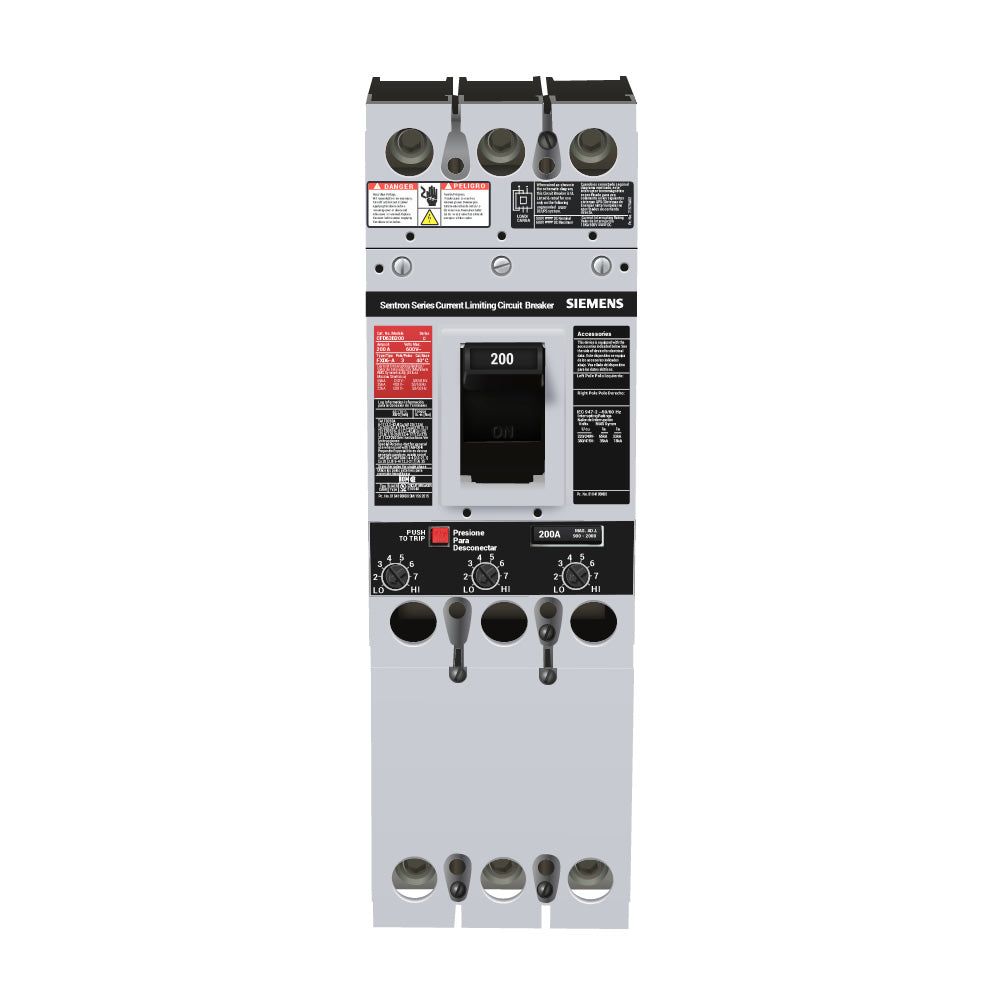

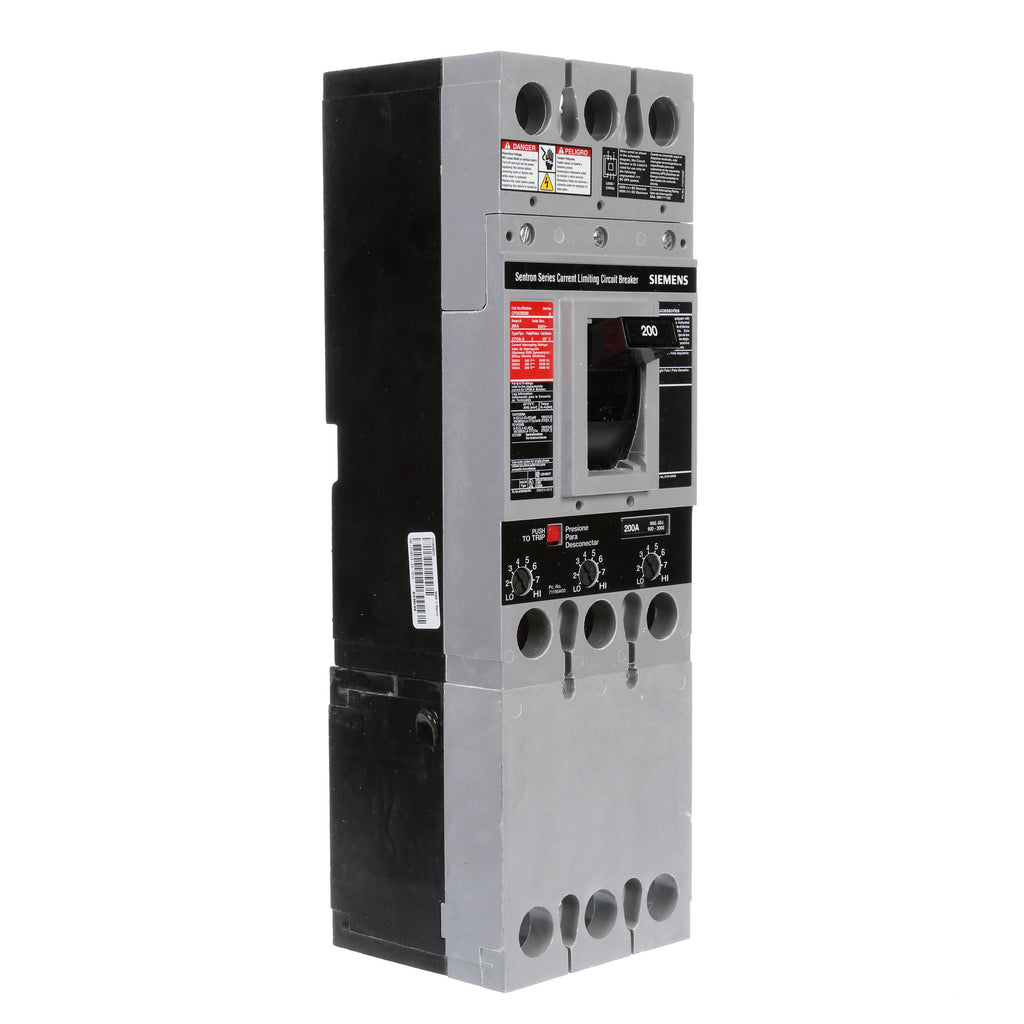

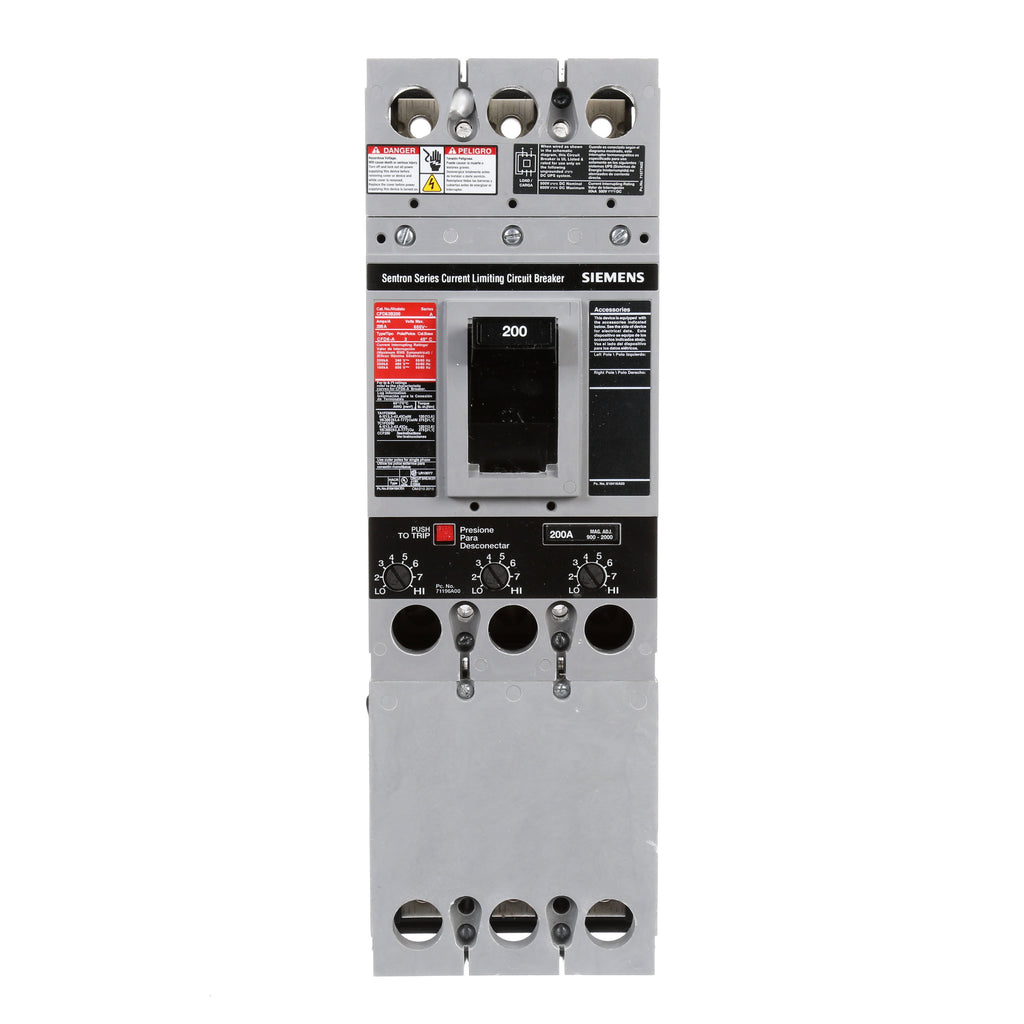

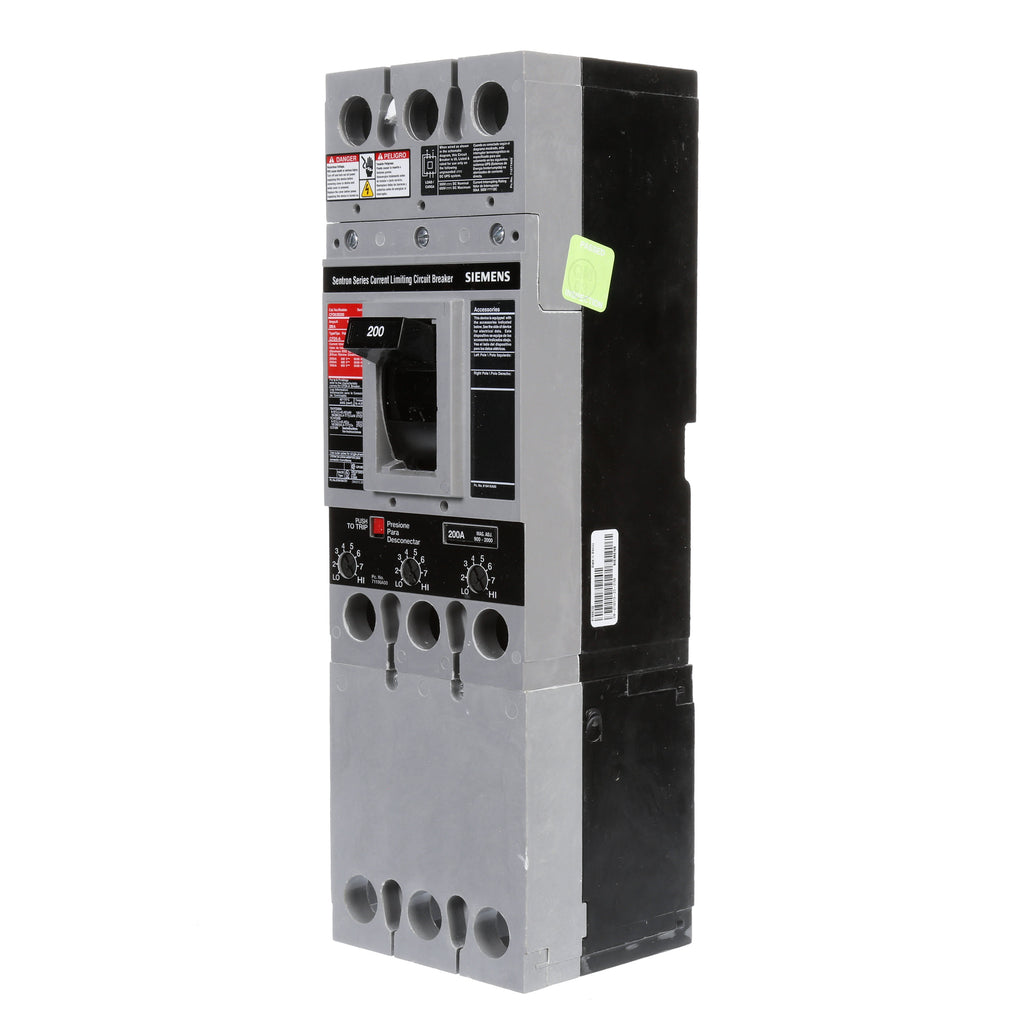

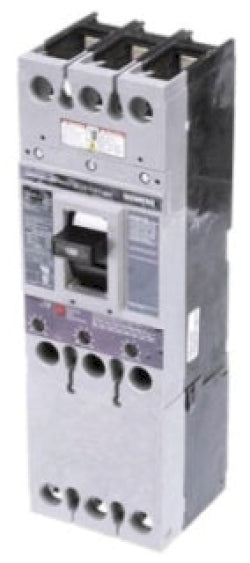

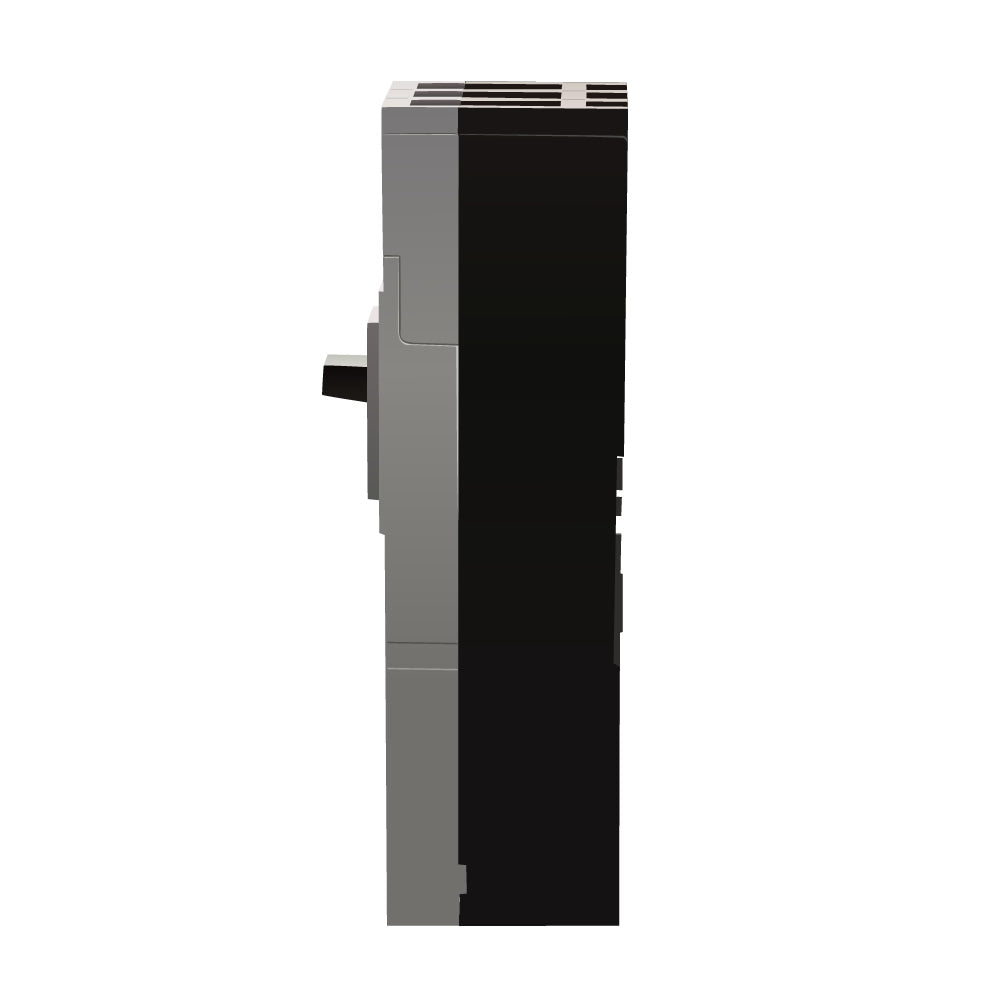

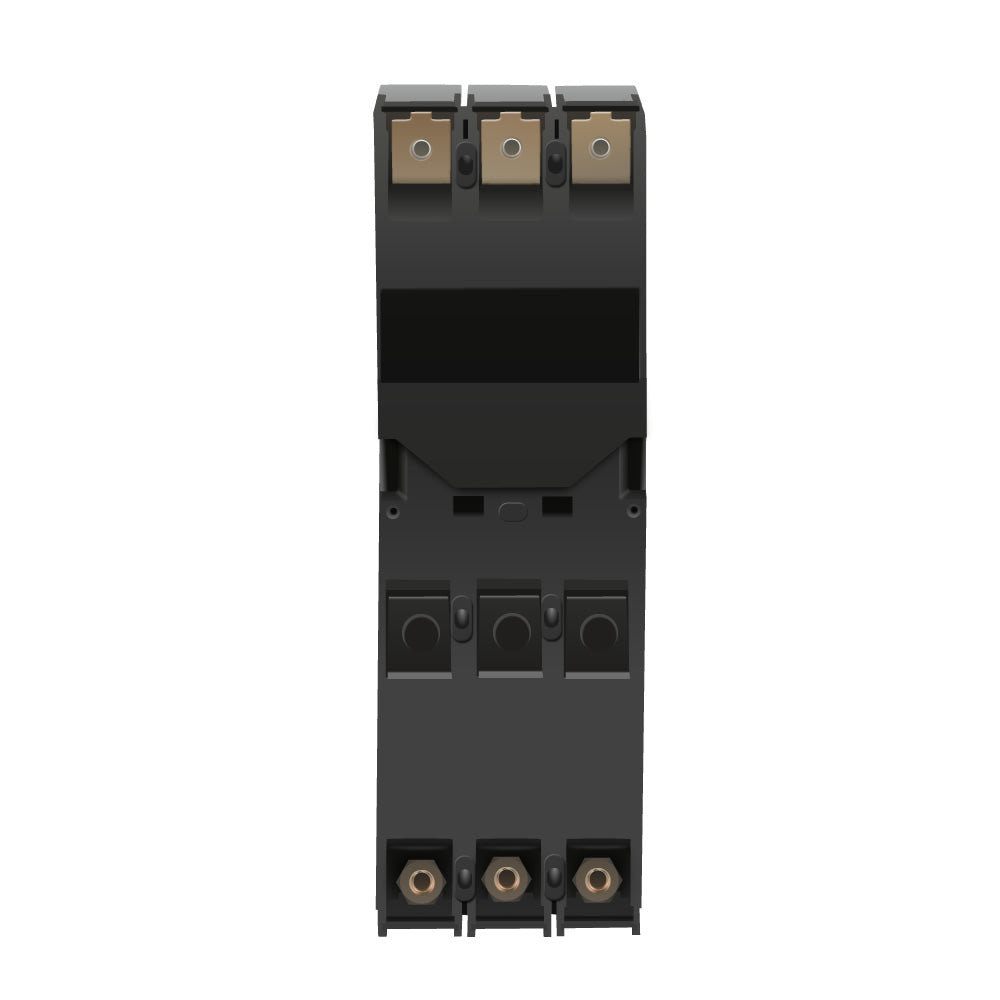

CFD63B200 - Siemens 200A 600V 3-Pole Molded Case Circuit Breaker FD Frame Thermal Magnetic Trip

CFD63B200

CFD63B200 is a Siemens 200 amp, 600 volt, 3-pole molded case circuit breaker with a thermal-magnetic trip unit designed for low voltage power distribution.This Siemens Sentron series breaker features a standard FD frame with current limiting fuseless design, rated for 100kA interrupt at 600VAC and 200kA at 480VAC. It meets UL 489 and IEC 60947-2 standards and includes line and load side lugs supporting wire ranges from 6 AWG to 350 kcmil copper and 4 AWG to 350 kcmil aluminum. The breaker is bolt-on mounted and designed for a 40°C ambient temperature.

Key Specifications
• Amperage: 200A
• Voltage Rating: 600VAC / 500VDC
• Poles: 3
• Interrupt Rating: 100kA at 600V, 200kA at 480V
• Frame: FD Frame
• Trip Unit: Thermal-Magnetic, Non-interchangeable
• Mounting Type: Bolt-On
• Wire Range: 6 AWG - 350 kcmil (Cu), 4 AWG - 350 kcmil (Al)
• Standards: UL 489, IEC 60947-2
• Ambient Temperature Rating: 40°C
• Current Limiting Fuseless Design

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Lugs are not included

Specifications

• Part Number: CFD63B200
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : CFD
• Voltage : 600
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 200kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : FD Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 783643212190
• GTIN : 00783643212190
• Country of Origin : Mexico
• Weight : 14.996
• Wire Size : 6 AWG to 350 KCM CU, 4 AWG to 350 KCM AL
