Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
CFD63A250L

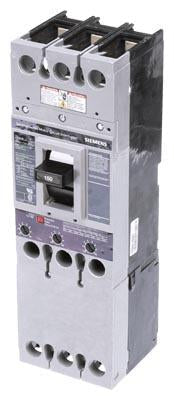

CFD63A250L is a Siemens molded case circuit breaker designed for reliable protection in industrial and commercial power distribution systems. This breaker features a 250A current rating, 600V AC voltage, and a 3-pole configuration, making it suitable for a wide range of electrical applications. The FD frame design provides robust performance and durability, while the magnetic trip unit ensures fast response to short-circuit conditions. The breaker is equipped with ETI lugs for secure connections and is built to meet demanding electrical standards. This Siemens Sentron series circuit breaker is engineered for bolt-on mounting, ensuring easy installation and secure fit in panelboards. The breaker offers a high interrupting rating of 100kA, providing protection against high fault currents. The magnetic trip unit is specifically designed for applications requiring fast, reliable short-circuit protection. The unit is constructed with a current-limiting design for enhanced safety and system reliability.
- Part Number: CFD63A250L
- Manufacturer: Siemens
- Series/Frame: Sentron FD Frame
- Amperage: 250A
- Voltage: 600V AC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 100kA
- Connection Type: ETI Lugs
- Frame Type: FD
- Trip Unit: Magnetic Trip Only
- Application: Molded Case Circuit Breaker
Specifications
- Part Number: CFD63A250L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : CFD
- Voltage : 600
- Amperage : 250
- Phase : 3
- Poles : 3
- AIC rating : 200kA@480V
- Connection : Feed-Thru
- Functions : I - Instantaneous
- Frame Size : FD Frame
- Protection : Magnetic Only
Product Data
- UPC : 783643001152
- GTIN : 00783643001152
- Country of Origin : Mexico
- Dimensions : 14.961 x 5.906 x 6.693 inch
- Weight : 34.061
- Certification : Ul Listed
