Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
CED63A030

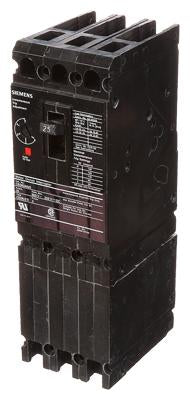

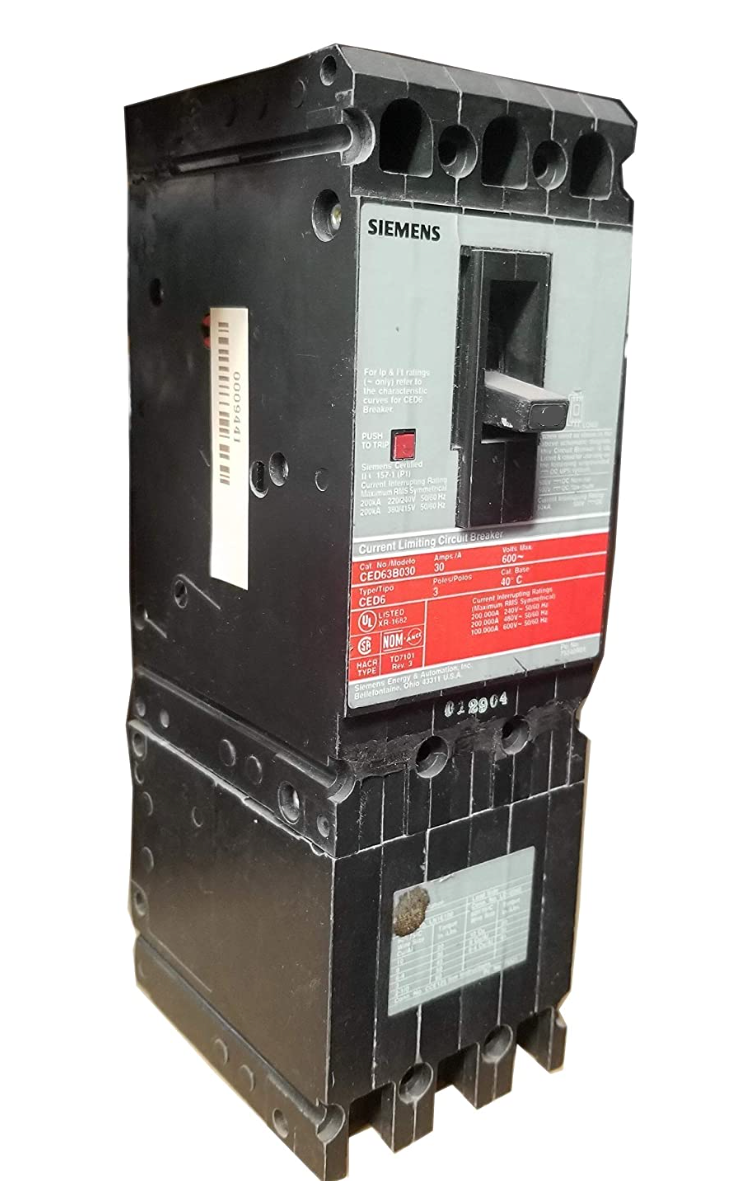

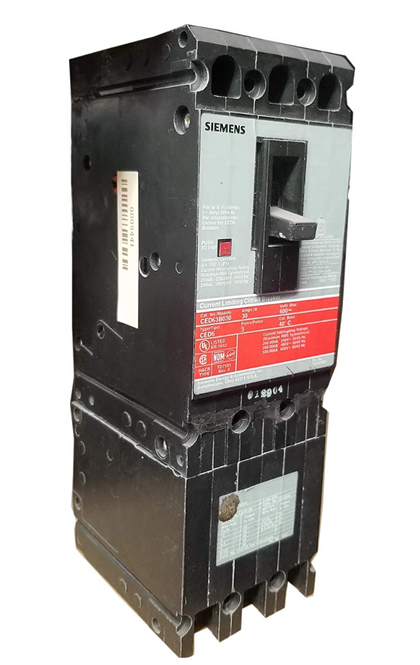

CED63A030 is a Siemens 3 pole, 30 amp, 600 volt bolt-on molded case circuit breaker from the ED frame series.This Siemens CED63A030 circuit breaker features a thermal-magnetic trip unit with current limiting capability. It has a 100kA interrupt rating at 600 VAC and 200kA at 480 VAC, designed for low voltage applications. The breaker meets UL 489 and IEC 60947-2 standards and is suitable for 3-phase power distribution systems.
- Amperage: 30 A
- Voltage Rating: 600 VAC / 250 VDC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 100kA at 600V, 200kA at 480V
- Frame/Series: ED Frame
- Trip Unit: Thermal-Magnetic
- Standards: UL 489, IEC 60947-2
- Current Limiting Breaker
- Non-interchangeable
Additional Information
Lugs are not included
Specifications
- Part Number: CED63A030
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : CED
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 200kA@480V
- Connection : Bolt-On
- Functions : Instantaneous
- Frame Size : ED Frame
- Protection : Magnetic Only
Product Data
- UPC : 783643210950
- GTIN : 00783643210950
- Country of Origin : Mexico
- Weight : 5.679
- Certification : Ul Listed
