Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
CED62B125L

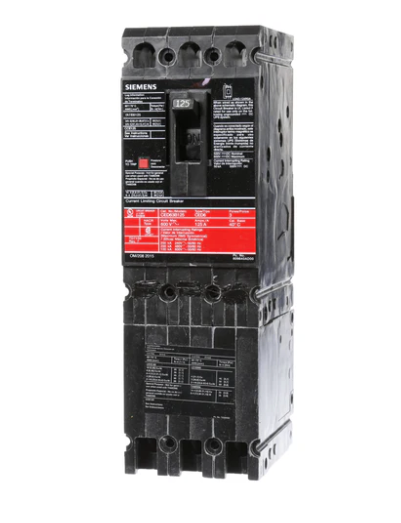

CED62B125L is a Siemens 2-pole molded case circuit breaker rated for 125 amps and 600 volts AC with a thermal magnetic trip unit.
This circuit breaker features a current limiting fuseless design suitable for low voltage applications. It supports 600 VAC and 250 VDC operation, with a high interrupt rating of 200 kA at 480 VAC. The breaker is bolt-on mounted and includes load lugs for secure connections. It is designed for reliable circuit protection with thermal magnetic trip functionality, providing both long-time and instantaneous trip characteristics.
- Amperage: 125 A
- Voltage Rating: 600 VAC / 250 VDC
- Number of Poles: 2
- Mounting Type: Bolt-On
- Interrupt Rating: 200 kA at 480 VAC
- Trip Unit: Thermal Magnetic (Long-Time and Instantaneous)
- Current Limiting Fuseless Design
- Load Lugs Included
- Series/Frame: CED6
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: CED62B125L
- Manufacturer : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : CED
- Voltage : 600
- Amperage : 125
- Phase : 1
- Poles : 2
- AIC rating : 200kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : ED Frame
- Protection : Thermal Magnetic
Product Data
- Weight : 7
