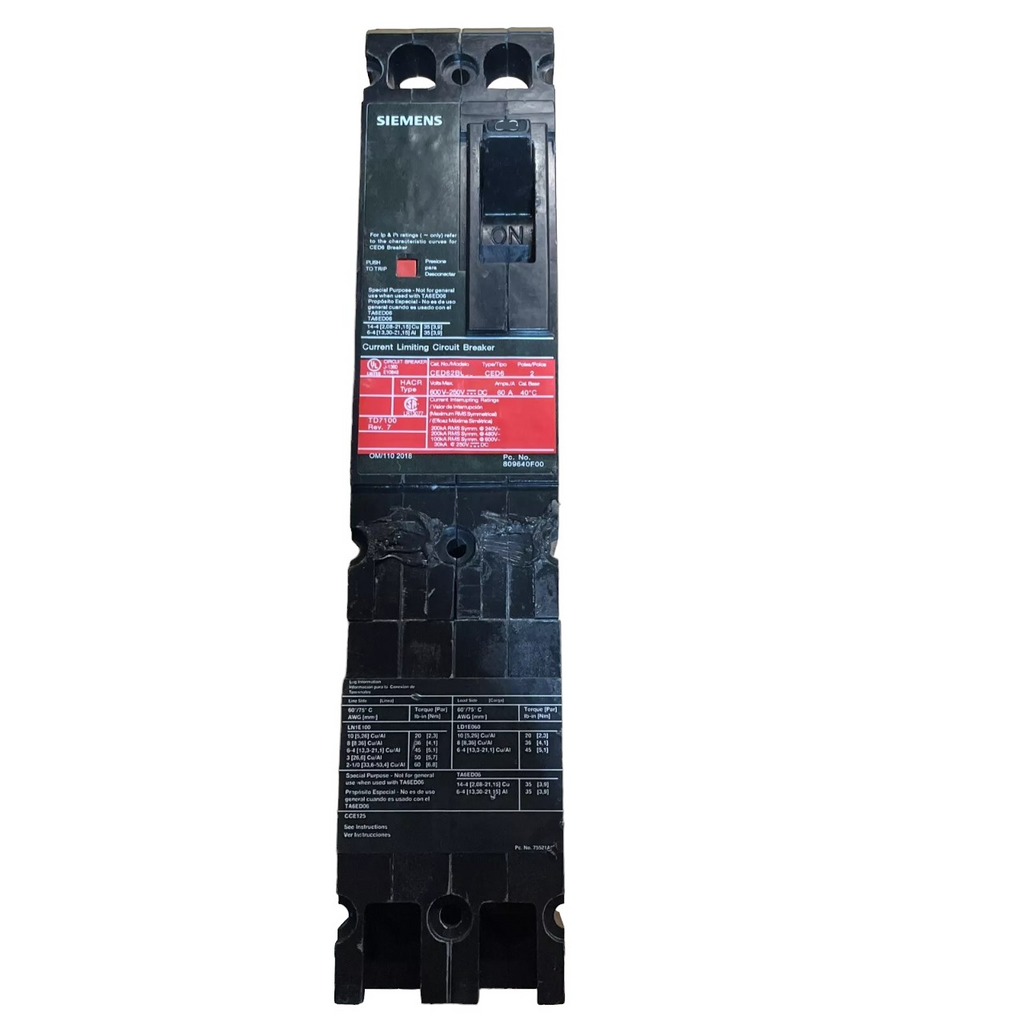

CED62B015 - Siemens 15 Amp 600 Volt 2 Pole Molded Case Circuit Breaker CED Frame

CED62B015

CED62B015 is a Siemens 15 Amp, 600 Volt, 2 Pole molded case circuit breaker from the CED frame series designed for reliable circuit protection.This Siemens CED62B015 circuit breaker features a thermal magnetic trip unit with fuseless current limiting capability. It supports 600 VAC and 250 VDC operation, has a 2-pole configuration, and a high interrupting rating of 100kA at 600V (200kA at 480V). The breaker is bolt-on mounted and meets UL 489 and IEC 60947-2 standards, ensuring robust and safe performance in industrial and commercial electrical systems.

Key Specifications
• Amperage: 15 Amp
• Voltage Rating: 600 VAC / 250 VDC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupting Rating: 100kA at 600V, 200kA at 480V
• Frame/Series: CED
• Trip Unit: Thermal Magnetic
• Standards: UL 489, IEC 60947-2
• Current Limiting: Fuseless
• Line & Load Side Lug Terminals
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: CED62B015
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : CED
• Voltage : 600
• Amperage : 15
• Phase : 1
• Poles : 2
• AIC rating : 200kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Frame Size : ED Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic



Product Data

• UPC : 783643210547
• GTIN : 00783643210547
• Country of Origin : Mexico
• Weight : 3.971
• Wire Size : AWG 14 to AWG 10 AWG, AWG 12 to AWG 10, CU/AL
