Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description

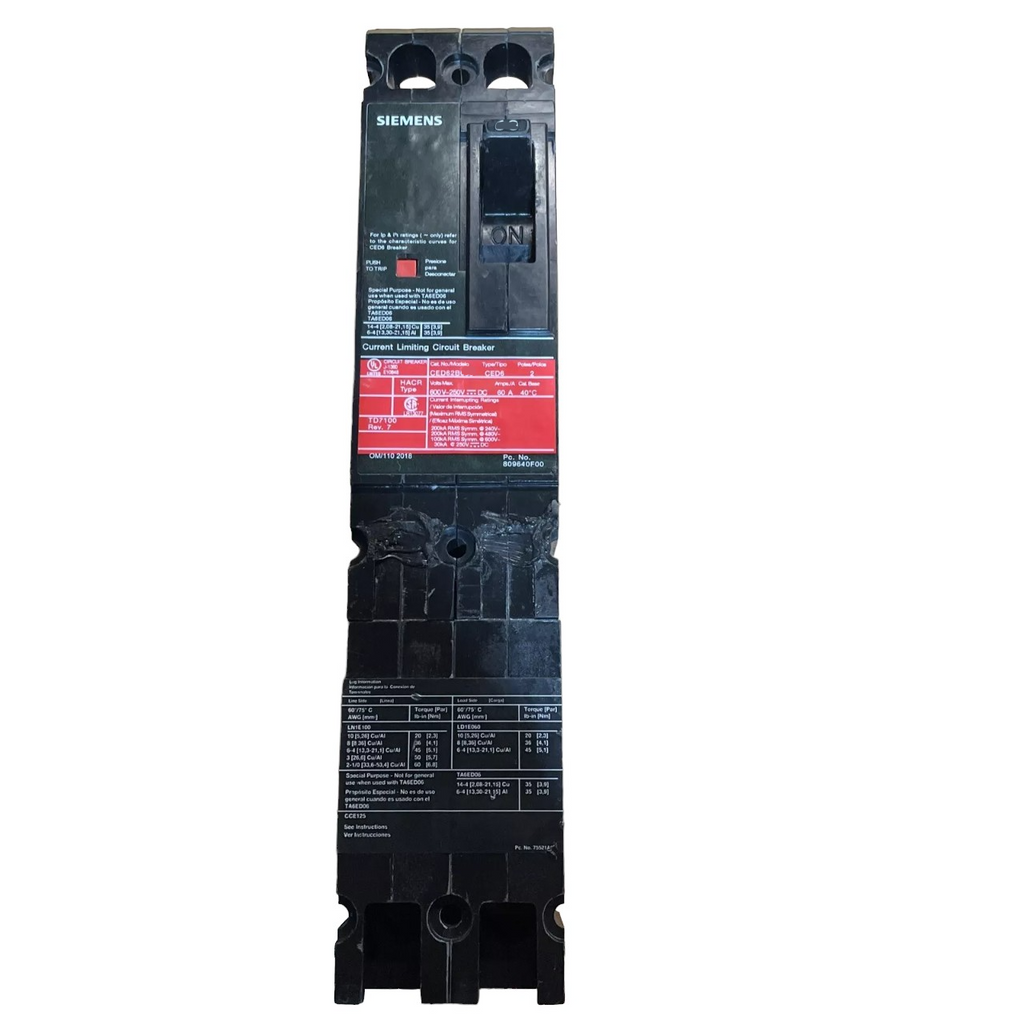

CED62B020L
CED62B020L is a 2 pole molded case circuit breaker from Siemens designed for 600VAC and 250VDC applications with a 20 ampere continuous current rating at 40 degrees Celsius. This thermal magnetic breaker features current limiting technology and is part of the Sentron Series ED frame family, offering reliable protection for industrial and commercial power distribution systems. The breaker utilizes a bolt-on connection method and meets UL 489 and IEC 60947-2 standards for safety and performance.
- Amperage Rating: 20A at 40 degrees C
- Voltage Rating: 600VAC, 250VDC
- Number of Poles: 2
- Trip Unit: Thermal Magnetic
- Mounting Type: Bolt-On
- Frame Family: ED
- Interrupting Rating: 100kAIC at 600V, 200kAIC at 480V
- Current Limiting: Yes
- Certifications: UL 489, IEC 60947-2
- Series: Sentron
- High In-Rush Current Capability: 450 percent
- Push-to-Trip Button: Yes
Specifications
- Part Number: CED62B020L
- Manufacturer : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : CED
- Voltage : 600
- Amperage : 20
- Phase : 1
- Poles : 2
- AIC rating : 200kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : ED Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 783643088078
- GTIN : 00783643088078
- Country of Origin : Mexico
- Dimensions : 4.724 x 9.843 x 2.756 inch
- Weight : 4.012
