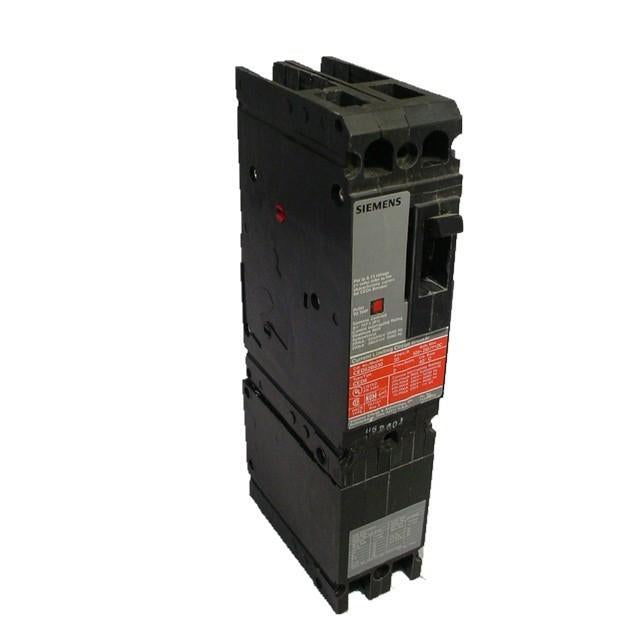

CED62B060L - Siemens 60A 600V 2 Pole Molded Case Circuit Breaker

CED62B060L

CED62B060L is a 2 pole, 600 volt, 60 ampere rated molded case circuit breaker manufactured by Siemens in the Sentron ED series. This thermal magnetic breaker features bolt-on mounting and is designed for single phase applications with long time and instantaneous trip functions.

The CED62B060L delivers an interrupting rating of 100kAIC at 600V and 200kAIC at 480V, providing extra high interrupting capacity for demanding power distribution applications. It includes line and load side lug terminals with a wire range of 10 to 1/0 AWG for both copper and aluminum conductors. The breaker operates at 40 degrees Celsius and features a push-to-trip button for manual operation.

• Amperage: 60A
• Voltage: 600V AC
• Poles: 2
• Frame Type: ED
• Series: Sentron
• Mounting: Bolt-On
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous Functions
• Interrupt Rating: 100kAIC at 600V, 200kAIC at 480V
• Terminal Type: Lug Terminals
• Wire Range: 10 to 1/0 AWG (Copper/Aluminum)
• Temperature Rating: 40 degrees Celsius

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CED62B060L
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : CED
• Voltage : 600
• Amperage : 60
• Phase : 1
• Poles : 2
• AIC rating : 200kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : ED Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 783643088115
• GTIN : 00783643088115
• Country of Origin : Mexico
• Dimensions : 4.724 x 9.843 x 2.756 inch
• Weight : 4.012
