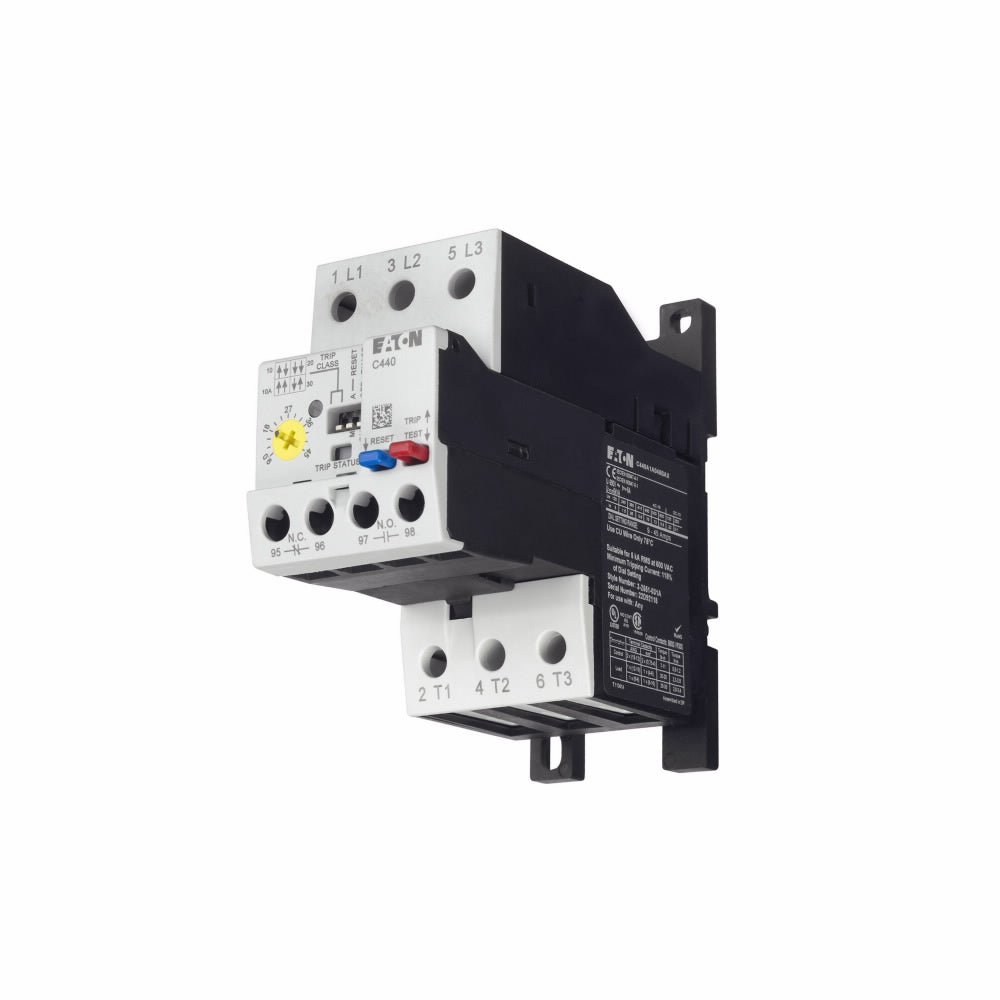

C440A1A045SF1 - Eaton 9-45A Electronic Overload Relay, 45mm Frame, Selectable Trip Class 10/20/30, Freedom Size 1

C440A1A045SF1

This relay features a 45 mm frame size (Freedom Size 1) and selectable trip classes 10, 20, and 30 for flexible motor overload protection. It includes phase loss protection that can be enabled or disabled, manual or automatic reset options, and auxiliary contacts (1 normally open and 1 normally closed). The device mounts directly to AN19DNO and CN15DN3 starters and contactors and is CSA certified, UL listed, and CE marked for compliance and safety.

Key Specifications
• Adjustable overload range: 9 to 45 amps
• Frame size: 45 mm (Freedom Size 1)
• Trip class selectable: 10, 20, 30
• Reset type: Manual or automatic selectable
• Phase loss protection: Yes, selectable on/off
• Auxiliary contacts: 1 normally open (N.O.), 1 normally closed (N.C.)
• Mounting: Direct mount to AN19DNO or CN15DN3 starters/contactors
• Certifications: CSA certified, UL listed, CE marked
• Self-powered electronic overload relay
• Rated short-time withstand current: Auto/manual

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.




Specifications

• Part Number: C440A1A045SF1
• Manufacturer : Eaton
• Brand : Eaton
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : C440 Electronic
• Type : C440
• Relay Style : Solid State
• Aux Contacts : 2NO/2NC
• Amperage Maximum : 45
• Amperage Minimum : 9



Product Data

• UPC : 786685411835
• GTIN : 00786685411835
• Country of Origin : Dominican Republic
• Dimensions : 4.32 in x 3.8 in x 1.8 in (Length/Depth x Height x Width)
• Weight : 0.87
• Certification : CE, CSA, UL Listed
