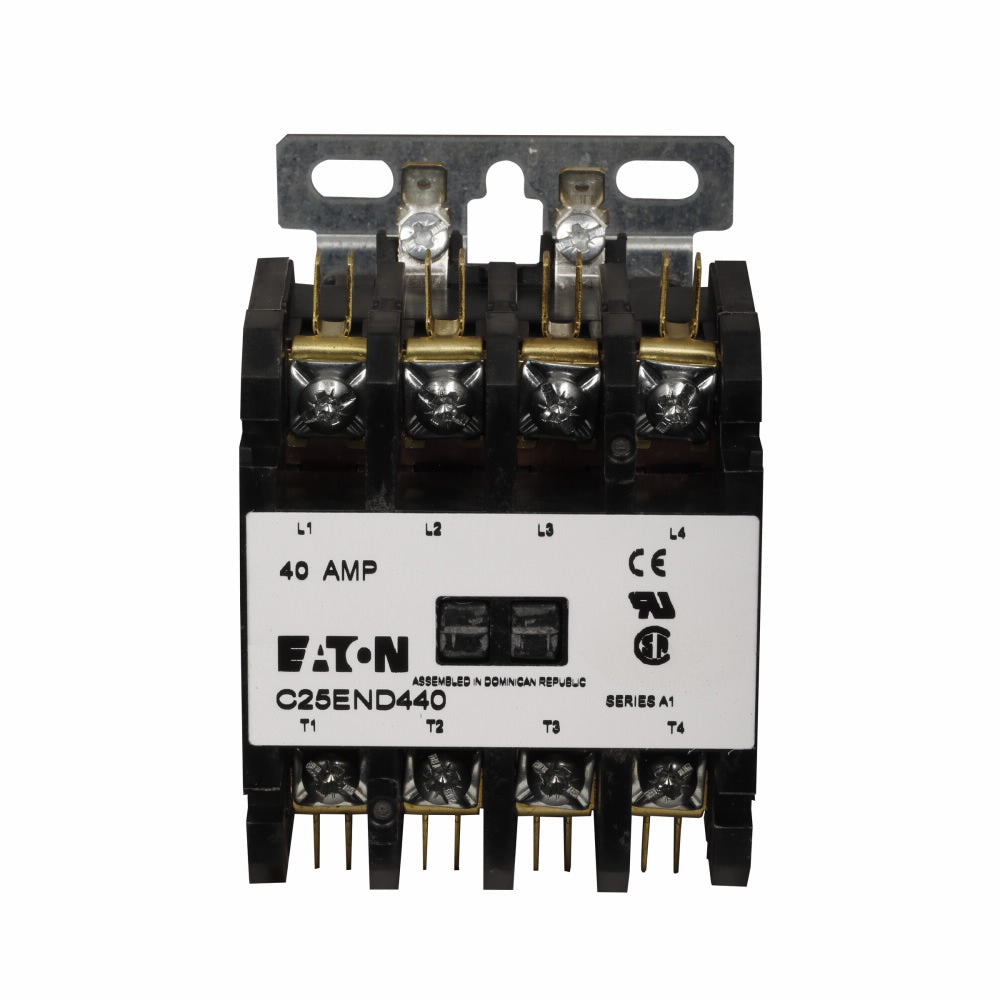

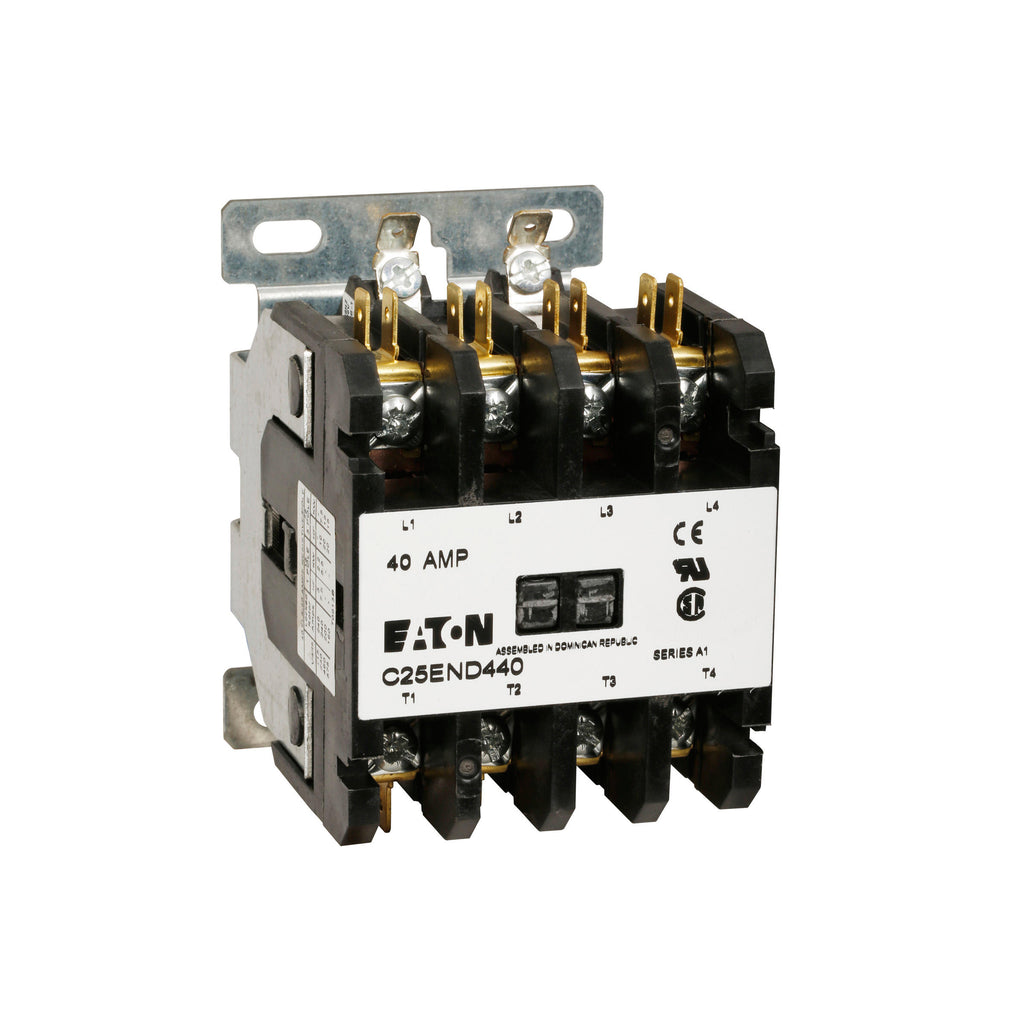

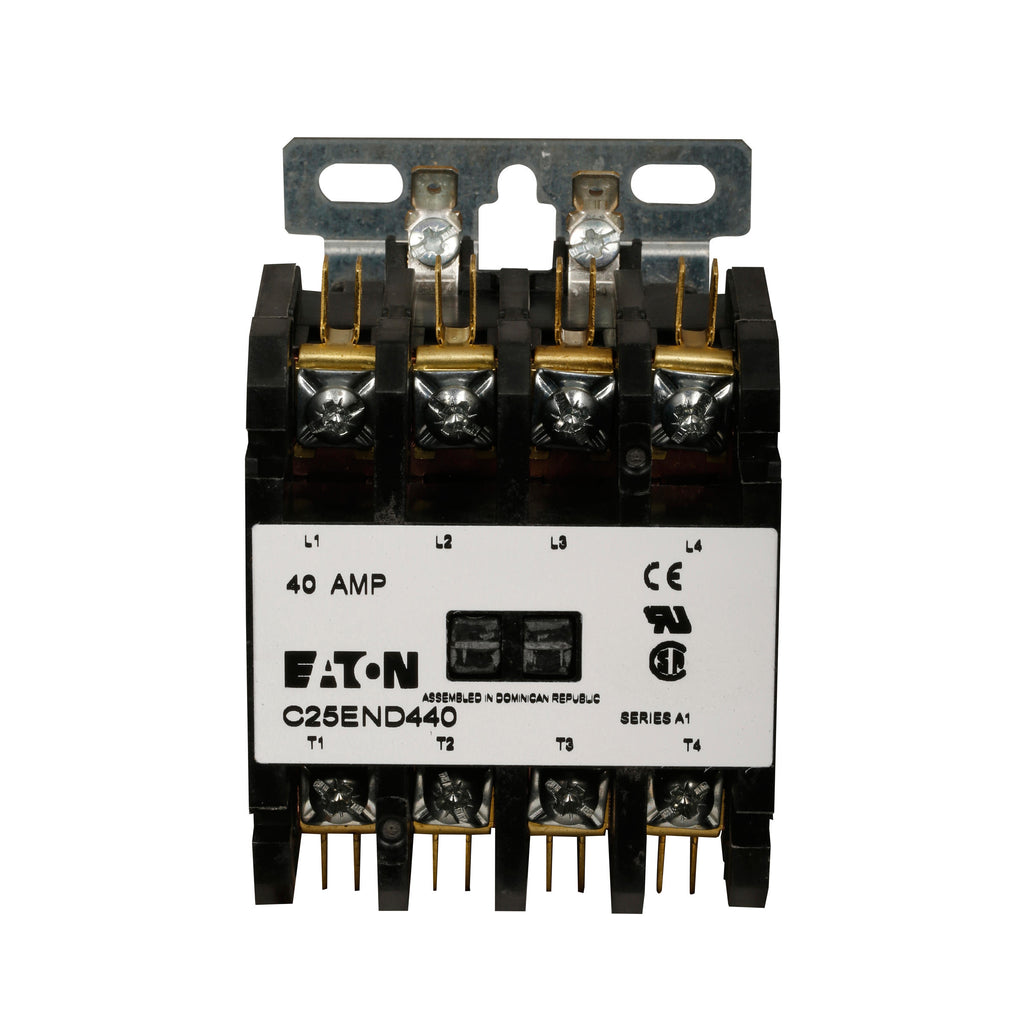

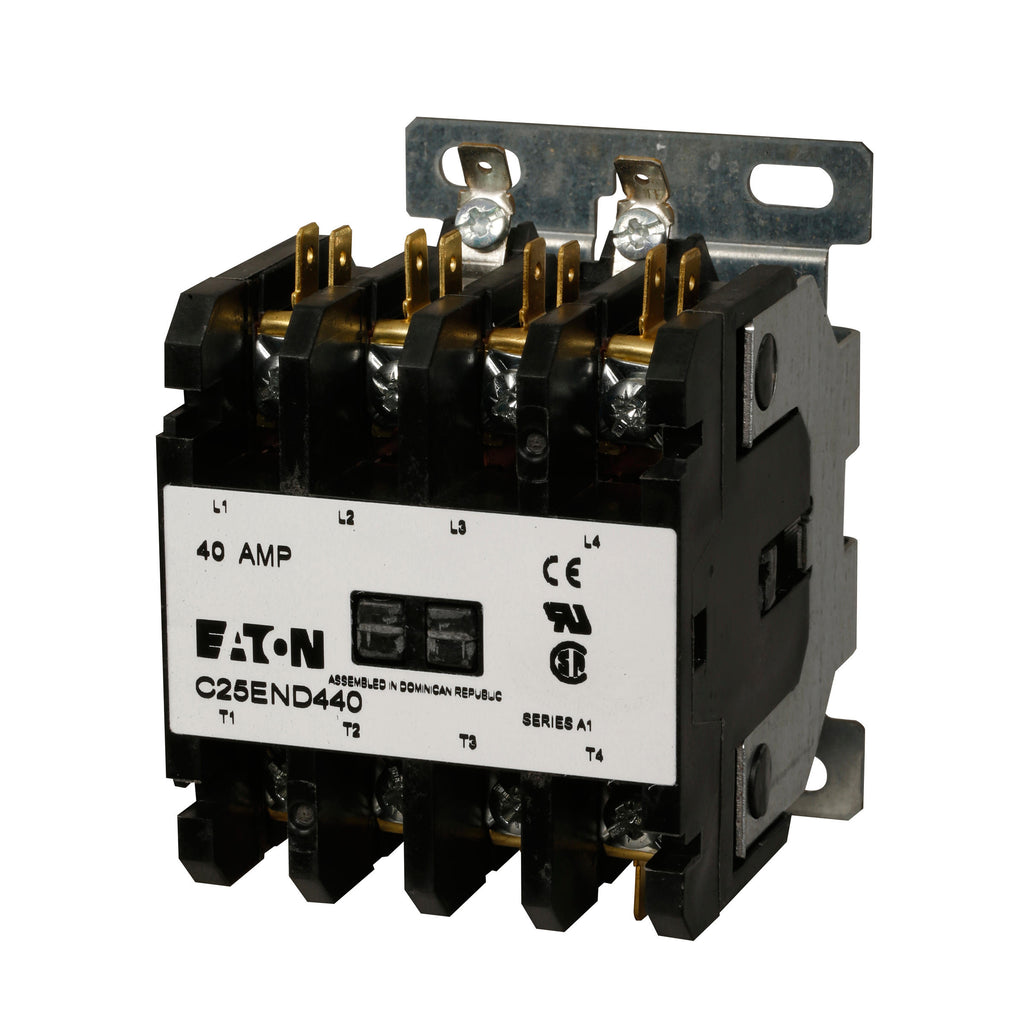

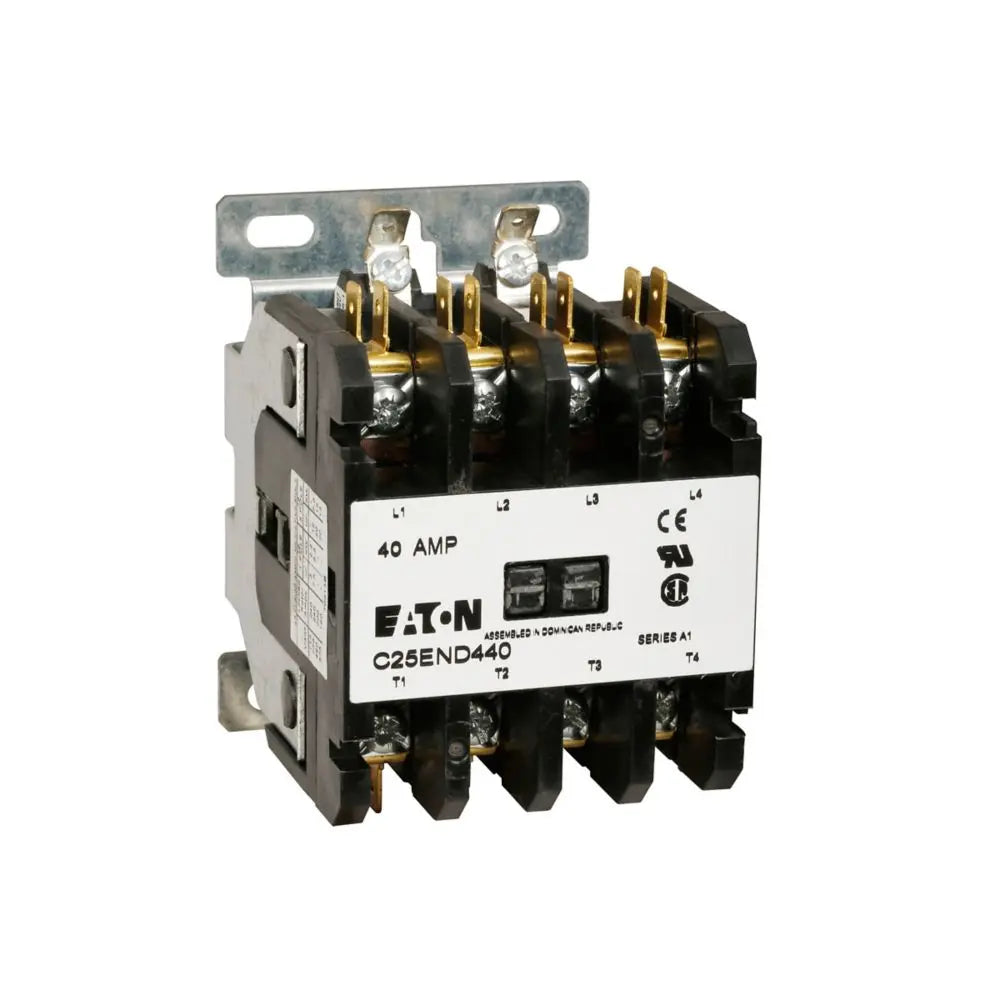

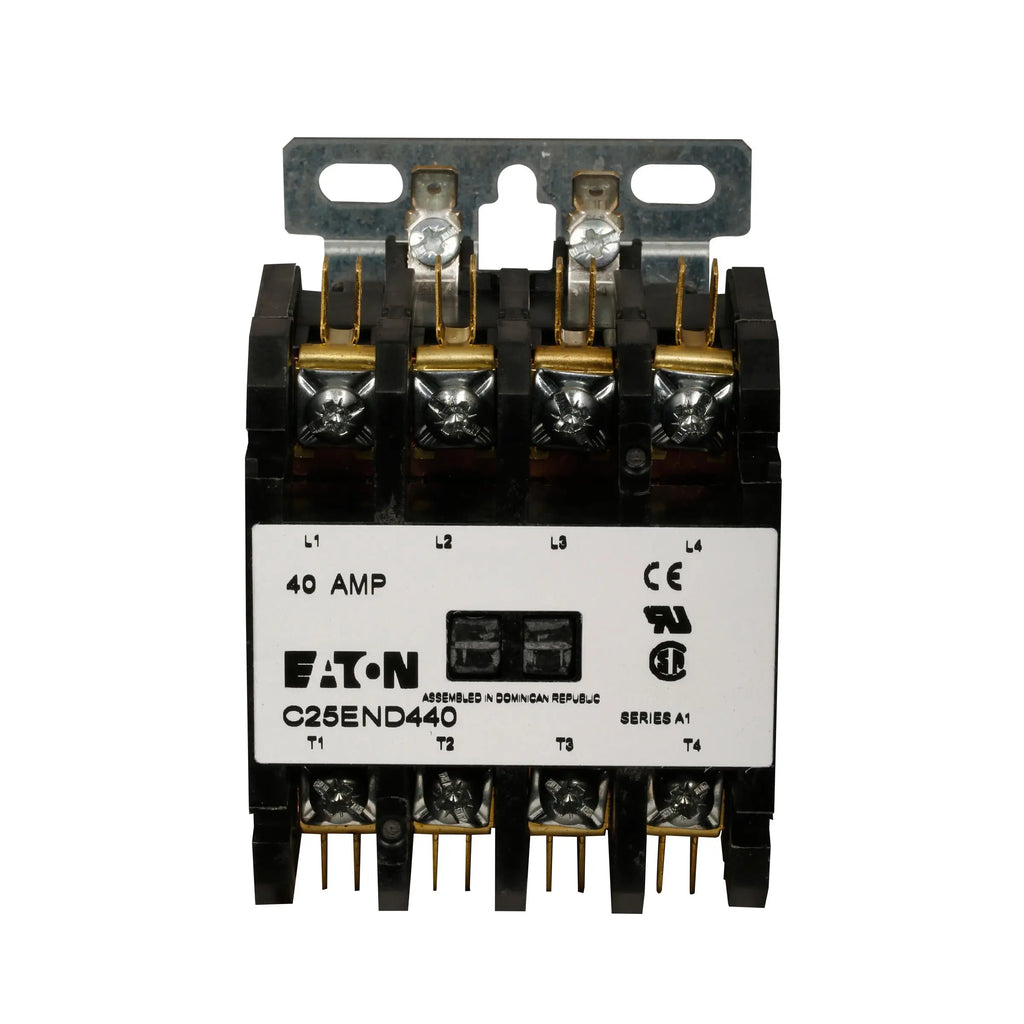

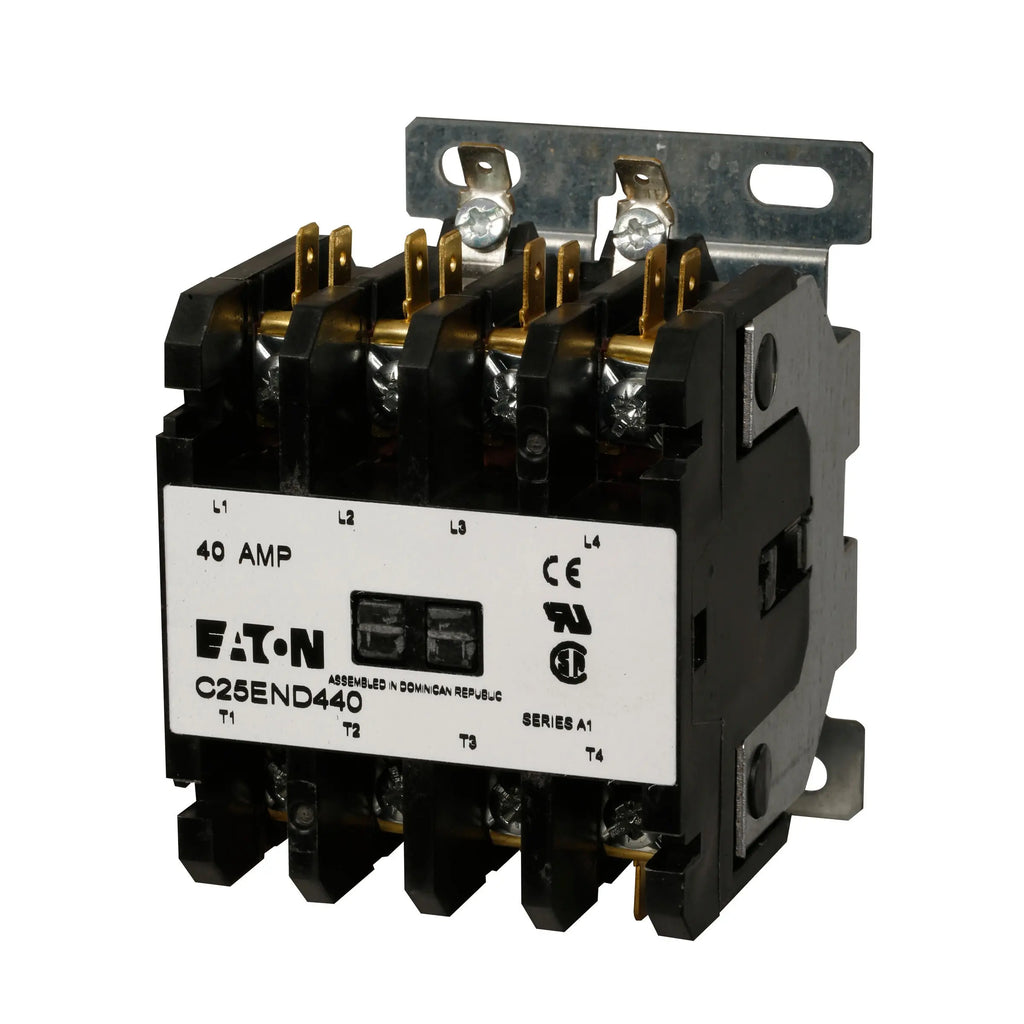

C25ENF440H - Cutler Hammer 40A 600V 4 Pole Definite Purpose Contactor with 277V Coil

C25ENF440H

C25ENF440H is a Cutler Hammer definite purpose contactor designed for motor control applications with a 40 amp rating and 600 volt AC capacity. This 4 pole contactor features a 277 VAC coil and an open enclosure with a metal mounting plate for easy installation. It supports quick connect terminals and box lug terminals with posidrive setscrews, suitable for resistive loads up to 50 amps per pole. The device is UL recognized, CSA certified, and RoHS compliant, ensuring reliable and safe operation.

• Amperage Rating: 40A
• Voltage Rating: 600 VAC
• Coil Voltage: 277 VAC, 60 Hz
• Number of Poles: 4
• Mounting Type: Open with metal mounting plate
• Connection Type: Quick connect and box lug terminals
• Frame Size: C25 (15-50A range)
• Load Type: Resistive load rated 50A per pole
• Type: Non-reversing definite purpose contactor
• Certifications: UL Recognized, CSA Certified, RoHS Compliant
• Weight: 2.3 lbs
• Dimensions: 3.75" H x 3.38" L x 2.68" W

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This Definite Purpose Contactor includes a 277 VAC coil.

Specifications

• Part Number: C25ENF440H
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Contactor
• Family : C25 Series
• Type : C25
• Voltage : 600
• Amperage : 40
• Phase : 3
• Poles : 4
• Temp Rating : -13–158 °F (-25–70 °C)
• Configuration : Non-Reversing
• Coil Voltage Maximum : 277
• Coil Voltage Minimum : 277
• Frequency : 60 Hz

Product Data

• UPC : 782113613529
• GTIN : 00782113613529
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 3.75 in x 2.68 in (Length/Depth x Height x Width)
• Weight : 2.3 lb
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : CSA Certified,UL Recognized,RoHS Compliant
