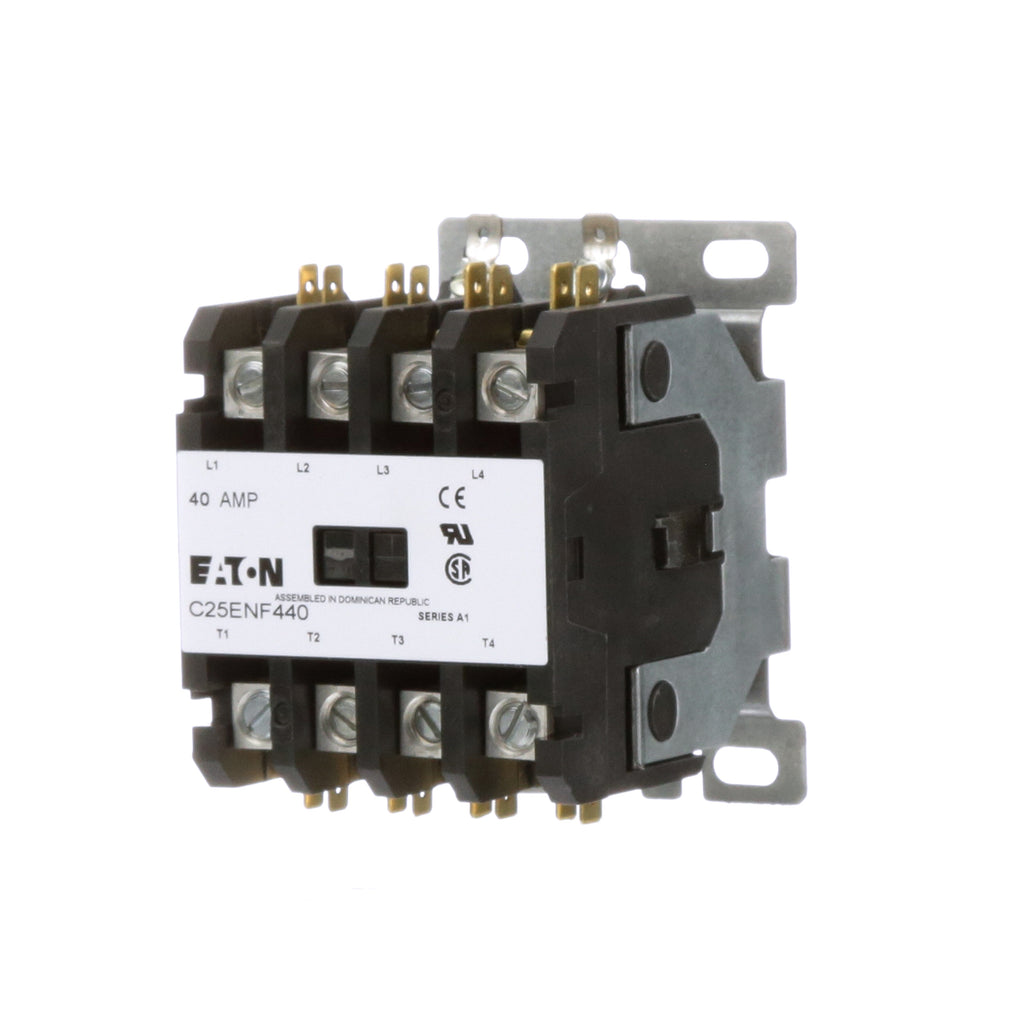

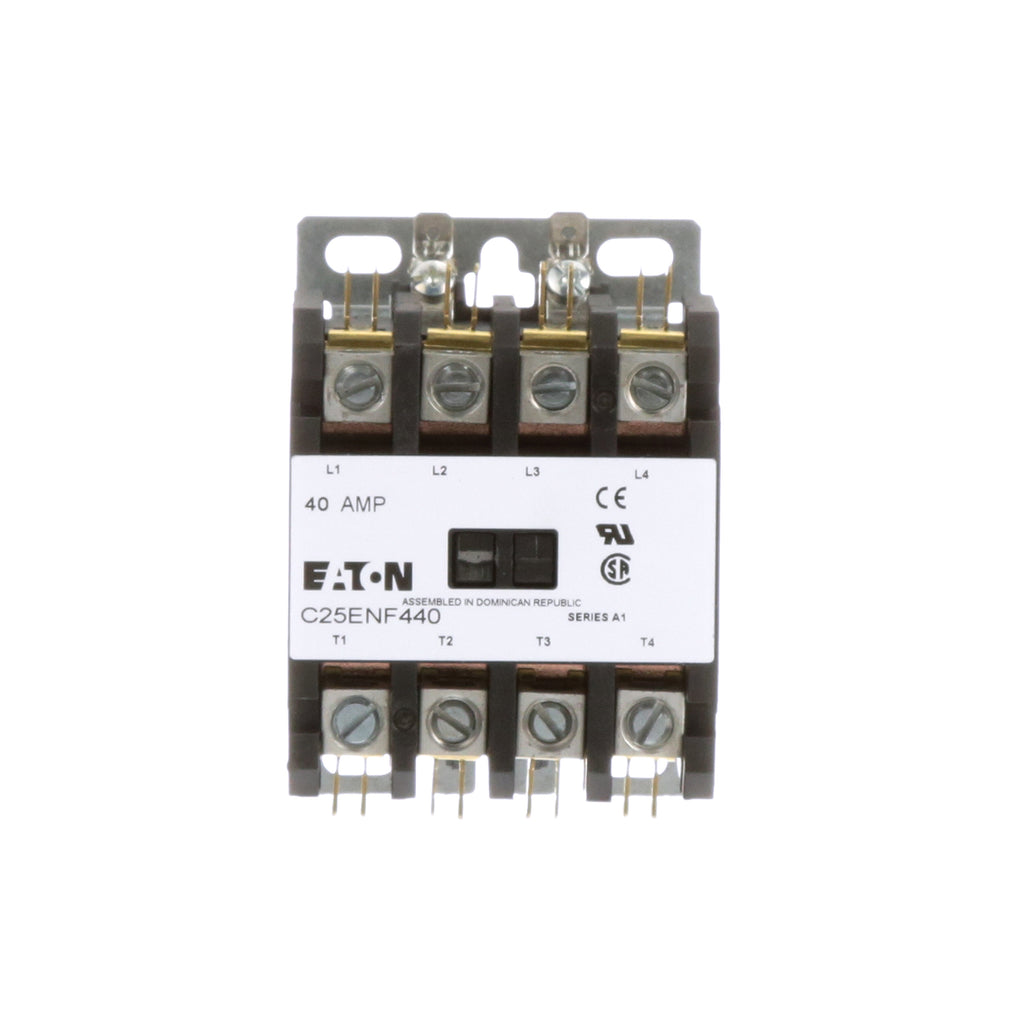

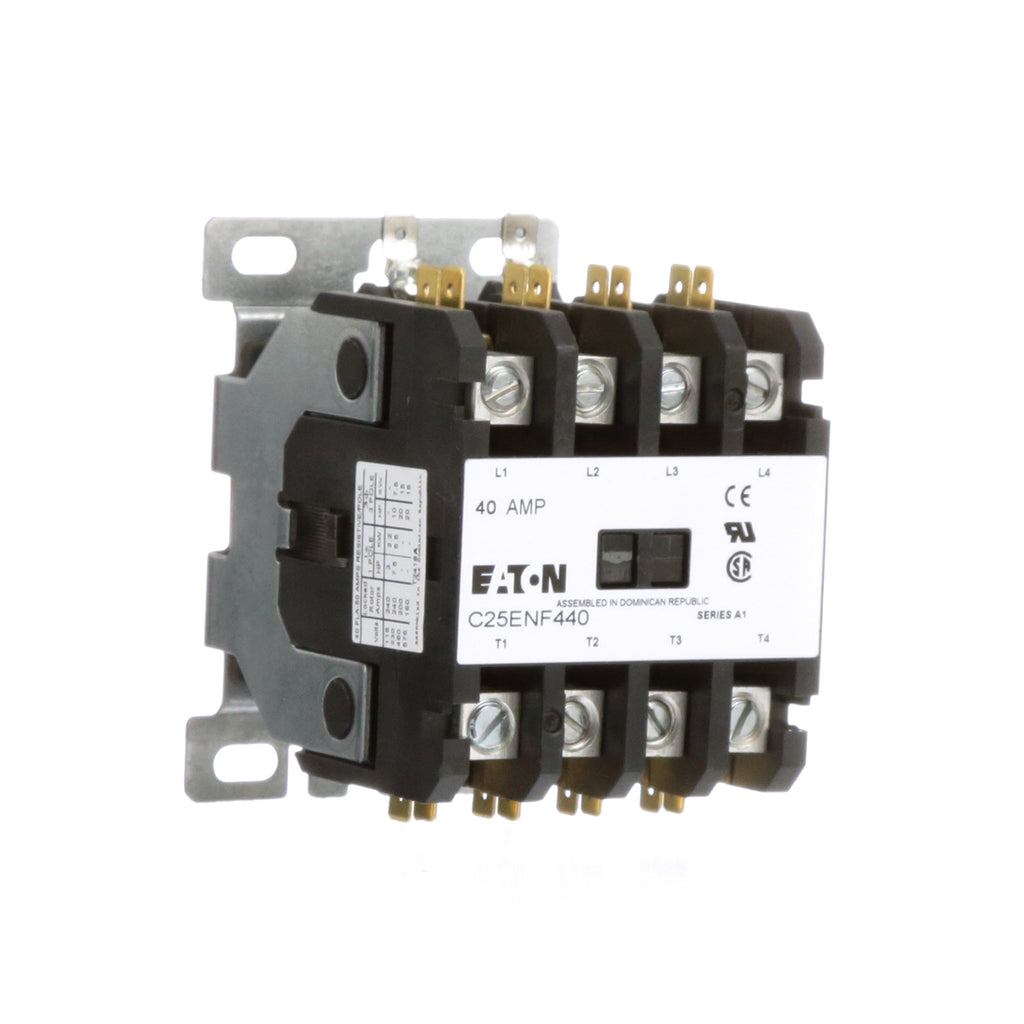

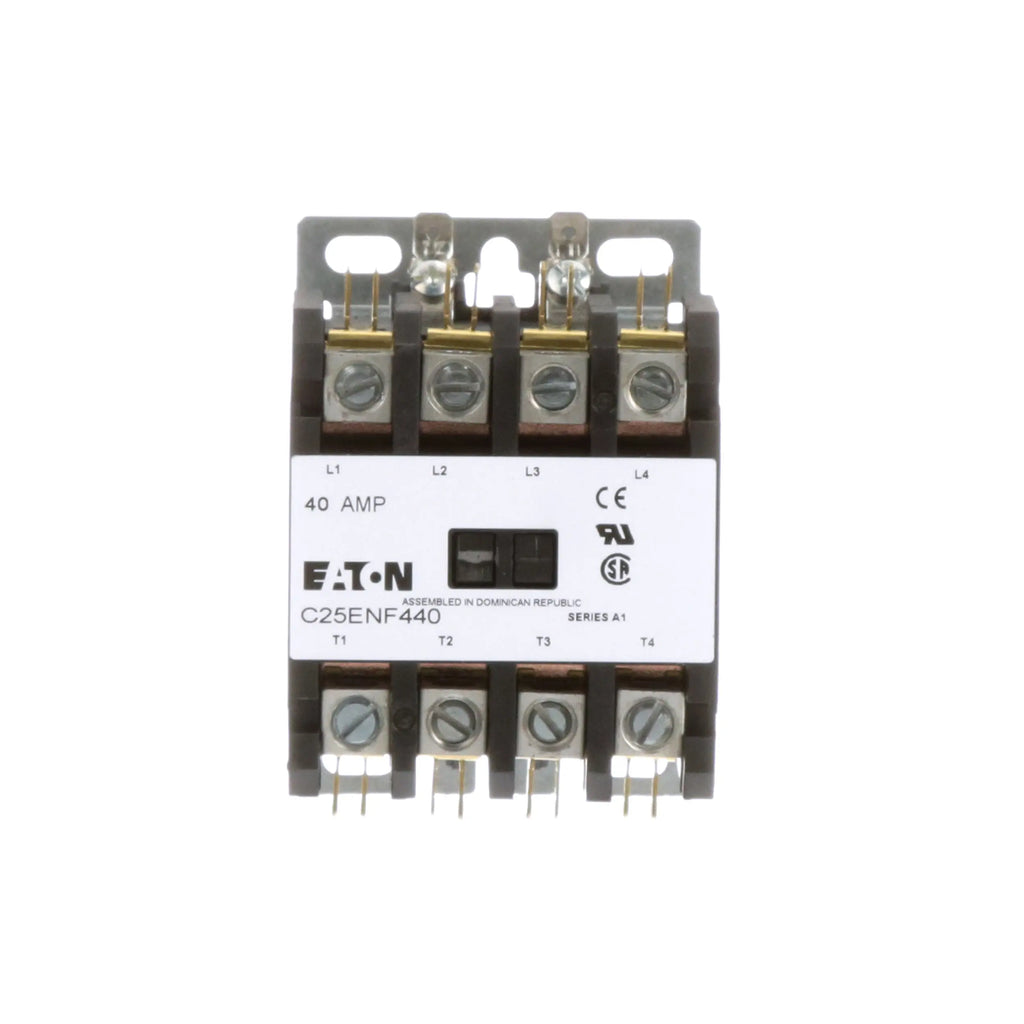

C25ENF440A - Cutler Hammer 40A 4-Pole Definite Purpose Contactor 120V AC Coil Metal Mounting Plate

C25ENF440A

C25ENF440A is a Cutler Hammer definite purpose contactor rated at 40 amps with a 120 volt AC coil and 4 poles, designed for reliable motor control applications.This contactor features double quick connect terminals, a metal mounting plate, and is a direct replacement for Siemens/Furnas 42CF25AF. It is suitable for HVAC, refrigeration, elevators, and other motor control uses. The compact C25D series offers versatility with snap-on side auxiliaries and optional box terminal lugs. It is RoHS compliant, CSA certified, and UL recognized for North America and Europe.

• Amperage Rating: 40A inductive, 50A resistive
• Voltage: 120V AC coil
• Number of Poles: 4

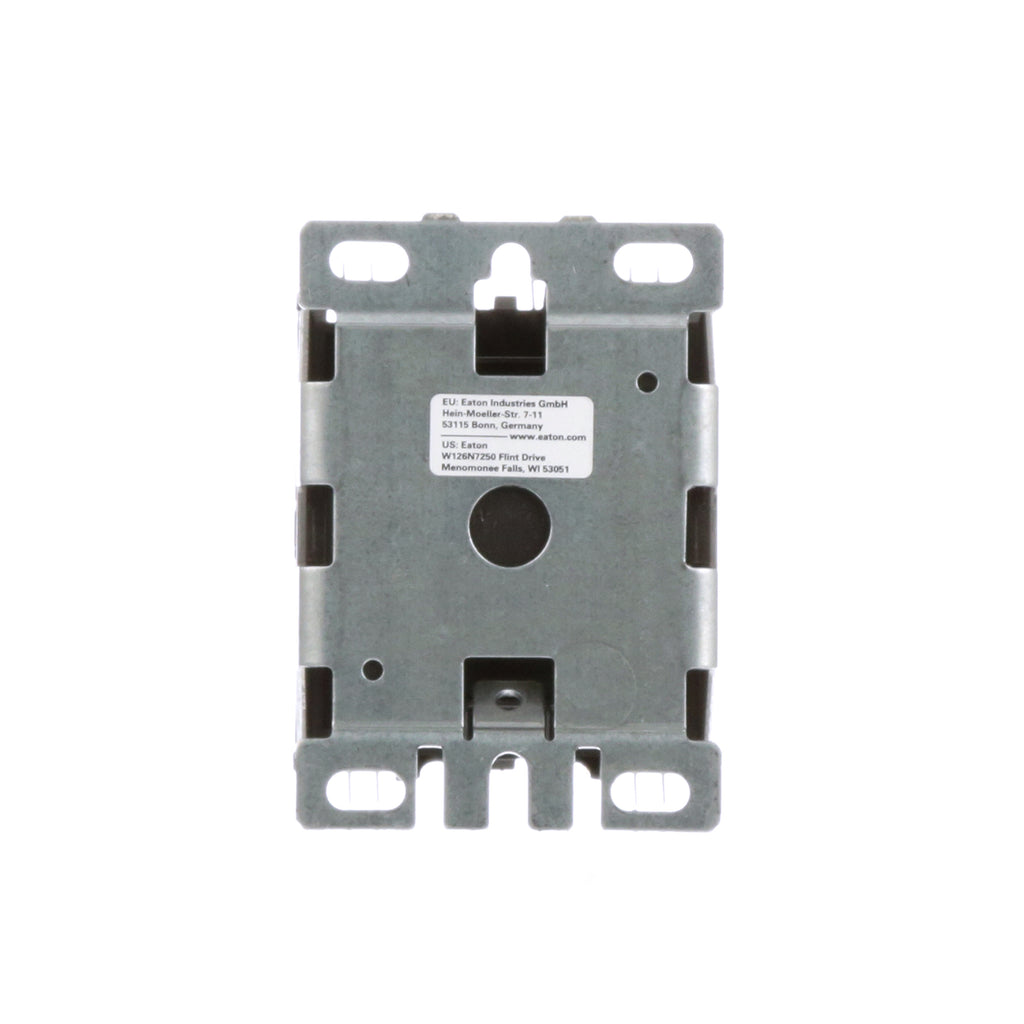

• Mounting Type: Metal mounting plate
• Terminals: Double quick connect and box lugs (posidrive setscrew)
• Interrupt Rating: Locked rotor 240A
• Series/Frame: C25D series
• Trip Unit: Definite purpose contactor, non-reversing
• Certifications: CSA certified, UL recognized, RoHS compliant
• Application: HVAC, refrigeration, elevators, motor control

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This Definite Purpose Contactor includes a 208 VAC coil.

Specifications

• Part Number: C25ENF440A
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Contactor
• Family : C25 Series
• Type : C25
• Voltage : 600
• Amperage : 40
• Phase : 3
• Poles : 4
• Temp Rating : -13–158 °F (-25–70 °C)
• Configuration : Non-Reversing
• Coil Voltage Maximum : 120
• Coil Voltage Minimum : 120
• Frequency : 50 Hz

Product Data

• UPC : 782113475578
• GTIN : 00782113475578
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 3.75 in x 2.68 in (Length/Depth x Height x Width)
• Weight : 2.15 lb
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : UL Recognized,CSA Certified,RoHS Compliant
