C25ENF440B - Cutler Hammer 40A 208-240V 4-Pole Definite Purpose Contactor with Metal Mounting Plate

C25ENF440B

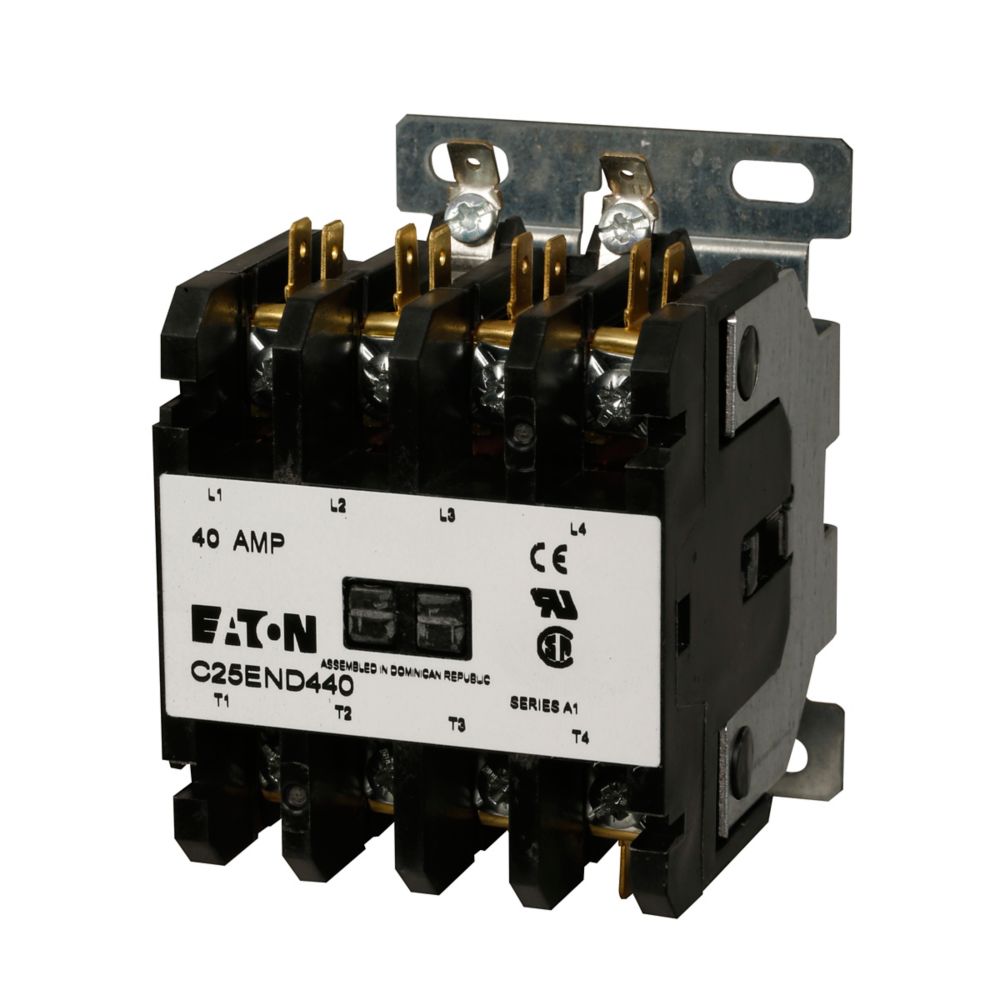

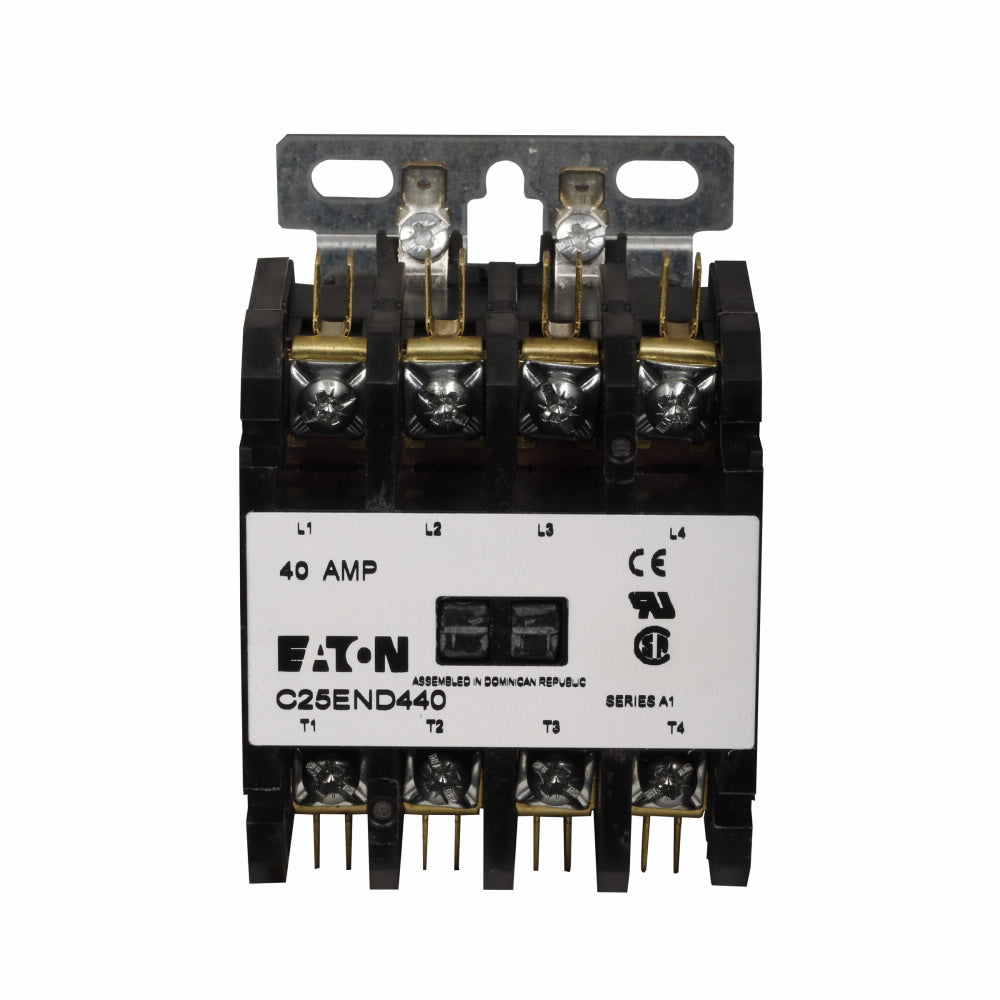

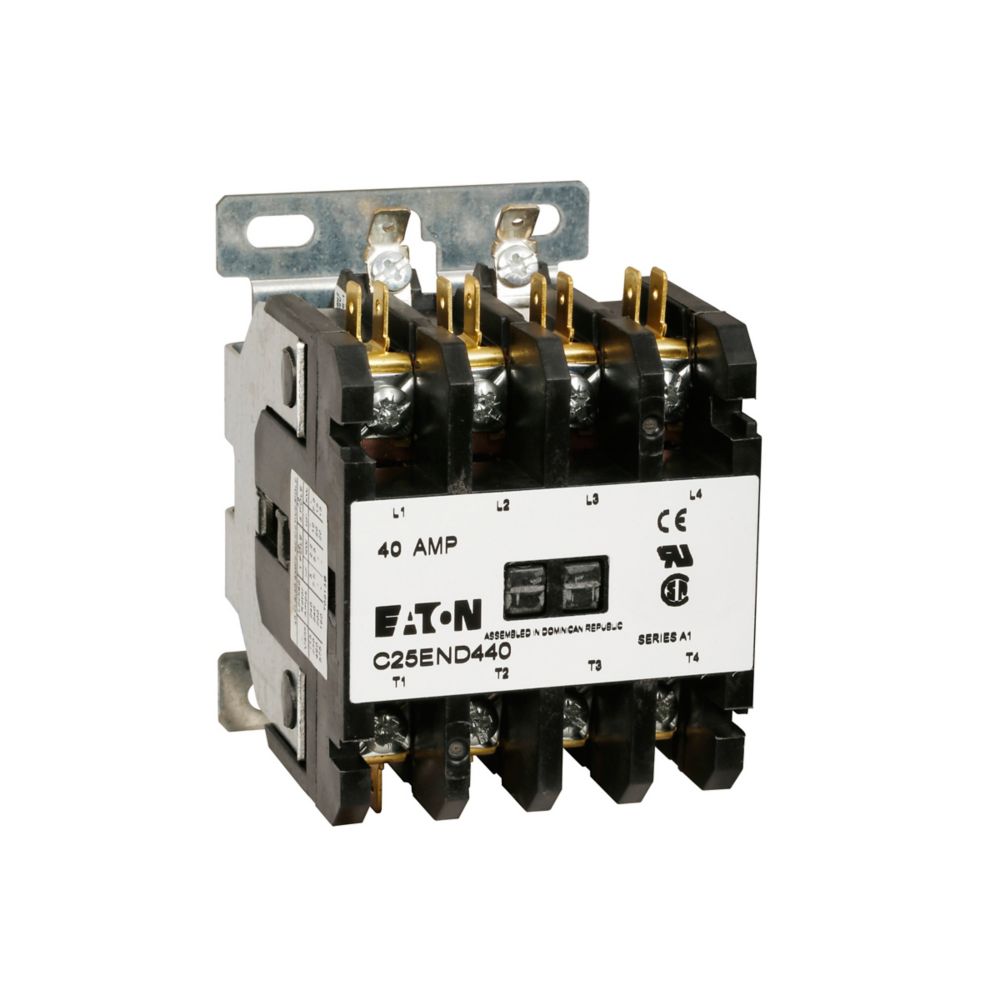

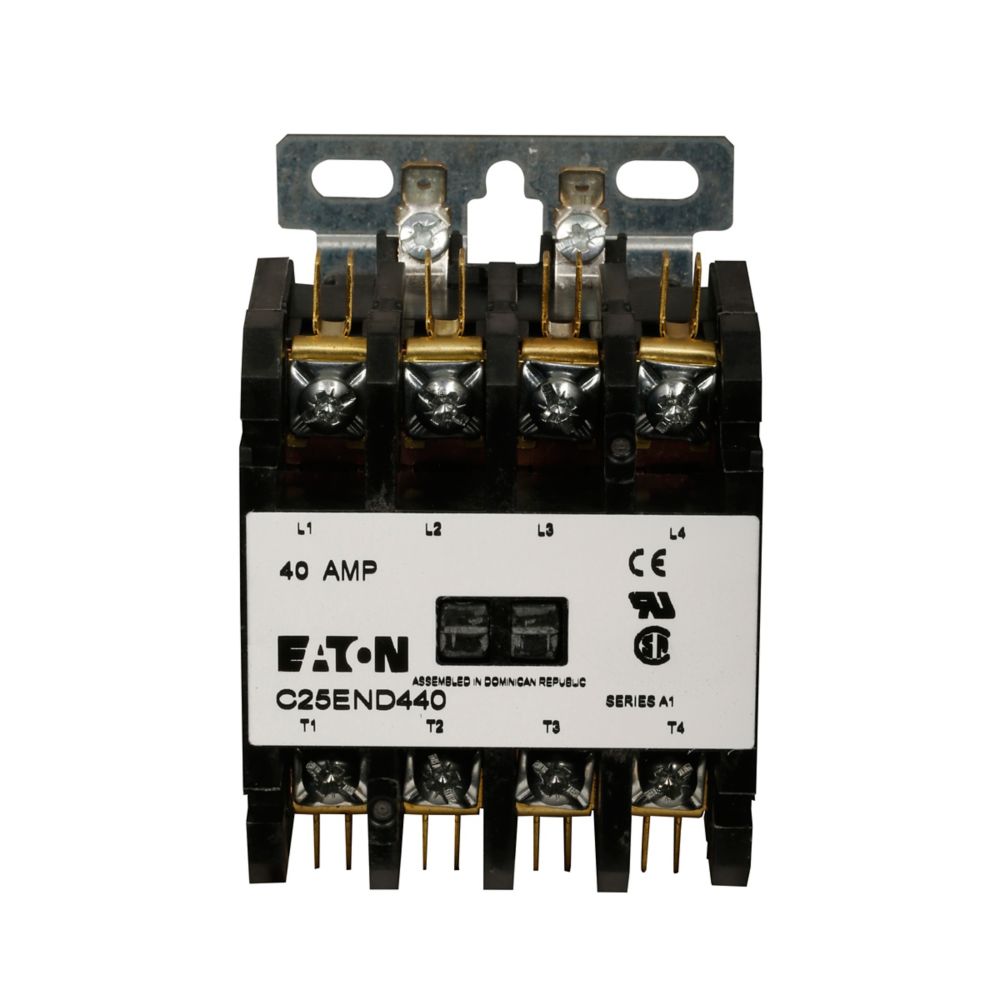

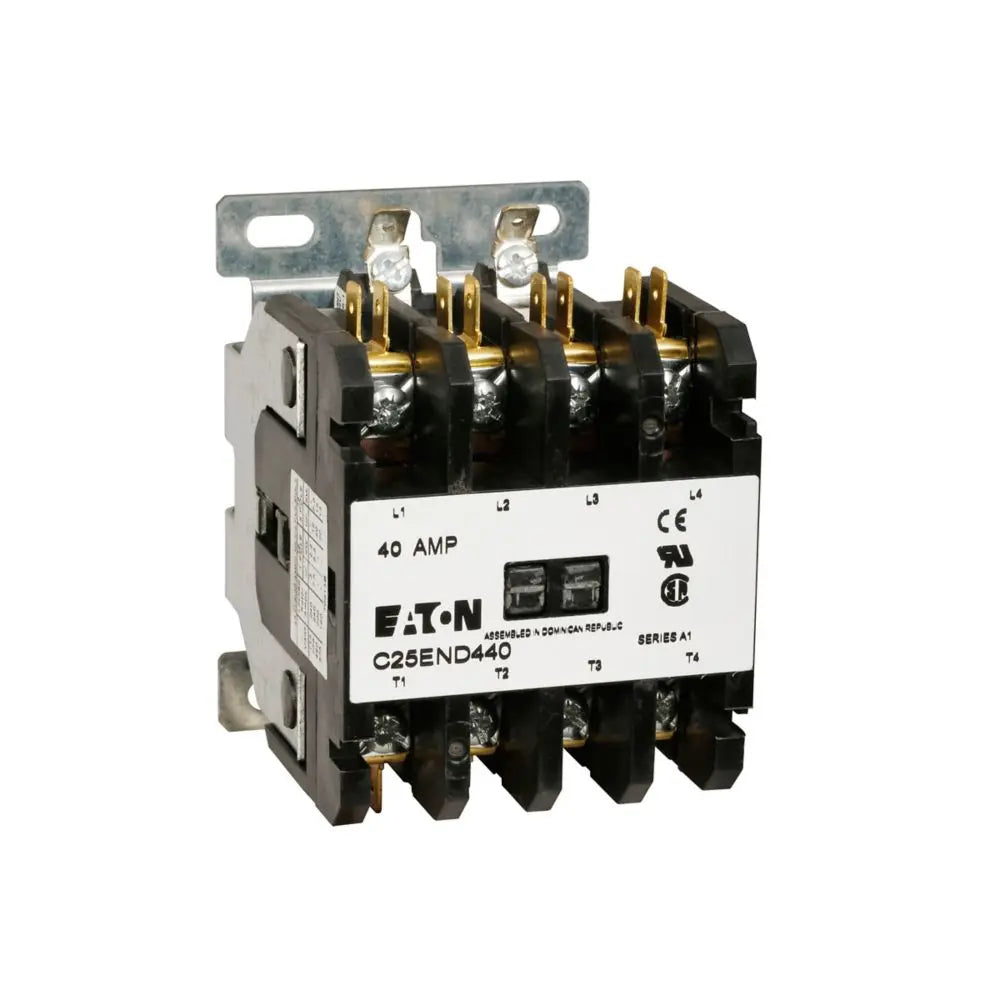

C25ENF440B is a Cutler Hammer definite purpose contactor rated at 40 amps with a 208-240 volt AC coil and four poles, designed for motor control applications.C25ENF440B features an open enclosure with a metal mounting plate, box lug and quick connect terminals, and is non-reversing. It is UL recognized, CSA certified, and RoHS compliant, suitable for HVAC, refrigeration, and other motor control uses.

• Amperage Rating: 40A inductive, 50A resistive
• Coil Voltage: 208-240 VAC, 50/60 Hz
• Number of Poles: 4 (four-pole)
• Mounting Type: Metal mounting plate (panel mount)
• Terminals: Box lugs (posidrive setscrew) and quick connect
• Interrupt Rating: Suitable for definite purpose applications
• Type: Non-reversing contactor
• Certifications: UL Recognized, CSA Certified, RoHS Compliant
• Frame Size: C25 series
• Weight: Approximately 2.3 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This Definite Purpose Contactor includes a 208 VAC coil.

Specifications

• Part Number: C25ENF440B
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Contactor
• Family : C25 Series
• Type : C25
• Voltage : 600
• Amperage : 40
• Phase : 3
• Poles : 4
• Temp Rating : -13–158 °F (-25–70 °C)
• Configuration : Non-Reversing
• Coil Voltage Maximum : 240
• Coil Voltage Minimum : 208
• Frequency : 50 Hz

Product Data

• UPC : 782113536606
• GTIN : 00661191106850
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 3.75 in x 2.68 in (Length/Depth x Height x Width)
• Weight : 2.3 lb
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : CSA Certified,UL Recognized,RoHS Compliant
