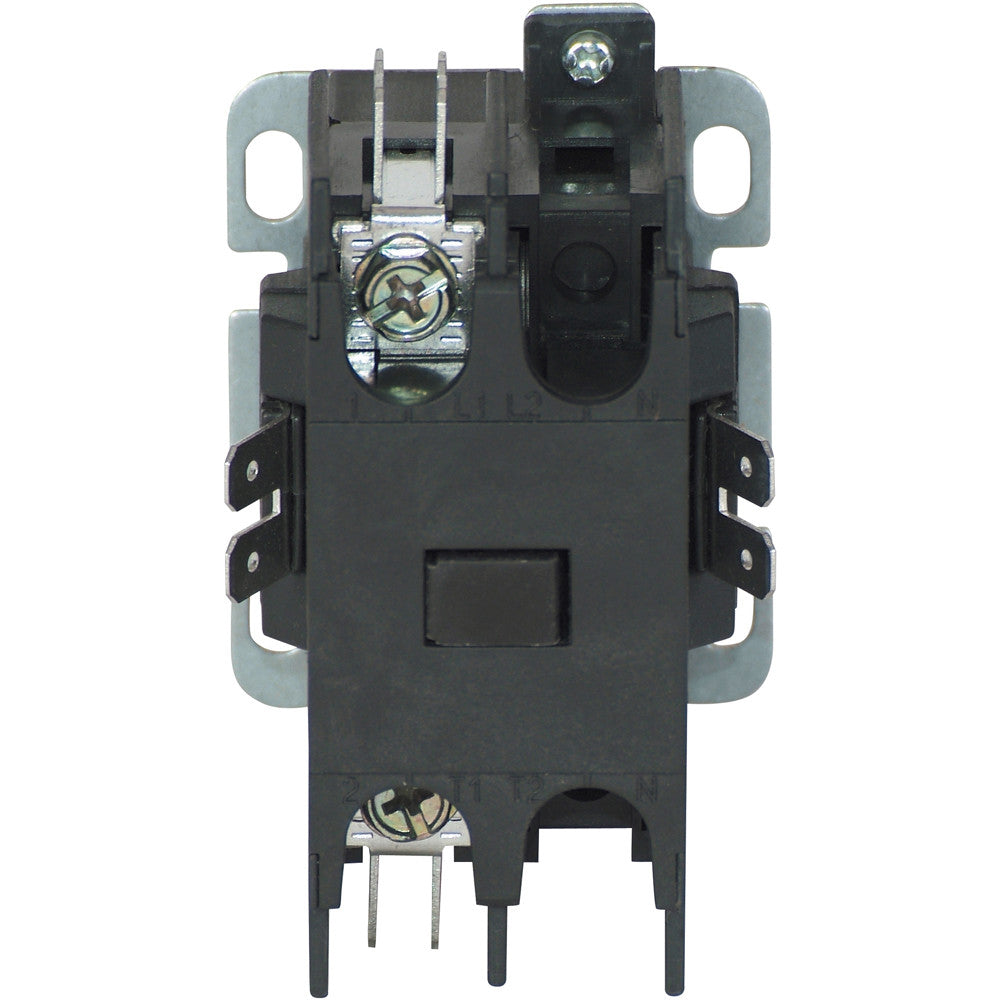

C25ANB130B - Cutler Hammer C25 Series 30A 600V 1 Pole Definite Purpose Contactor, 208/240V Coil, Non-Reversing, Panel Mount

C25ANB130B

C25ANB130B is a Cutler Hammer C25 Series definite purpose contactor designed for reliable motor control applications.

This single-pole, non-reversing contactor features a 30A current rating, 600V voltage rating, and is equipped with a 208/240V AC coil. It is panel-mounted and suitable for a variety of industrial and commercial uses where dependable switching is required.

Key Specifications

• Amperage: 30A
• Voltage: 600V
• Poles: 1 (Single-pole)
• Mounting Type: Panel mount
• Interrupt Rating: Not specified in available data
• Series/Frame: C25 Series
• Trip Unit: Not applicable (standard contactor)
• Certifications: Not specified in available data
• Coil Voltage: 208/240V AC, 50/60 Hz
• Contact Type: Normally Open (NO), Double Break
• Connection Type: Quick connect, screw terminals
• Application: Motor control, power switching

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This Definite Purpose Contactor includes a 110 VAC coil.

Specifications

• Part Number: C25ANB130B
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Contactor
• Family : C25 Series
• Type : C25
• Voltage : 600
• Amperage : 30
• Phase : 1
• Poles : 1
• Configuration : Non-Reversing
• Coil Voltage Maximum : 240
• Full Load Amps : Full Load Amps-Inductive 30A Full Load Amps-Resistive 40A
• Coil Voltage Minimum : 208
• Frequency : 50 Hz

Product Data

• UPC : 78668511586
• GTIN : 00786685115863
• Country of Origin : China
• Dimensions : 2.32 in x 3.19 in x 1.97 in (Length/Depth x Height x Width)
• Weight : 0.5
• Certification : CSA, RoHS, UL Listed
