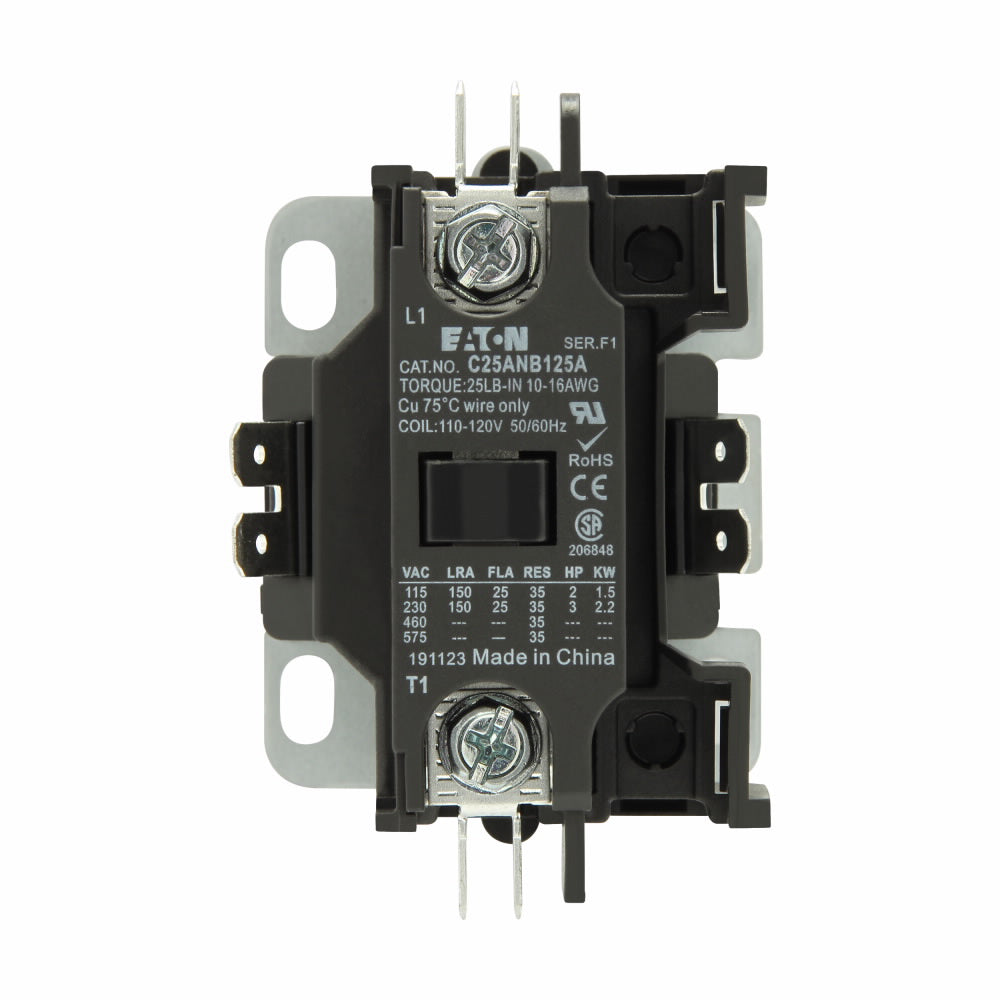

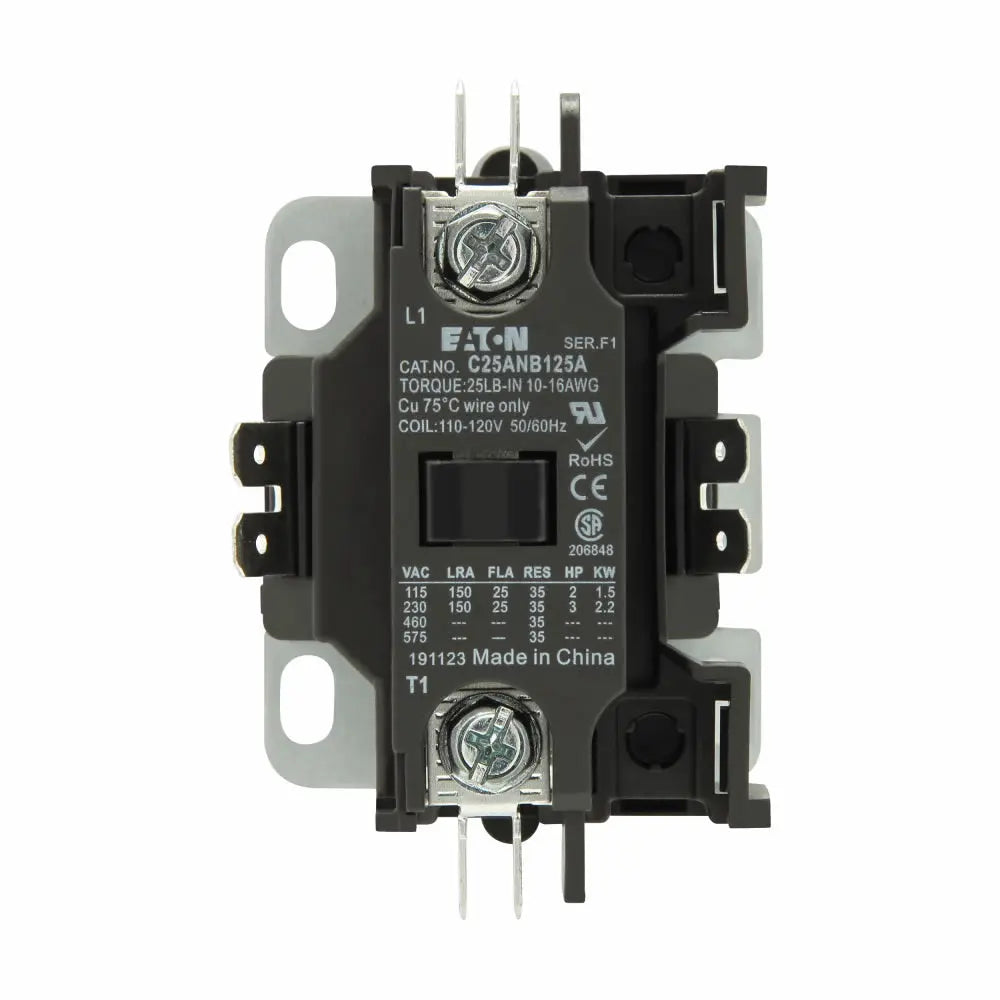

C25ANB125A - Cutler Hammer C25 Series 25A 120VAC 1 Pole Non-Reversing Contactor Open Frame

C25ANB125A

C25ANB125A is a Cutler Hammer C25 Series 25A 120VAC 1 pole non-reversing contactor designed for reliable motor control applications. This open-frame contactor features a compact design with binding head screw and quick-connect terminals for easy installation and maintenance. Engineered for industrial and HVAC use, the C25ANB125A offers a 25A inductive load rating, 35A resistive load rating, and operates at 110-120VAC, 50/60 Hz. The contactor is panel mountable with a metal mounting plate and is UL Recognized and CSA Certified for safety and compliance.

• Part Number: C25ANB125A
• Manufacturer: Cutler Hammer
• Series: C25
• Amperage Rating: 25A (Inductive), 35A (Resistive)
• Coil Voltage: 110-120VAC, 50/60 Hz
• Poles: 1 Pole (SPST)
• Mounting Type: Panel Mount with Metal Mounting Plate
• Enclosure: Open Frame
• Terminals: Binding Head Screw and Quick Connect
• Interrupt Rating: 600VAC
• Certifications: UL Recognized, CSA Certified, RoHS Compliant
• Weight: 0.6 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This Definite Purpose Contactor includes a 120 VAC coil.

Specifications

• Part Number: C25ANB125A
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Contactor
• Family : C25 Series
• Type : C25
• Voltage : 600
• Amperage : 25
• Phase : 1
• Poles : 1
• Configuration : Non-Reversing
• Coil Voltage Maximum : 120
• Full Load Amps : Full Load Amps-Inductive 25A Full Load Amps-Resistive 30A
• Coil Voltage Minimum : 120

Product Data

• UPC : 786685115818
• GTIN : 00786685115818
• Country of Origin : China
• Dimensions : 2.32 in x 3.19 in x 1.97 in (Length/Depth x Height x Width)
• Weight : 0.6 lb
• Certification : CSA, RoHS, UL Listed
