Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Contactor
Description

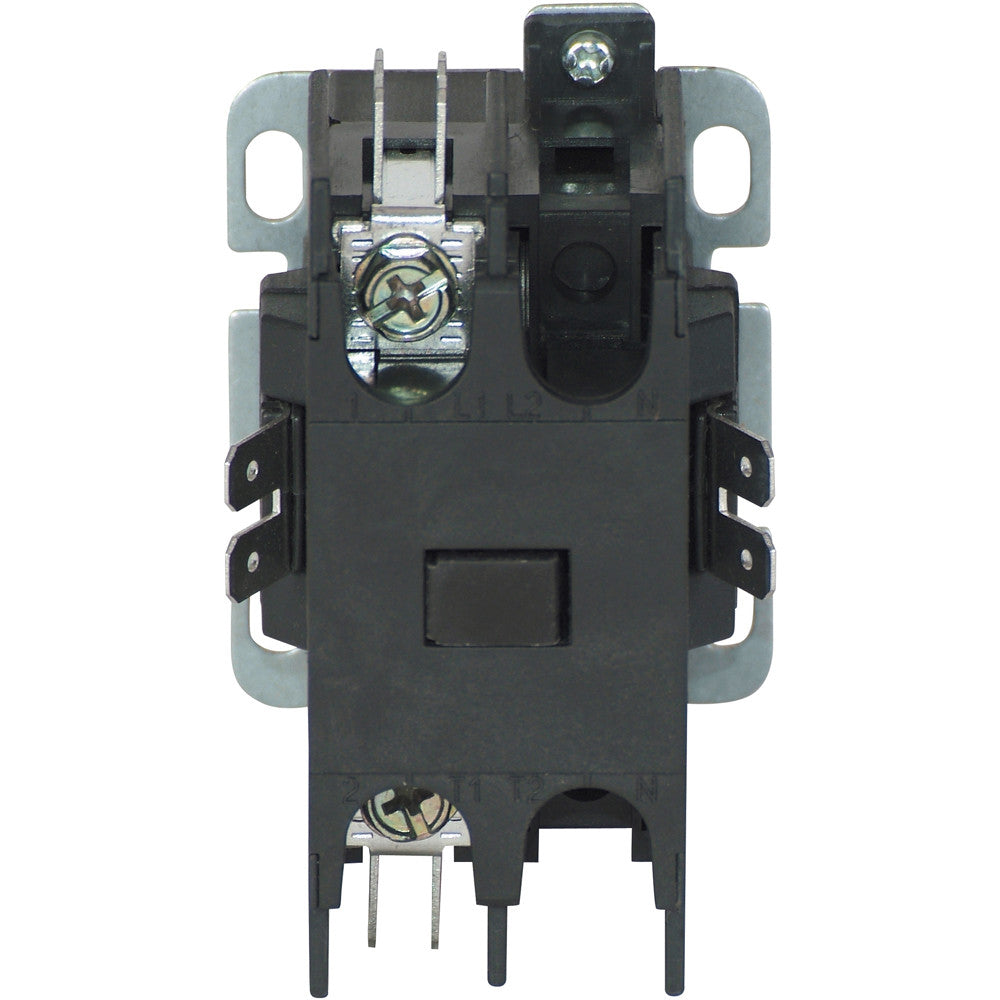

C25ANB125B
C25ANB125B is a Cutler Hammer definite purpose contactor designed for motor control applications with a 25 amp rating and 208-240 VAC coil voltage.C25ANB125B features a single-pole, non-reversing design from the C25 Series, suitable for open mounting with a metal mounting plate. It supports quick connect and screw terminals side-by-side, offering reliable switching for inductive and resistive loads.
- Key Specifications
- Amperage Rating: 25A
- Coil Voltage: 208-240 VAC, 50/60 Hz
- Number of Poles: Single-pole (1NO)
- Type: Non-reversing
- Mounting: Open with metal mounting plate
- Termination: Quick connect and binding head screw terminals
- Inductive Current Rating: 25A
- Resistive Current Rating: 30A
- Series/Frame: C25 Series
- Certifications: CSA, UR
- Weight: 0.6 lbs
Additional Information
This Definite Purpose Contactor includes a 110 VAC coil.
Specifications
- Part Number: C25ANB125B
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Contactor
- Family : C25 Series
- Type : C25
- Voltage : 600
- Amperage : 25
- Phase : 1
- Poles : 1
- Configuration : Non-Reversing
- Coil Voltage Maximum : 240
- Full Load Amps : Full Load Amps-Inductive 25A Full Load Amps-Resistive 30A
- Coil Voltage Minimum : 208
- Frequency : 50 Hz
Product Data
- UPC : 78668511582
- GTIN : 00786685115825
- Country of Origin : China
- Dimensions : 2.32 in x 3.19 in x 1.97 in (Length/Depth x Height x Width)
- Weight : 0.6
- Certification : CSA, RoHS, UL Listed
