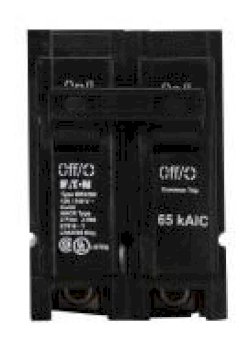

BRX2100 - Cutler Hammer Eaton 100A 120/240V 2 Pole Thermal Magnetic Circuit Breaker Plug-On Mount 65kAIC

BRX2100

BRX2100 is a Cutler Hammer Eaton 2 pole thermal magnetic circuit breaker rated for 100 amps and 120/240 volts AC with a 65kA interrupting rating.This BR series breaker features a plug-on mounting type, long time and instantaneous trip functions, and is UL listed for safety. It supports wire sizes from AWG 14 to AWG 2/0 and is designed for single-phase applications with a frequency rating of 50-60 Hz.

• Amperage: 100 A
• Voltage: 120/240 VAC
• Poles: 2
• Mounting Type: Plug-On
• Interrupt Rating: 65 kAIC at 240 V
• Series/Frame: BR
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
• Wire Gauge: AWG 14 to AWG 2/0
• Phase: Single-phase
• Frequency: 50-60 Hz
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BRX2100
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BR Series
• Type : BRX
• Voltage : 240
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 65kA@240V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786685926803
• GTIN : 00786685926803
• Country of Origin : Dominican Republic
• Dimensions : 2.48 in x 2.938 in x 2 in (Length/Depth x Height x Width)
• Weight : 0.76
• Certification : UL Listed file E7819,Federal Specifications Classification W-C375
• Wire Size : AWG 14 to AWG 2/0
