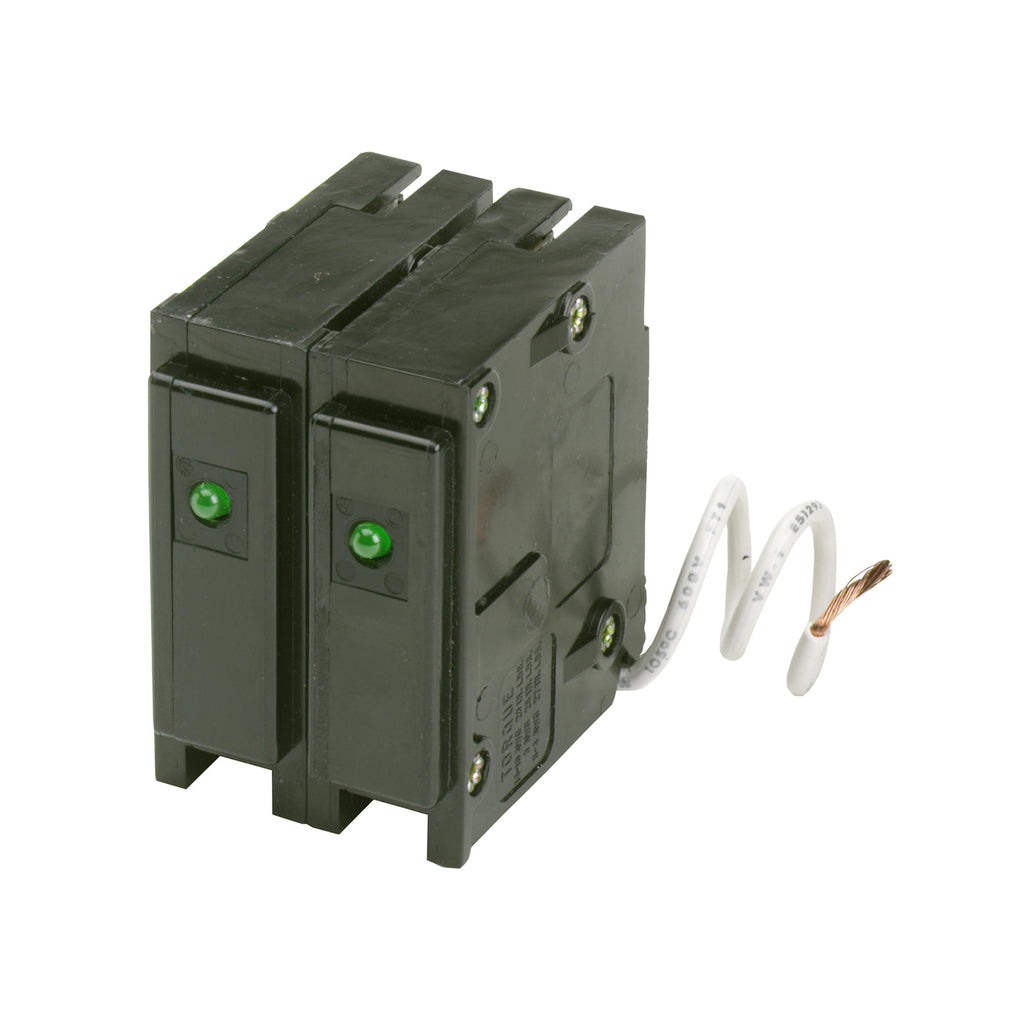

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Eaton
- Sub-Category
- Parts & Accessories
- Series
- BR
- Frame
- BR
- Voltage
- 120/240V
- Poles
- 2
- Phases
- 1
- Frequency
- 60 Hz
- Section
- Surge Protection
- UPC
- 786676449403
- GTIN
- 00786676449403
- Dimensions
- 4.5 in x 3 in x 6 in (Length/Depth x Height x Width)
- Weight
- 0.67 lb
- Certification
- UL
Product description & additional details
BRSURGE
BRSURGE is an Eaton Type BR circuit breaker surge protective device designed for single-phase 120/240V loadcenters with plug-on mounting.
This device combines surge protection with a functional 2-pole thermal magnetic breaker, providing protection against overloads, short circuits, and transient surges. It features a 3kA nominal discharge current, an 18kA one-time surge current rating, and a 10kA short-circuit current rating (SCCR). The unit is UL 1449 certified and is compatible with select GE, ITE/Siemens, and Crouse-Hinds panels. Clear LED indication displays the protective status of the device, and it supports both internal and external installation options.
- Type: Circuit breaker surge protective device
- Poles: 2 Pole
- Voltage Rating: 120/240 VAC
- Phase: Single-phase
- Mounting Type: Plug-on module
- Nominal Discharge Current: 3kA
- One-Time Surge Current Rating: 18kA
- Short-Circuit Current Rating (SCCR): 10kA
- Frequency: 60 Hz
- Certifications: UL 1449
- Compatible Panels: Select GE, ITE/Siemens, Crouse-Hinds
- LED indication for protective status
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: BRSURGE
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Parts & Accessories
- Section : Surge Protection
- Family : BR
- Type : BR
- Voltage : 120/240
- Phase : 1
- Poles : 2
Product Data
- UPC : 786676449403
- GTIN : 00786676449403
- Dimensions : 4.5 in x 3 in x 6 in (Length/Depth x Height x Width)
- Weight : 0.67 lb
- Certification : UL
