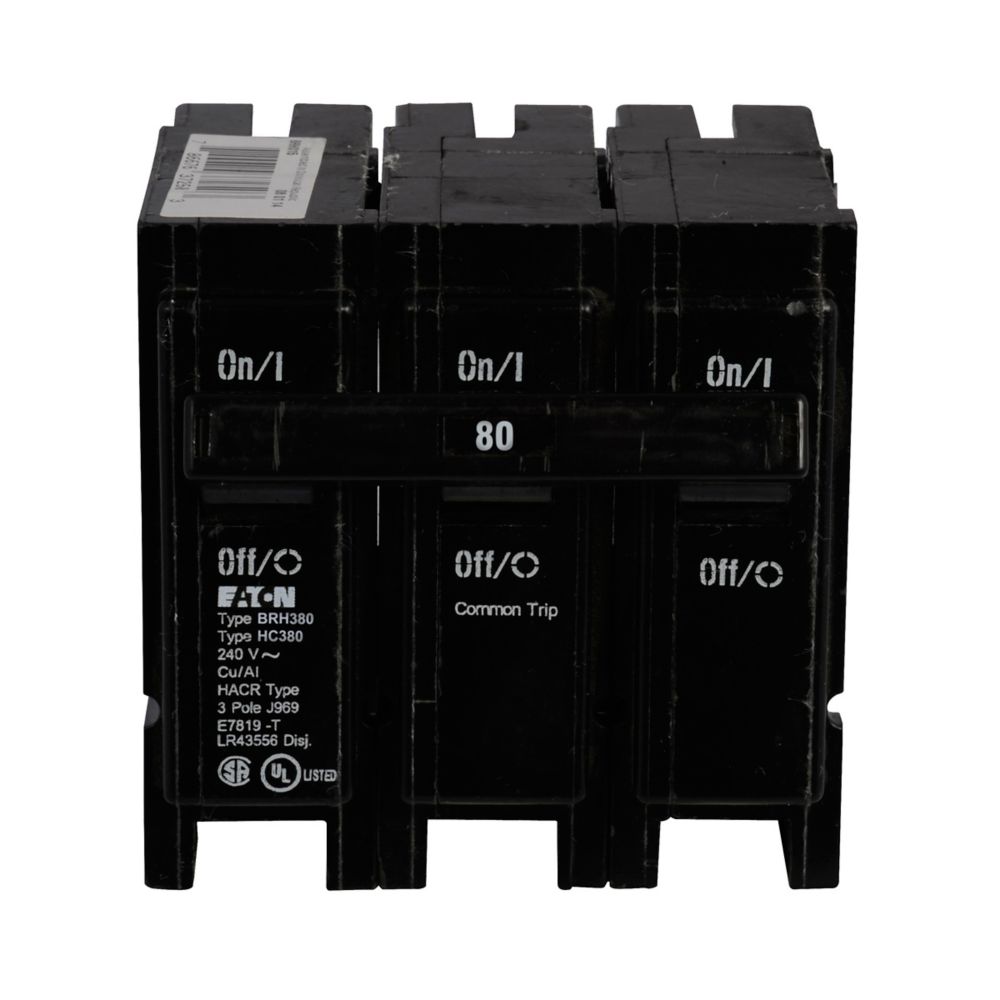

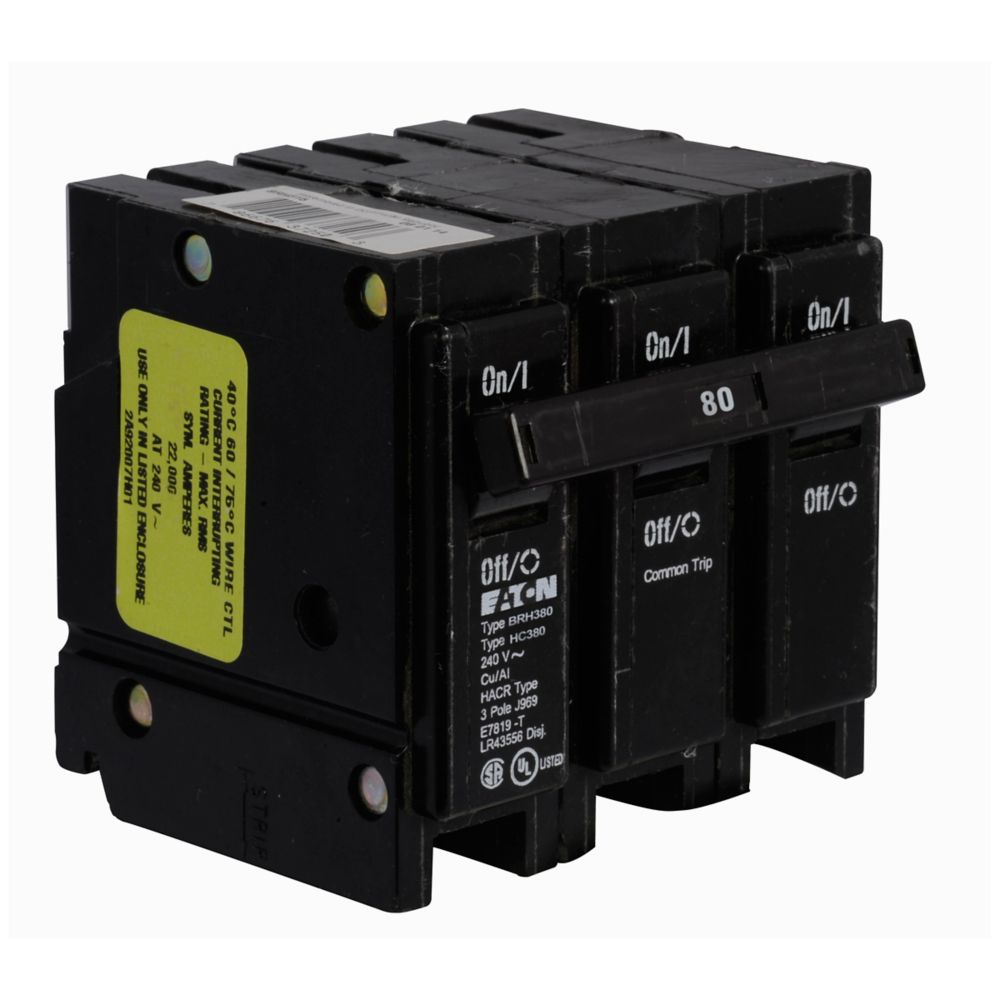

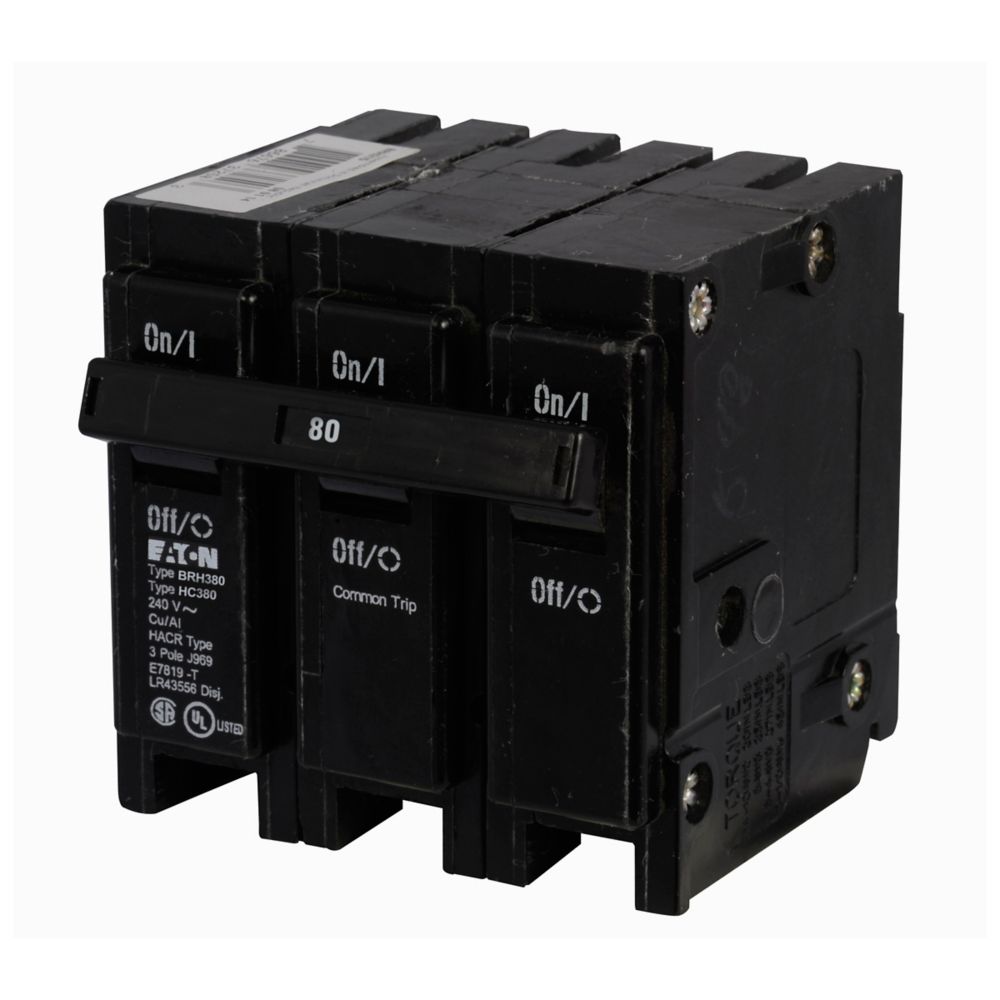

BRH380 - Cutler Hammer 80A 240V 3 Pole Plug-On Molded Case Circuit Breaker, BR Series, 22kAIC, Thermal Magnetic Trip, UL Listed

BRH380

BRH380 is a Cutler Hammer 3-pole, 80A, 240V molded case circuit breaker designed for reliable protection in commercial and industrial applications.

This circuit breaker features a plug-on mounting type for easy installation, a thermal magnetic trip unit for both overload and short-circuit protection, and a high interrupting capacity of 22kAIC at 240V. It is part of the BR Series and is suitable for use in Type BR loadcenters. The BRH380 is UL listed and complies with Federal Specifications Classification W-C376, ensuring quality and safety.

Key Specifications

• Part Number: BRH380
• Manufacturer: Cutler Hammer (Eaton)
• Amperage: 80A
• Voltage: 240V AC
• Poles: 3
• Mounting Type: Plug-on
• Interrupt Rating: 22kAIC at 240V
• Series/Frame: BR Series
• Trip Unit: Thermal magnetic, common trip
• Certifications: UL 490, Federal Specifications Classification W-C376
• Frequency: 50/60 Hz
• Wire Size: #4-1/0 AWG Cu/Al
• Used With: Type BR Loadcenters

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BRH380
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BR Series
• Type : BRH
• Voltage : 240
• Amperage : 80
• Phase : 3
• Poles : 3
• AIC rating : 22kA@240V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 786676002745
• GTIN : 00786676002745
• Country of Origin : Dominican Republic
• Dimensions : 3 in x 3 in x 3 in (Length/Depth x Height x Width)
• Weight : 2
• Certification : UL 490,Federal Specifications Classification W-C376
• Wire Size : AWG 4 to AWG 1/0, Cu/Al
