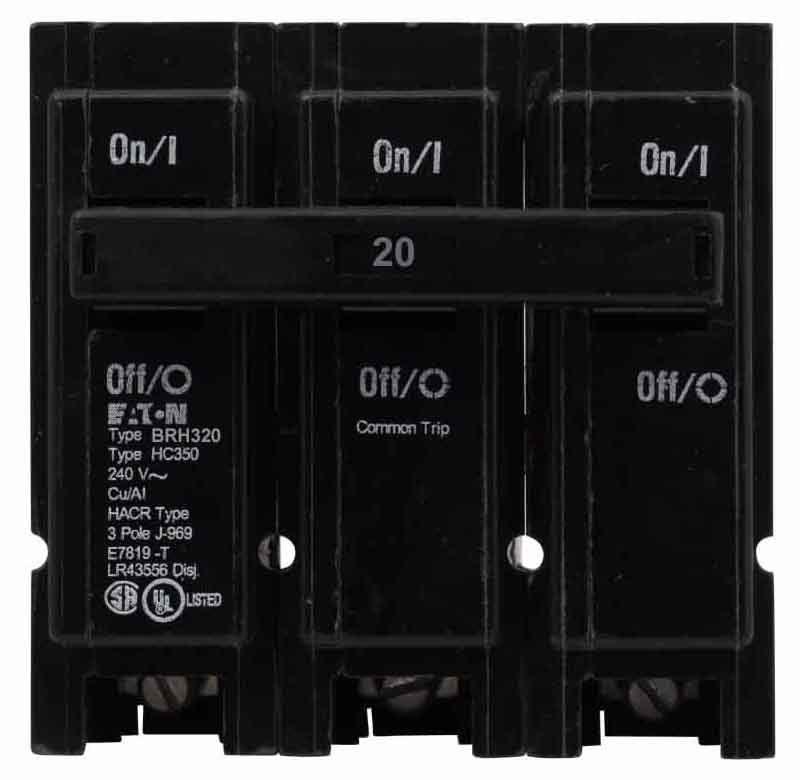

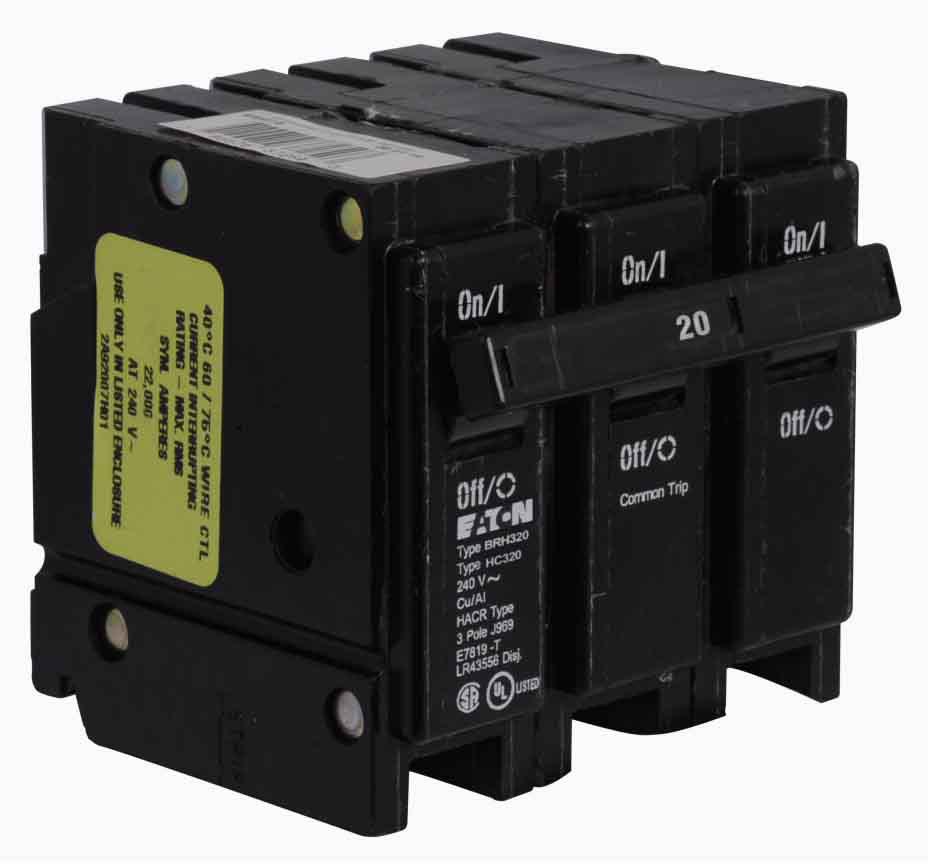

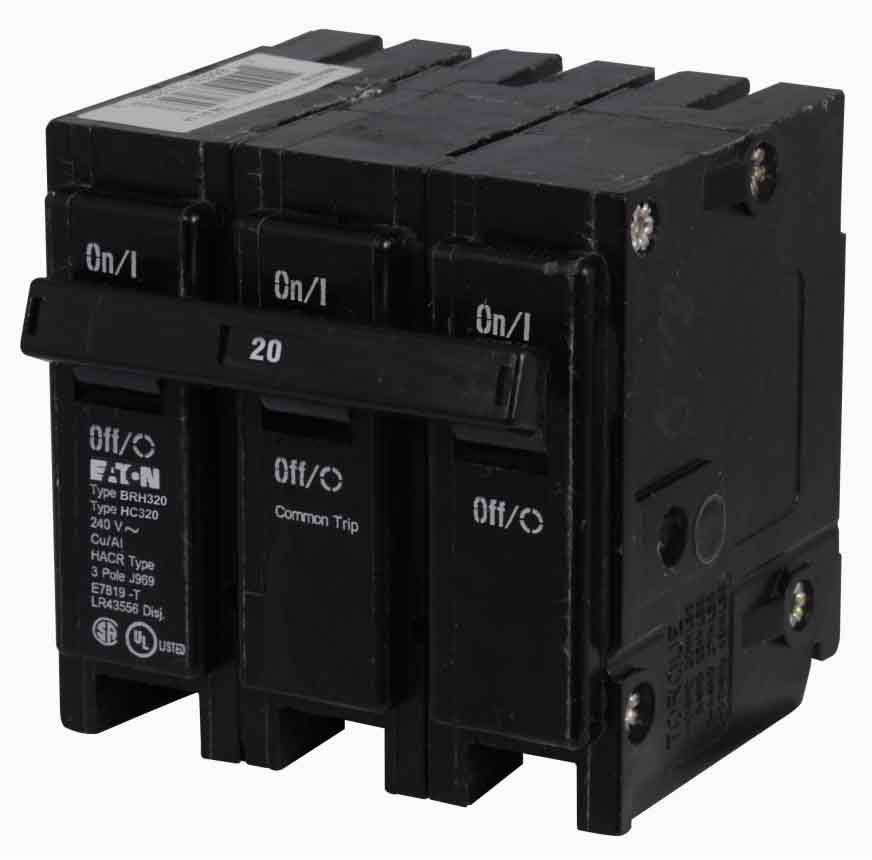

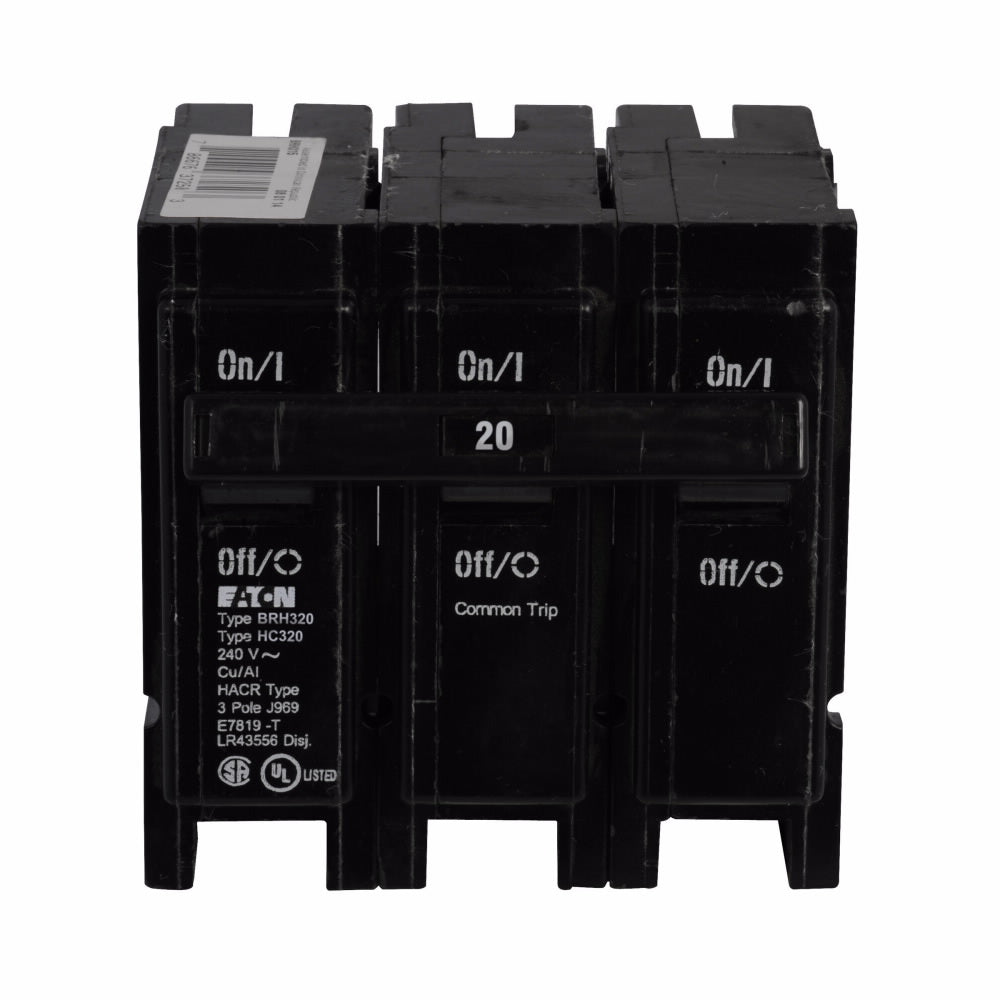

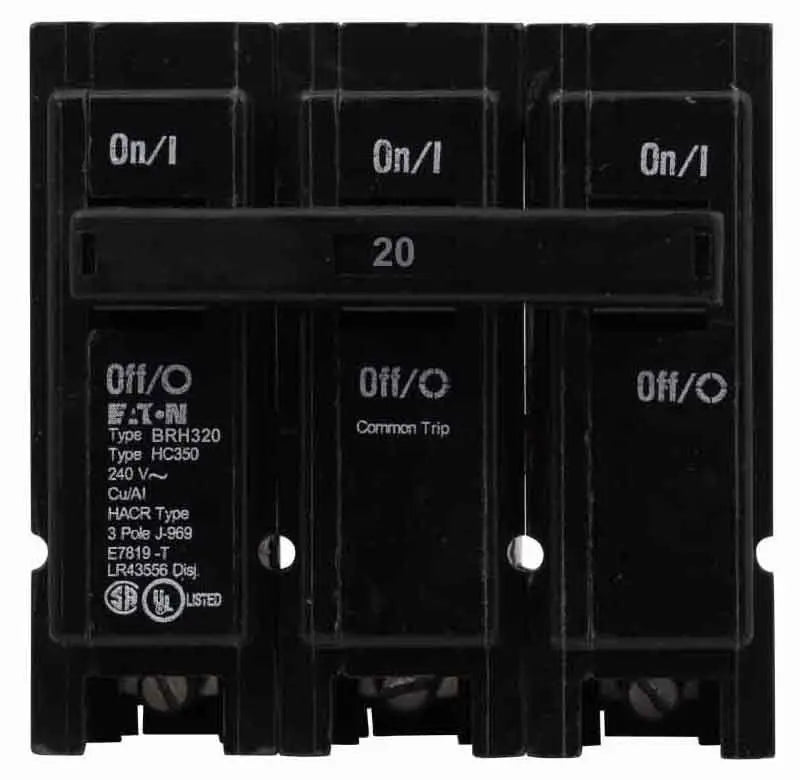

BRH320 - Cutler Hammer 20 Amp 240 Volt 3 Pole Thermal Magnetic Circuit Breaker BR Series

BRH320

BRH320 is a Cutler Hammer 3 pole thermal magnetic circuit breaker rated for 20 amps and 240 volts, designed for reliable circuit protection.This Eaton Cutler Hammer BRH320 circuit breaker features a 3-pole configuration with a 20 amp current rating and 240 VAC voltage rating. It has a 22 kA interrupting rating at 240 volts and uses a common thermal magnetic trip unit. The breaker fits the BR series frame and supports wire sizes from 14 to 4 AWG copper or aluminum. It is UL listed for safety and suitable for conventional circuit protection applications.

Key Specifications
• Manufacturer: Cutler Hammer (Eaton)
• Part Number: BRH320
• Amperage: 20 Amps
• Voltage Rating: 240 VAC
• Number of Poles: 3
• Interrupt Rating: 22 kA at 240V
• Series/Frame: BR Series
• Trip Unit: Thermal Magnetic
• Mounting Type: 1-Inch Plug-On
• Wire Size: 14 to 4 AWG Copper/Aluminum
• Certifications: UL Listed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: BRH320
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BR Series
• Type : BRH
• Voltage : 240
• Amperage : 20
• Phase : 3
• Poles : 3
• AIC rating : 22kA@240V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic



Product Data

• UPC : 786676372558
• GTIN : 00786676372558
• Country of Origin : Dominican Republic
• Dimensions : 3 in x 3 in x 3 in (Length/Depth x Height x Width)
• Weight : 2
• Certification : UL 490,Federal Specifications Classification W-C376
• Wire Size : AWG 14 to AWG 4, Cu/Al
