BRH315 - Cutler Hammer 15A 240V 3-Pole Type BR Thermal Magnetic Circuit Breaker, 22 kAIC, Plug-On, BRH Series, UL 490

BRH315

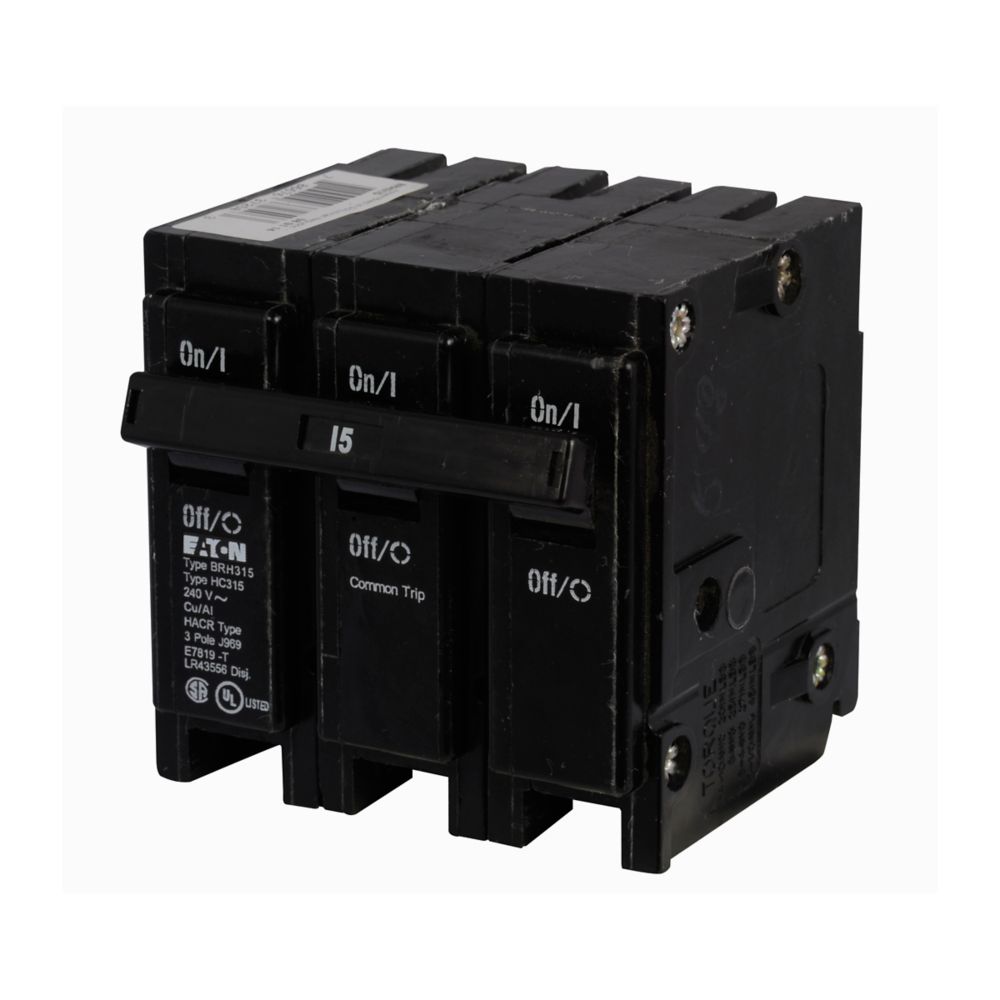

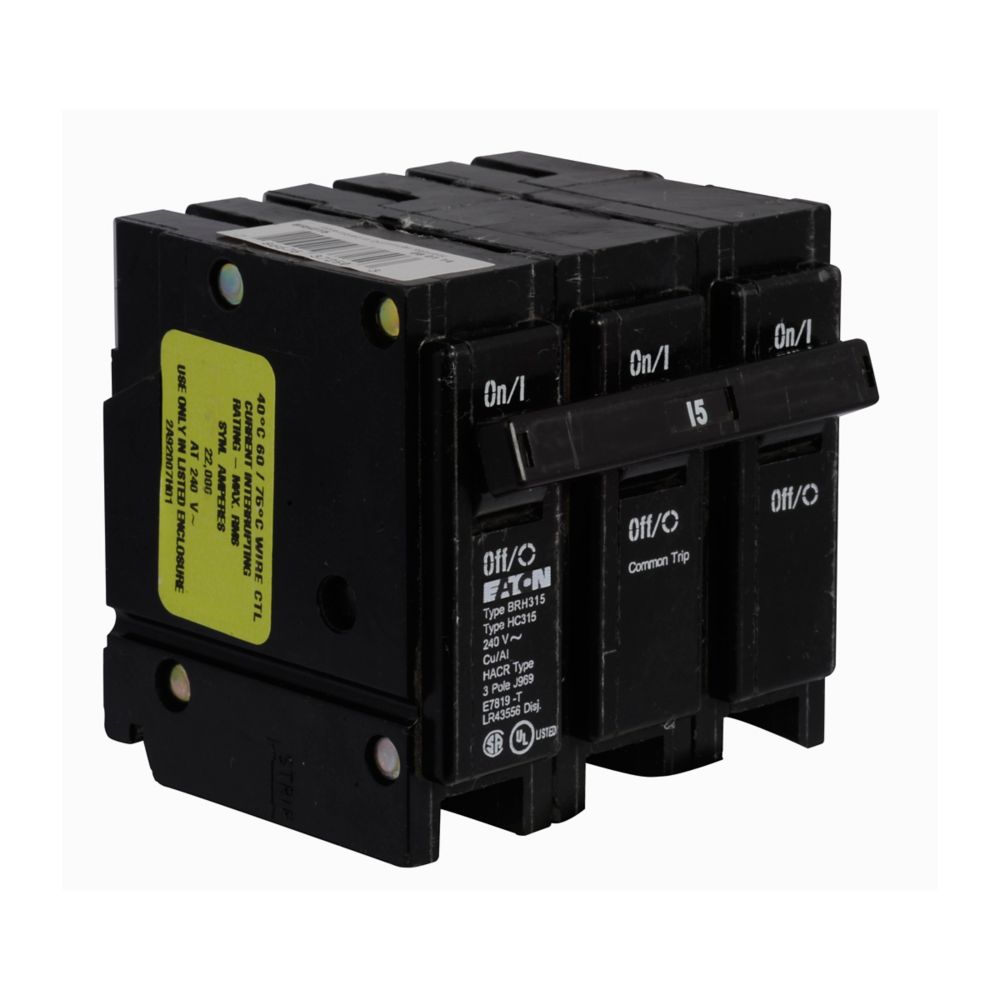

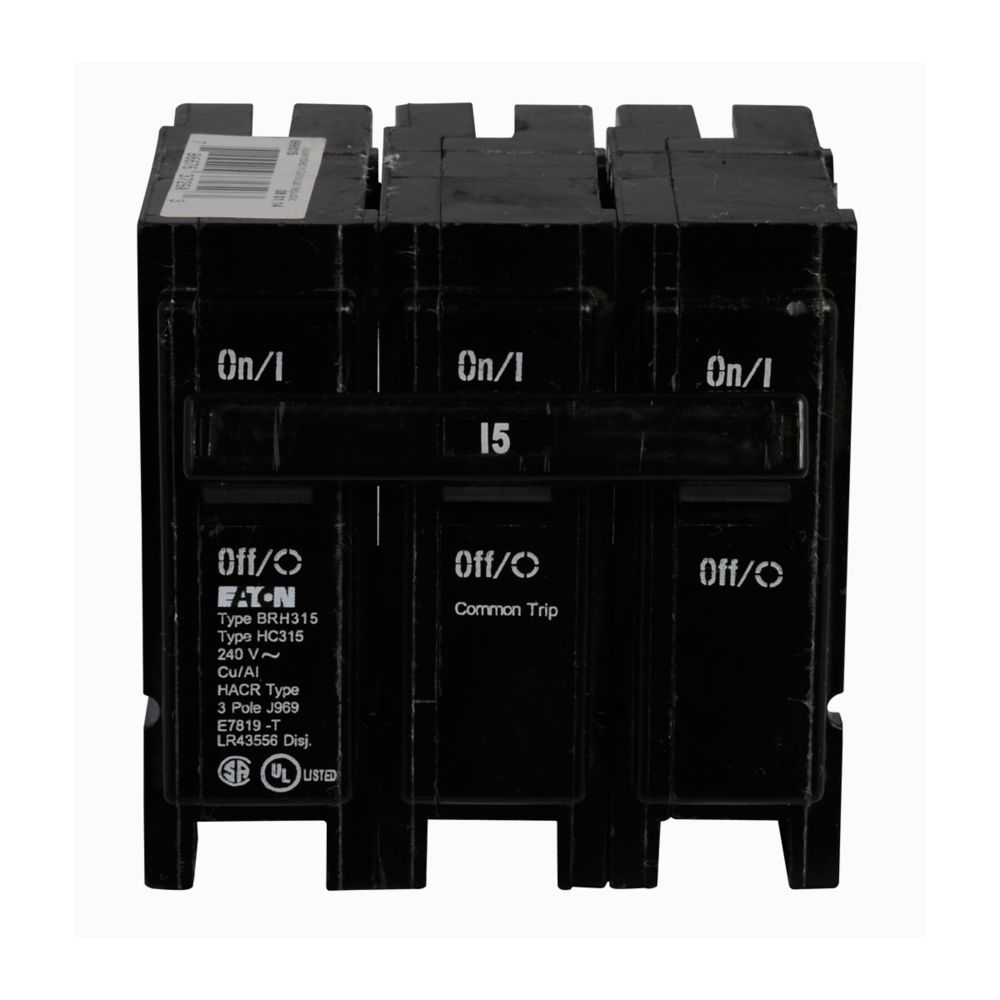

BRH315 is a Cutler Hammer (Eaton) 15 Amp, 240 Volt, 3-pole thermal magnetic circuit breaker designed for Type BR loadcenters.

This molded case circuit breaker features a 22 kAIC interrupt rating, plug-on mounting, and is part of the BRH series. It provides reliable protection for three-phase circuits, with a frame rating of 125A and a trip unit offering both long-time and instantaneous (LI) protection. The BRH315 is UL 490 certified and complies with Federal Specifications Classification W-C376.

Key Specifications

• Part Number: BRH315
• Manufacturer: Cutler Hammer (Eaton)
• Amperage: 15A
• Voltage: 240V
• Poles: 3
• Mounting Type: Plug-On
• Interrupt Rating: 22 kAIC
• Series/Frame: BRH, 125A frame
• Trip Unit: Thermal Magnetic (LI)
• Certifications: UL 490, Federal Specifications Classification W-C376
• Wire Size: #14-4 AWG Cu/Al
• Dimensions: 3" x 3" x 3"
• Weight: 1.06 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BRH315
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BR Series
• Type : BRH
• Voltage : 240
• Amperage : 15
• Phase : 3
• Poles : 3
• AIC rating : 22kA@240V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786676372503
• GTIN : 00786676372503
• Country of Origin : Dominican Republic
• Dimensions : 3 in x 3 in x 3 in (Length/Depth x Height x Width)
• Weight : 1.06
• Certification : UL 490,Federal Specifications Classification W-C376
• Wire Size : AWG 14 to AWG 4, Cu/Al
