BRH370 - Cutler Hammer 70 Amp 3 Pole 240V Plug-In Molded Case Circuit Breaker, Type BR, 22kA Interrupt Rating, Thermal Magnetic Trip, UL 489

BRH370

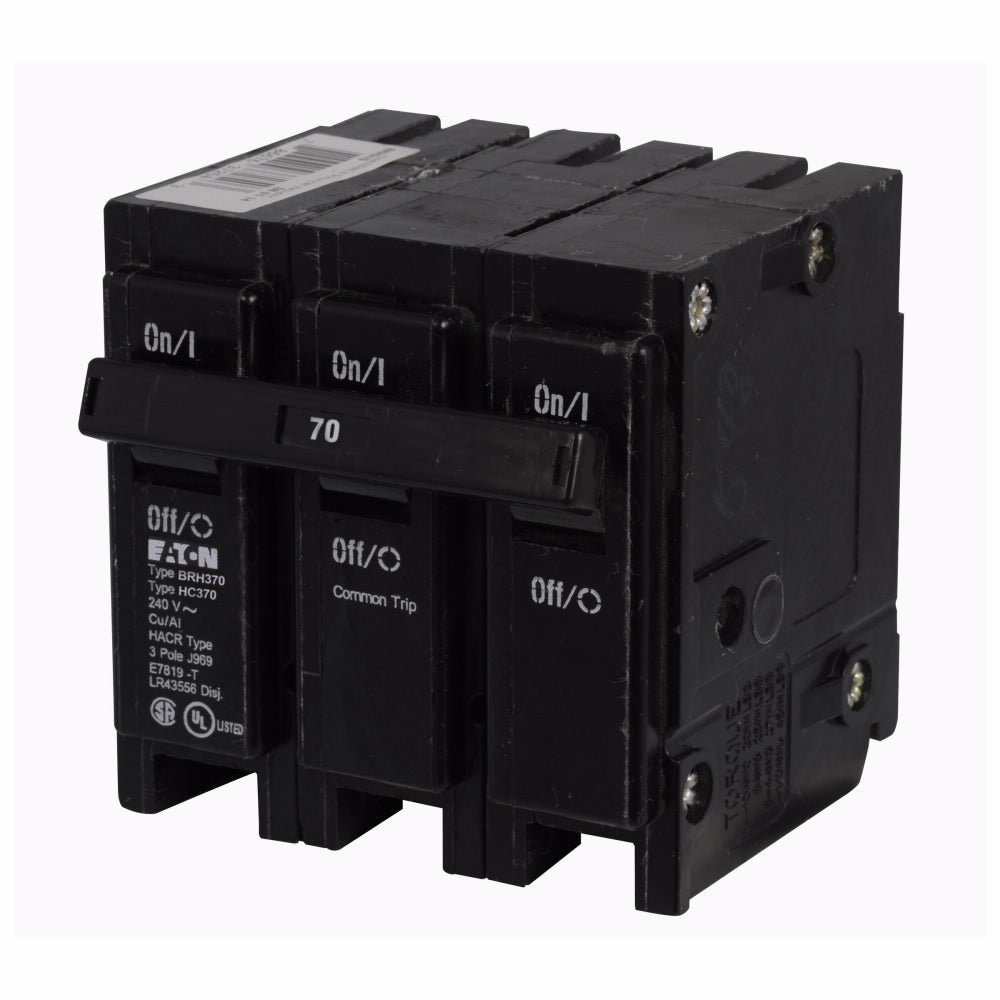

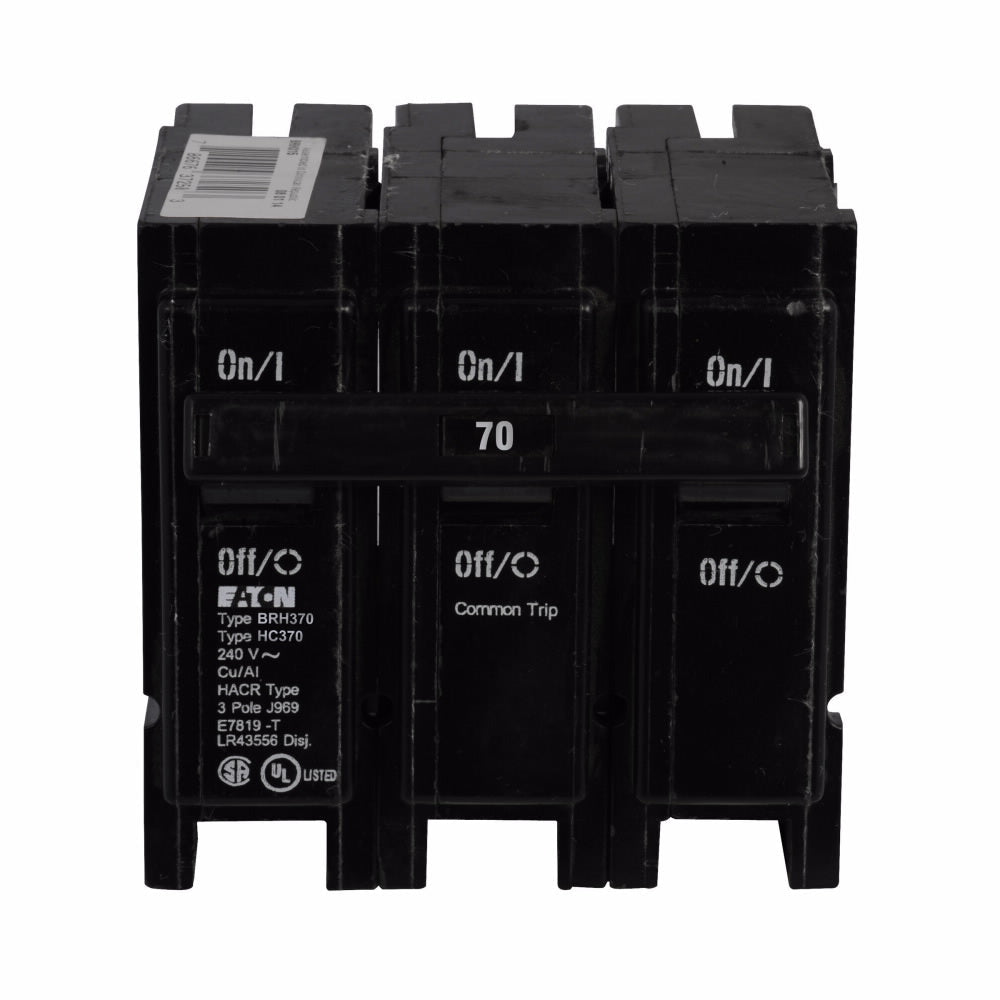

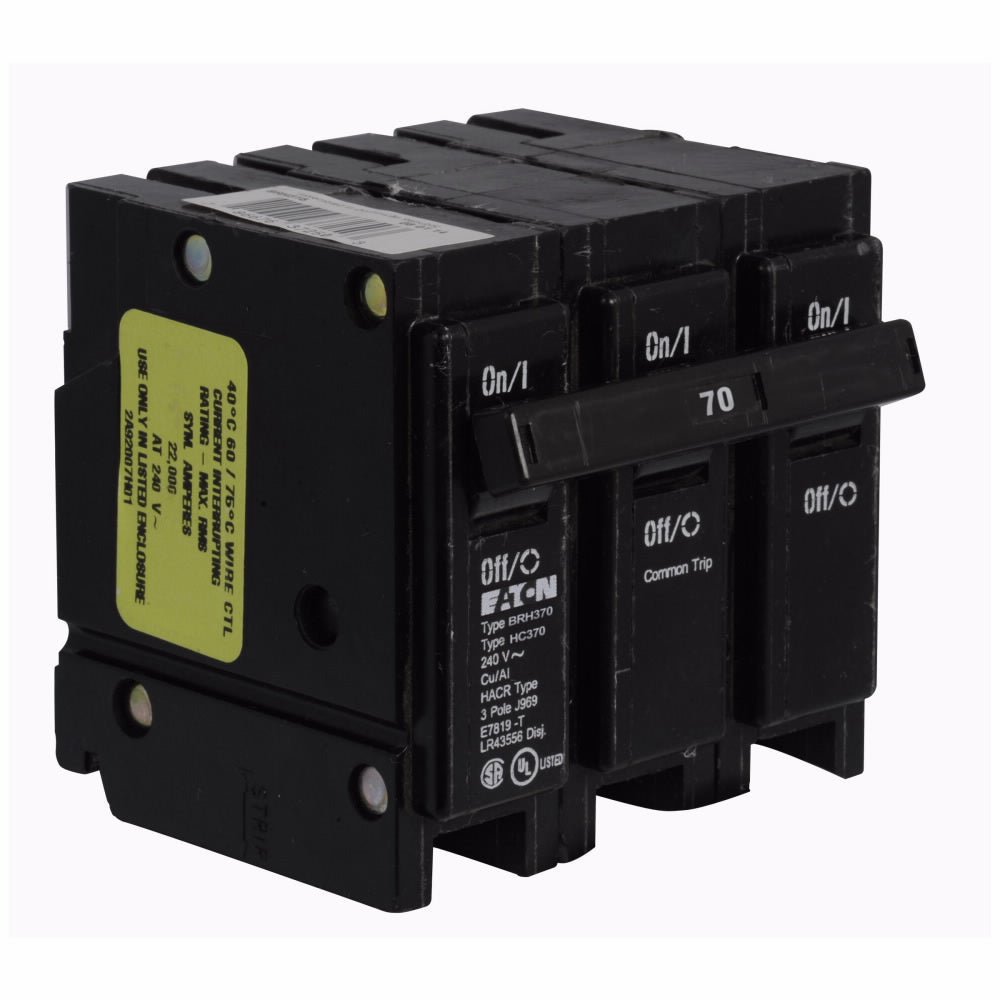

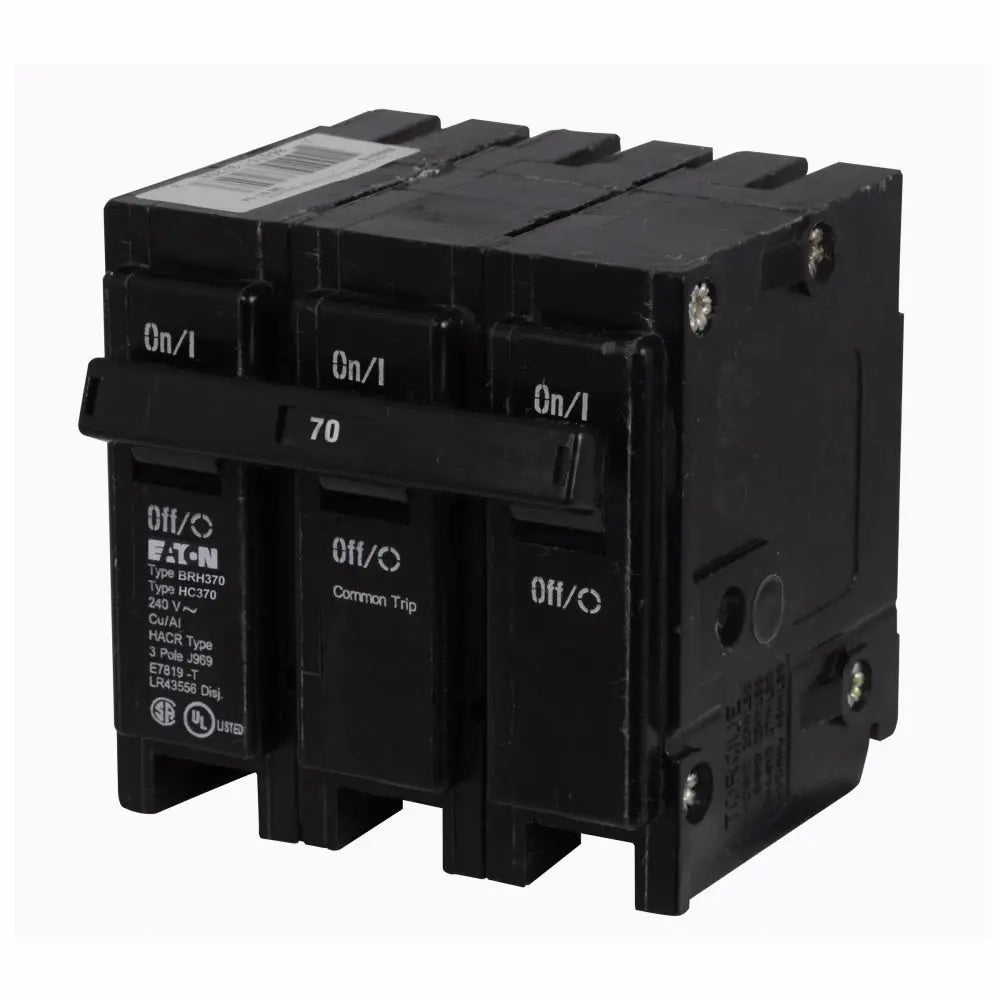

BRH370 is a Cutler Hammer 3-pole, 70 amp, 240V molded case circuit breaker designed for Type BR load centers.

This thermal magnetic circuit breaker features a plug-on mounting style, common trip mechanism, and a high interrupting capacity of 22 kA at 240V. It is suitable for commercial and industrial applications requiring reliable overcurrent protection in three-phase systems.

Key Specifications
• Amperage: 70A
• Voltage: 240V AC
• Poles: 3
• Mounting Type: Plug-on, 1-inch
• Interrupt Rating: 22 kAIC at 240V
• Series/Frame: BR
• Trip Unit: Thermal magnetic, common trip
• Wire Size: #4 to 1/0 AWG (copper or aluminum)
• Certifications: UL 489
• Application: Type BR load centers
• Dimensions: 3 in x 3 in x 3 in (approximate)
• Weight: 2 lb (approximate)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BRH370
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BR Series
• Type : BRH
• Voltage : 240
• Amperage : 70
• Phase : 3
• Poles : 3
• AIC rating : 22kA@240V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786676372800
• GTIN : 00786676372800
• Country of Origin : Dominican Republic
• Dimensions : 3 in x 3 in x 3 in (Length/Depth x Height x Width)
• Weight : 2
• Certification : UL 490,Federal Specifications Classification W-C376
• Wire Size : AWG 4 to AWG 1/0, Cu/Al
