BRH3100 - Cutler Hammer 100 Amp 3 Pole 240V Type BR Plug-On Molded Case Circuit Breaker, 22 kAIC, Thermal Magnetic Trip, UL 489

BRH3100

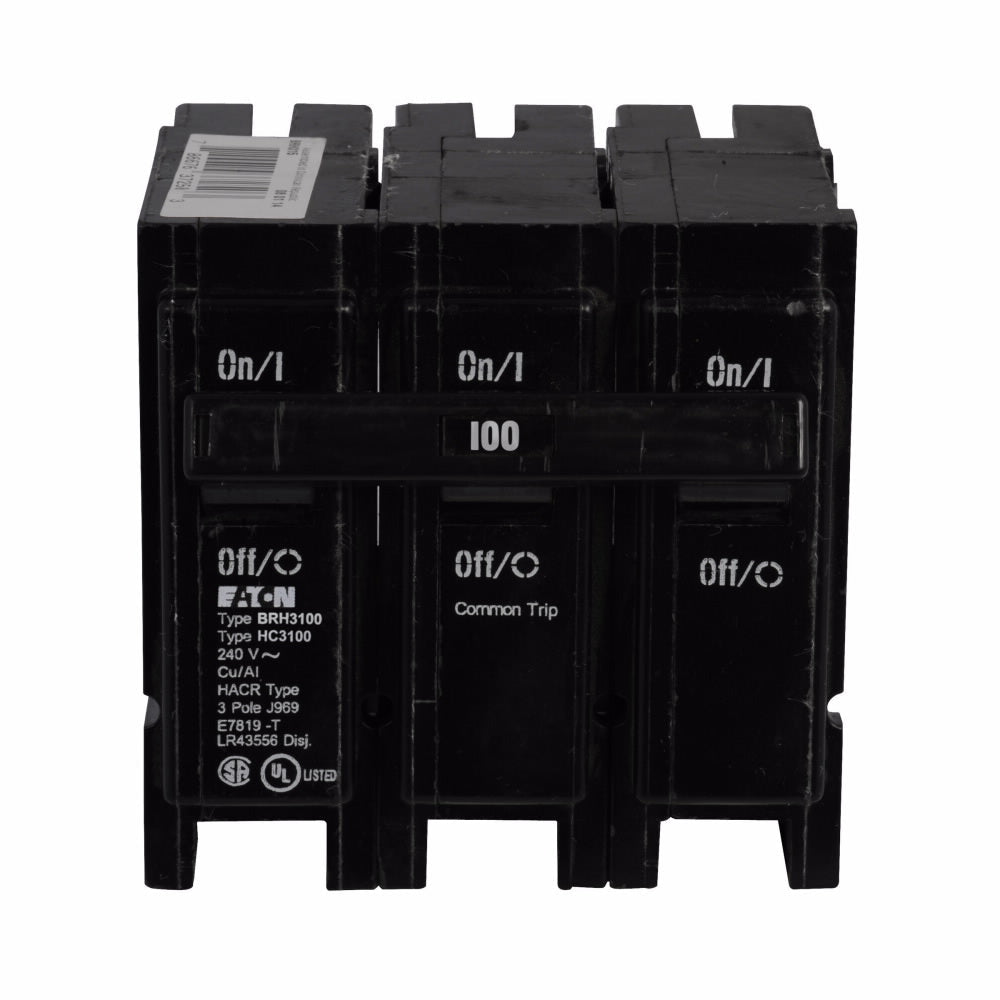

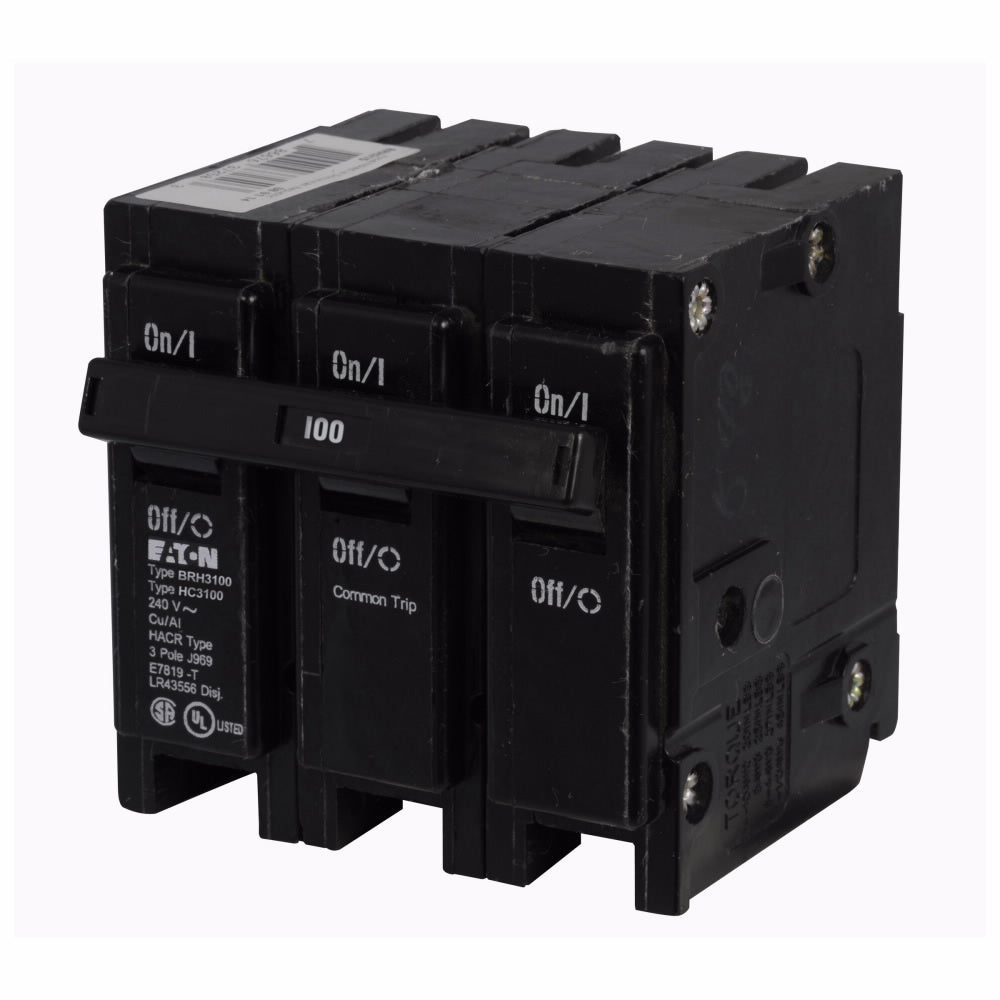

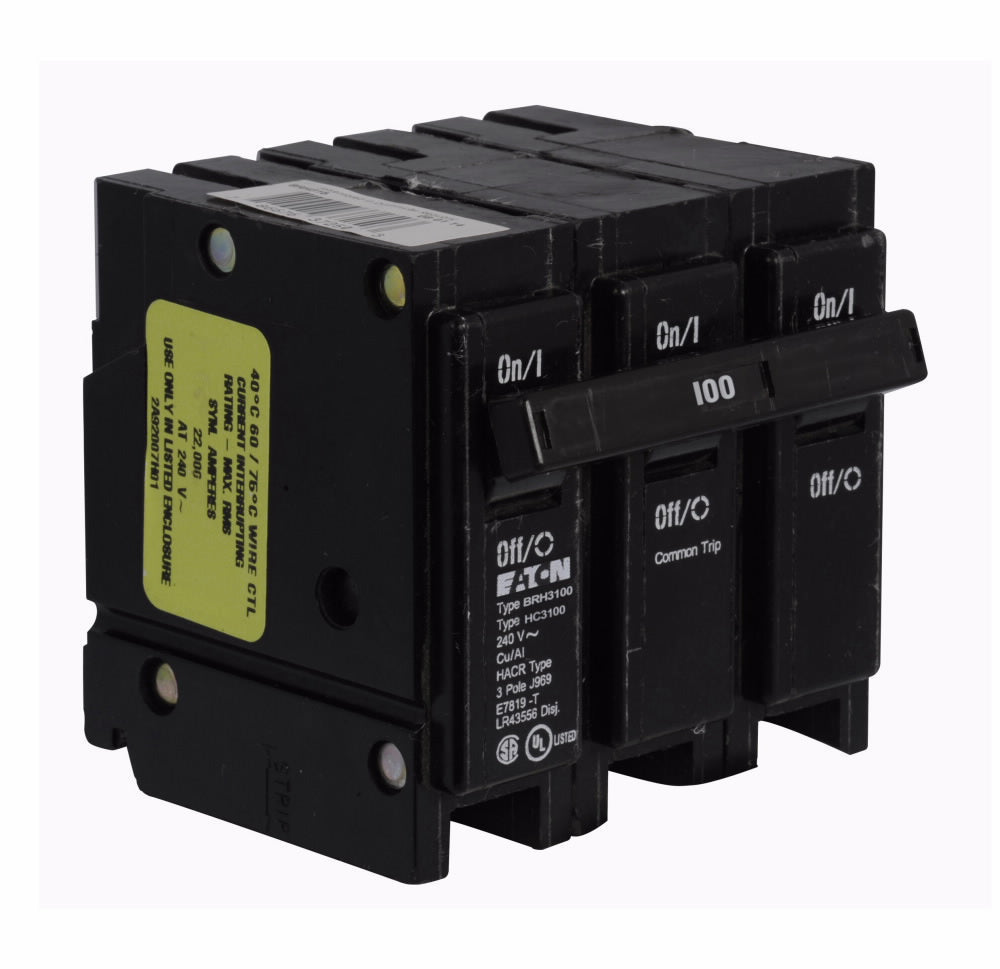

BRH3100 is a Cutler Hammer (Eaton) 100 Amp, 3-pole, 240V molded case circuit breaker designed for reliable circuit protection in commercial and industrial applications.

This Type BR, 1-inch plug-on circuit breaker features a thermal magnetic trip unit, common trip mechanism, and is rated for 22 kA interrupting capacity. It is compatible with #4-1/0 AWG copper or aluminum conductors and is approved for use in BR load centers. The BRH3100 is constructed with thermoset material for durability and is UL 489 listed for safety and compliance.

Key Specifications
• Part Number: BRH3100
• Manufacturer: Cutler Hammer (Eaton)
• Amperage: 100 A
• Voltage: 240 VAC
• Poles: 3
• Mounting Type: Plug-On
• Interrupt Rating: 22 kAIC
• Series/Frame: Type BR
• Trip Unit: Thermal Magnetic, Common Trip
• Wire Size: #4-1/0 AWG Cu/Al
• Certifications: UL 489
• Frequency: 60 Hz
• Material: Thermoset

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BRH3100
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BR Series
• Type : BRH
• Voltage : 240
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 22kA@240V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786676372909
• GTIN : 00786676372909
• Country of Origin : Dominican Republic
• Dimensions : 3 in x 3 in x 3 in (Length/Depth x Height x Width)
• Weight : 1
• Certification : UL 490,Federal Specifications Classification W-C376
• Wire Size : 4 AWG to 1/0 AWG, Cu/Al
