2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
BQD235

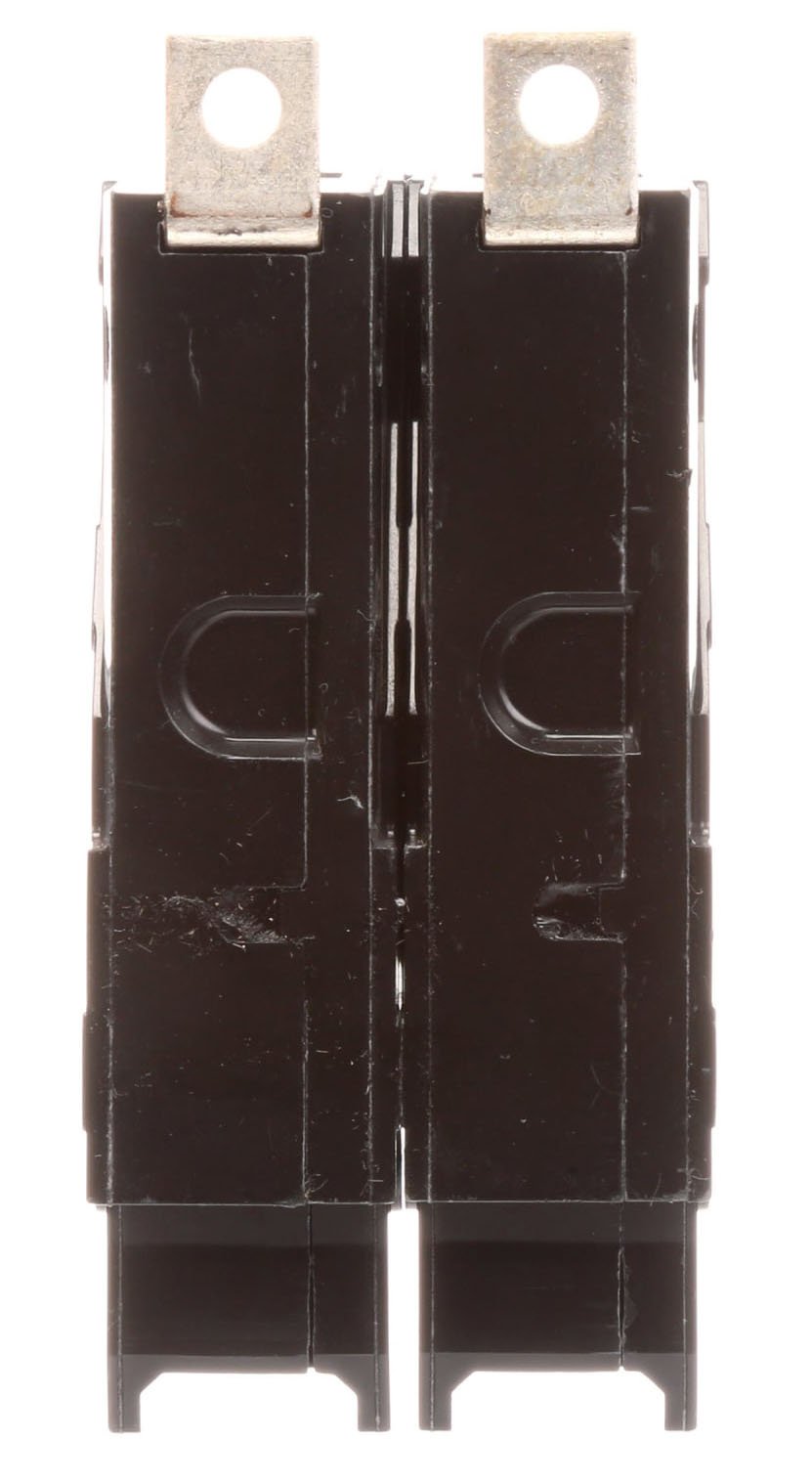

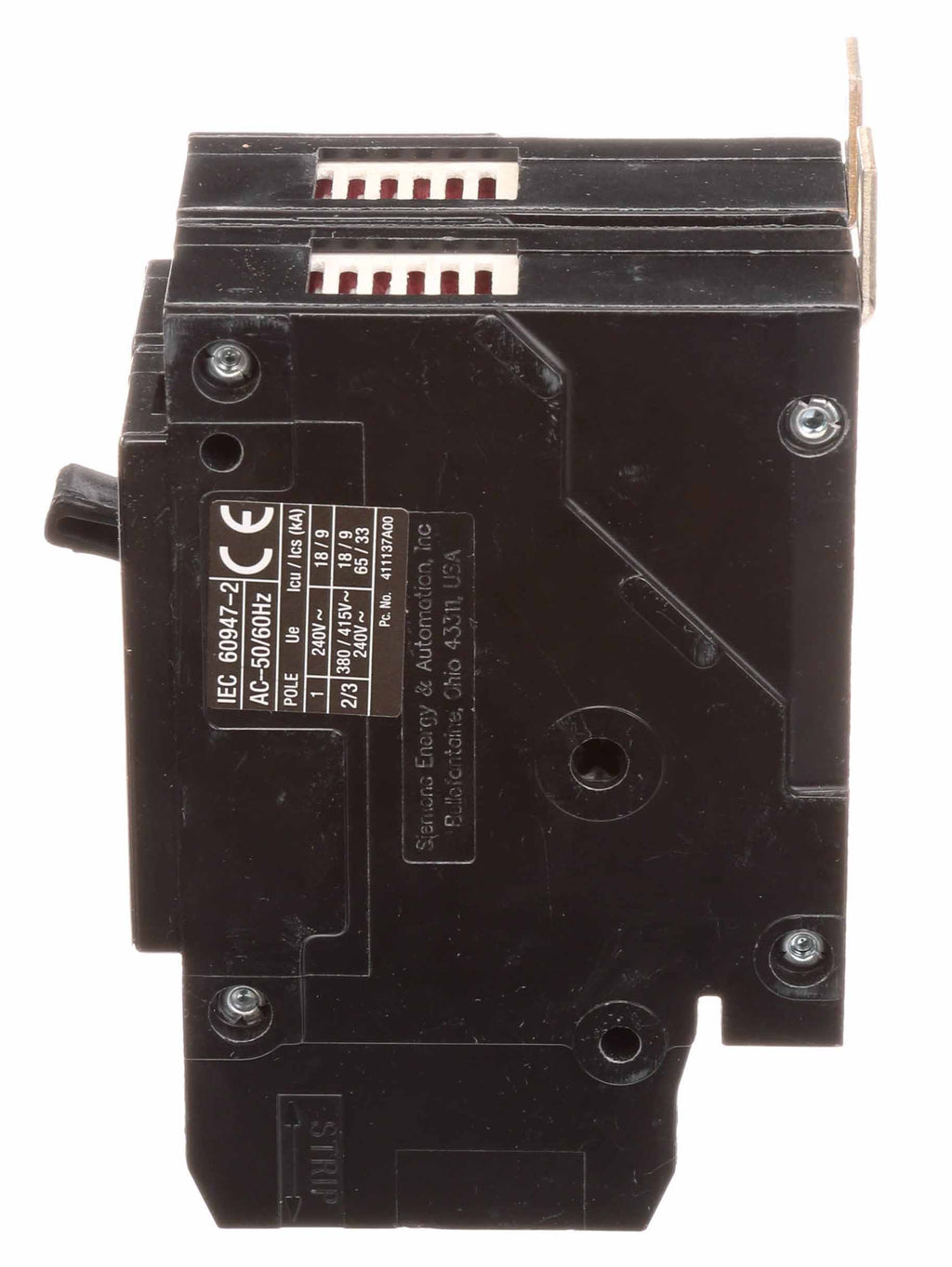

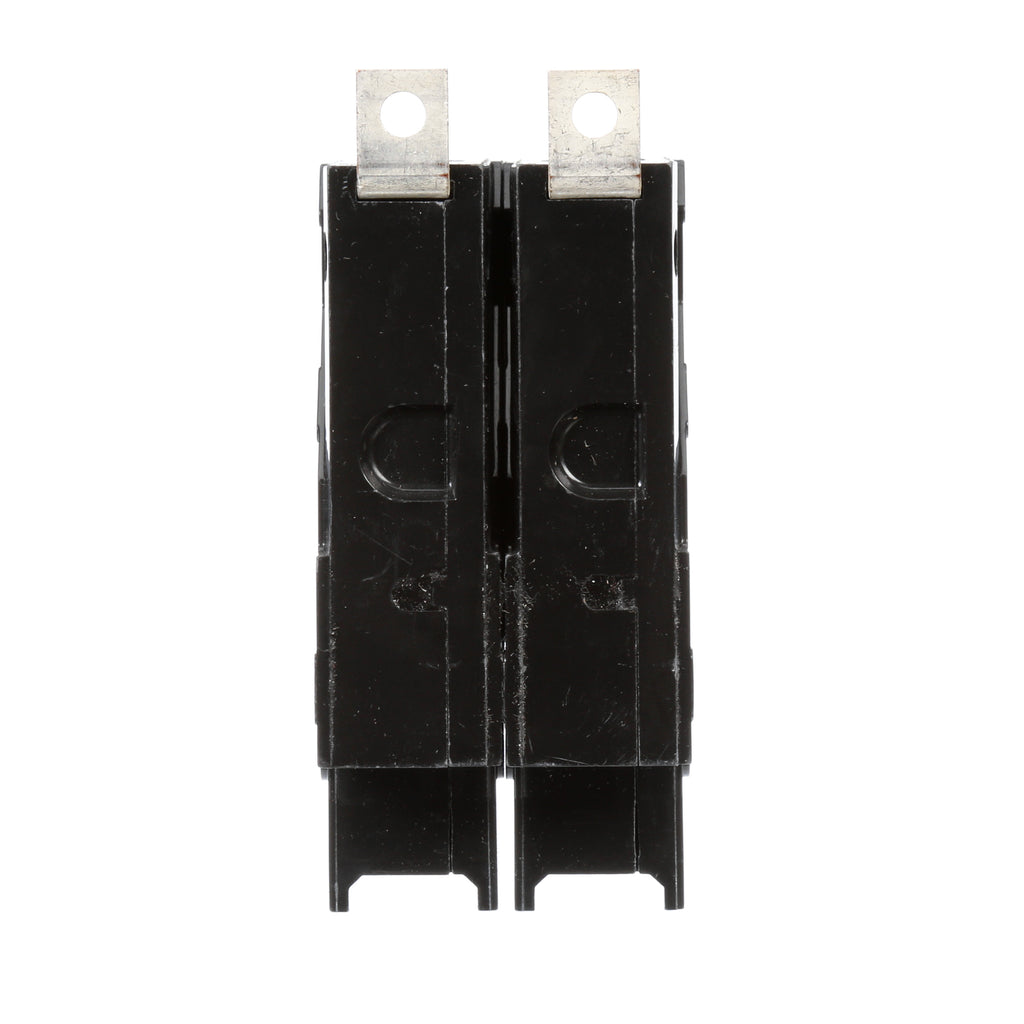

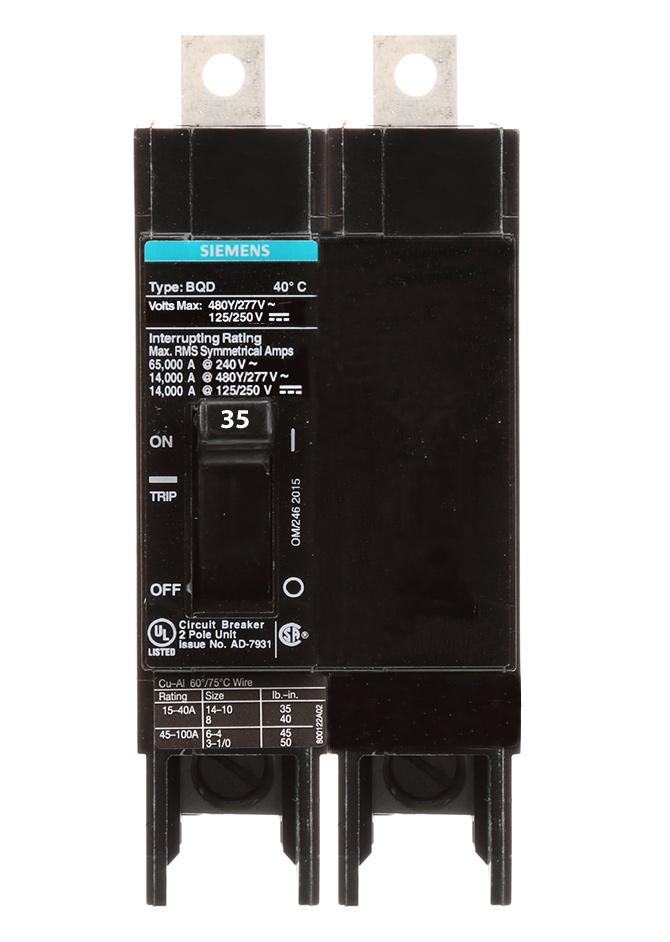

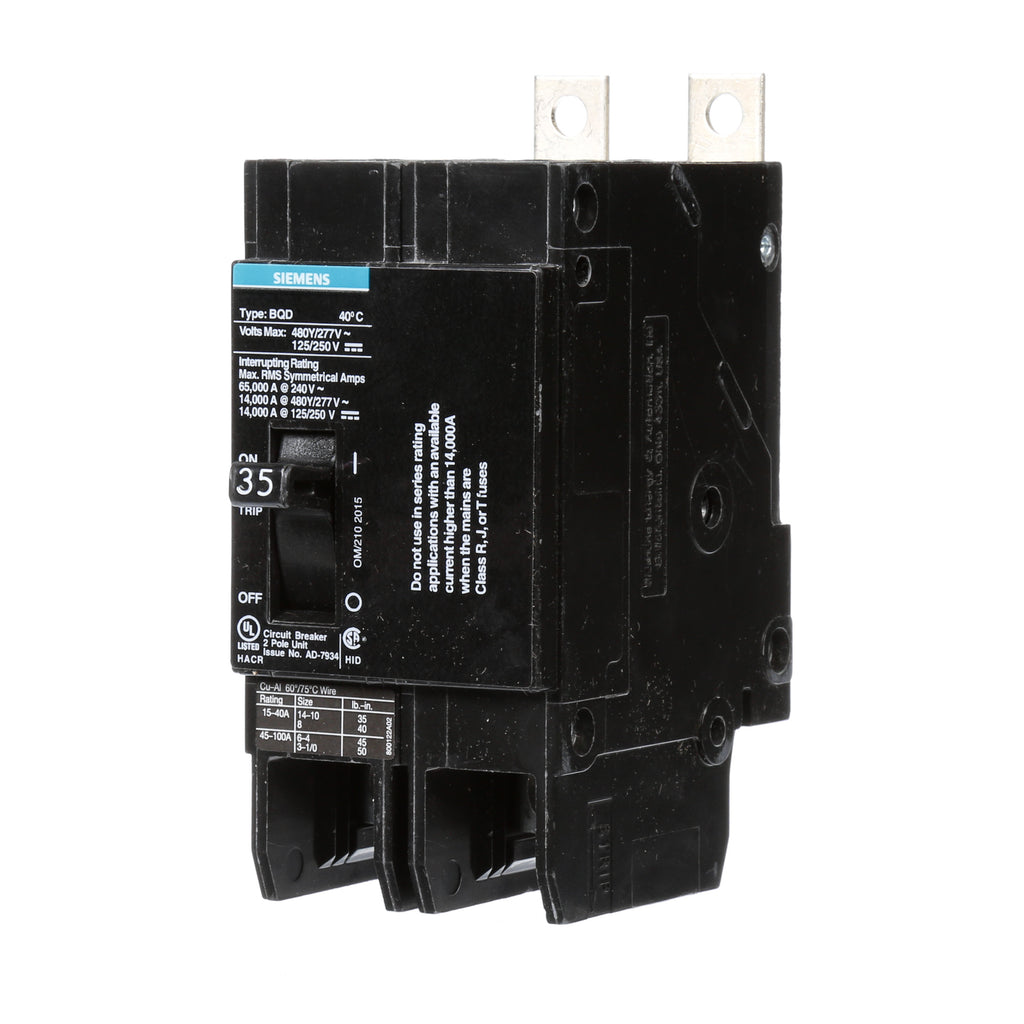

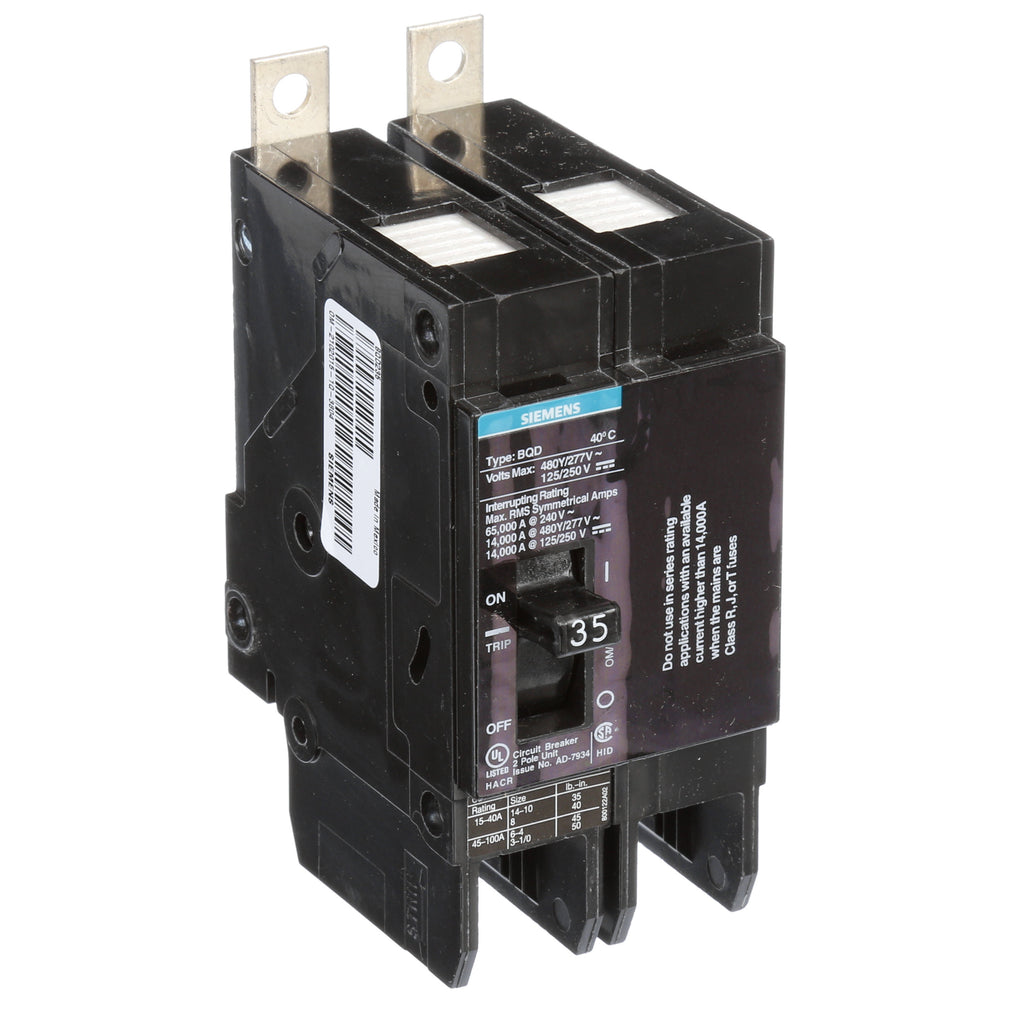

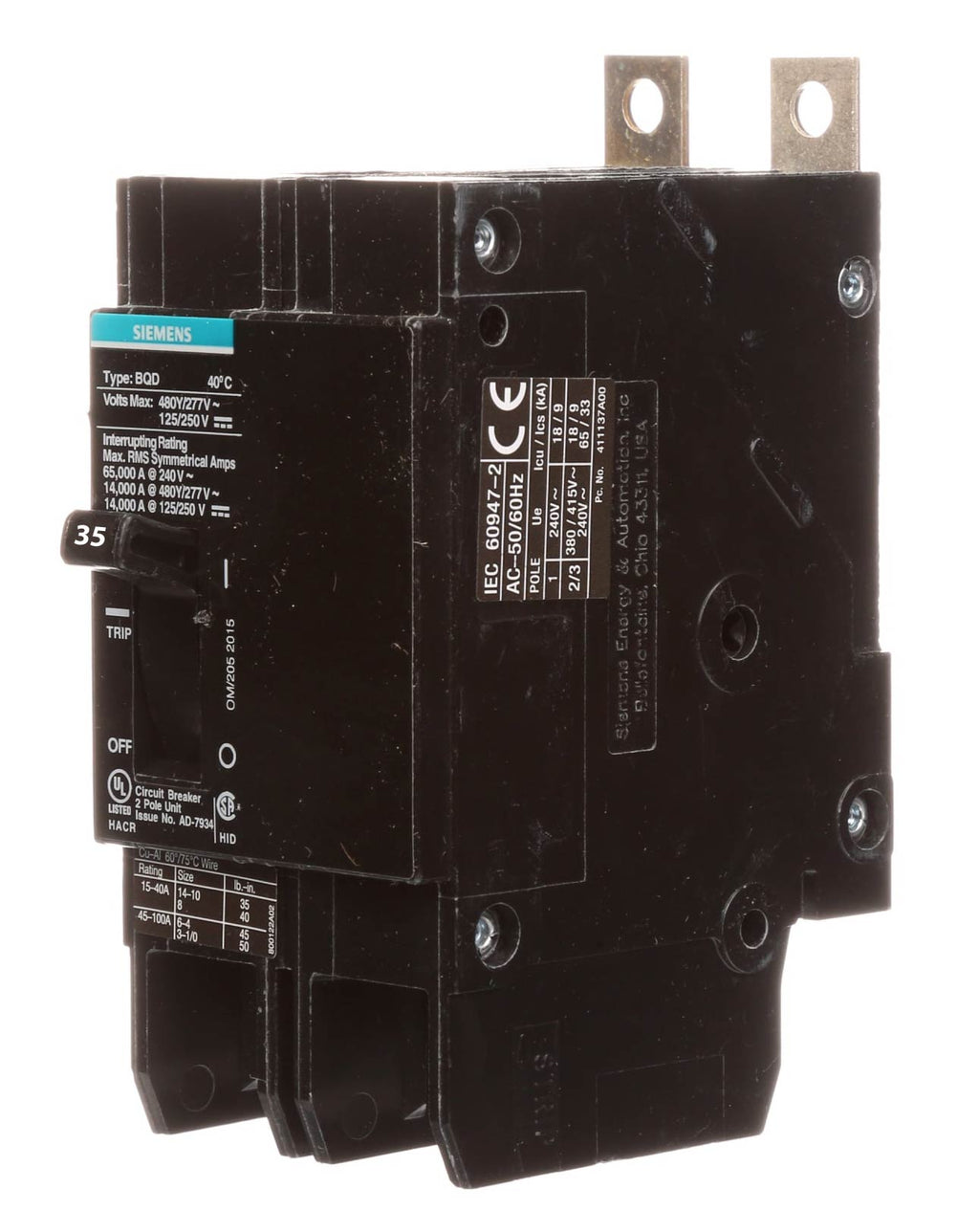

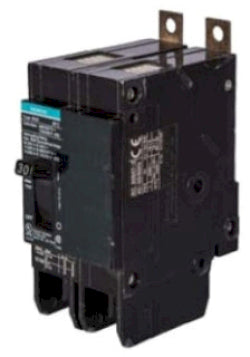

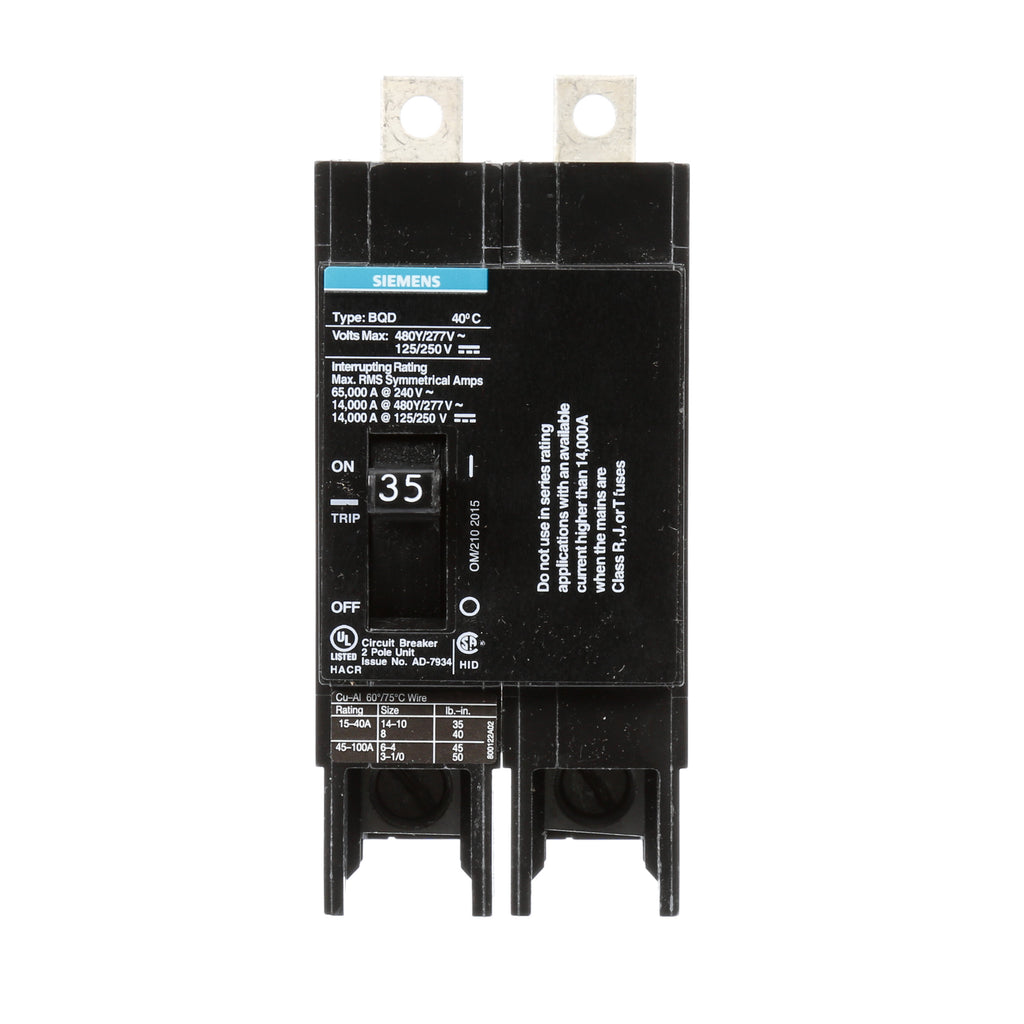

BQD235 is a Siemens 35 amp, 2-pole molded case circuit breaker designed for reliable overcurrent protection in electrical load centers. The BQD235 circuit breaker features a 480Y/277 VAC and 125/250 VDC voltage rating with a 14 kA interrupt rating and bolt-on mounting type. It uses a thermal/magnetic trip unit and belongs to the BQD series frame, suitable for applications requiring precise and durable circuit protection.
- Amperage: 35 Amps
- Voltage: 480Y/277 VAC, 125/250 VDC
- Poles: 2
- Mounting Type: Bolt-On
- Interrupt Rating: 14 kA
- Series/Frame: BQD
- Trip Unit: Thermal/Magnetic
- UL 489 Listed
- Application: Load Centers
Specifications
- Part Number: BQD235
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BQD Series
- Type : BQD
- Voltage : 480
- Amperage : 35
- Phase : 1
- Poles : 2
- AIC rating : 14kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Lug
- Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
- Breaker Type : Standard
- Protection : Thermal Magnetic
Product Data
- UPC : 783643277250
- GTIN : 00783643277250
- Country of Origin : Mexico
- Dimensions : 2 in x 4.49 in x 4.49 in
- Weight : 1.1
- Panel Type : Siemens P1 Panelboards
- Standards : CSA-C22.2,UL 511
- Certification : CSA-C22.2,UL 511
