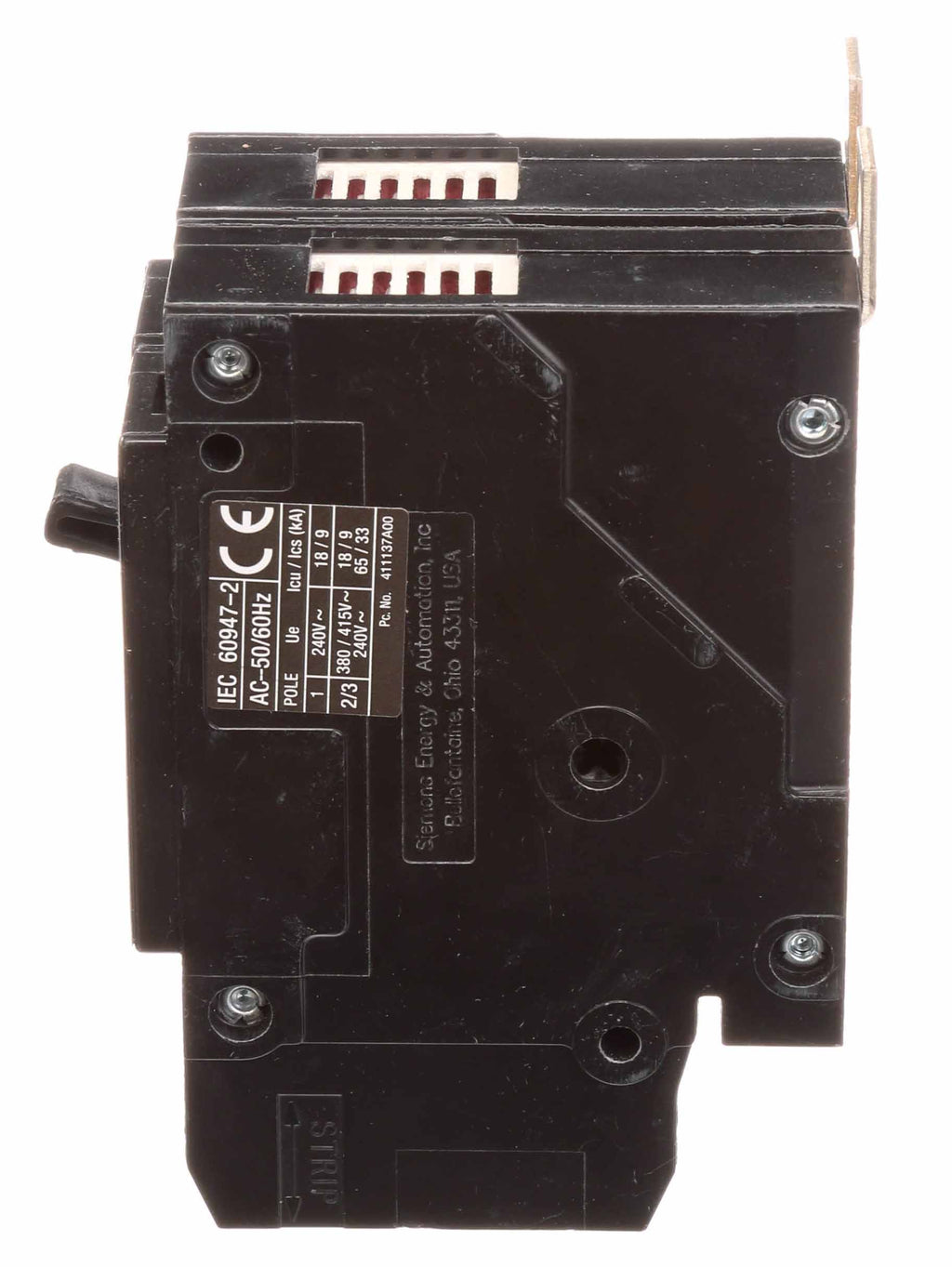

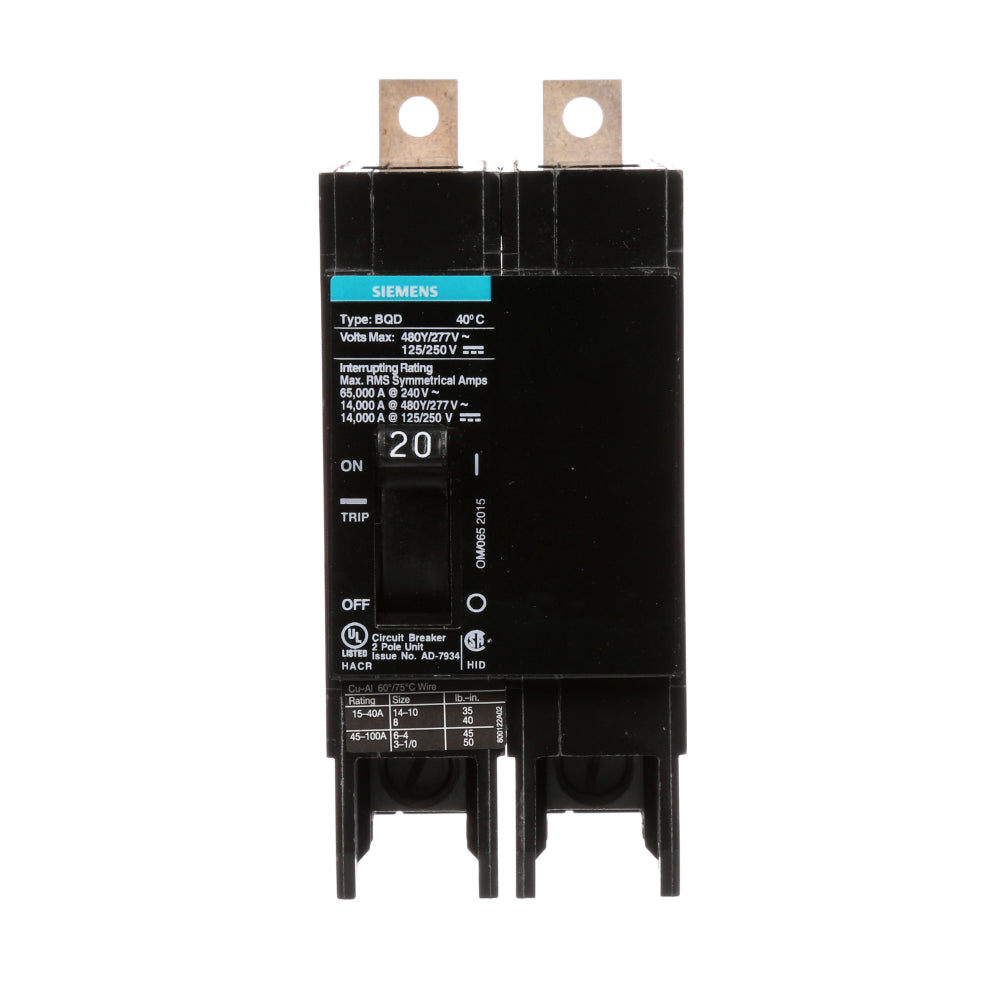

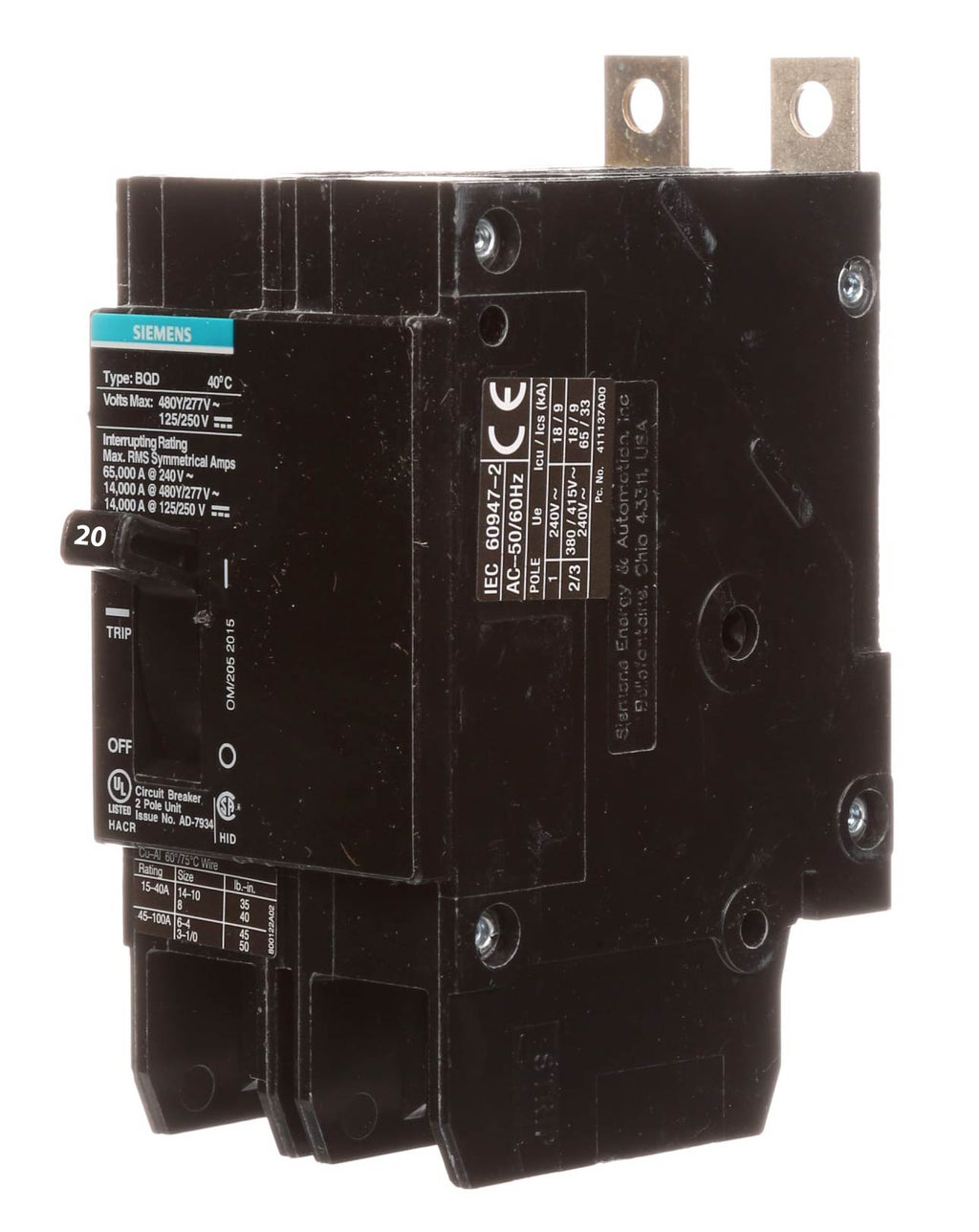

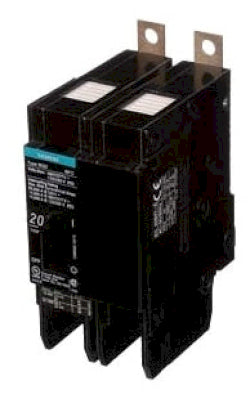

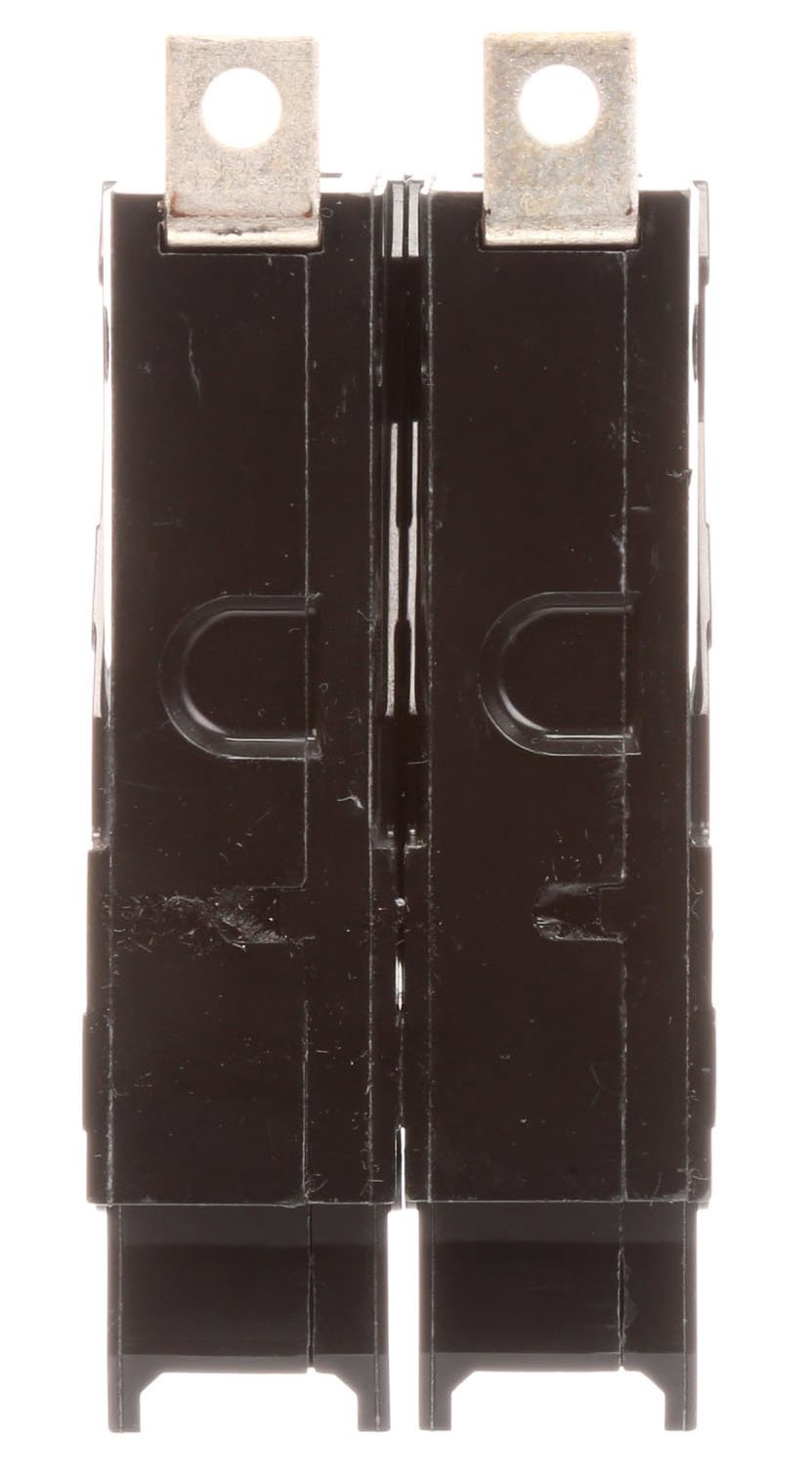

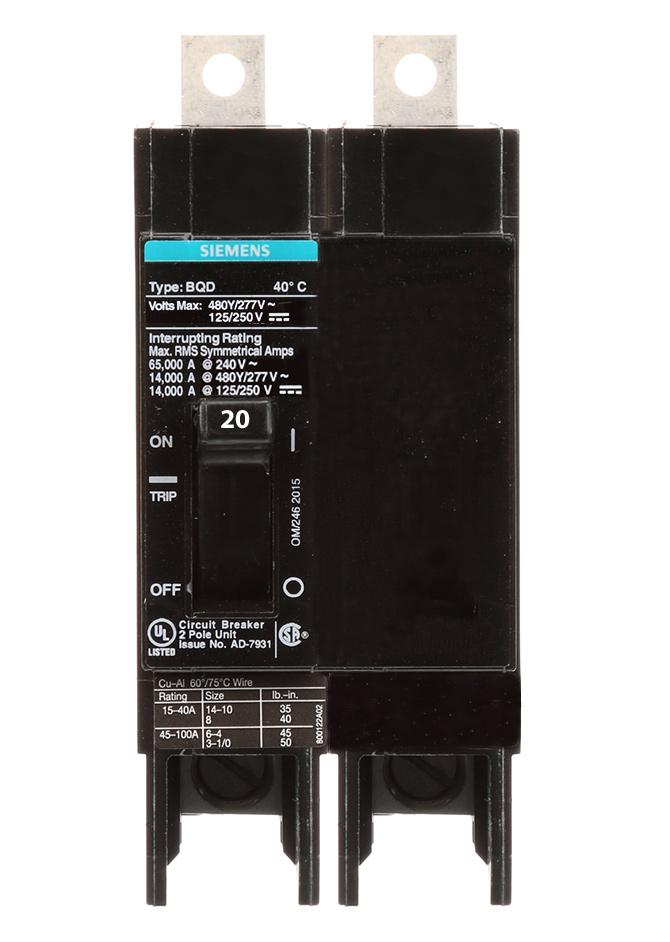

BQD220 - Siemens 2-Pole 20 Amp 480V AC 14kA Circuit Breaker, Panel Mount, Thermal Magnetic Trip, BQD Series

BQD220

BQD220 is a Siemens 2-pole, 20 amp, 480V AC circuit breaker designed for reliable protection in commercial and industrial applications.

This panel-mounted miniature circuit breaker features a thermal magnetic trip unit for precise overload and short-circuit protection, with a 14kA interrupt rating at 480V AC. The BQD220 is part of the BQD series, known for robust construction and consistent performance in demanding environments.

Key Specifications
• Amperage: 20A
• Voltage: 480V AC
• Poles: 2
• Mounting Type: Panel Mount
• Interrupt Rating: 14kA @ 480V AC
• Series/Frame: BQD Series
• Trip Unit: Thermal Magnetic
• Certifications: Not specified in available data
• Connection: Low tab
• Operating Temperature: Up to 40¡C
• Line Side Termination: Busbar
• Load Side Termination: Lug (included)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BQD220
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BQD Series
• Type : BQD
• Voltage : 480
• Amperage : 20
• Phase : 1
• Poles : 2
• AIC rating : 14kA@480V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 100A/BQD
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 783643277229
• GTIN : 00783643277229
• Country of Origin : Mexico
• Dimensions : 2 in x 4.49 in x 4.49 in
• Weight : 0.8
• Panel Type : Siemens P1 Panelboards
• Standards : CSA-C22.2,UL 506
• Certification : CSA-C22.2,UL 506
