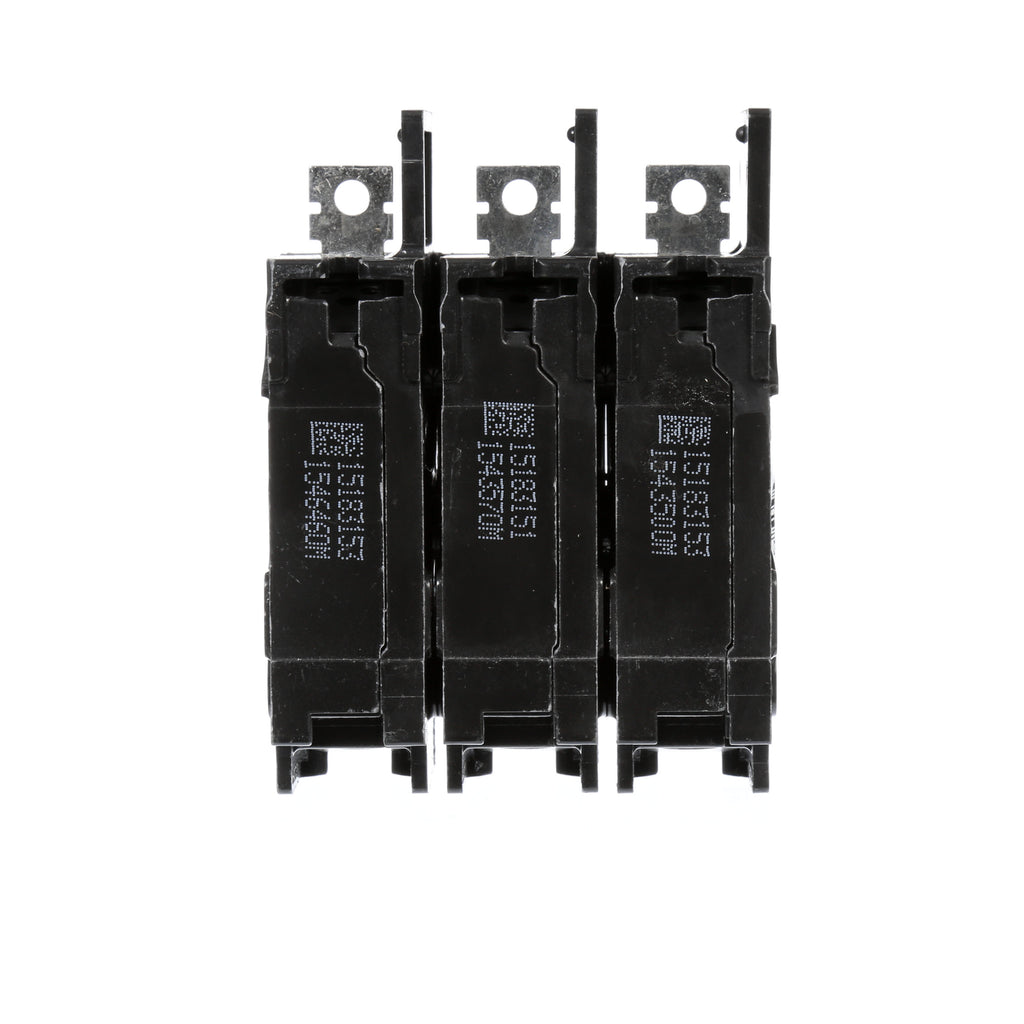

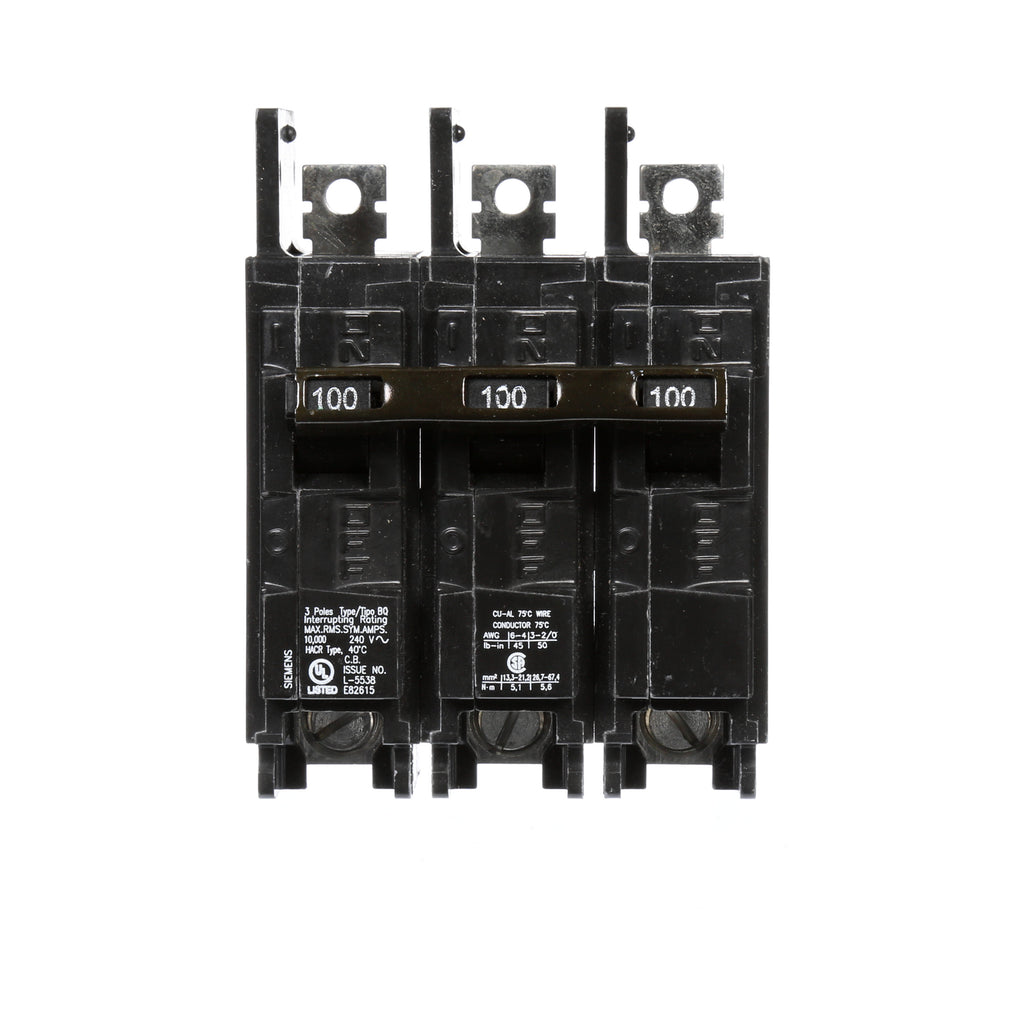

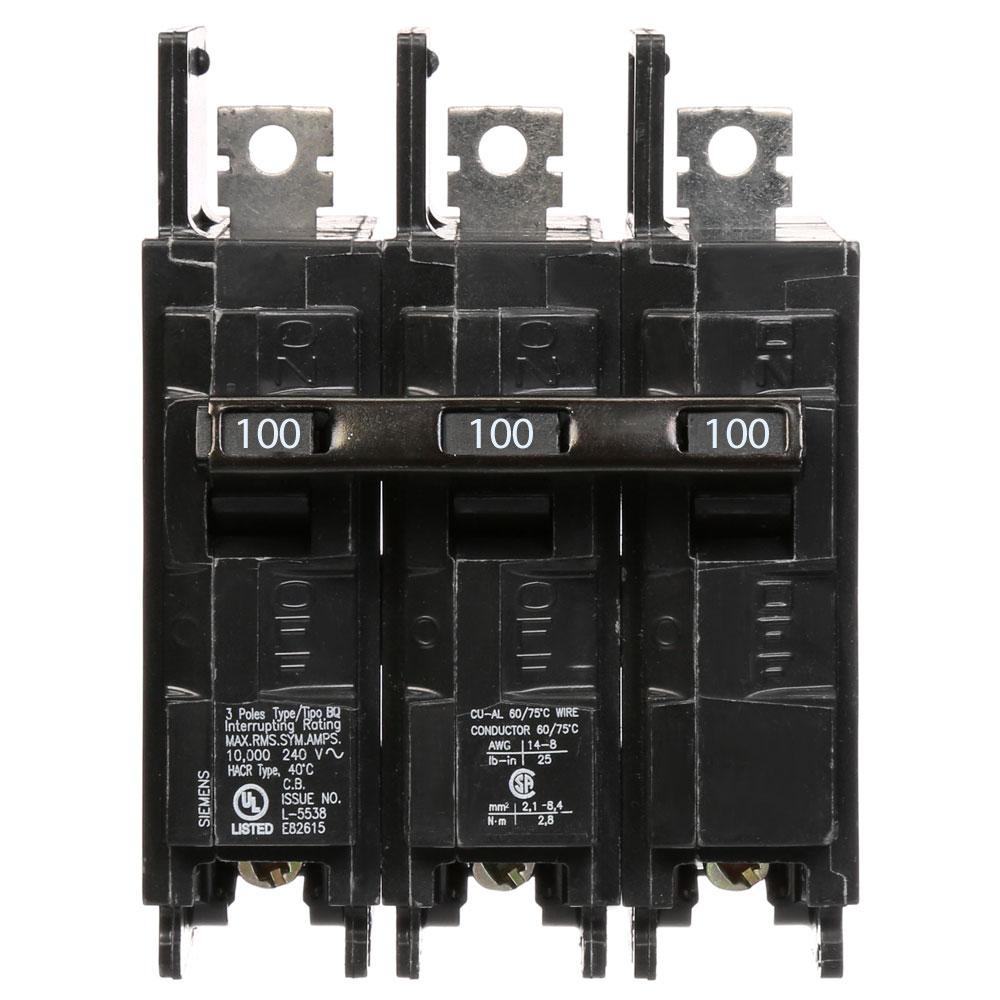

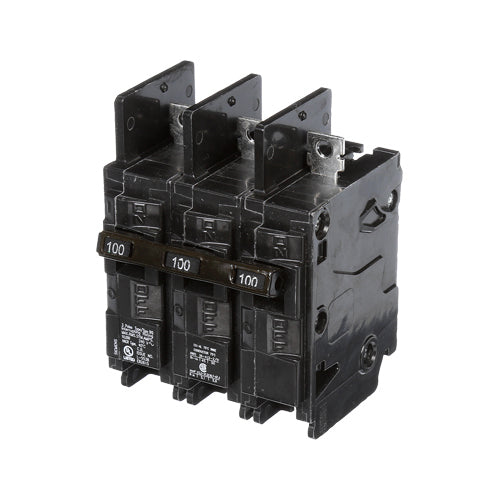

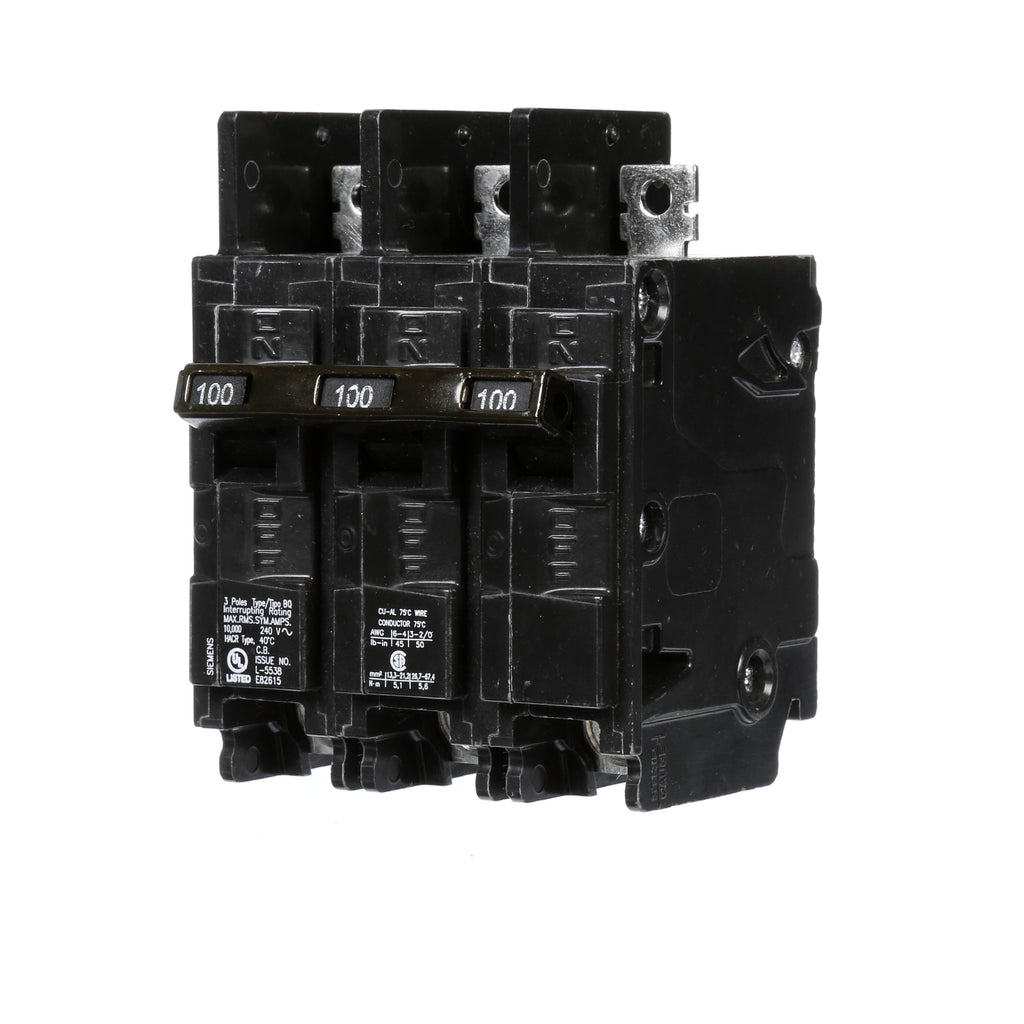

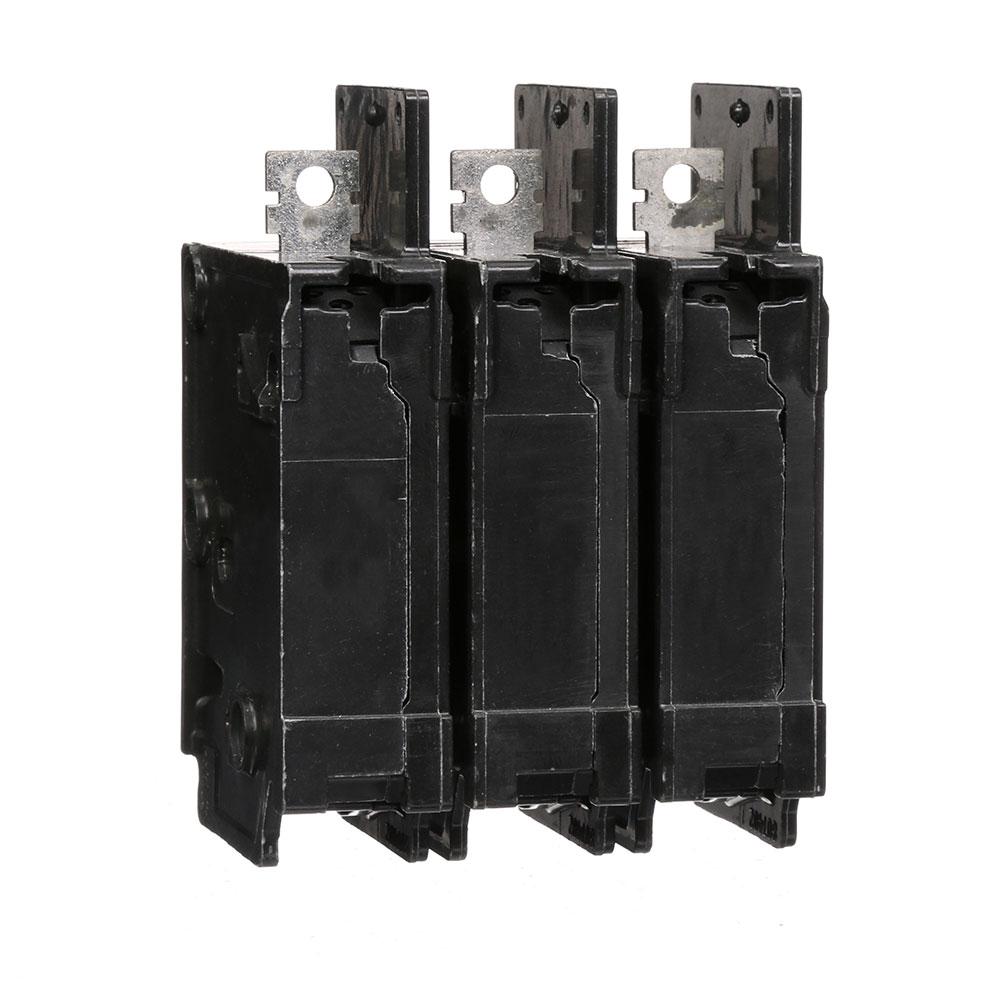

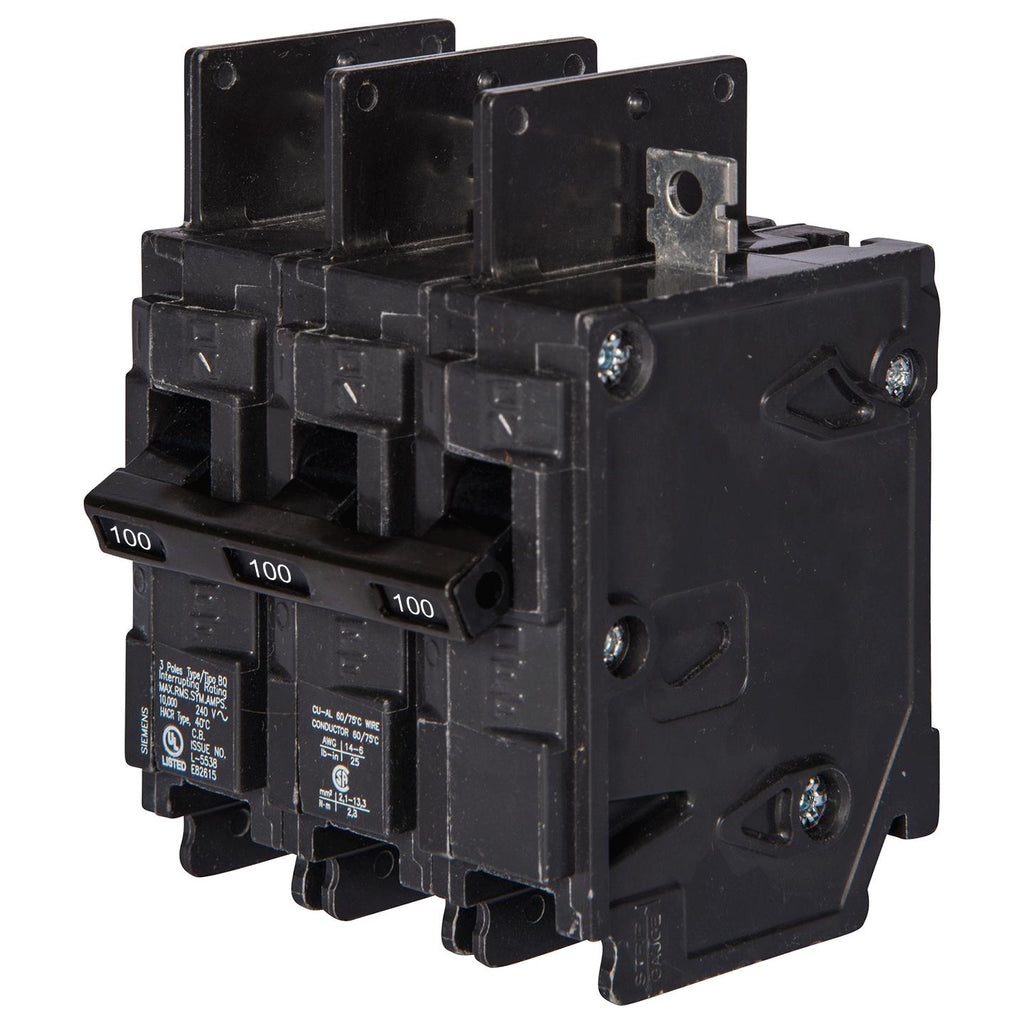

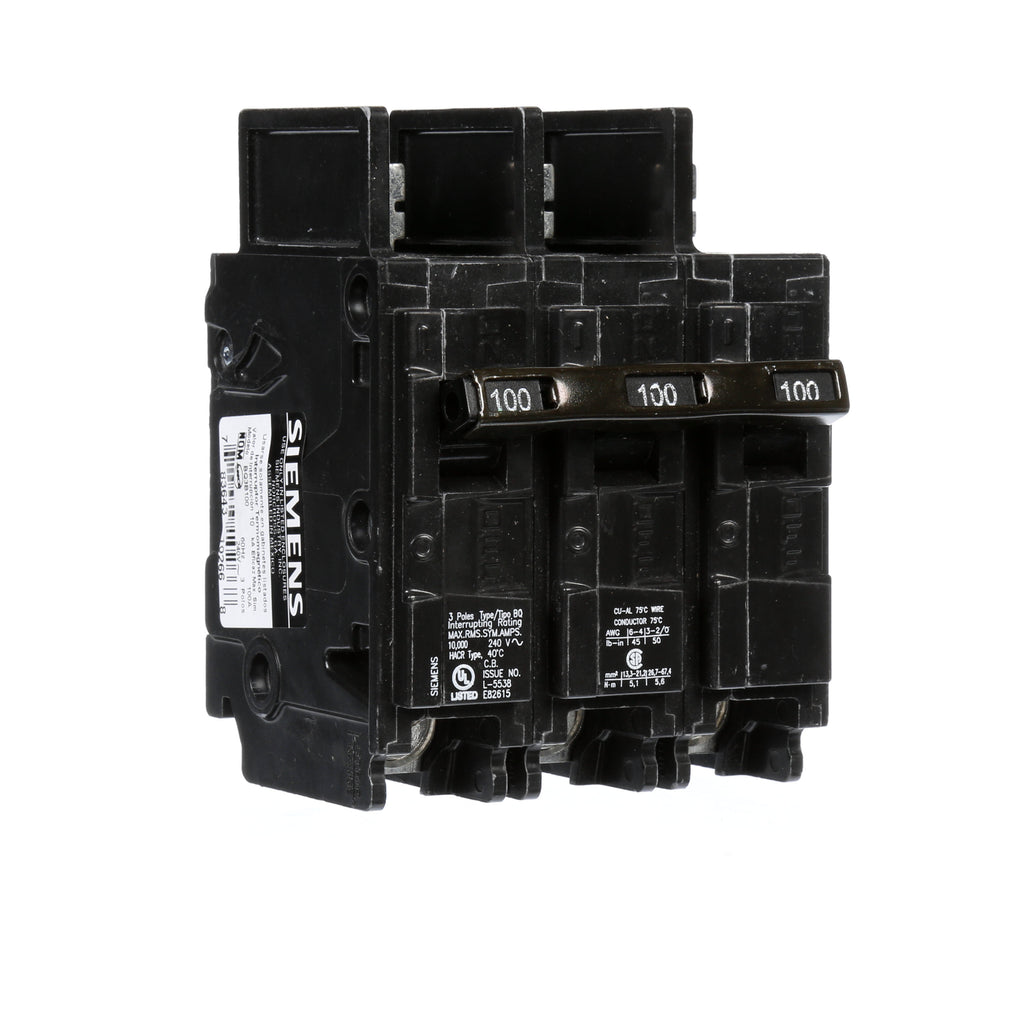

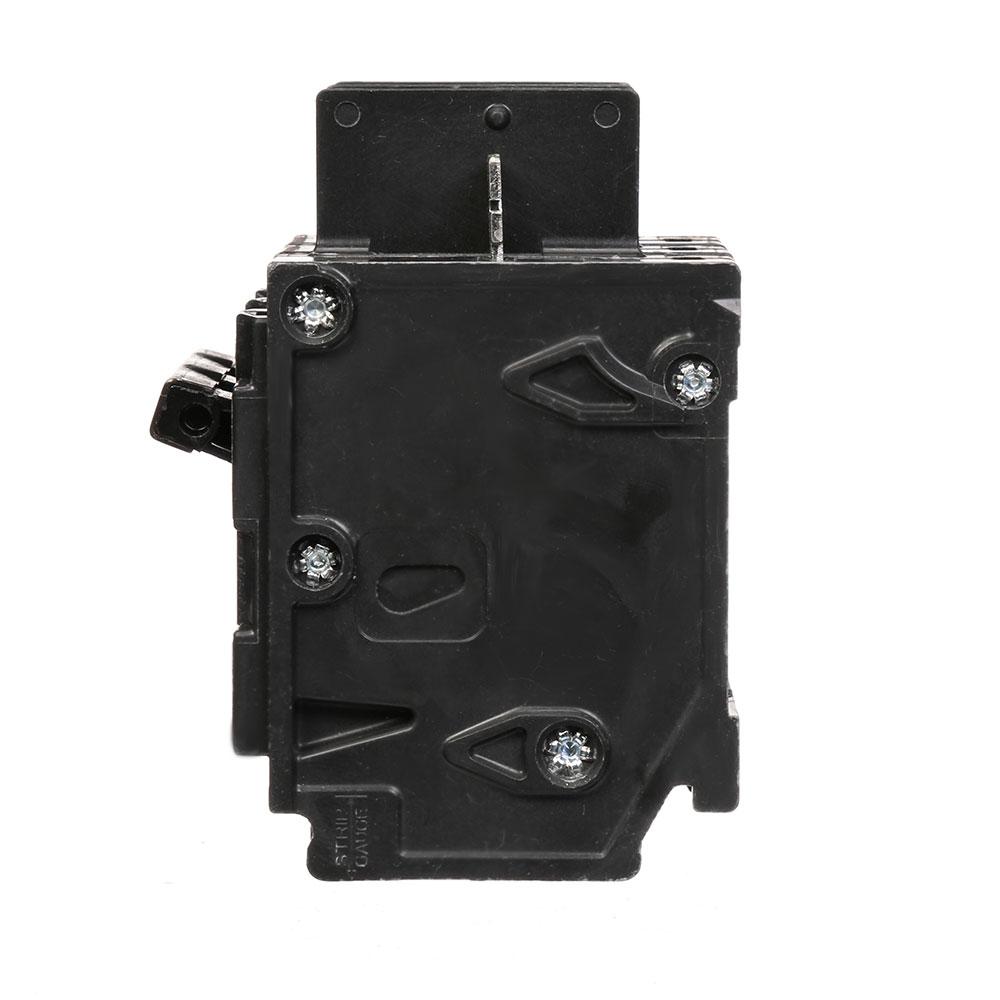

BQ3B100 - Siemens 100A 240V 3-Pole Bolt-On Circuit Breaker Type BQ

BQ3B100

BQ3B100 is a Siemens 3-pole, 100 amp, 240 volt bolt-on circuit breaker designed for reliable electrical protection.This Type BQ molded case circuit breaker features thermal-magnetic trip units with a 10,000 amp interrupt rating. It includes load side lug terminals with lug-in/lug-out connections and is UL listed, CSA certified, and HACR rated. The breaker is suitable for general purpose electrical distribution and offers common-trip protection in a compact bolt-on mounting design.

• Manufacturer: Siemens
• Part Number: BQ3B100
• Frame Type: BQ
• Voltage Rating: 240 VAC
• Amperage: 100 Amps
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 10,000 Amps
• Trip Unit: Thermal-Magnetic
• Certifications: UL Listed, CSA Certified, HACR Rated
• Load Side Lug Terminals Included
• Common-Trip Design

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BQ3B100
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BQ Series
• Type : BQ
• Voltage : 240
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Bolt-on
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BQ
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 2 AWG (Al), 4 AWG (Cu) Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 783643102668
• GTIN : 00783643102668
• Country of Origin : Mexico
• Dimensions : 2.563 x 3.00 x 3.972 inch
• Weight : 1.014
• Panel Type : Siemens Panelboards
• Standards : HACR Rated, UL Listed
• Certification : CSA, HACR, UL
