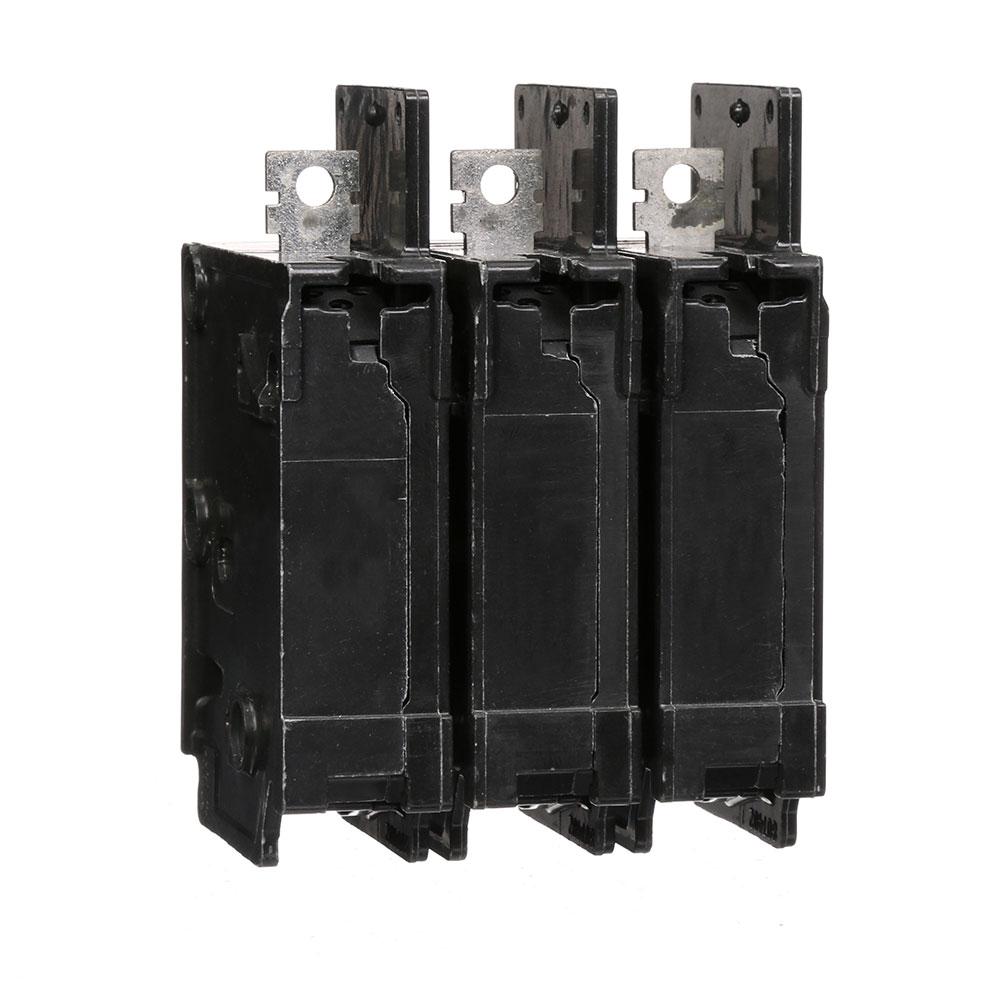

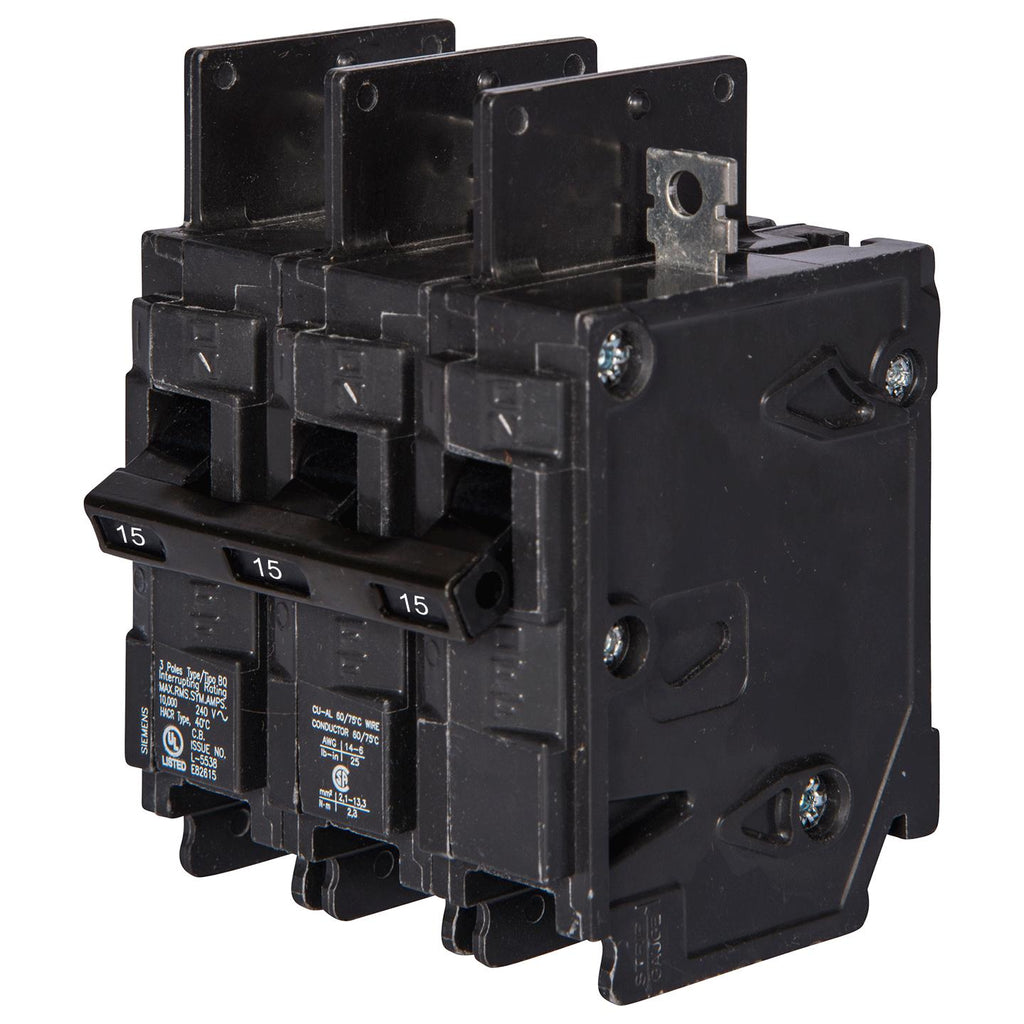

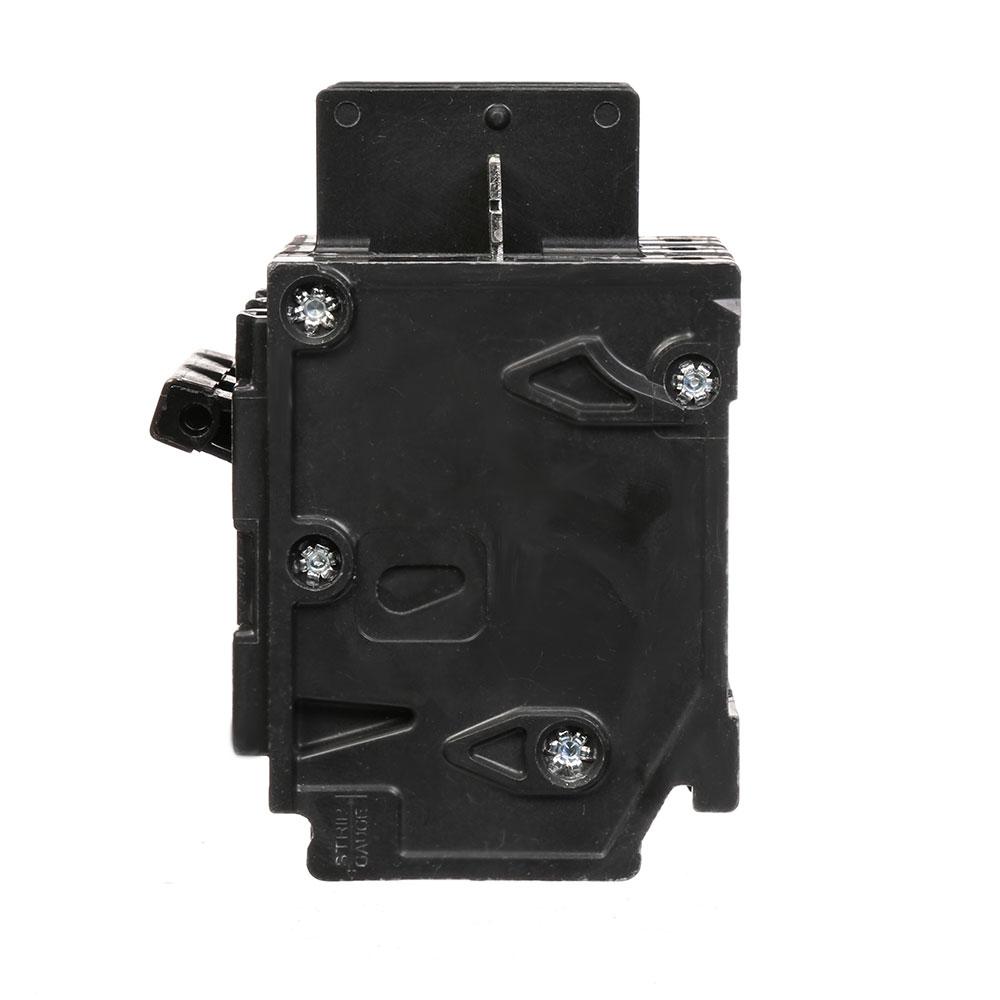

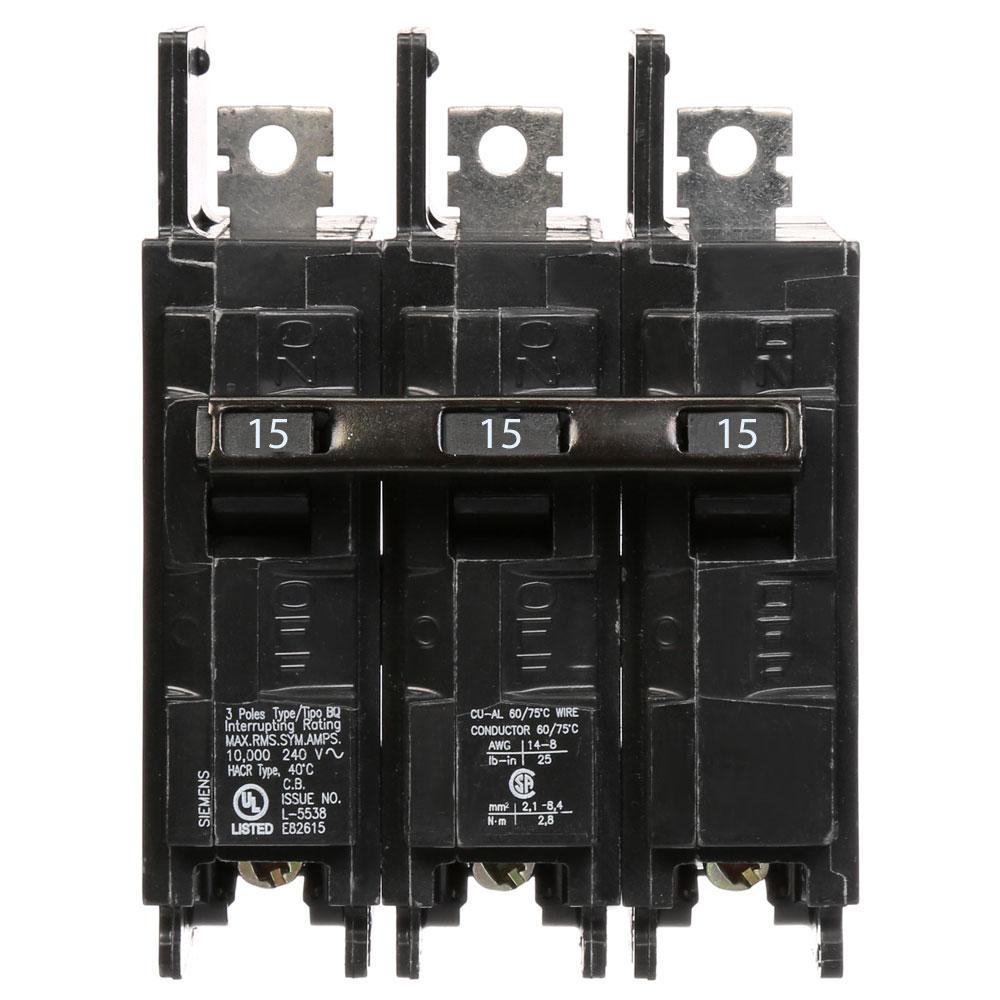

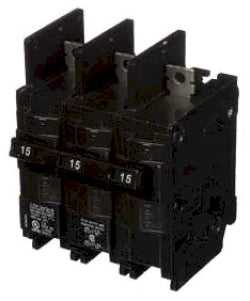

BQ3B015 - Siemens 15 Amp 3 Pole 240V BQ Series Bolt-On Molded Case Circuit Breaker, 10 kA Interrupt Rating, UL Listed, CSA Certified

BQ3B015

BQ3B015 is a Siemens 3-pole, bolt-on molded case circuit breaker designed for reliable circuit protection in commercial and industrial applications.

This thermal magnetic circuit breaker features a non-interchangeable trip unit, common-trip operation, and includes load side lugs for easy installation. It is part of the BQ series and is suitable for three-phase systems, offering robust performance and compliance with major safety standards.

Key Specifications
• Part Number: BQ3B015
• Manufacturer: Siemens
• Amperage: 15A
• Voltage: 240V
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 10 kAIC
• Series/Frame: BQ
• Trip Unit: Non-interchangeable, thermal magnetic
• Certifications: UL Listed, CSA Certified, CE Marked, HACR Rated
• Phase: 3
• Load Side Lugs: Included

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BQ3B015
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BQ Series
• Type : BQ
• Voltage : 240
• Amperage : 15
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Bolt-on
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BQ
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 2 AWG (Al), 4 AWG (Cu) Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 783643102583
• GTIN : 00783643102583
• Country of Origin : Mexico
• Dimensions : 2.563 x 3.00 x 3.972 inch
• Weight : 1.014
• Panel Type : Siemens Panelboards
• Standards : HACR Rated, UL Listed
• Certification : CSA, HACR, UL
