Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
BQ3B015L

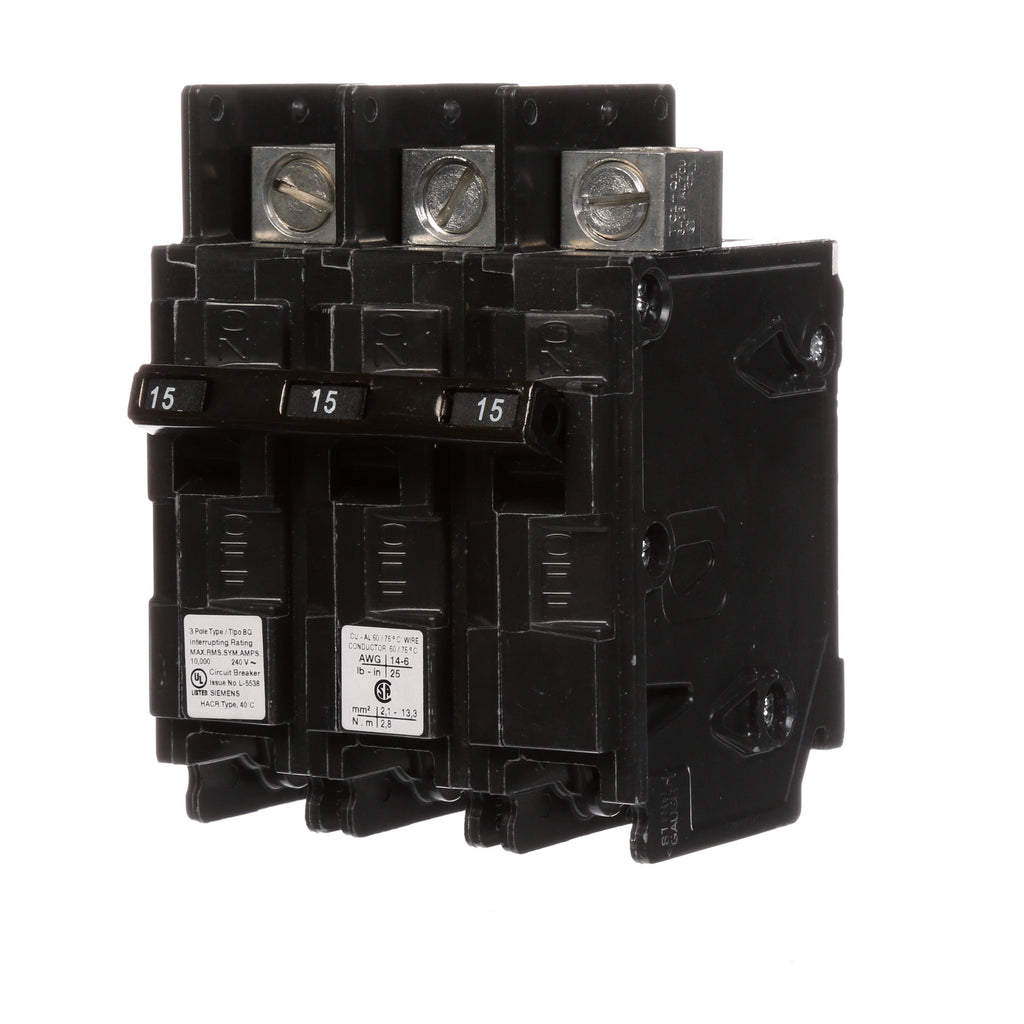

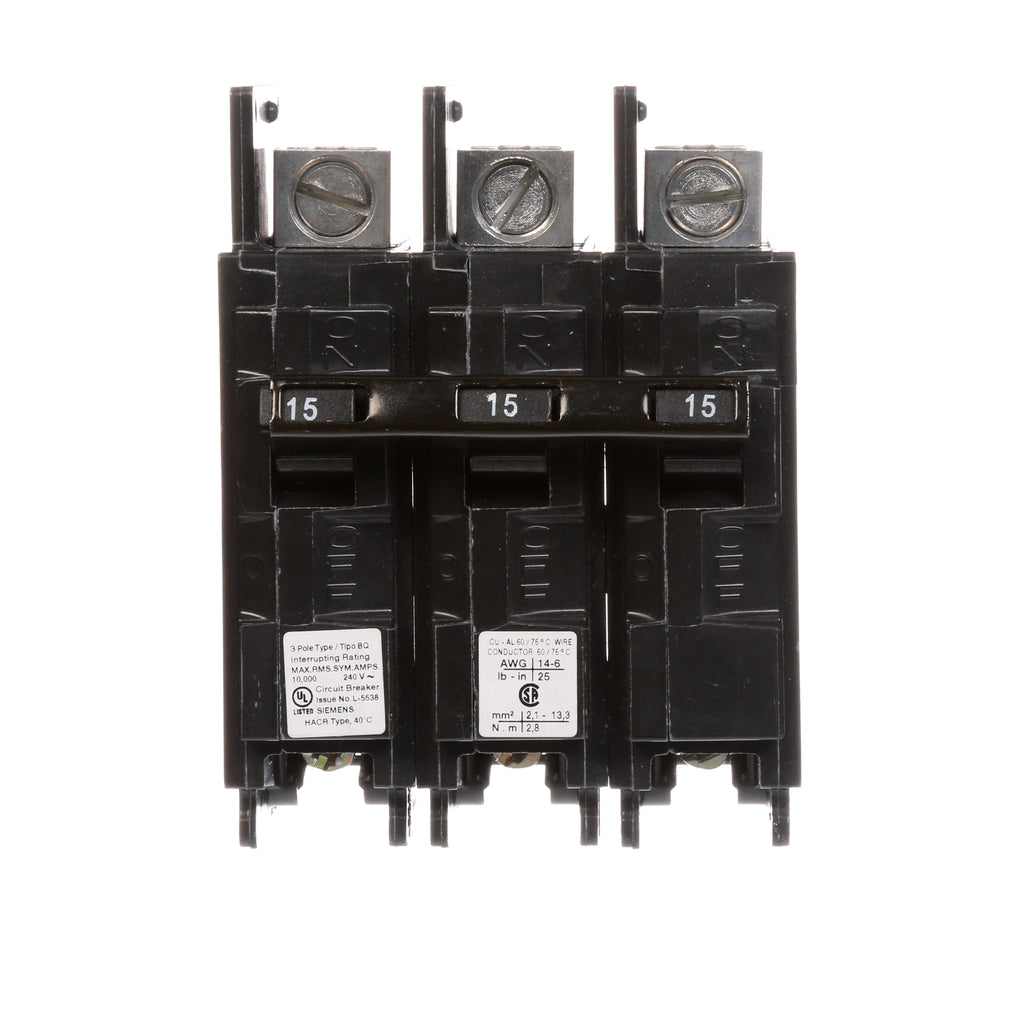

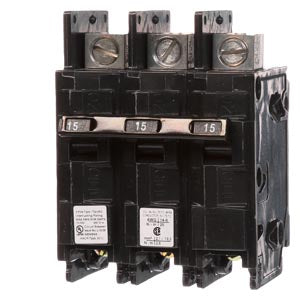

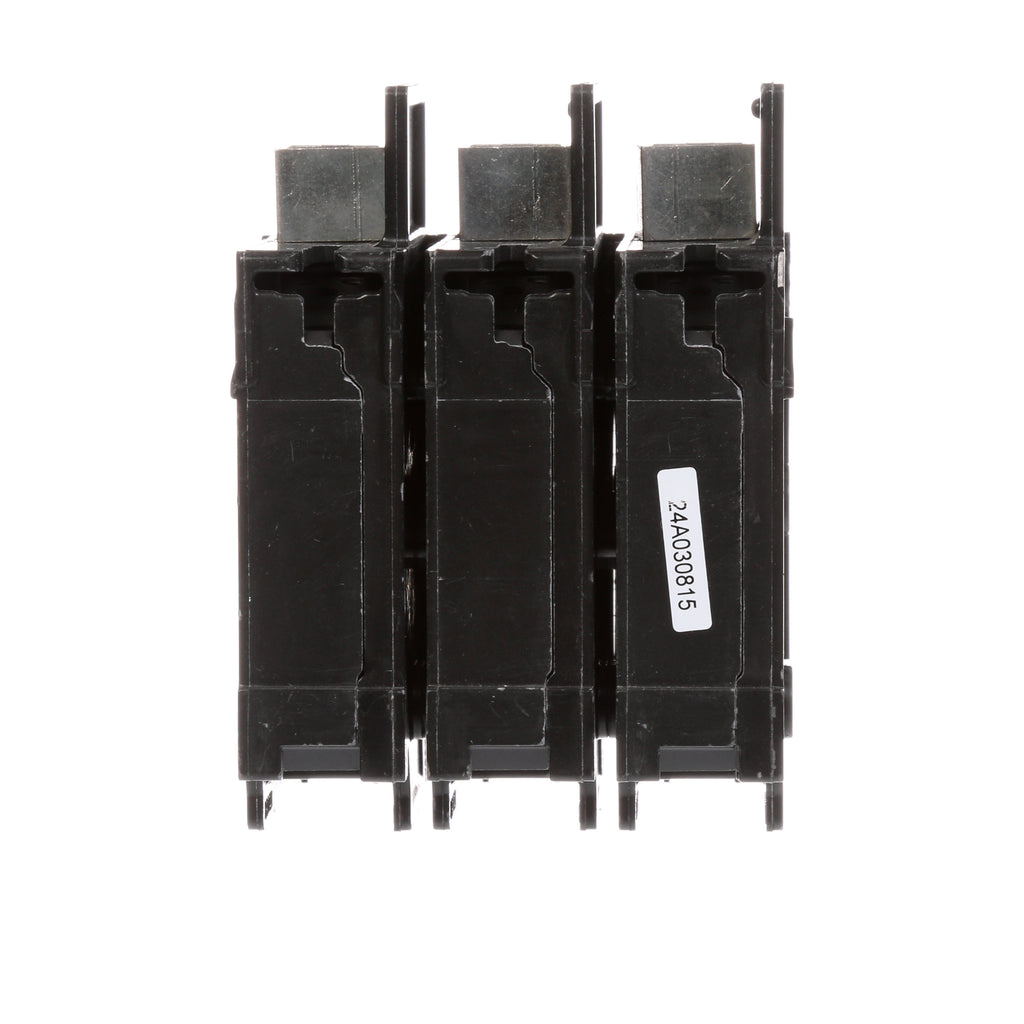

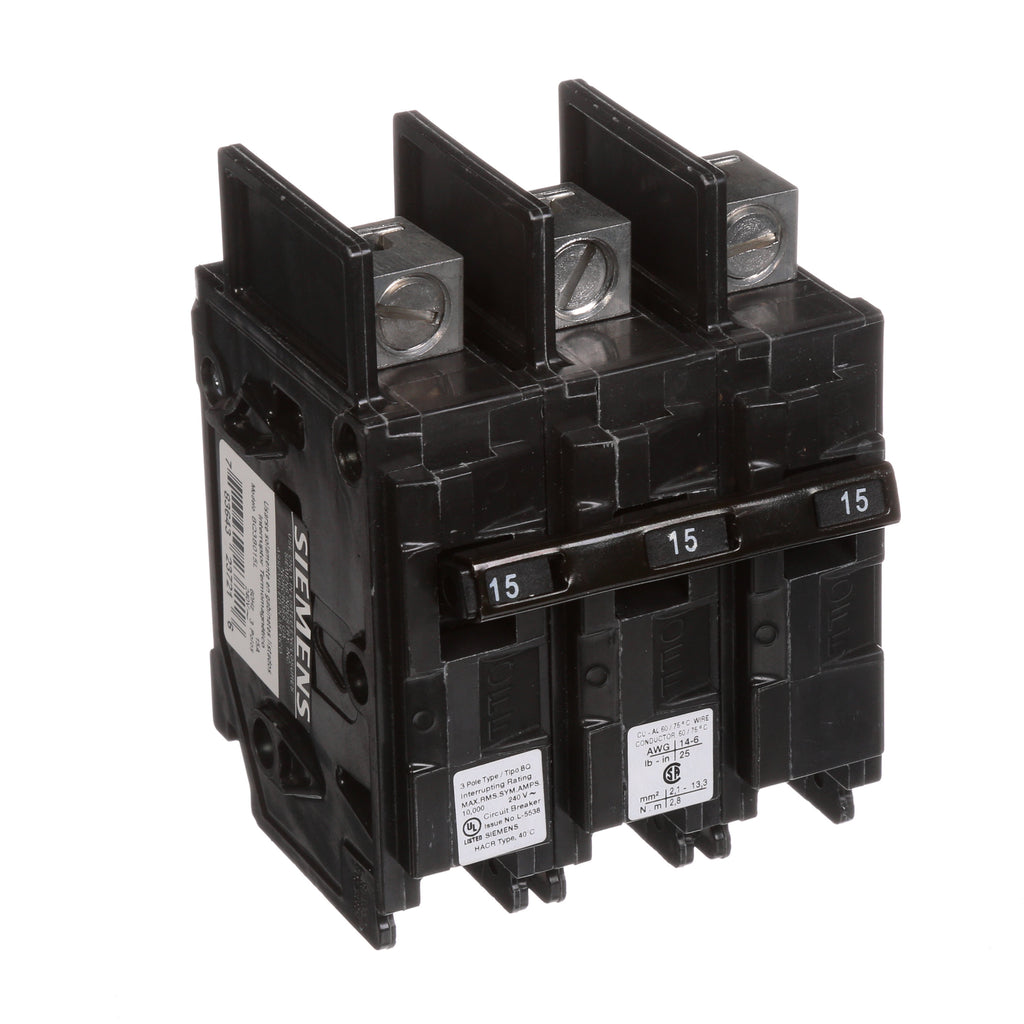

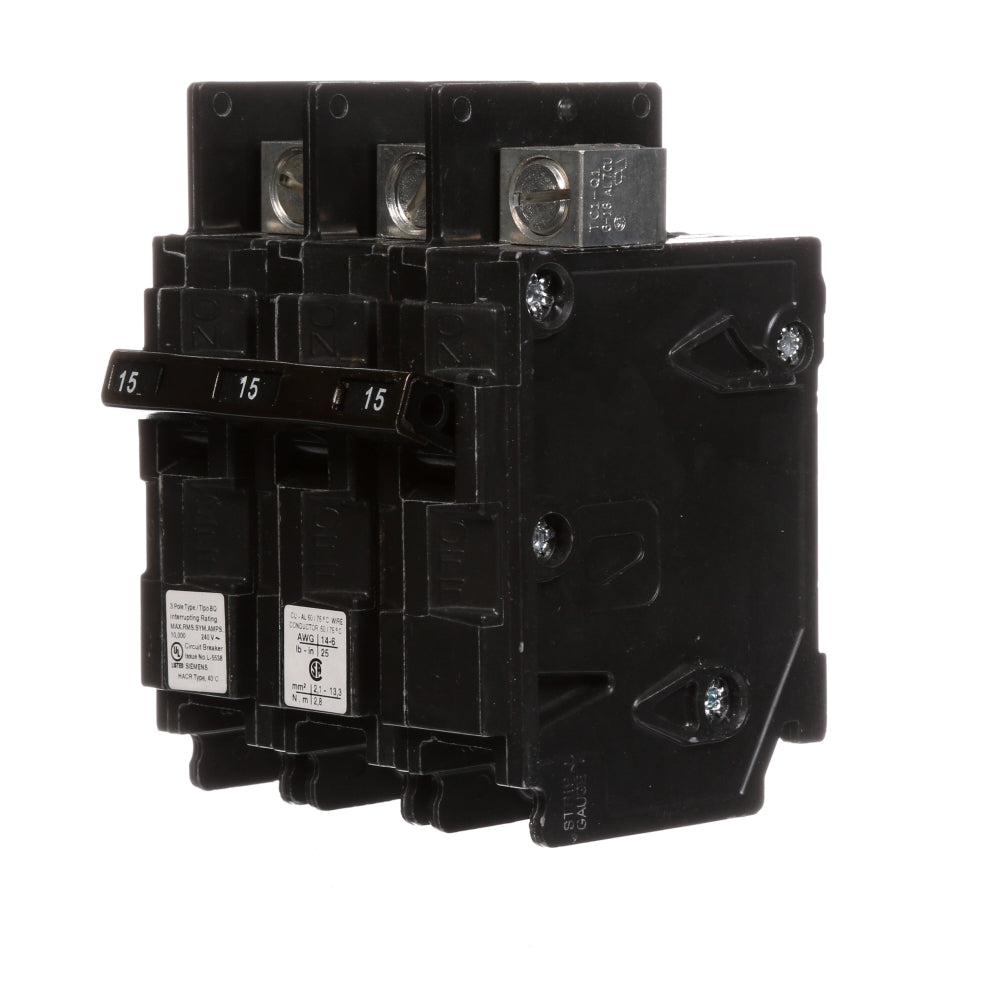

BQ3B015L - Siemens BQ 3-pole molded case circuit breaker with 15A rating and line lugs. This thermal-magnetic circuit breaker features a BQ frame, 240 VAC rating at 60 Hz, 3 poles with common-trip unit, and 10 kA interrupting capacity. It includes line lugs for bolted-on mounting in panelboards.
- Part Number: BQ3B015L
- Manufacturer: Siemens
- Type: Molded Case Circuit Breaker
- Frame/Series: BQ
- Amperage: 15A at 40C
- Voltage: 240 VAC 60 Hz
- Poles: 3
- Trip Unit: Thermal-Magnetic
- Interrupt Rating: 10 kA
- Terminals: Line Lugs
- Mounting: Bolted-On
Specifications
- Part Number: BQ3B015L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BQ Series
- Type : BQ
- Voltage : 240
- Amperage : 15
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Lug
- Protection : Thermal Magnetic
Product Data
- UPC : 783643237216
- GTIN : 00783643237216
- Country of Origin : Mexico
- Dimensions : 2.563 x 3.00 x 3.972 inch
- Weight : 1.014
- Panel Type : Siemens Panelboards
- Standards : HACR Rated, UL Listed
- Certification : CSA, HACR, UL
