2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
BQ3B090L

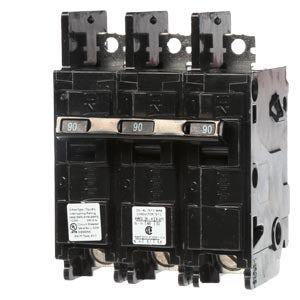

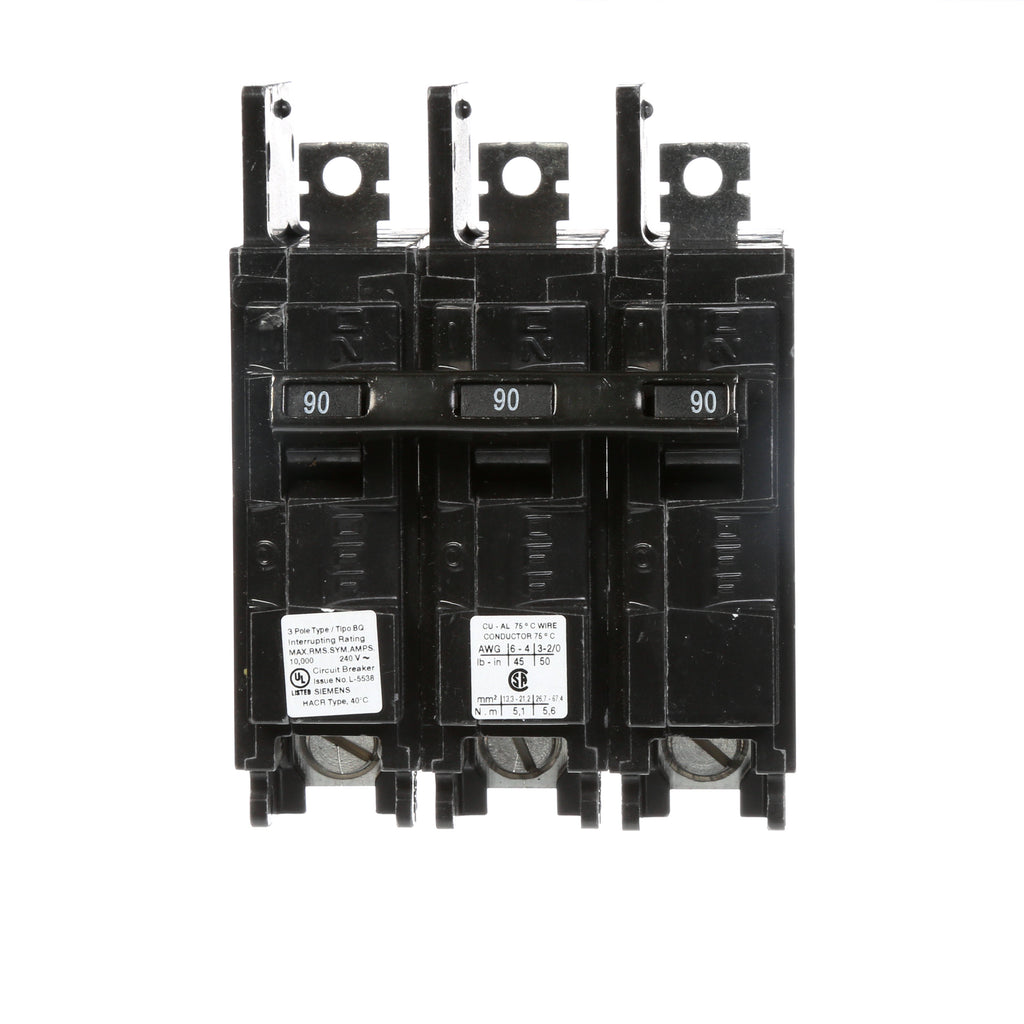

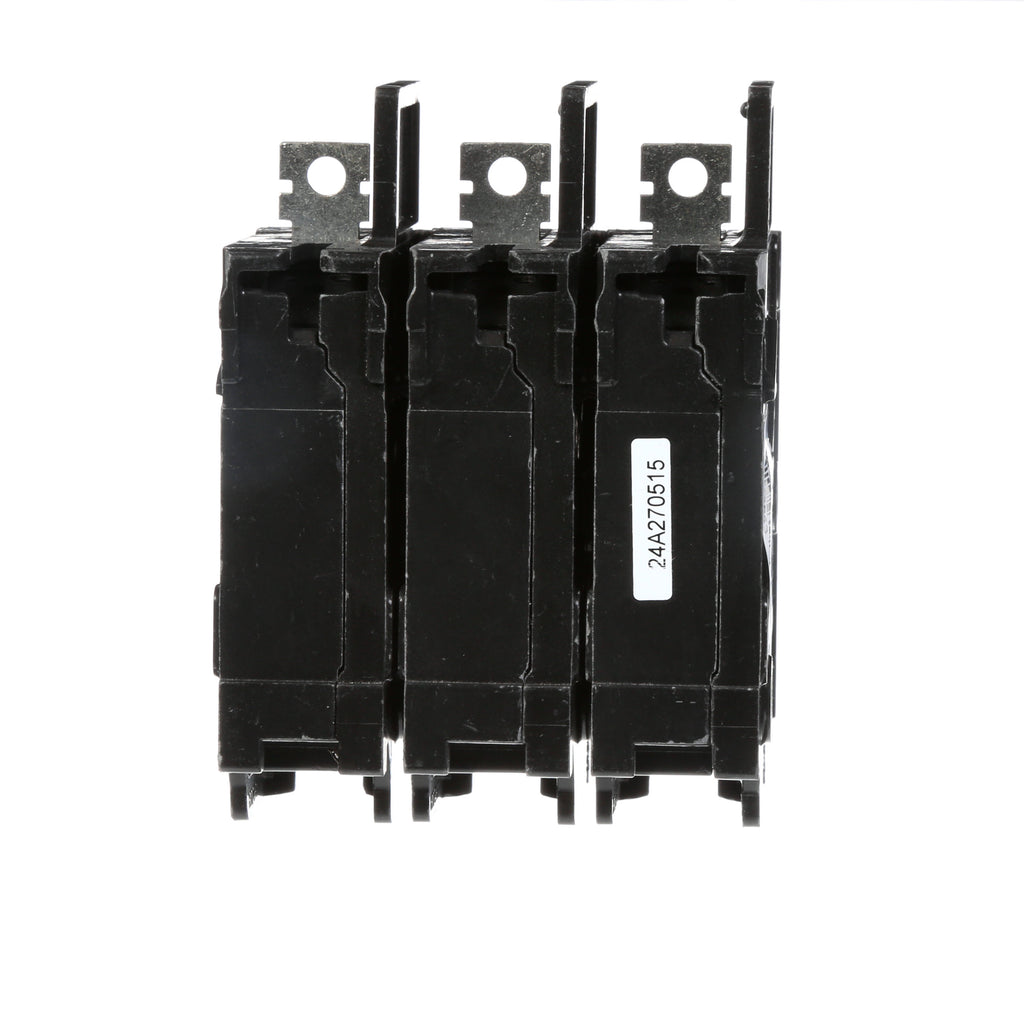

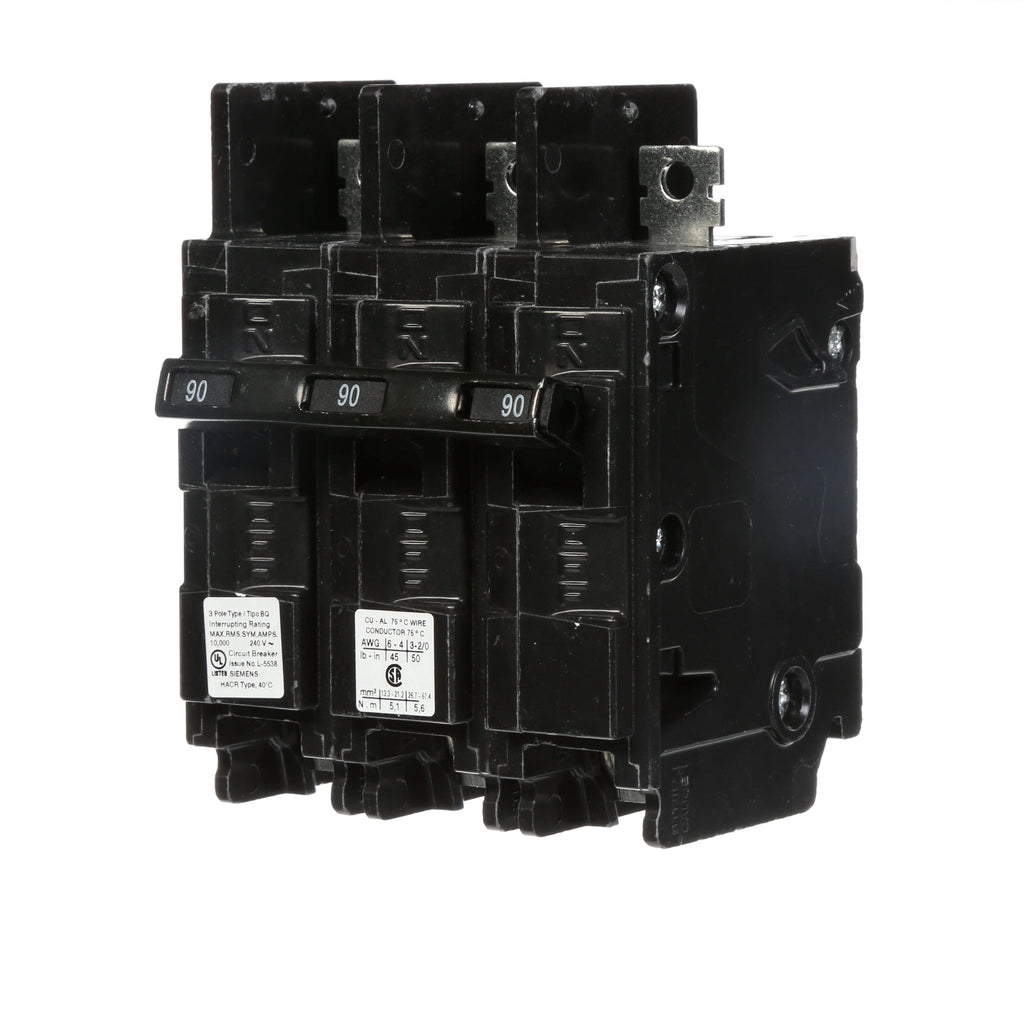

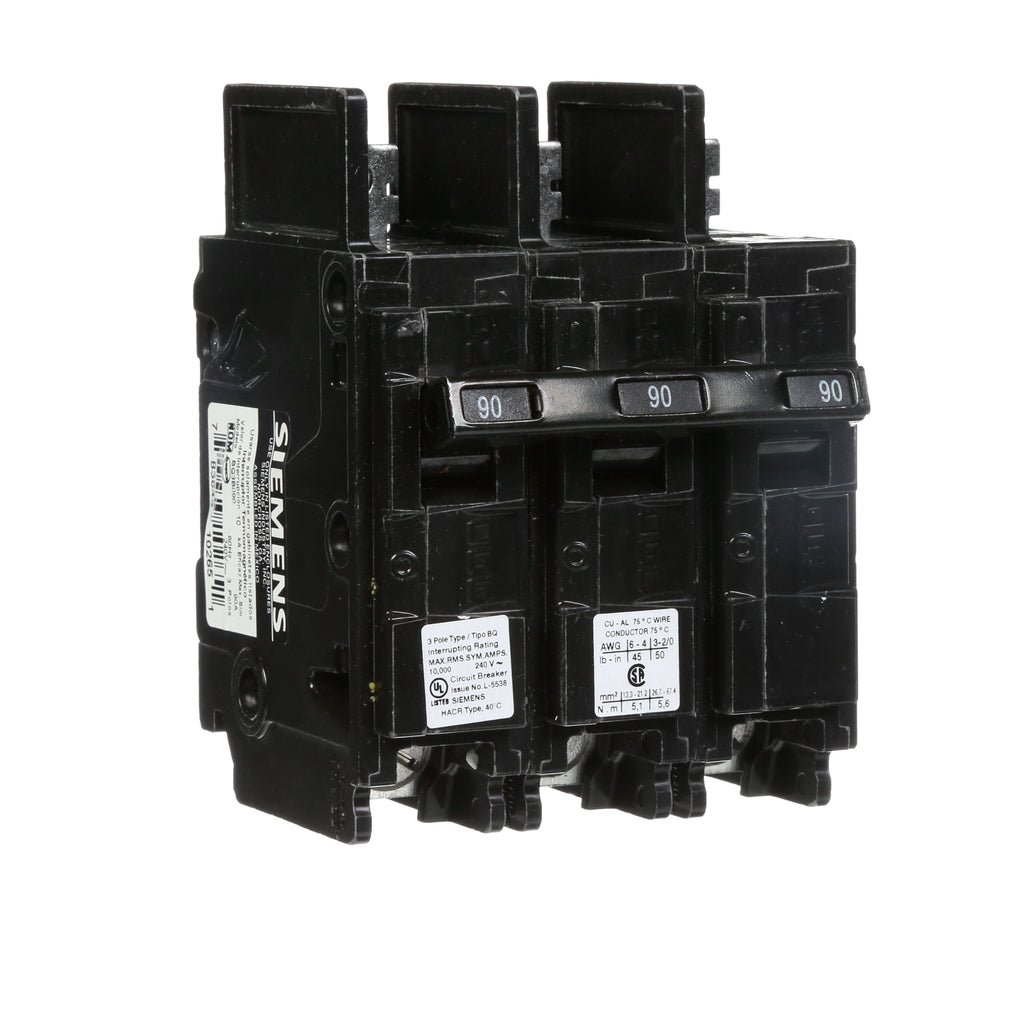

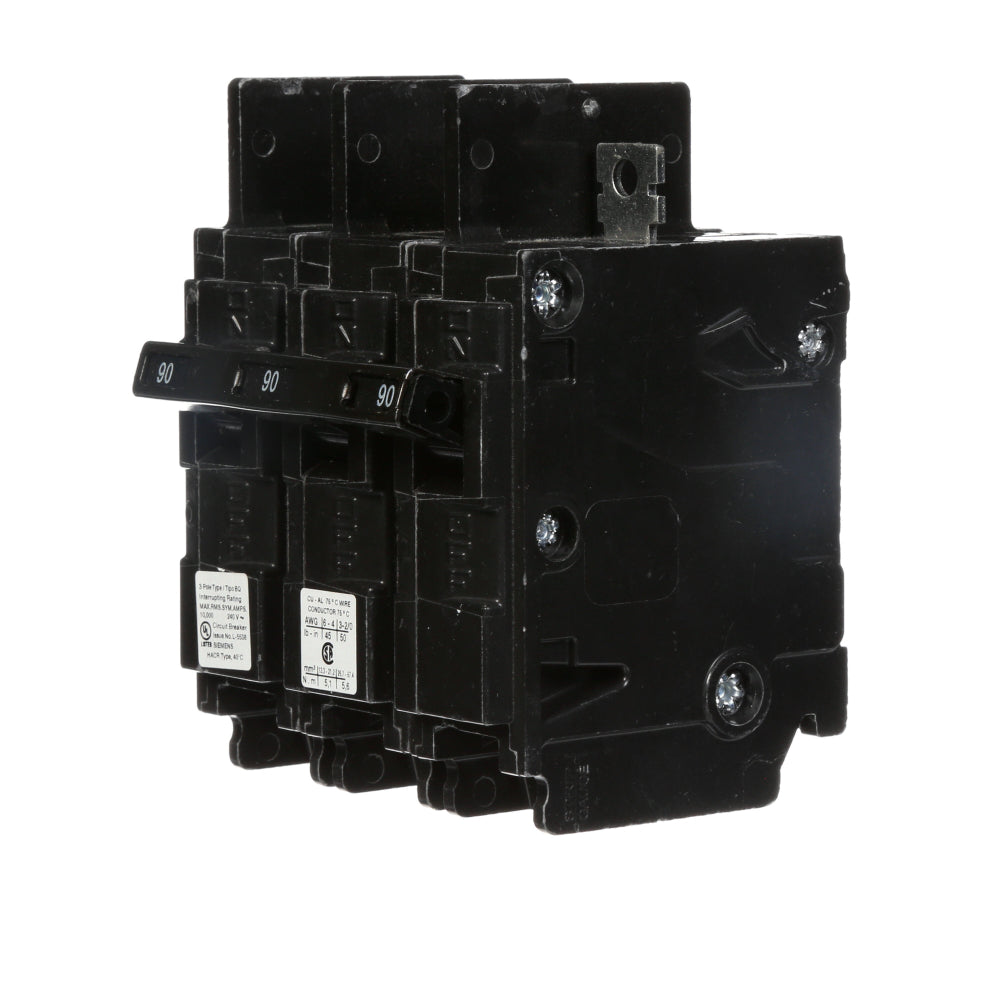

BQ3B090L is a Siemens 3-pole molded case circuit breaker rated for 90 amps and 240 volts AC. It features a BQ frame and is designed for panel mounting.
This circuit breaker provides thermal magnetic trip protection with a 10,000 amp interrupting rating at 240 VAC. It is suitable for use in commercial and industrial electrical distribution systems requiring reliable overcurrent protection. The breaker is part of Siemens' BQ series and includes line lug connections for secure wiring installation.
- Amperage: 90 A
- Voltage Rating: 240 VAC
- Poles: 3
- Frame/Series: BQ
- Interrupting Rating: 10,000 A
- Trip Unit: Thermal Magnetic
- Mounting Type: Panel Mount
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: BQ3B090L
- Manufacturer : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BQ Series
- Type : BQ
- Voltage : 240
- Amperage : 90
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Lug
- Protection : Thermal Magnetic
Product Data
- UPC : 783643237315
- GTIN : 00783643237315
- Country of Origin : Mexico
- Dimensions : 2.756 x 2.756 x 3.937 inch
- Weight : 1.146
- Panel Type : Siemens Panelboards
- Standards : HACR Rated, UL Listed
- Certification : CSA, HACR, UL
