Description
BQ3B070

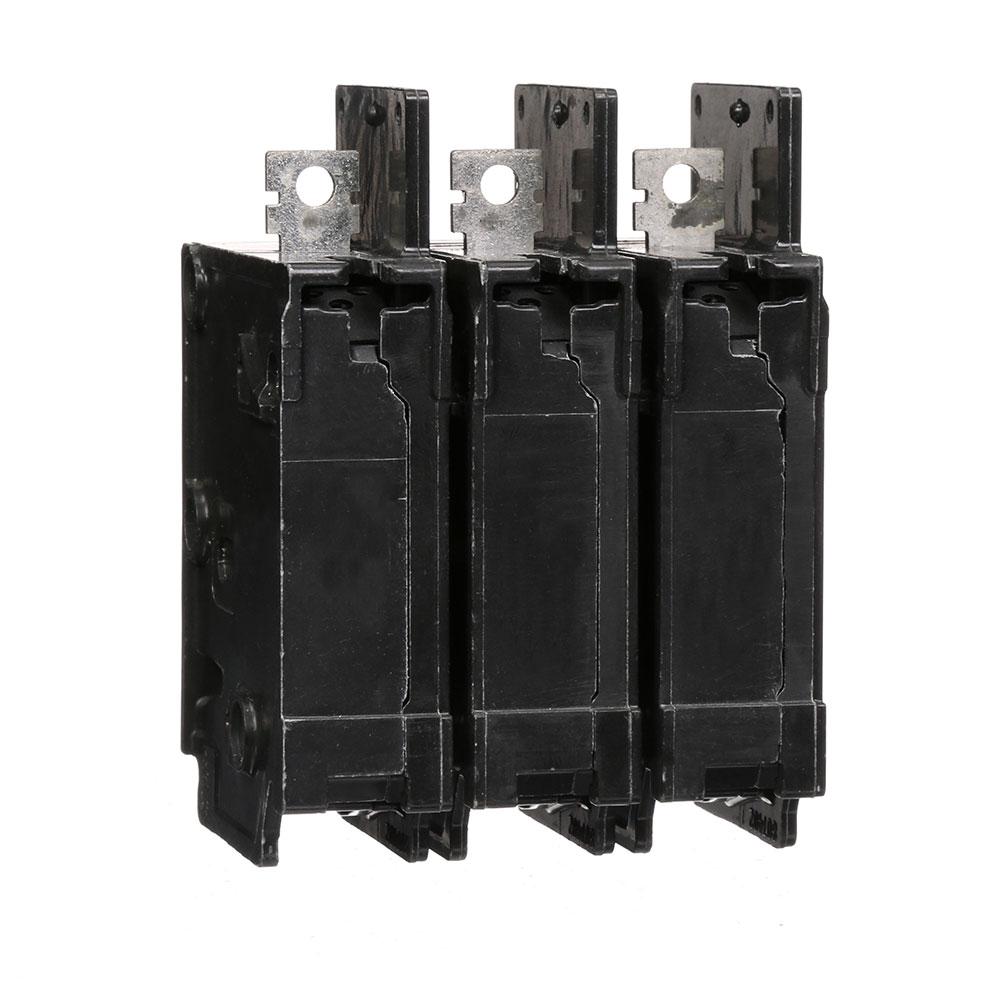

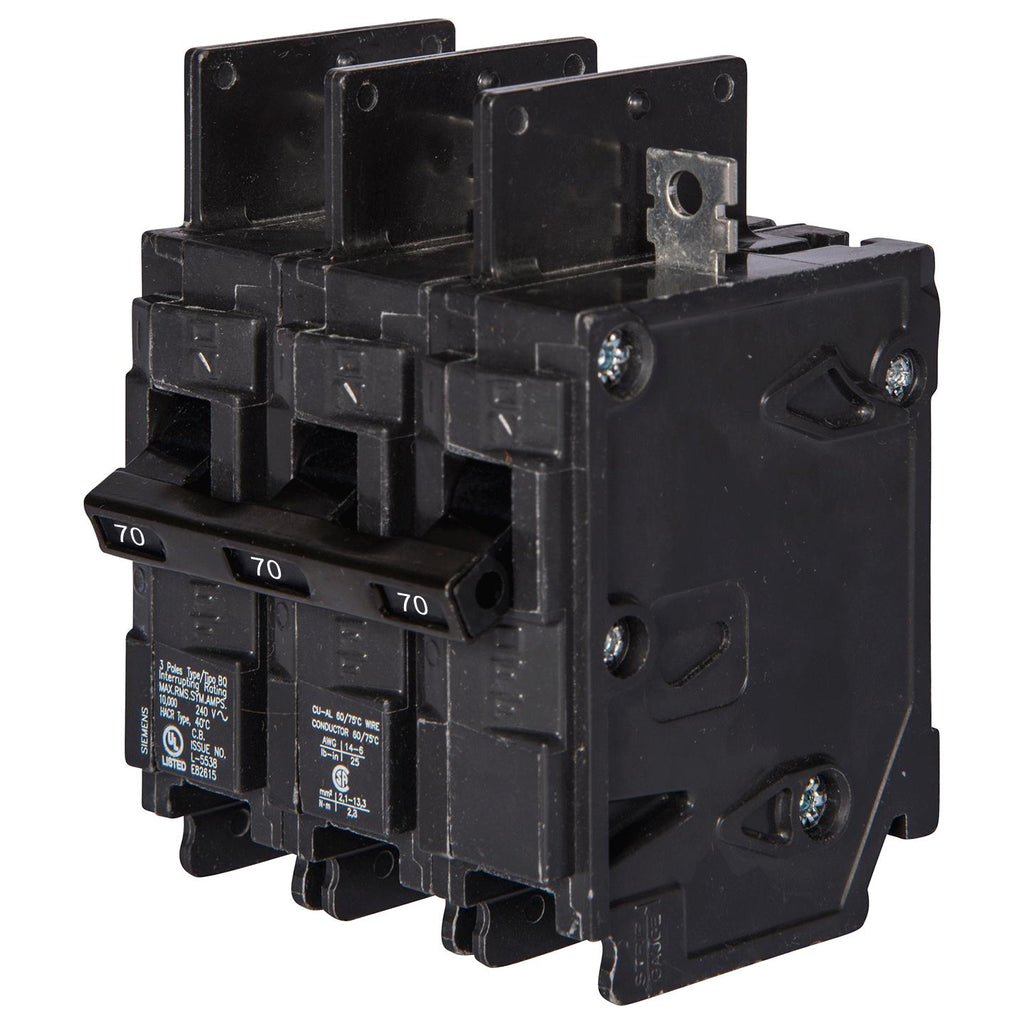

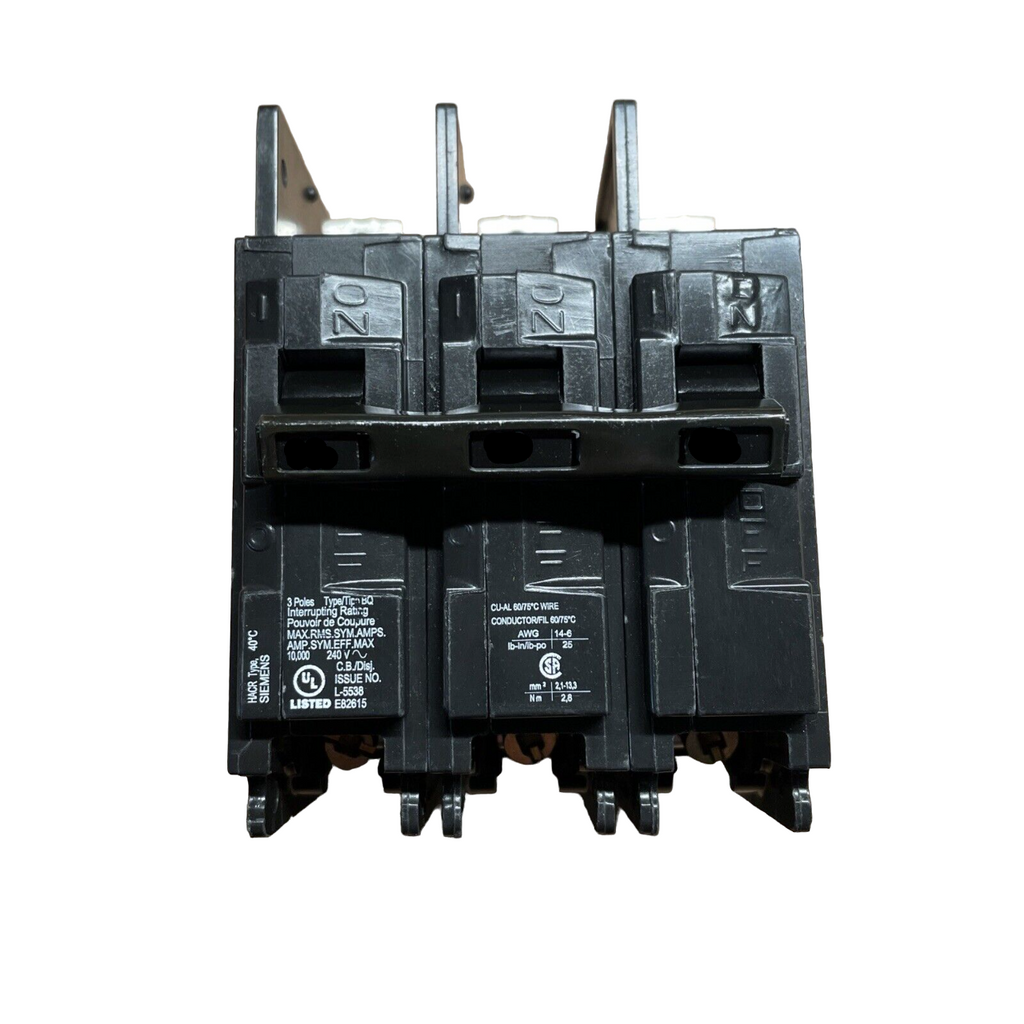

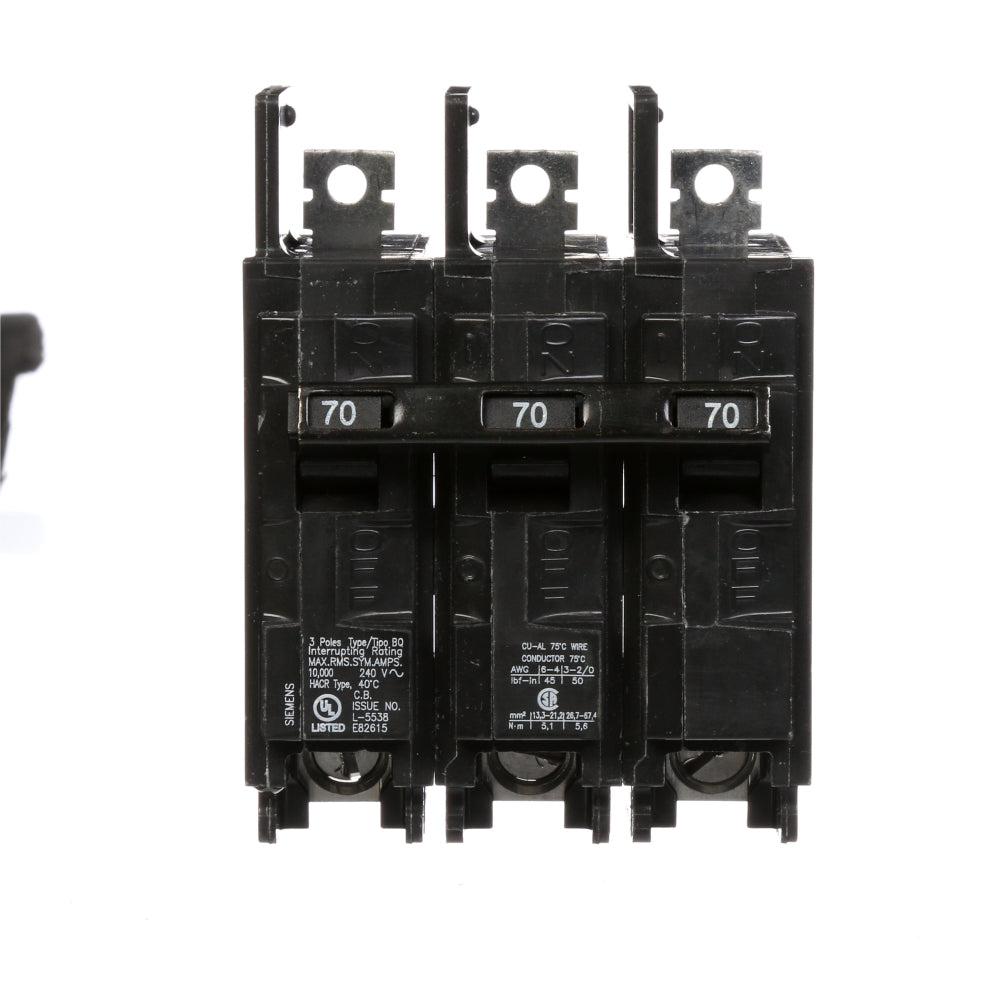

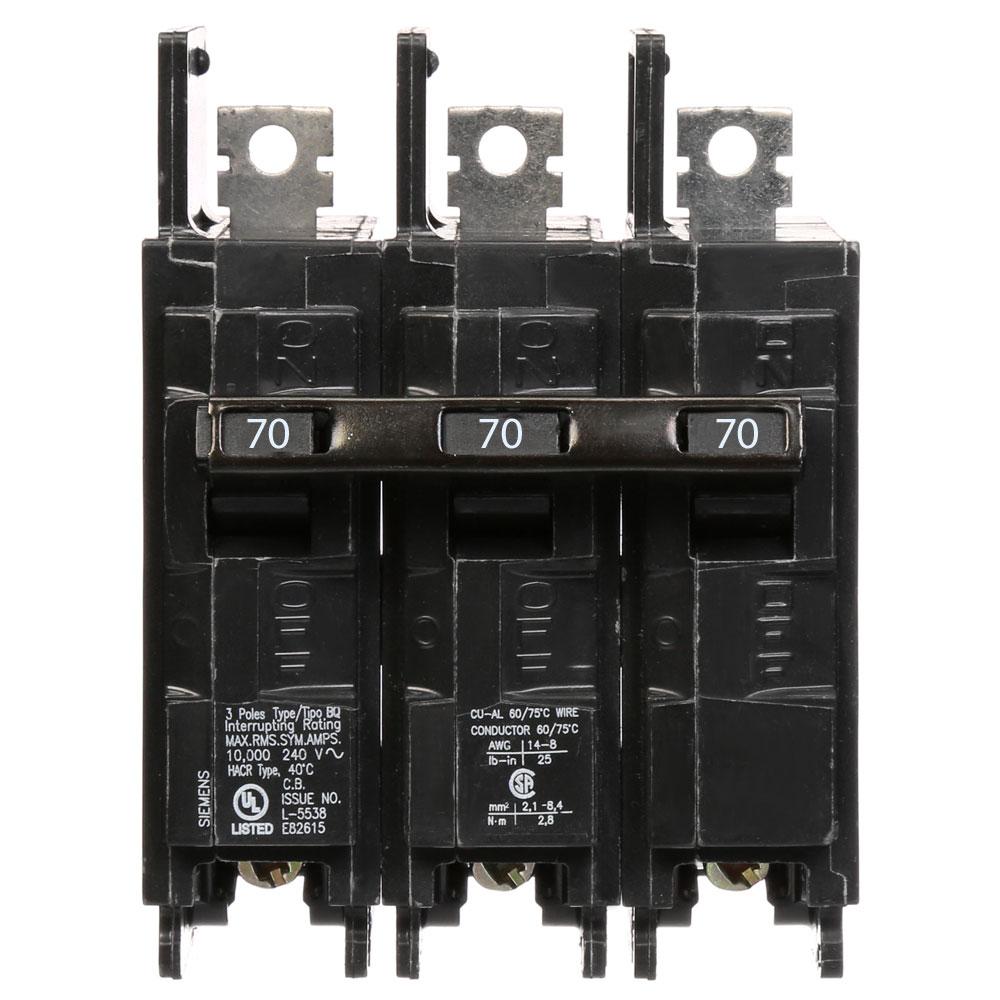

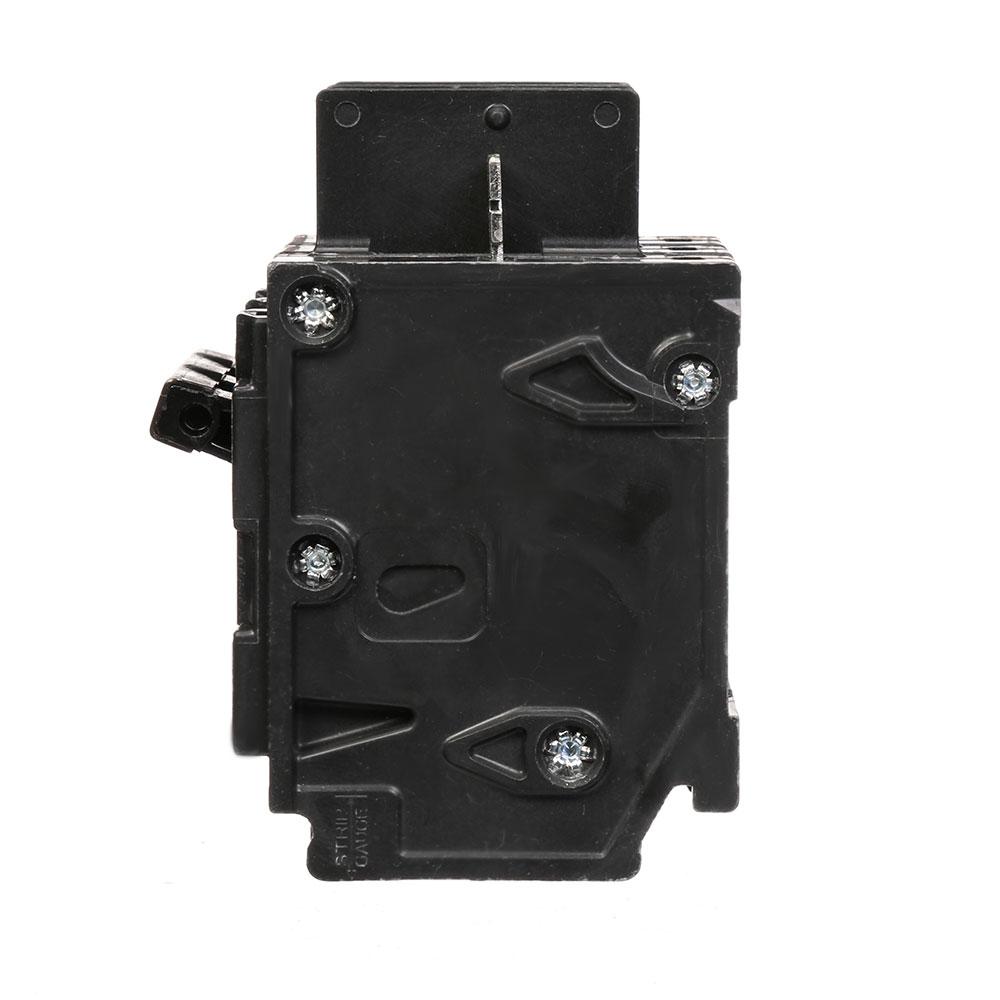

BQ3B070 is a Siemens 3-pole, 70 amp, 240 volt circuit breaker designed for bolt-on mounting.This Siemens BQ Series molded case circuit breaker features a thermal/magnetic trip unit and a 10,000 amp interrupting rating at 240 volts. It is UL listed and CSA approved, suitable for low voltage applications requiring reliable overcurrent protection. The breaker is designed for three-phase systems and provides secure bolt-on installation.
- Manufacturer: Siemens
- Series/Frame: BQ
- Amperage: 70 Amp
- Voltage: 240 Volt
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 10,000 Amps (10kA)
- Trip Unit: Thermal/Magnetic
- Certifications: UL Listed, CSA Approved
- Phase: 3-Phase
Specifications
- Part Number: BQ3B070
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BQ Series
- Type : BQ
- Voltage : 240
- Amperage : 70
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Bolt-on
- Functions : Long Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : 125A/BQ
- Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
- MCM Size : Min. Wire Size 2 AWG (Al), 4 AWG (Cu) Max. Wire Size 1/0 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
Product Data
- UPC : 783643102644
- GTIN : 00783643102644
- Country of Origin : Mexico
- Dimensions : 2.563 x 3.00 x 3.972 inch
- Weight : 1.014
- Panel Type : Siemens Panelboards
- Standards : HACR Rated, UL Listed
- Certification : CSA, HACR, UL
