Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
BQ3B040

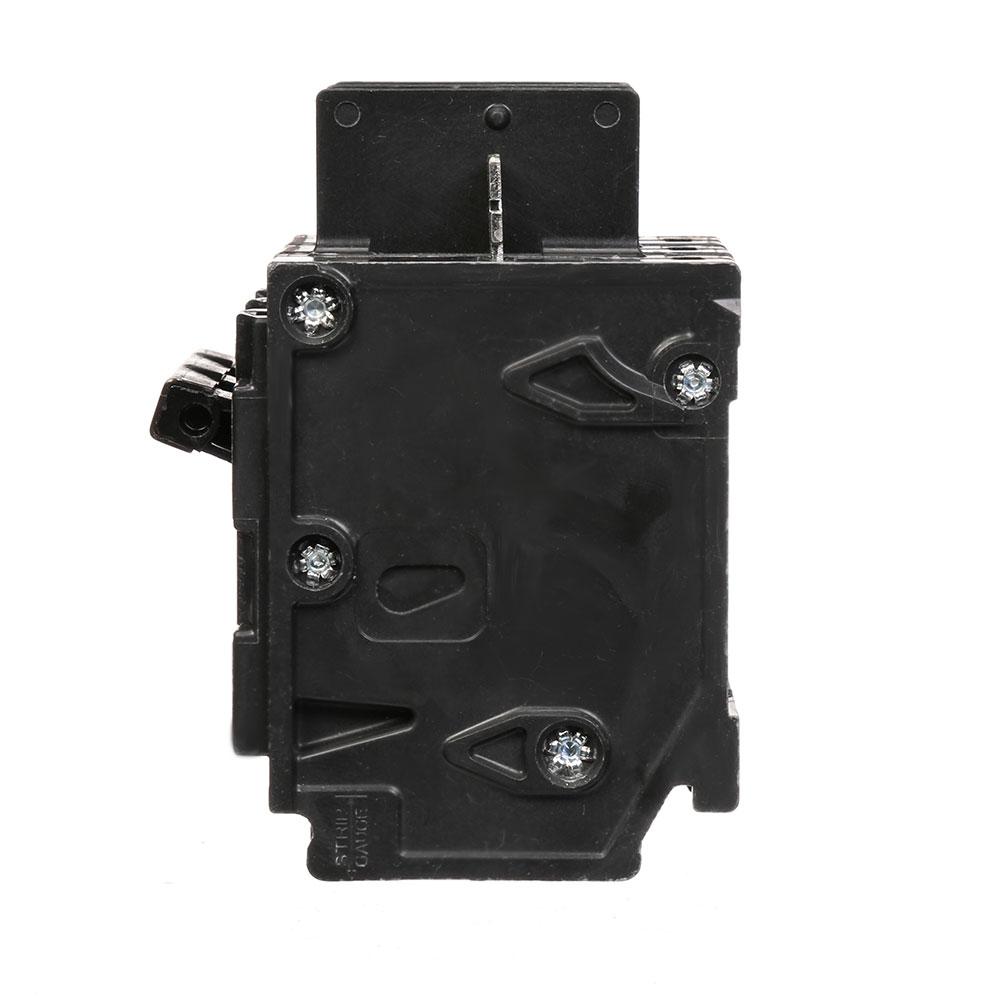

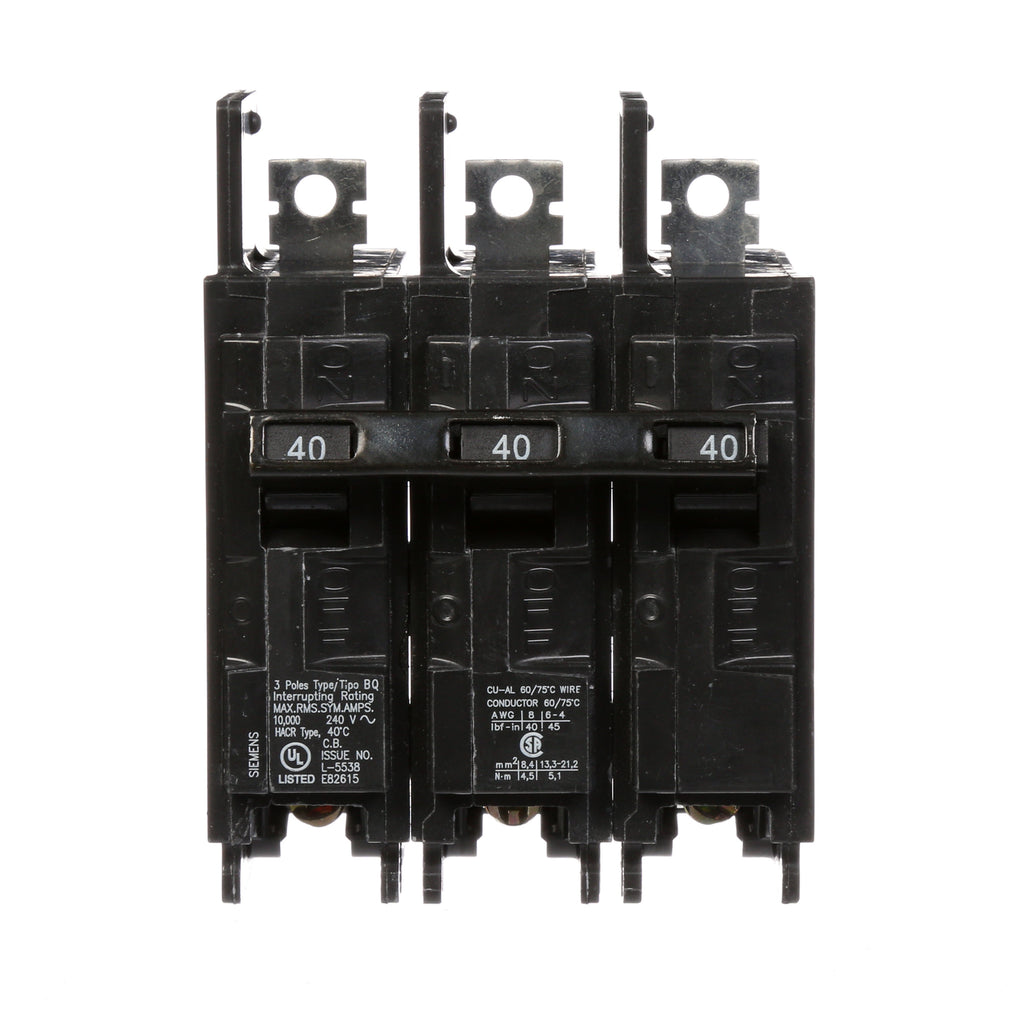

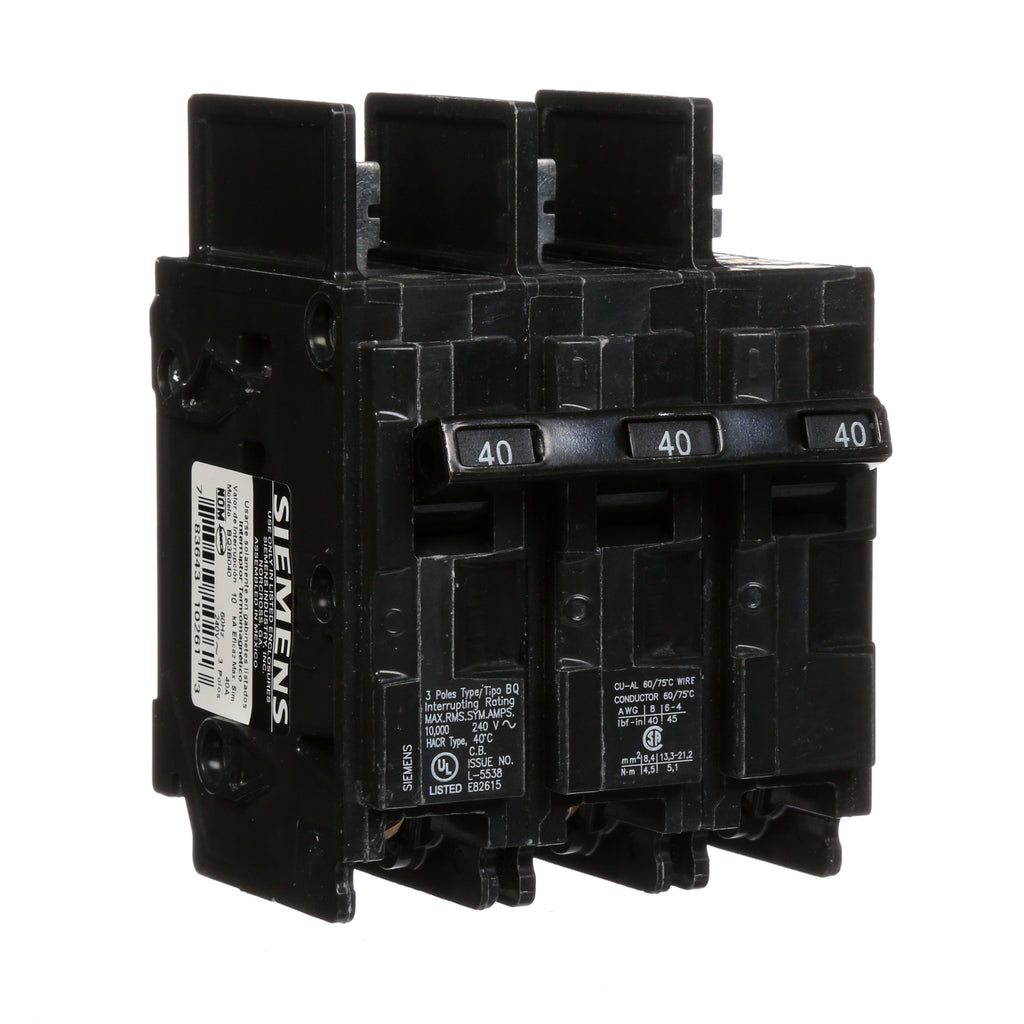

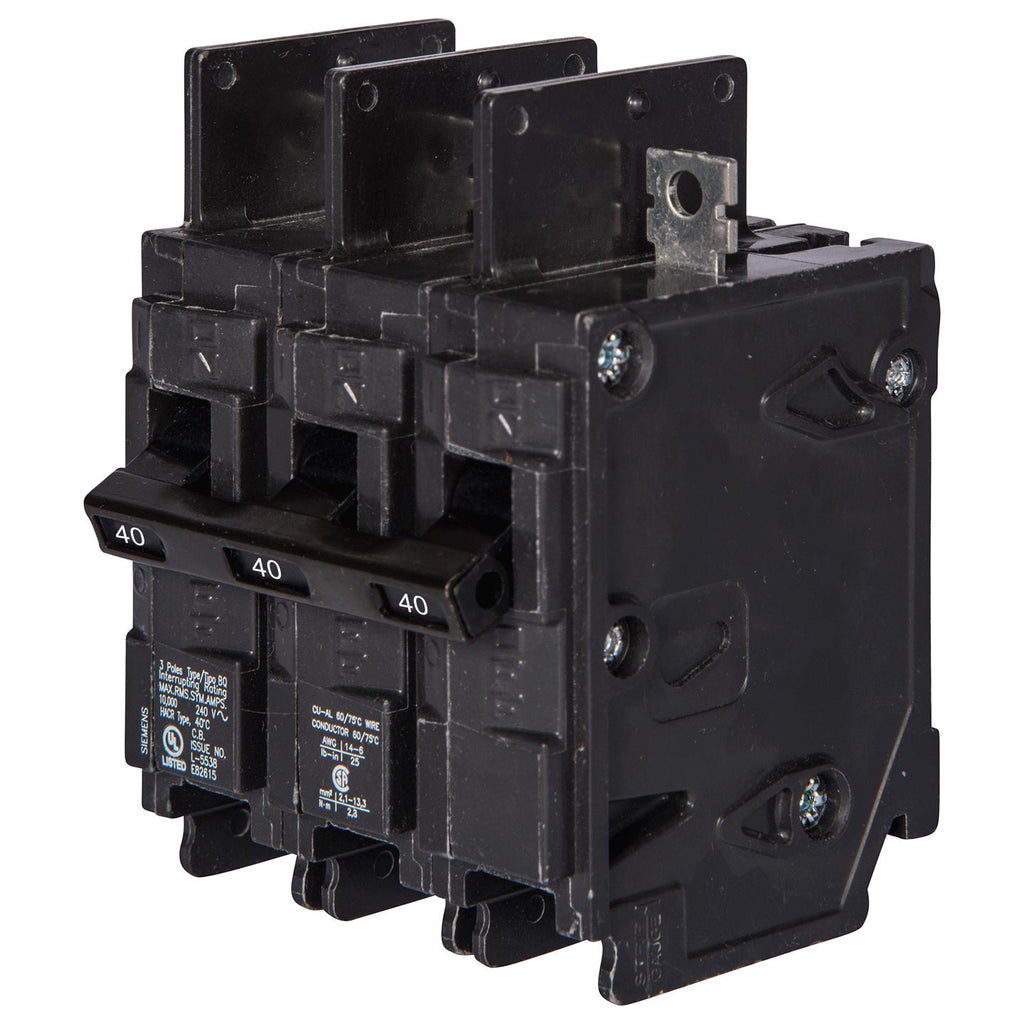

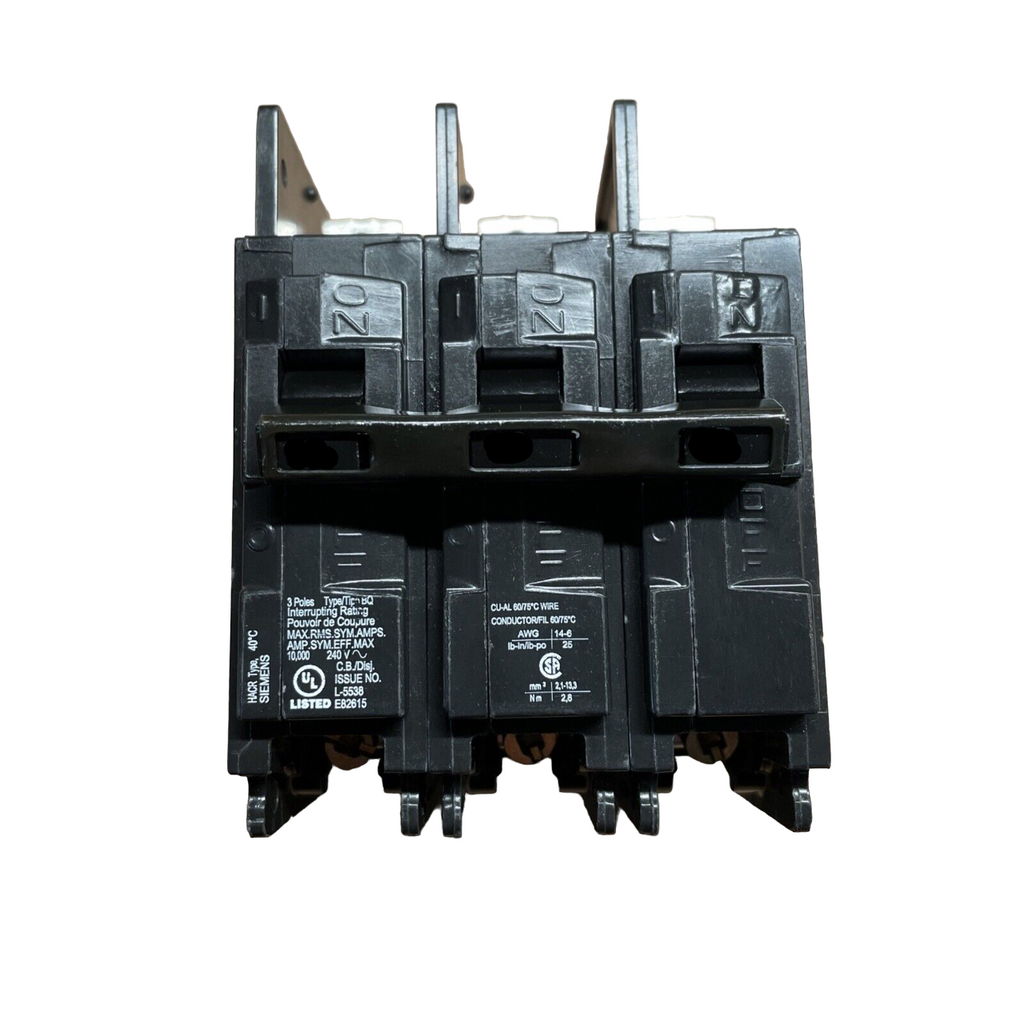

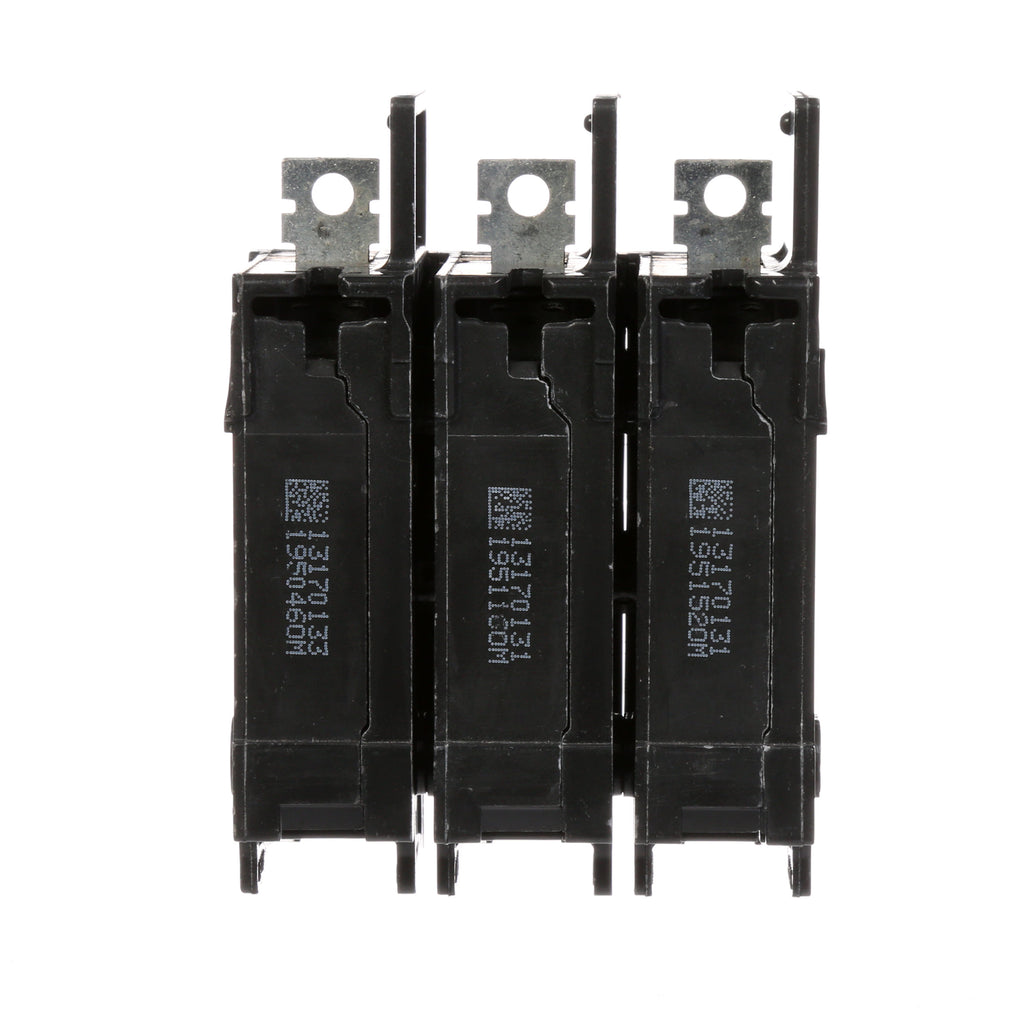

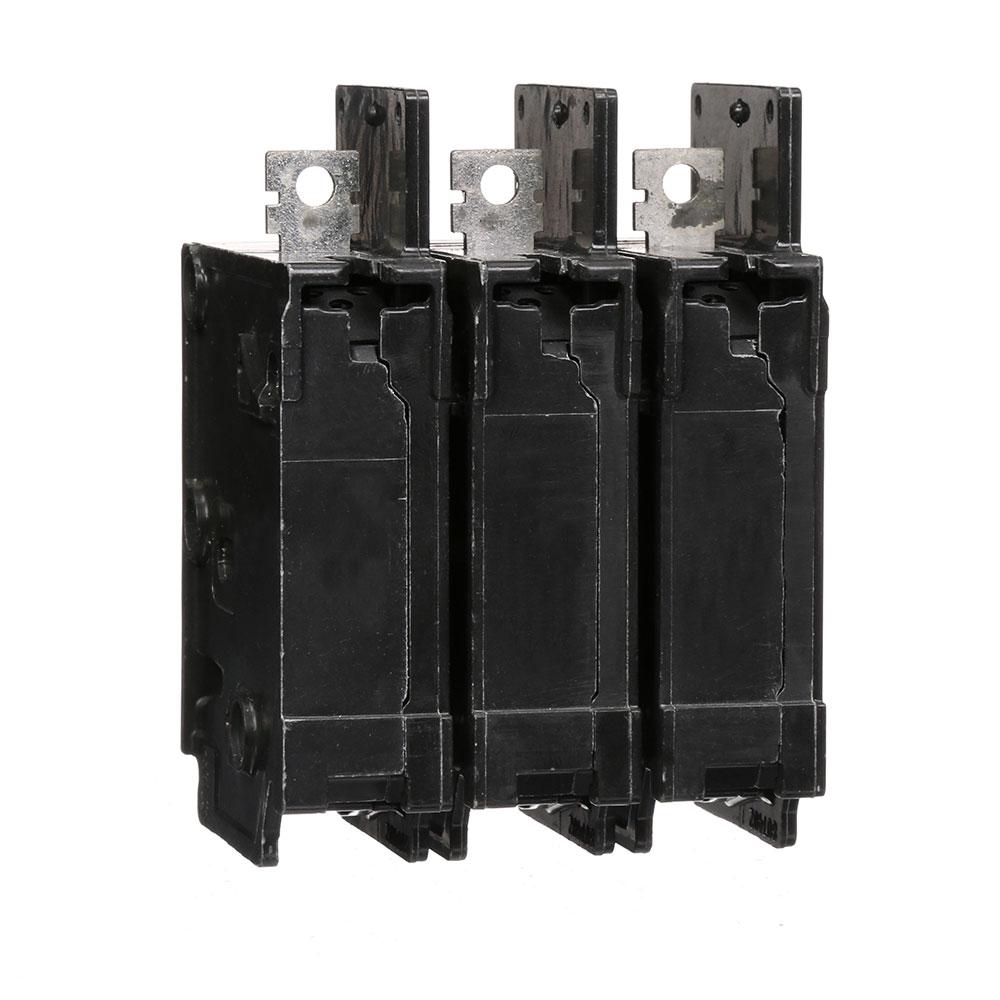

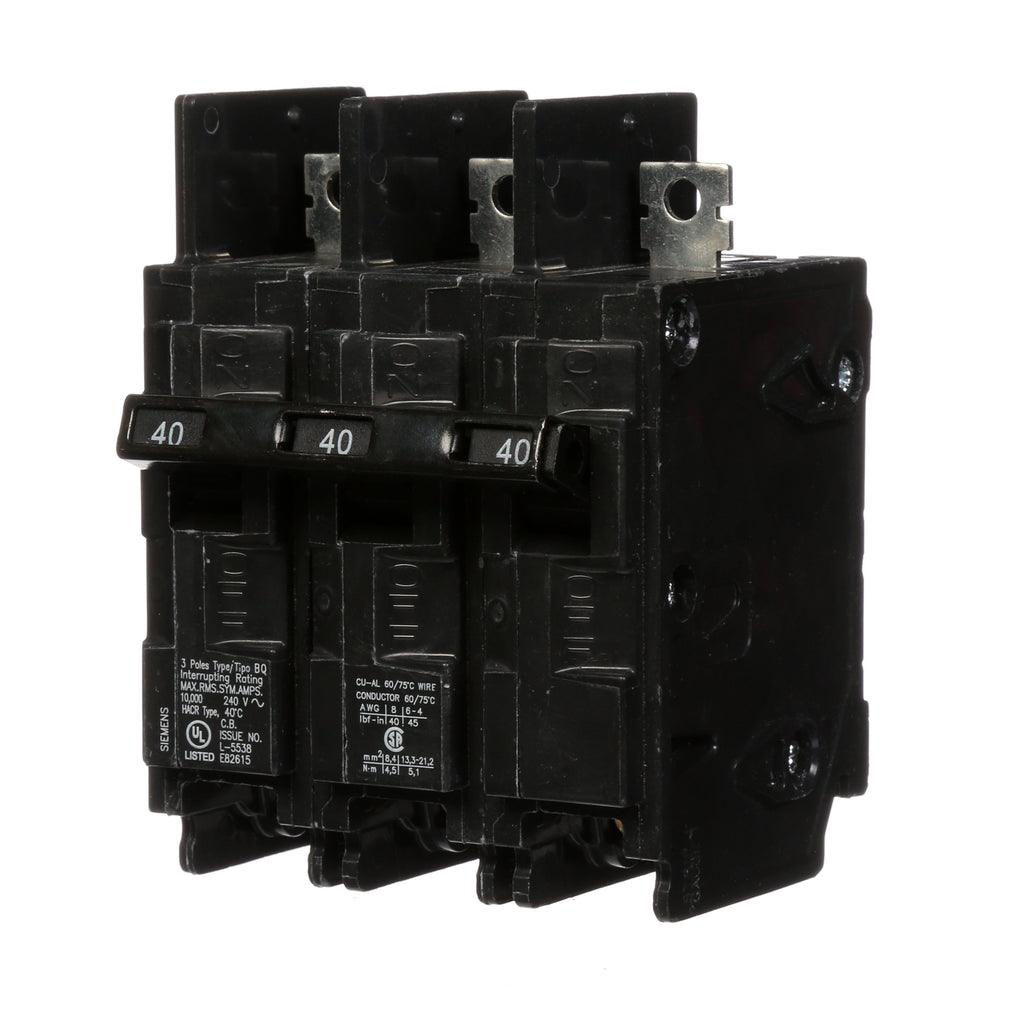

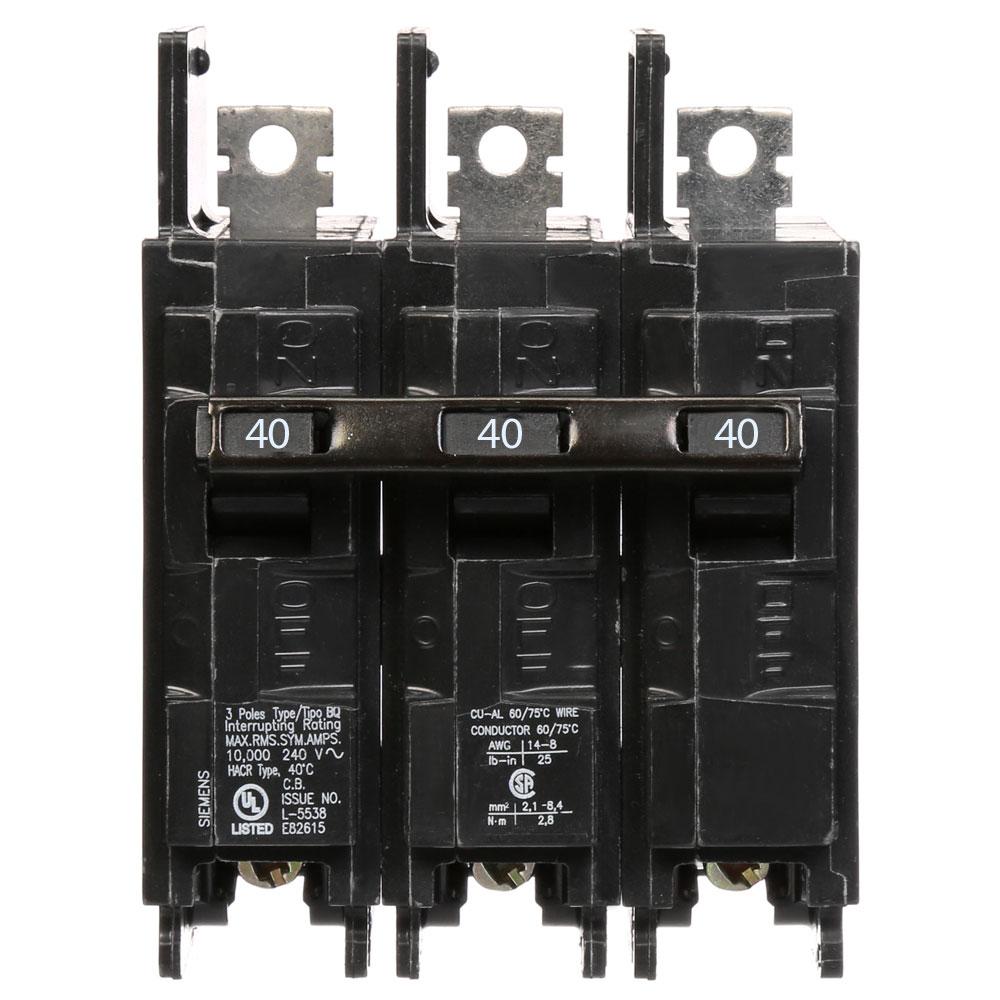

BQ3B040 - Siemens 40 Amp 3-pole bolt-on molded case circuit breaker for low voltage applications.Siemens BQ3B040 is a type BQ non-interchangeable trip molded case circuit breaker featuring thermal-magnetic trip mechanism, bolt-on connection, and supplied with load side lugs for secure installation in compatible panelboards.
- Manufacturer: Siemens
- Family/Series: BQ
- Amperage: 40A
- Voltage: 240V AC
- Poles: 3
- Mounting Type: Bolt-On
- Trip Unit: Thermal-Magnetic
- Interrupt Rating: 10kA at 240V
- Connection: Lug-In/Lug-Out
- Approvals: UL Listed, CSA Approved
Specifications
- Part Number: BQ3B040
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BQ Series
- Type : BQ
- Voltage : 240
- Amperage : 40
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Bolt-on
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Lug
- Frame Size : 125A/BQ
- Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
- MCM Size : Min. Wire Size 2 AWG (Al), 4 AWG (Cu) Max. Wire Size 1/0 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
Product Data
- UPC : 783643102613
- GTIN : 00783643102613
- Country of Origin : Mexico
- Dimensions : 2.563 x 3.00 x 3.972 inch
- Weight : 1.014
- Panel Type : Siemens Panelboards
- Standards : HACR Rated, UL Listed
- Certification : CSA, HACR, UL
