Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
BQ3B035

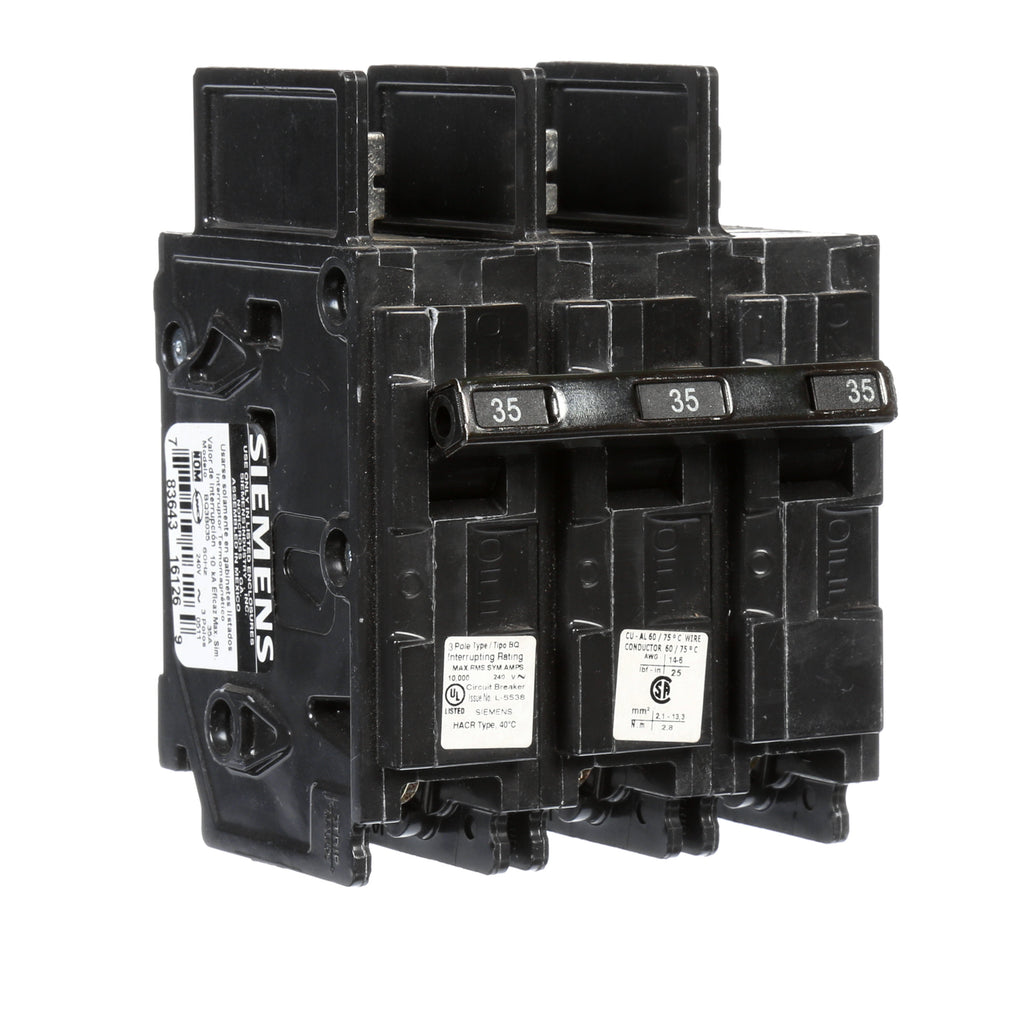

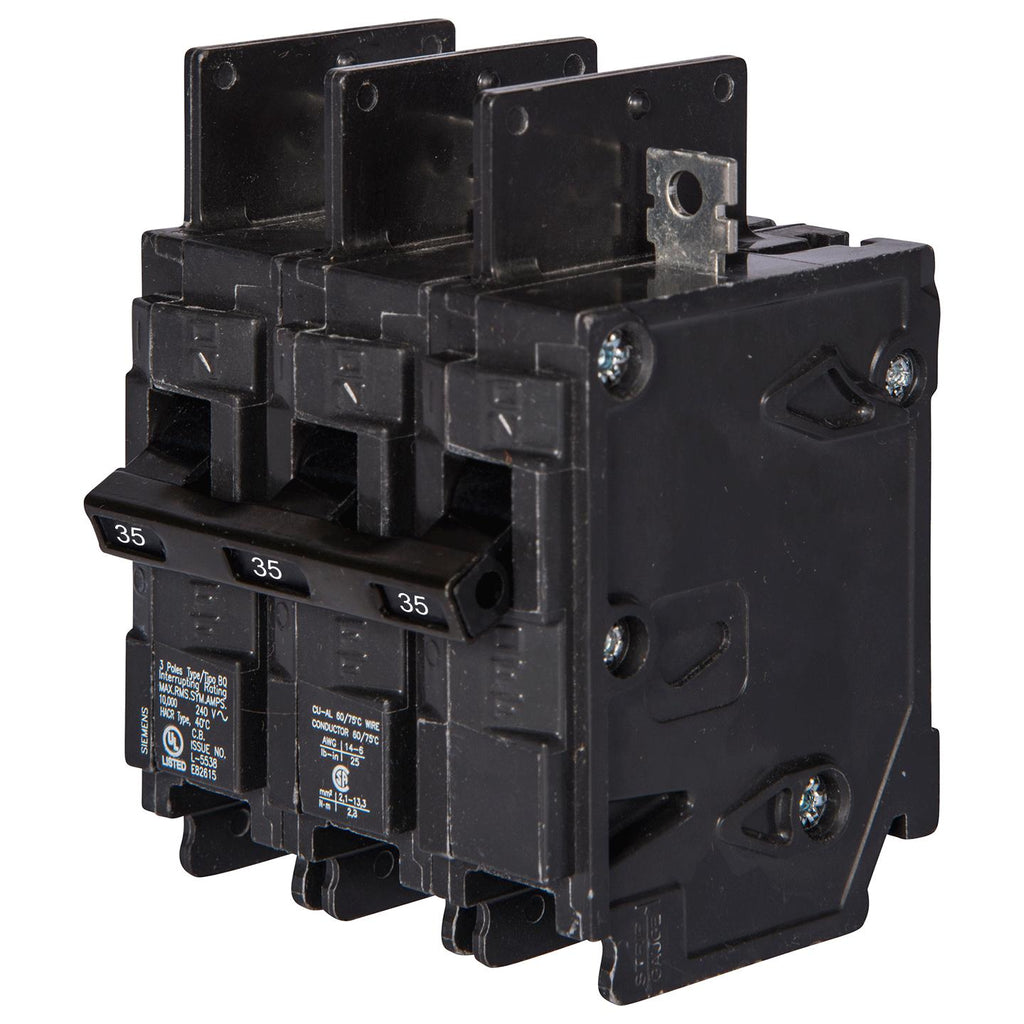

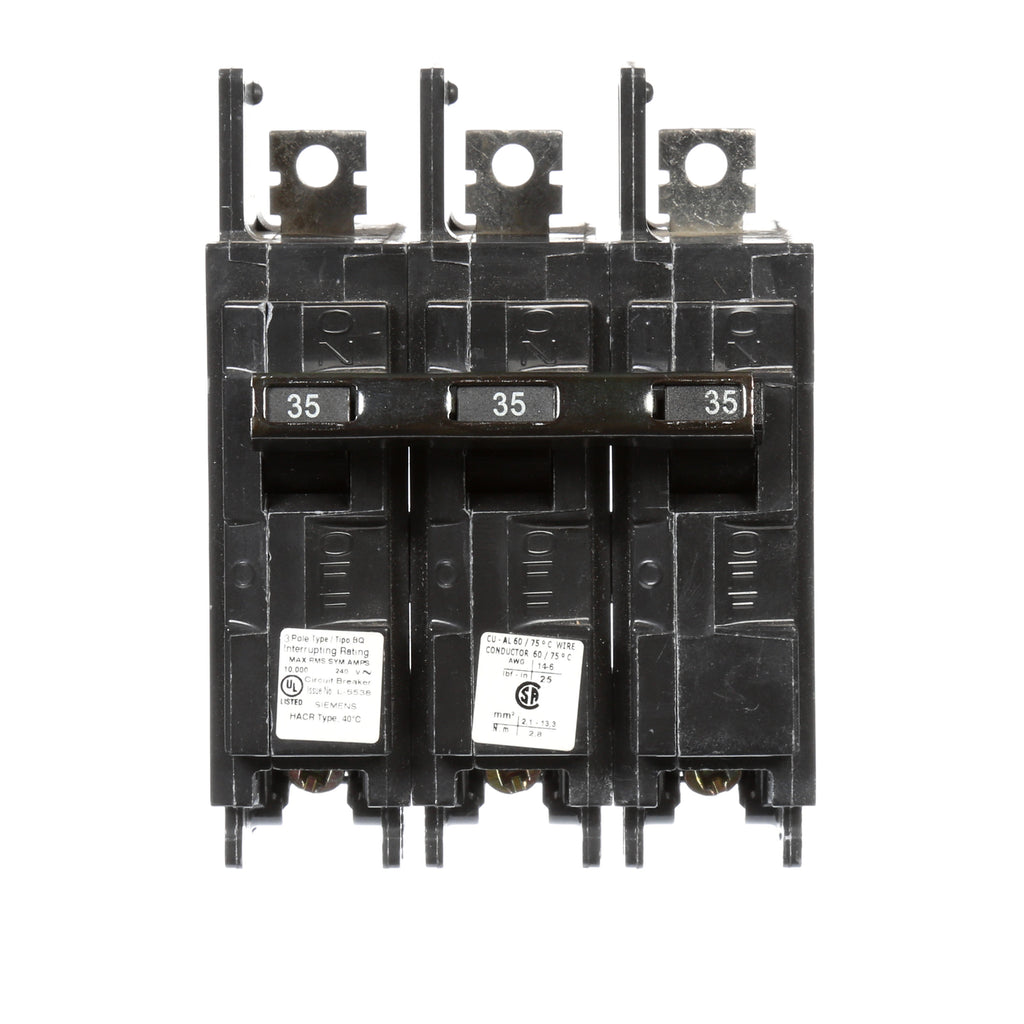

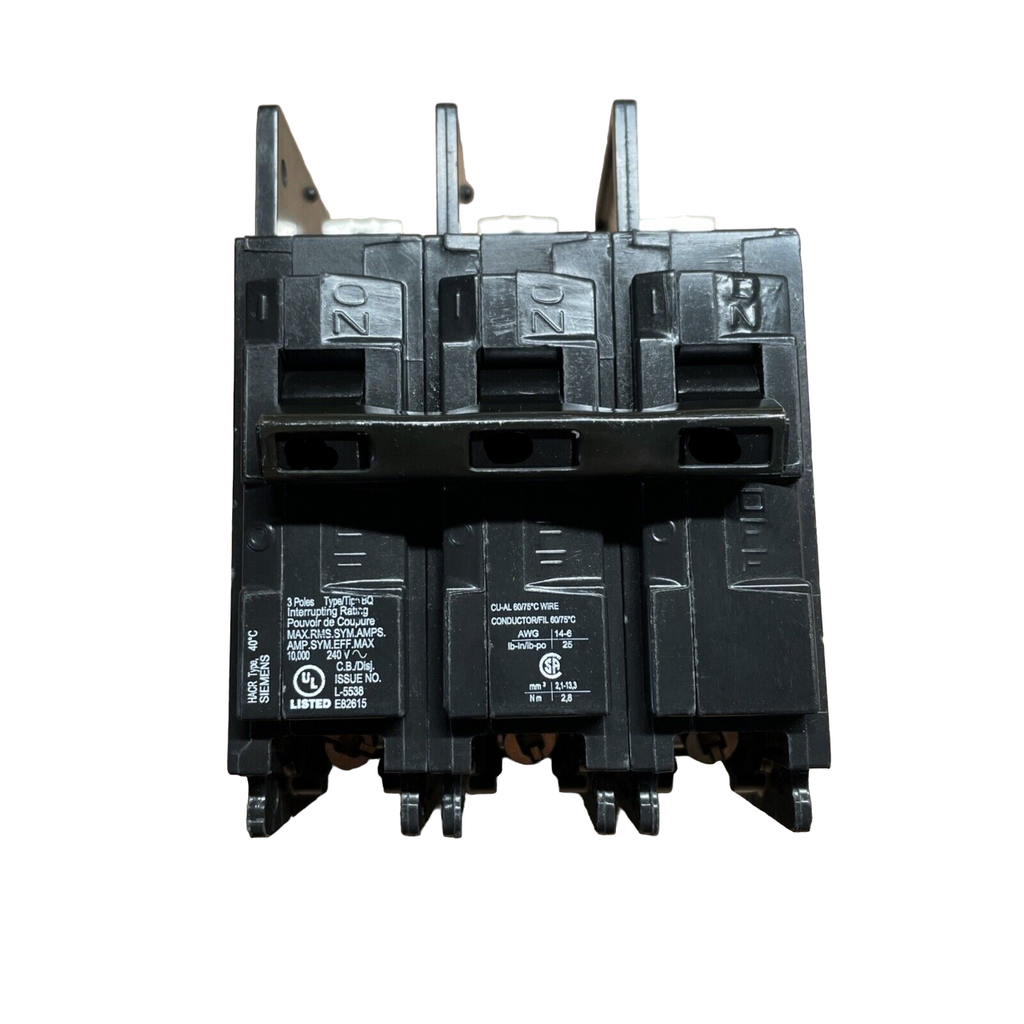

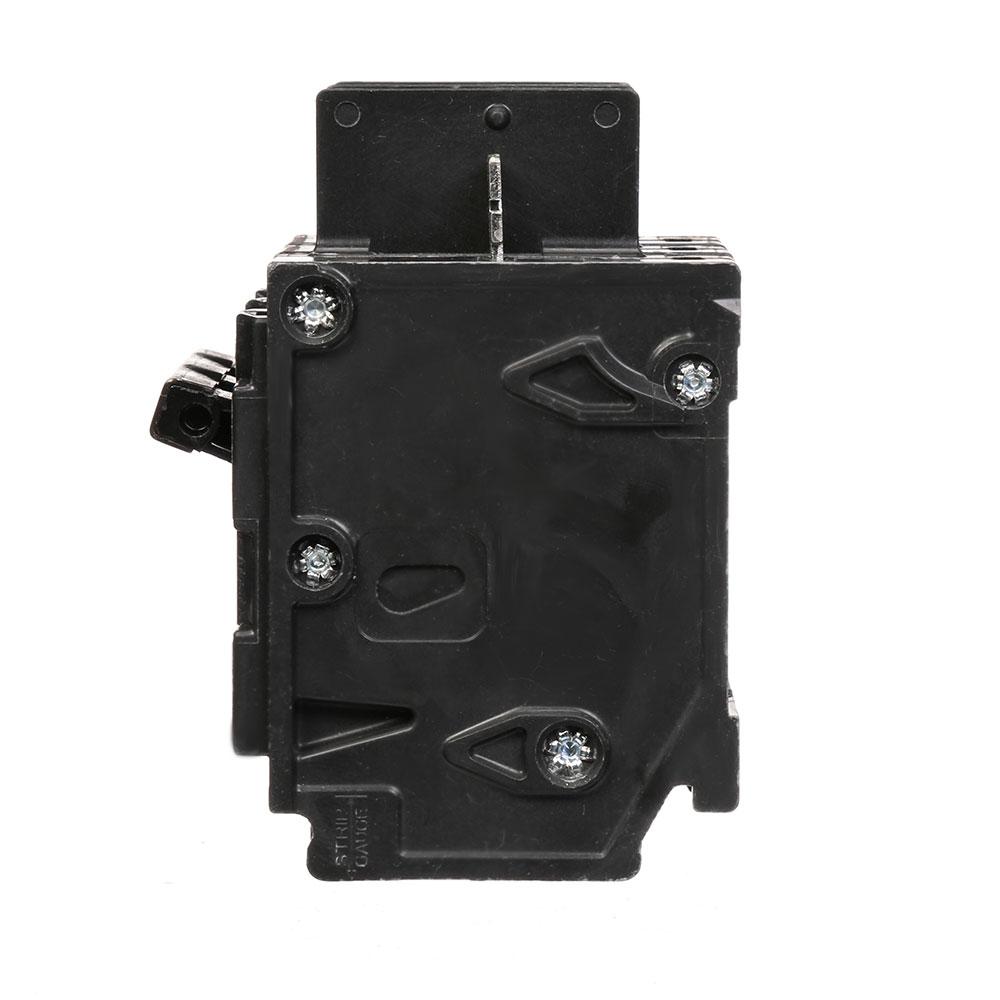

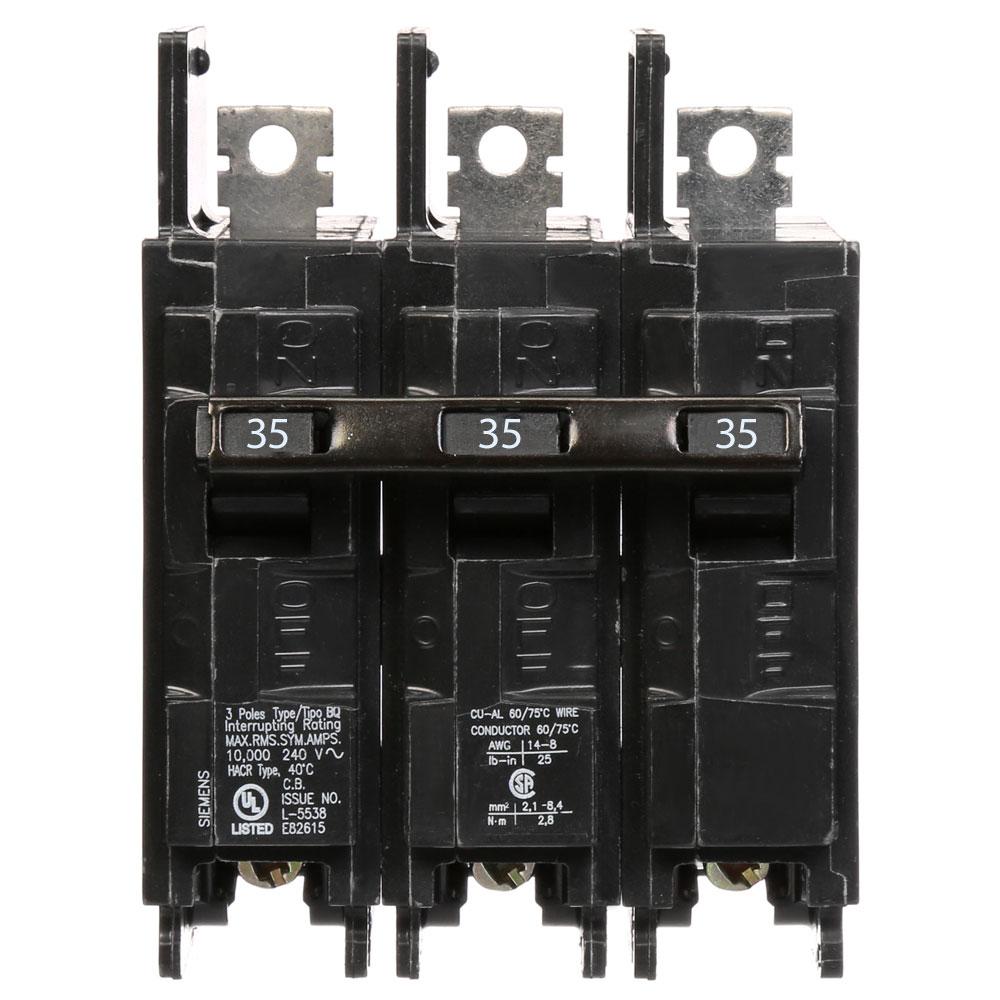

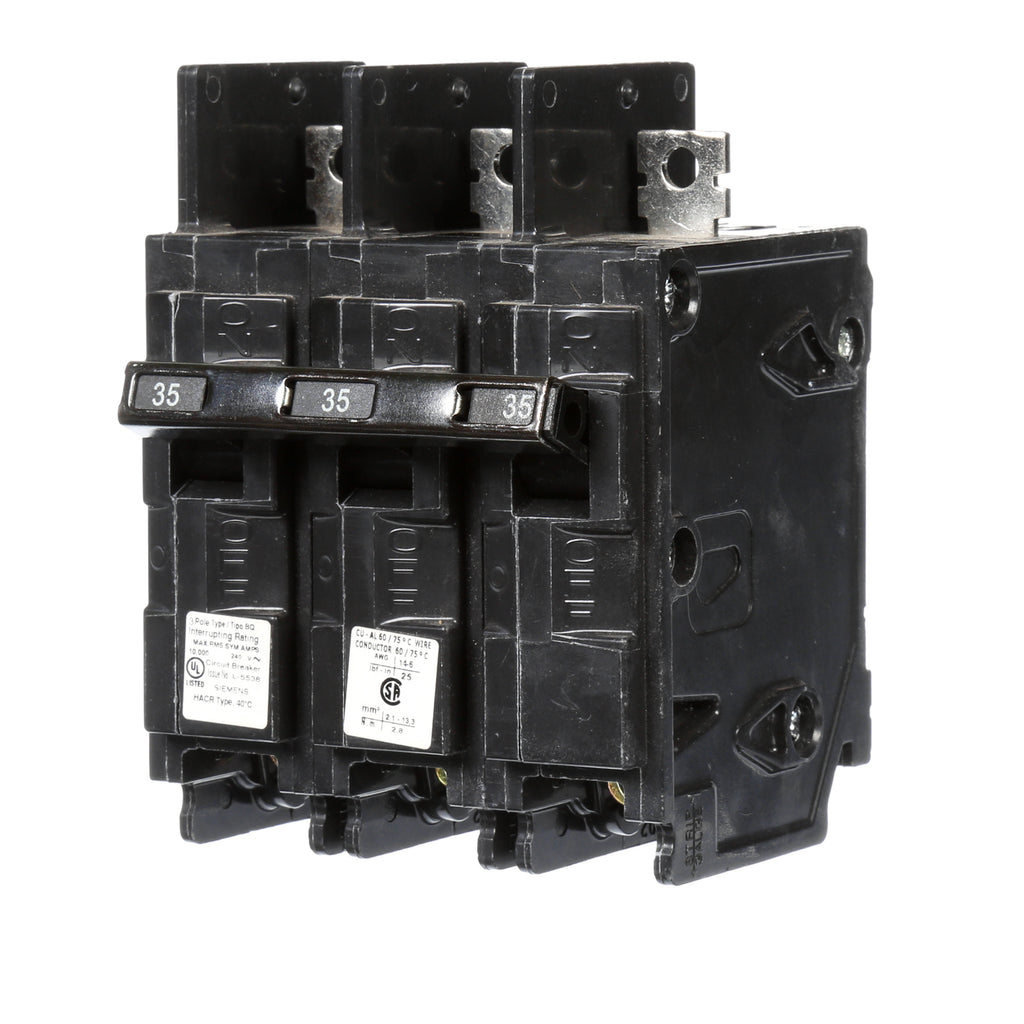

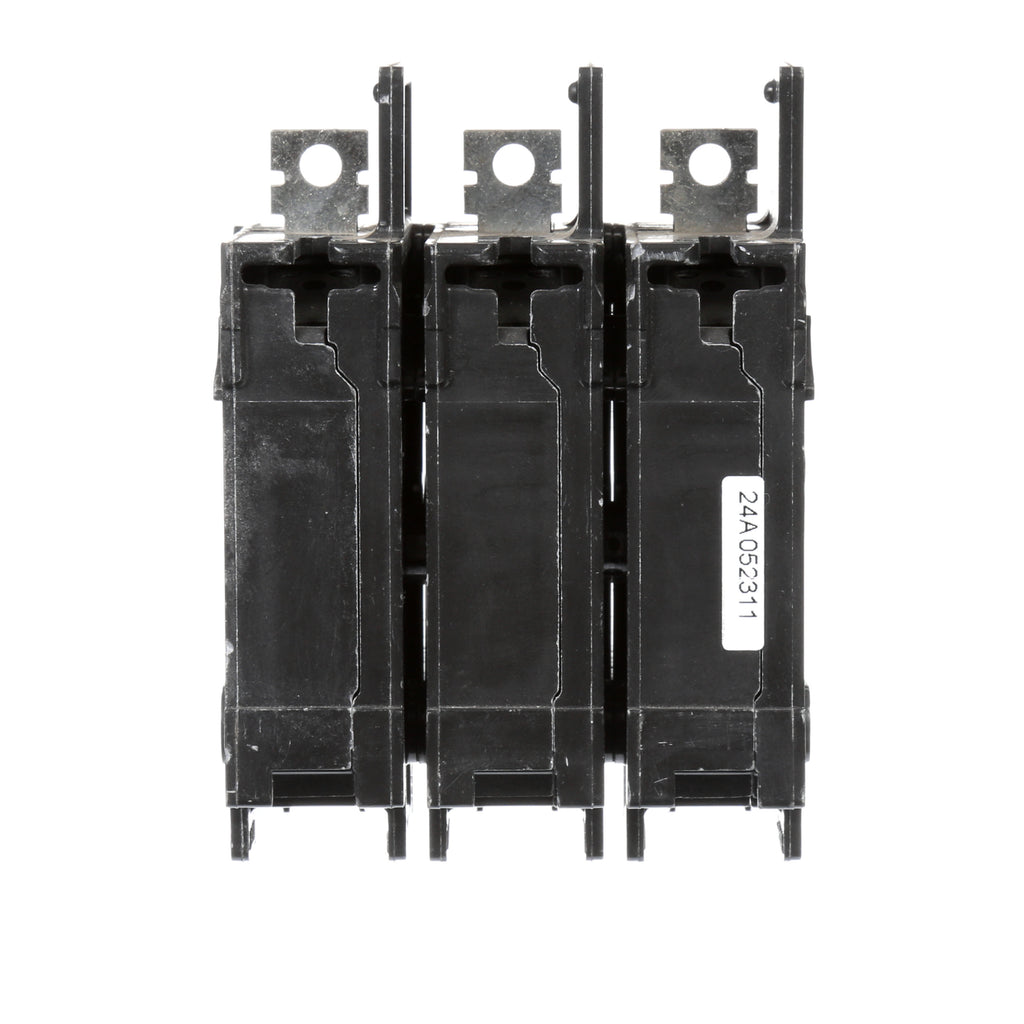

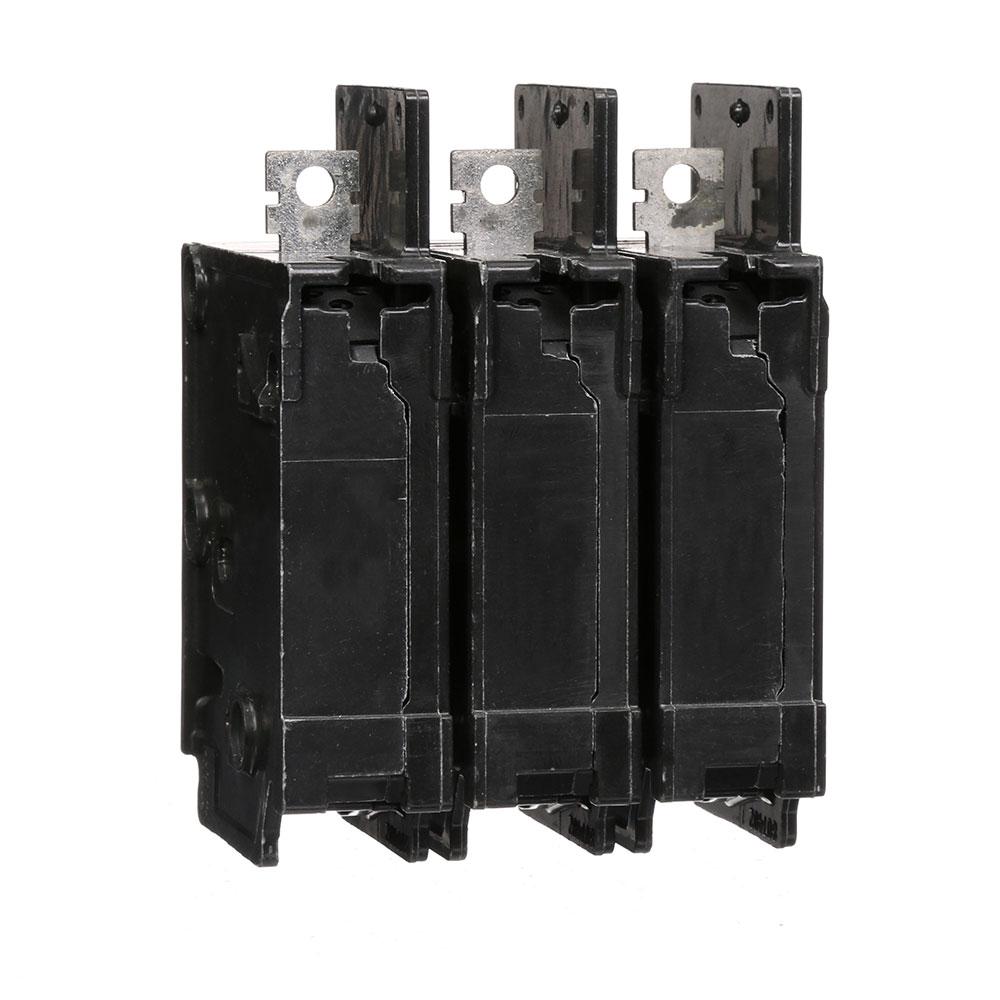

BQ3B035 is a Siemens 35 Amp 3 Pole Bolt-On Circuit Breaker designed for reliable low voltage power distribution.This Siemens BQ Series molded case circuit breaker features a thermal magnetic trip unit, 240 Volt AC rating, and a 10,000 Amp interrupting capacity. It is a bolt-on type breaker with 3 poles, suitable for use in three-phase electrical systems.
- Key Specifications
- Amperage: 35 Amps
- Voltage: 240 Volts AC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupting Rating: 10,000 Amps
- Series/Frame: BQ
- Trip Unit: Thermal Magnetic
- Phase: 3
- Certification: UL Listed
- Part Number: BQ3B035
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BQ Series
- Type : BQ
- Voltage : 240
- Amperage : 35
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Terminal Connection : Lug
- Protection : Thermal Magnetic
- UPC : 078364316126
- GTIN : 00783643161269
- Country of Origin : Mexico
- Dimensions : 2.563 x 3.00 x 3.972 inch
- Weight : 1.014
- Panel Type : Siemens Panelboards
- Standards : HACR Rated, UL Listed
- Certification : CSA, HACR, UL
