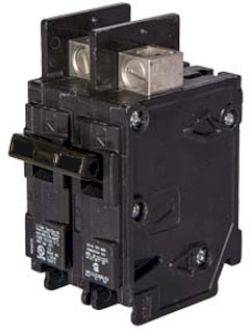

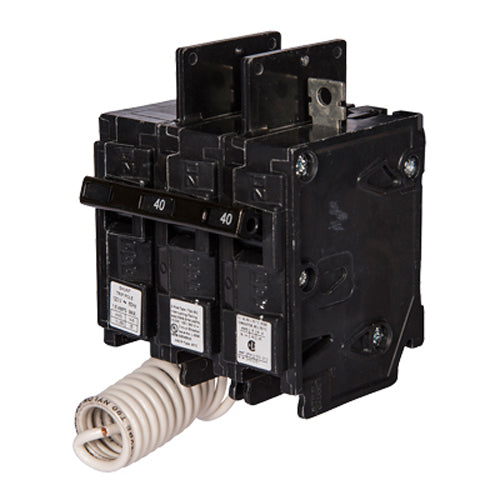

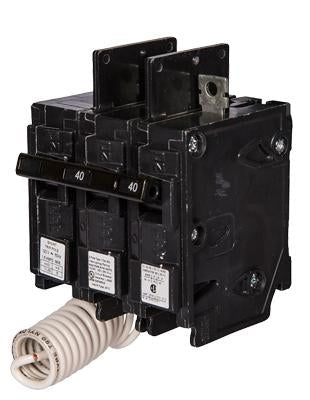

BQ2B08000S01 - Siemens 80A 2 Pole 120/240V Bolt-On Thermal Magnetic Circuit Breaker 10kA Interrupt Rating

BQ2B08000S01

BQ2B08000S01 is a Siemens 2 pole, 80 amp, 120/240 Volt bolt-on molded case circuit breaker with thermal magnetic trip unit and 10kA interrupt rating.This Siemens BQ series breaker features a thermal magnetic trip for reliable protection, a bolt-on mounting type, and a non-interchangeable 120V shunt trip. It is designed for single-phase applications with a 2 pole configuration and an interrupt rating of 10kA at 240V AC. The breaker meets industry certifications and is suitable for general purpose low voltage power distribution.

Key Specifications
• Amperage: 80 Amps
• Voltage: 120/240 VAC
• Number of Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 10kA @ 240V AC
• Trip Unit: Thermal Magnetic
• Frame/Series: BQ
• Shunt Trip: Non-Interchangeable 120V
• Phase: Single Phase
• Certifications: Industry Standard (UL Listed)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

complete with non-interchangeable 120V shunt trip




Specifications

• Part Number: BQ2B08000S01
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BQ Series
• Type : BQ
• Voltage : 120/240
• Amperage : 80
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-on
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BQ
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 8 AWG Max. Wire Size 2 AWG (Al), 4 AWG (Cu)
• Breaker Type : Shunt Trip
• Protection : Thermal Magnetic



Product Data

• UPC : 783643237780
• GTIN : 00783643237780
• Country of Origin : Mexico
• Dimensions : 5.906 x 3.937 x 2.756 inch
• Weight : 0.904
• Panel Type : Siemens Panelboards
• Standards : HACR Rated, UL Listed
• Certification : CSA, HACR, UL
