Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
BQ2B080

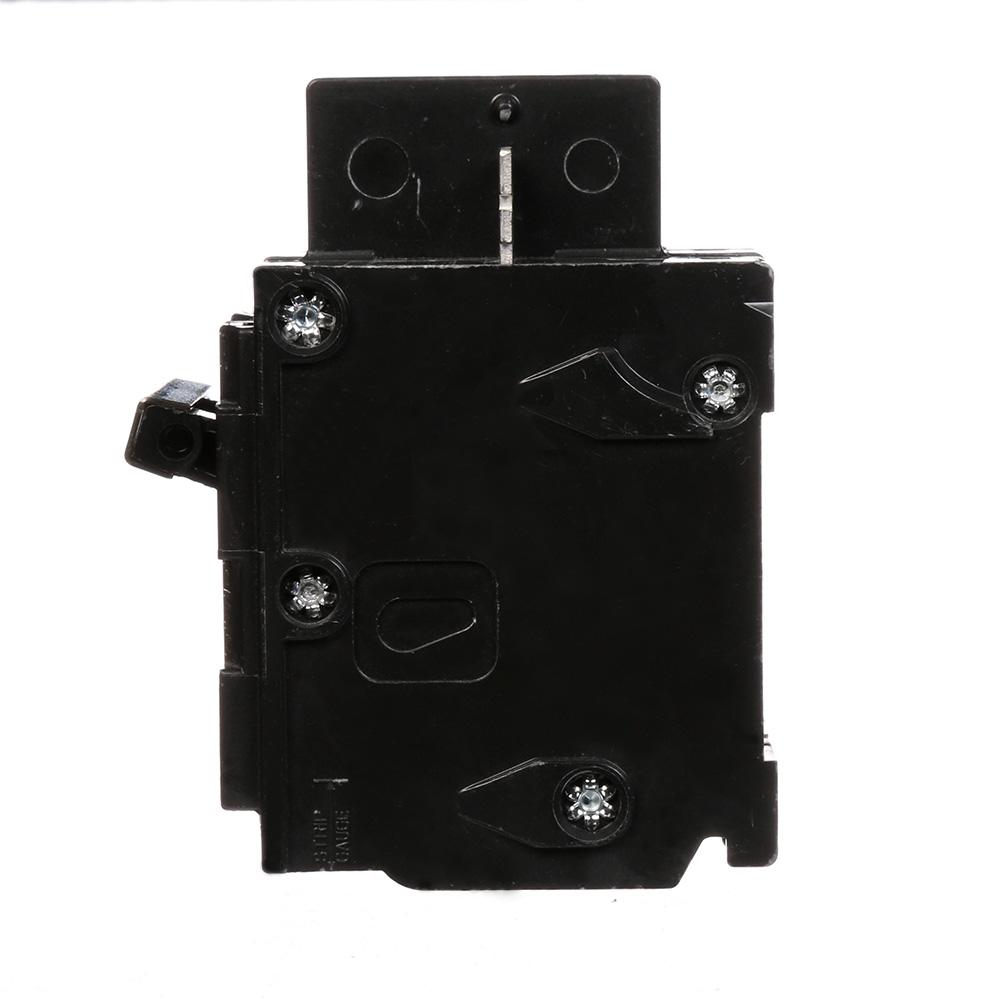

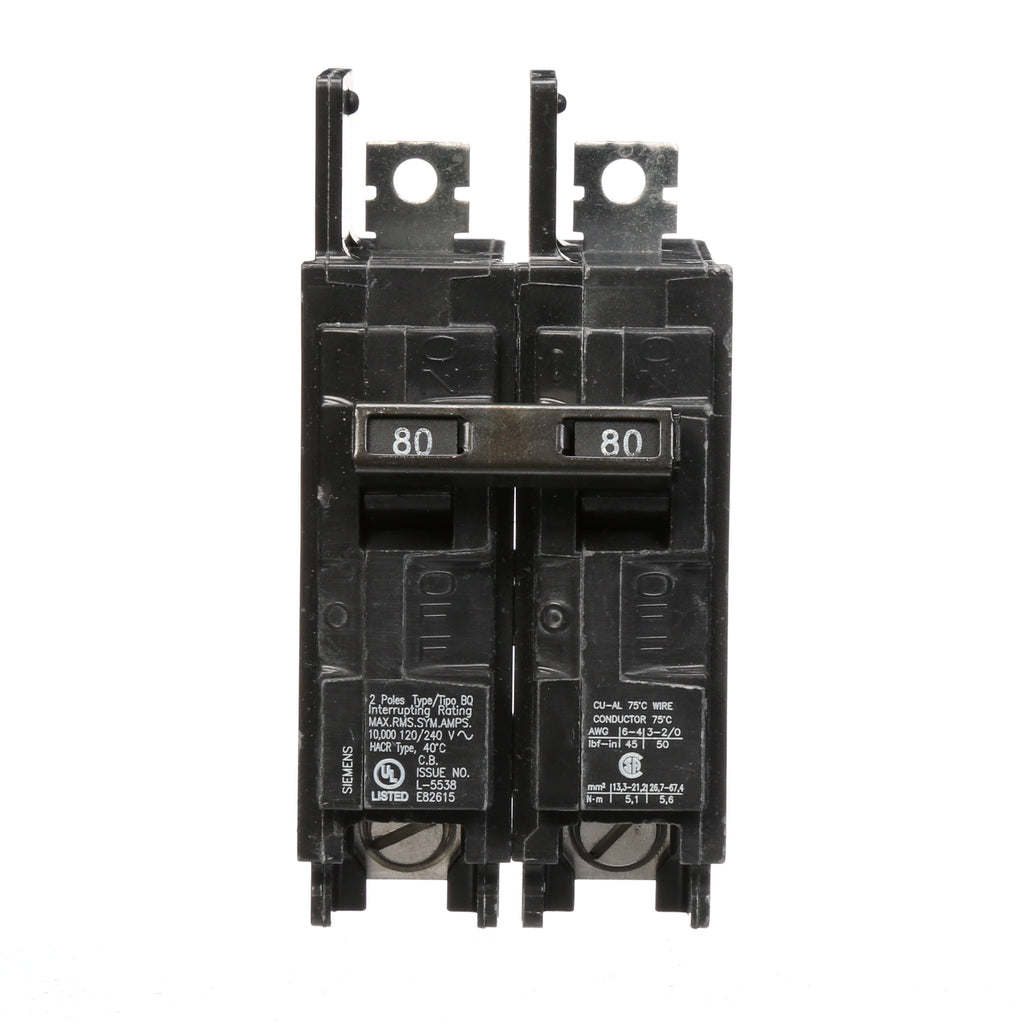

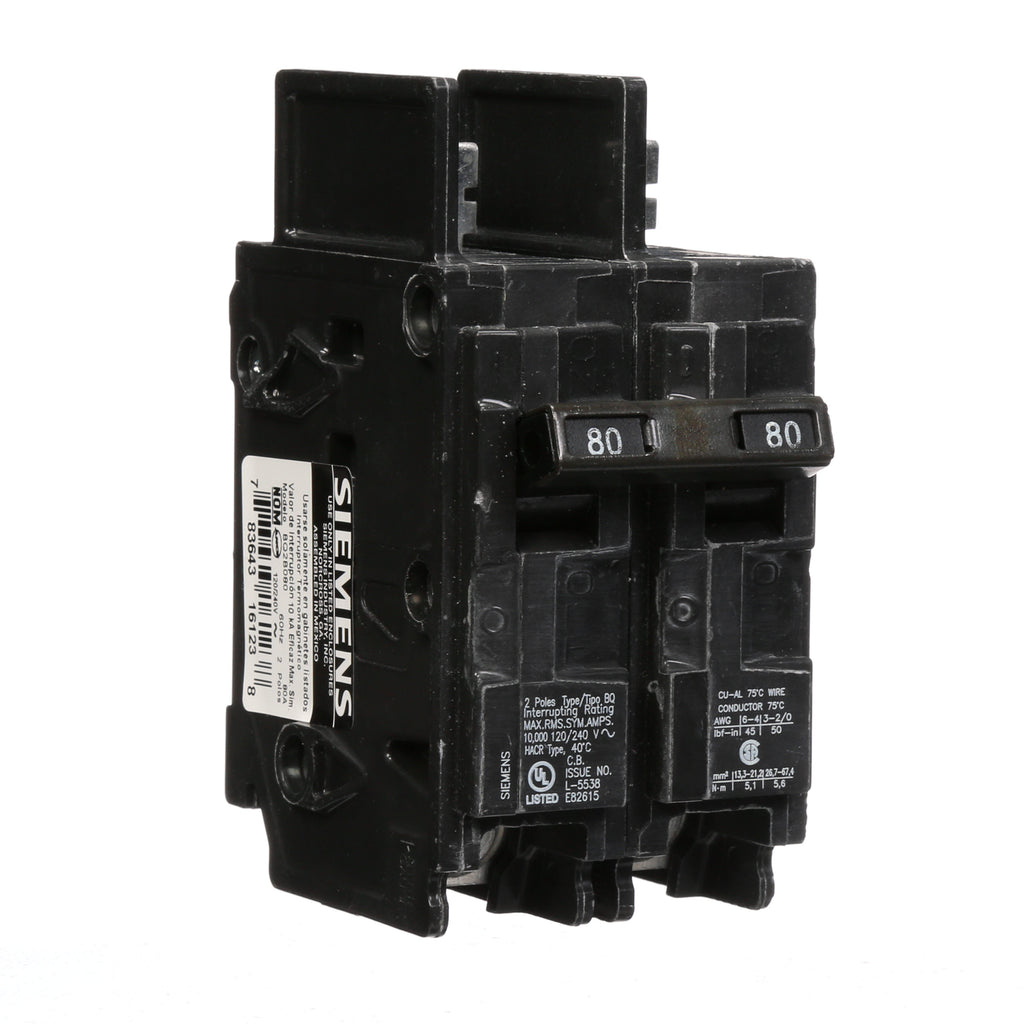

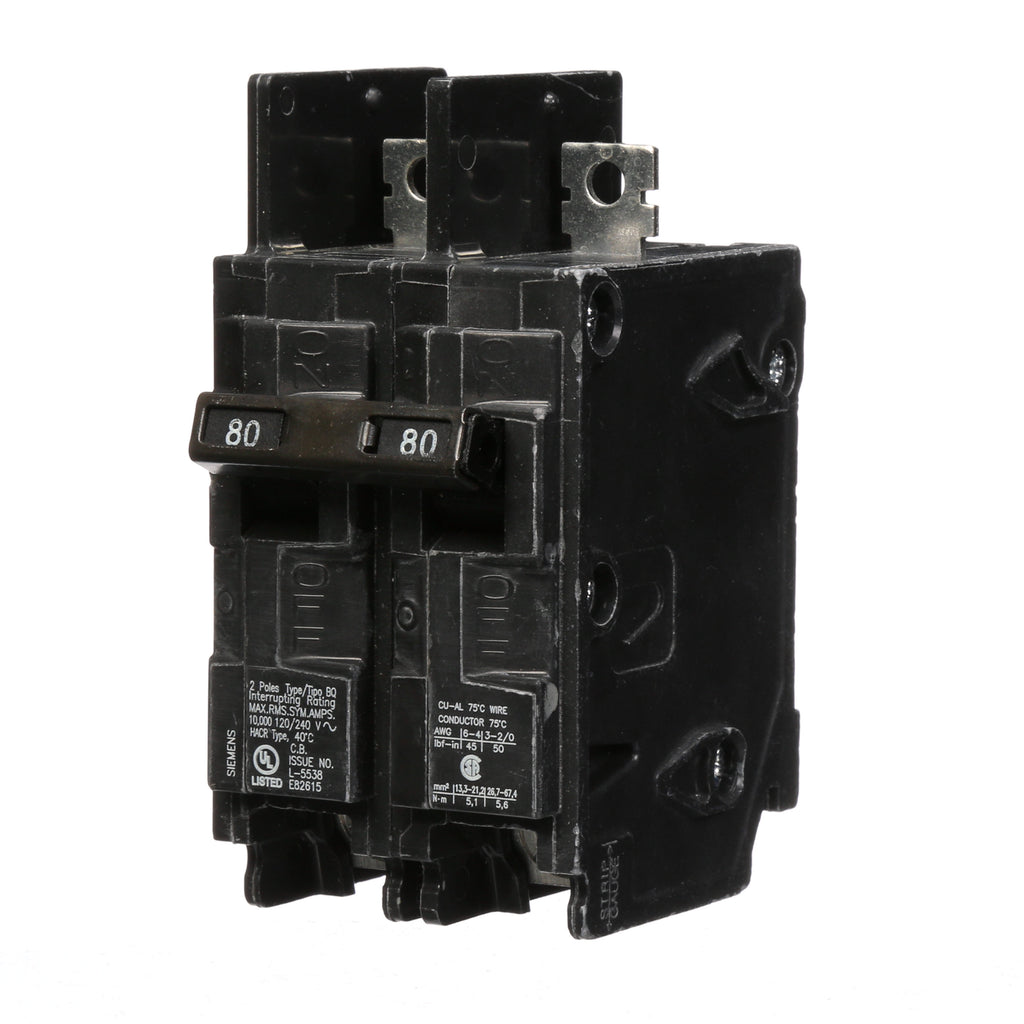

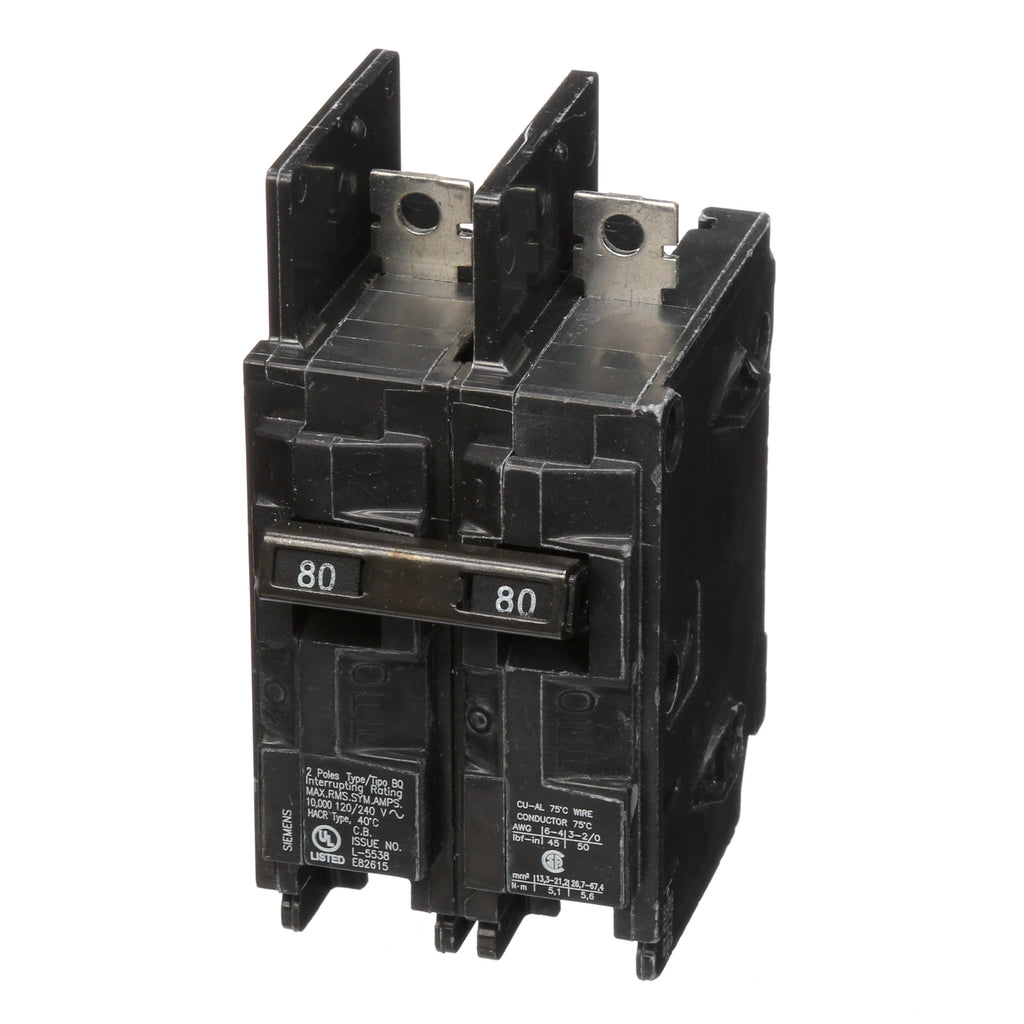

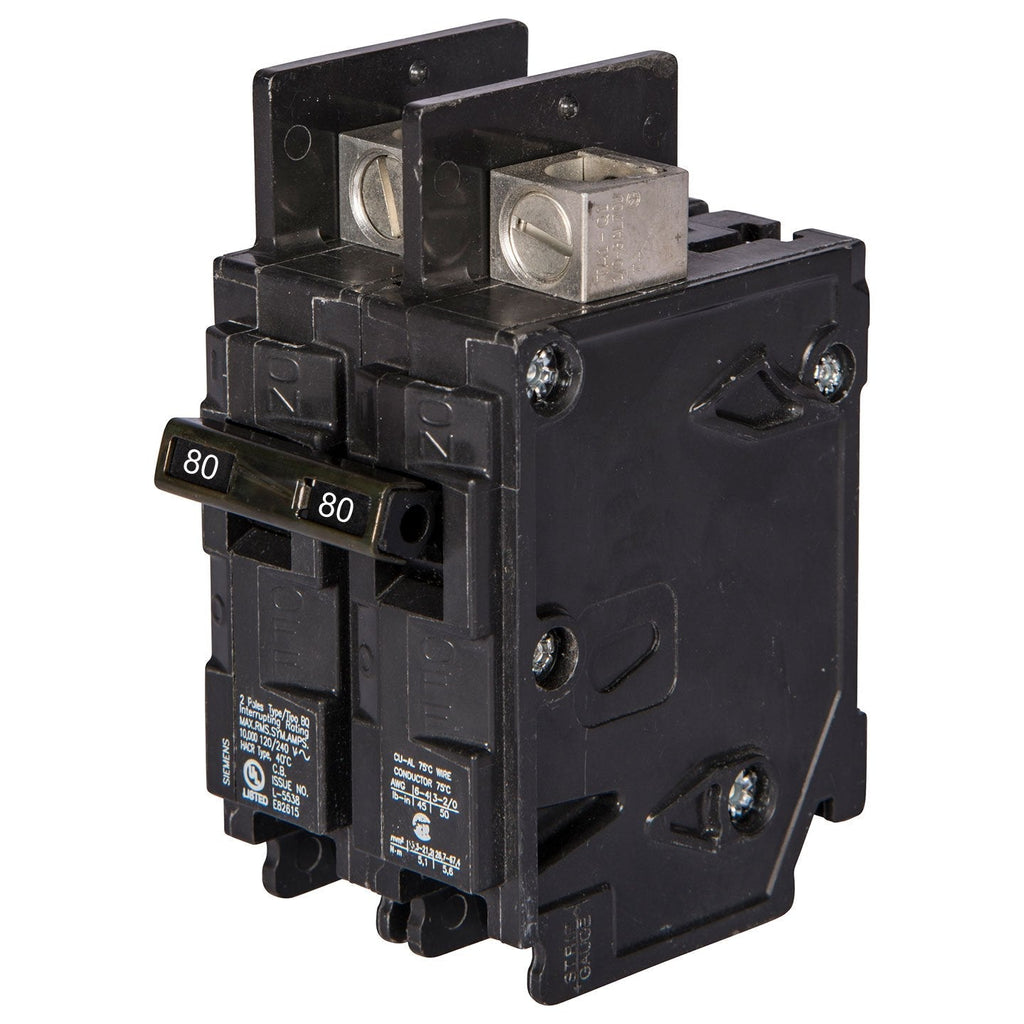

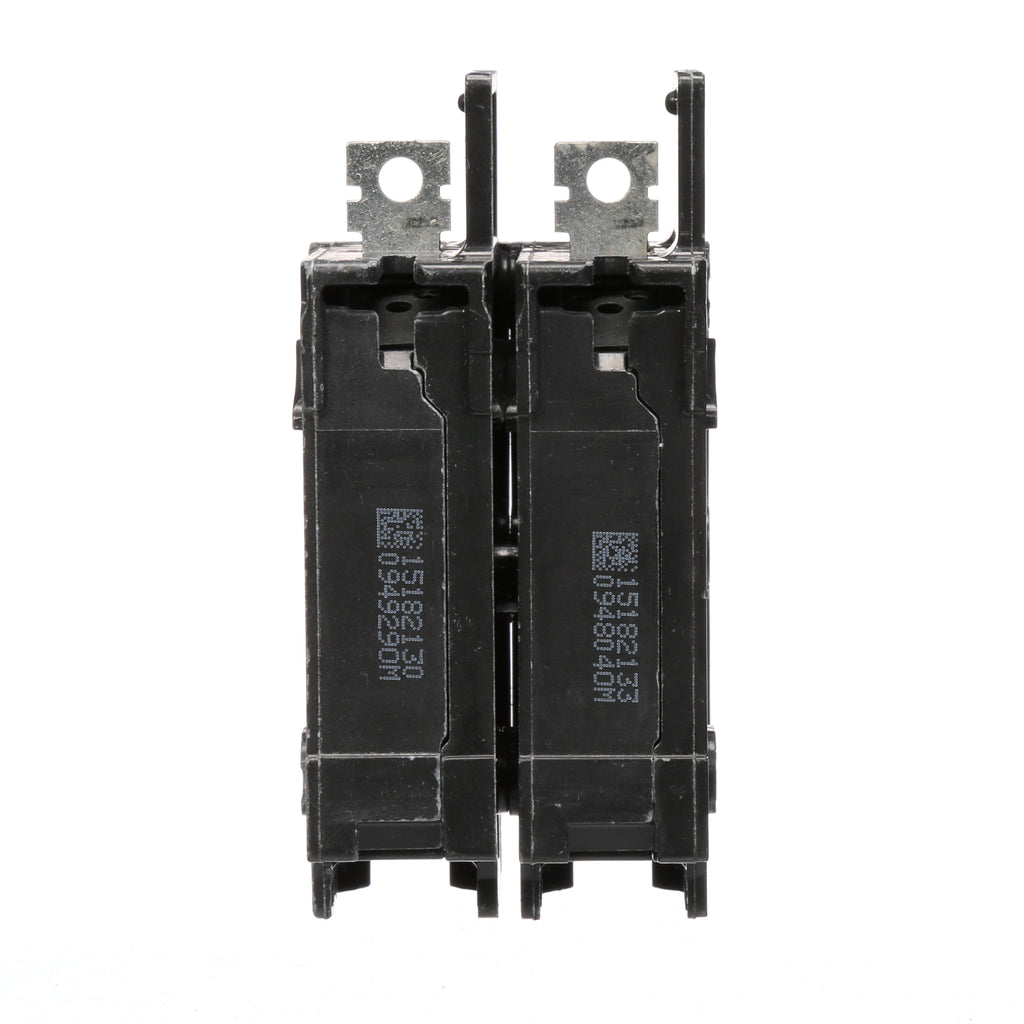

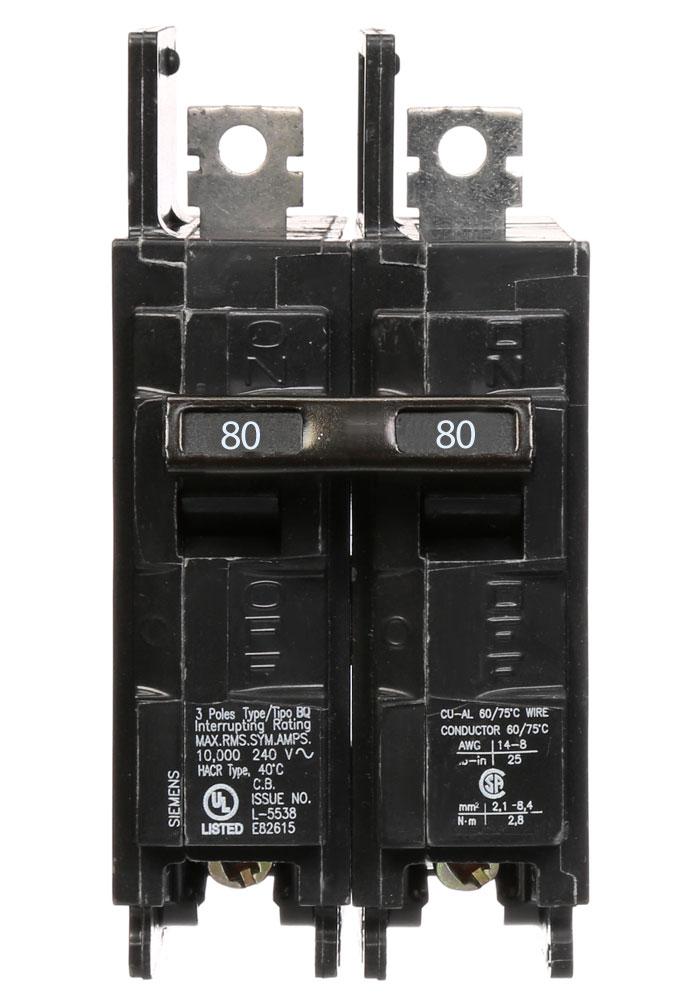

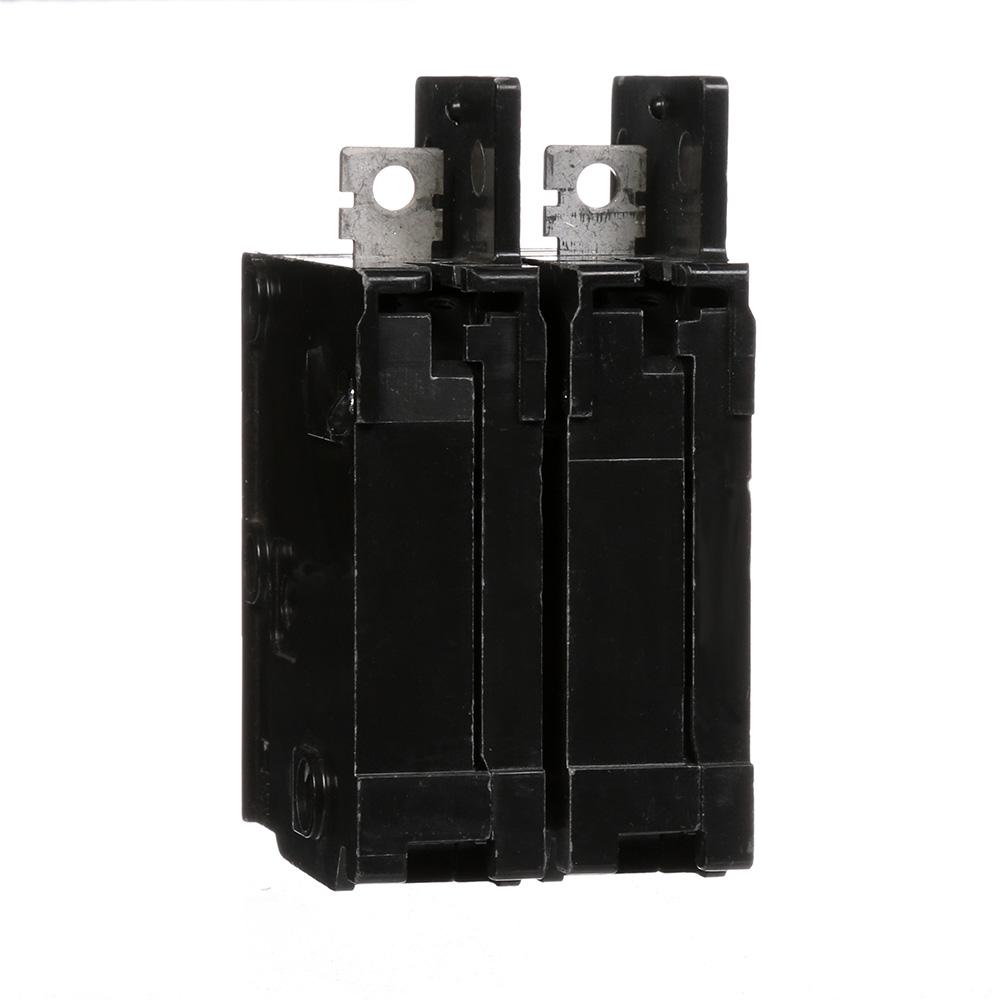

BQ2B080 is a Siemens 2 pole molded case circuit breaker rated for 80 amps and 120/240 volts AC with bolt-on mounting.This Siemens BQ series circuit breaker features thermal magnetic trip protection, a 10kA interrupt rating, and is UL listed, CSA certified, CE marked, and HACR rated. It is designed for electrical distribution and general purpose applications with a compact bolt-on frame for easy installation.
- Manufacturer: Siemens
- Part Number: BQ2B080
- Amperage: 80 Amps
- Voltage: 120/240 VAC
- Poles: 2
- Mounting Type: Bolt-On
- Interrupt Rating: 10,000 Amps
- Frame/Series: BQ
- Trip Unit: Thermal Magnetic
- Certifications: UL Listed, CSA Certified, CE Marked, HACR Rated
- Frequency: 60 Hz
Specifications
- Part Number: BQ2B080
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BQ Series
- Type : BQ
- Voltage : 120/240
- Amperage : 80
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Bolt-on
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : 125A/BQ
- Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
- MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
Product Data
- UPC : 078364316123
- GTIN : 00783643161238
- Country of Origin : Mexico
- Dimensions : 2.756 x 1.969 x 3.937 inch
- Weight : 0.728
- Panel Type : Siemens Panelboards
- Standards : HACR Rated, UL Listed
- Certification : CSA, HACR, UL
