Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
BQ2B060QLD

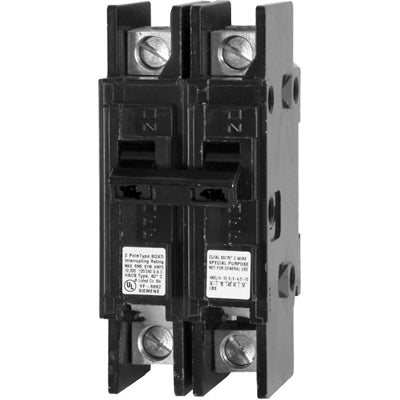

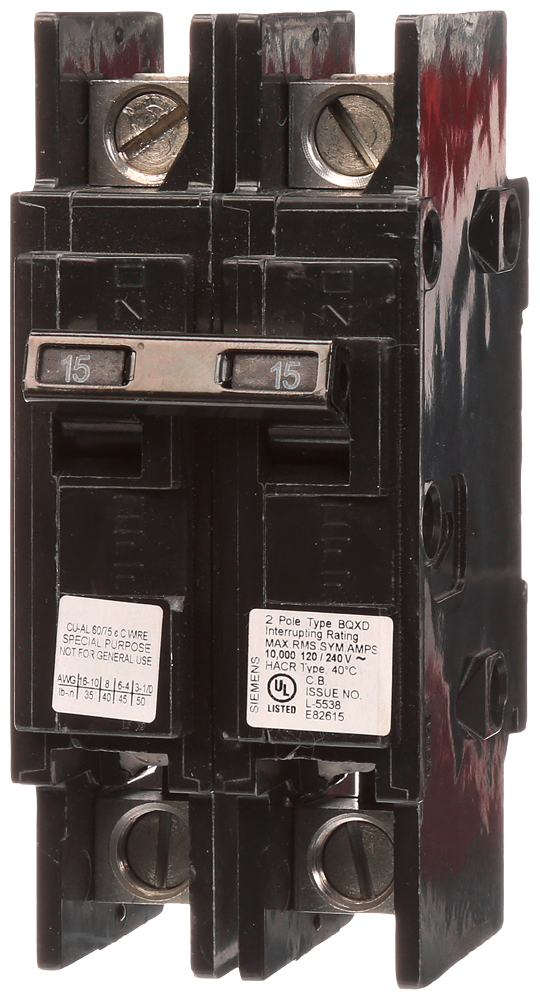

BQ2B060QLD - Siemens 2-pole molded case circuit breaker rated at 60A for 120/240V AC electrical distribution applications.This Siemens BQXD frame thermal magnetic circuit breaker features a 10kA interrupt rating at 240V, toggle actuator, bolt-on connection, and DIN rail mounting. It provides long-time and instantaneous trip functions for reliable overcurrent protection in residential, commercial, and industrial panelboards.
- Amperage Rating: 60A
- Voltage Rating: 120/240V AC
- Number of Poles: 2
- Frame: BQXD
- Trip Type: Thermal Magnetic
- Interrupt Rating: 10kA at 240V
- Mounting Type: DIN Rail
- Connection Type: Bolt-On
- Actuator Type: Toggle
- Phase: 1
- Wire Size: 8-1 AWG copper line / 6-1/0 AWG aluminum
Specifications
- Part Number: BQ2B060QLD
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BQ Series
- Type : BQ
- Voltage : 240
- Amperage : 60
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Terminal Connection : Lug
- Protection : Thermal Magnetic
Product Data
- UPC : 783643411883
- GTIN : 00783643411883
- Country of Origin : Mexico
- Dimensions : 3.937 x 1.969 x 2.756 inch
- Weight : 0.309
- Panel Type : Siemens Panelboards
- Standards : HACR Rated, UL Listed
- Certification : CSA, HACR, UL
