BQ2B06000S01 - Siemens 60 Amp 240 Volt 2 Pole BQ Series Bolt-On Circuit Breaker with 120V Shunt Trip

BQ2B06000S01

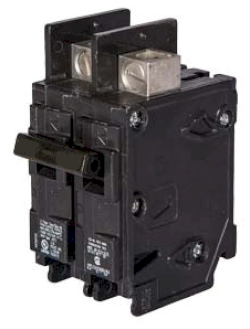

BQ2B06000S01 is a Siemens 60 Amp, 240 Volt, 2 Pole bolt-on circuit breaker with a 120V shunt trip feature for enhanced control and safety.This BQ Series molded case circuit breaker offers thermal magnetic trip protection, a 10,000 A interrupting rating at 240V AC, and is designed for bolt-on mounting. It is suitable for commercial and industrial electrical distribution applications requiring reliable overcurrent protection and remote trip capability.

• Amperage: 60 Amps
• Voltage: 240 Volts AC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupting Rating: 10,000 A at 240V AC
• Series/Frame: BQ Series
• Trip Unit: Thermal Magnetic with 120V Shunt Trip
• Type: Molded Case Circuit Breaker
• Standards/Certifications: UL Listed (implied by Siemens standard products)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with non-interchangeable 120V shunt trip

Specifications

• Part Number: BQ2B06000S01
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BQ Series
• Type : BQ
• Voltage : 240
• Amperage : 60
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BQ
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 8 AWG Max. Wire Size 2 AWG (Al), 4 AWG (Cu)
• Breaker Type : Shunt Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 783643237766
• GTIN : 00783643237766
• Country of Origin : Mexico
• Dimensions : 2.571 x 3.00 x 3.736 inch
• Weight : 0.926
• Panel Type : Siemens Panelboards
• Standards : HACR Rated, UL Listed
• Certification : CSA, HACR, UL
