Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
BQ2B030L

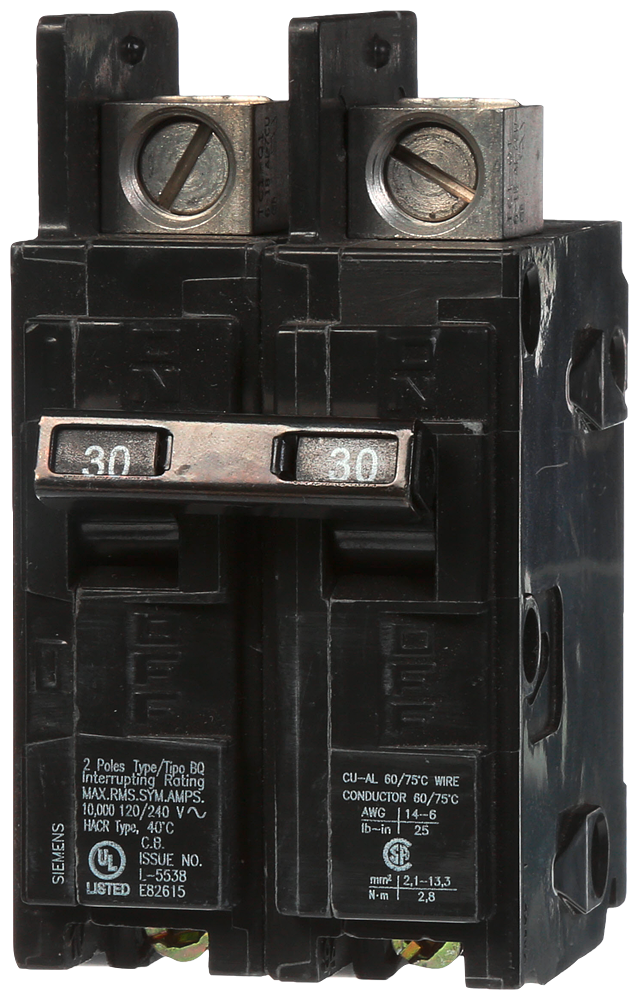

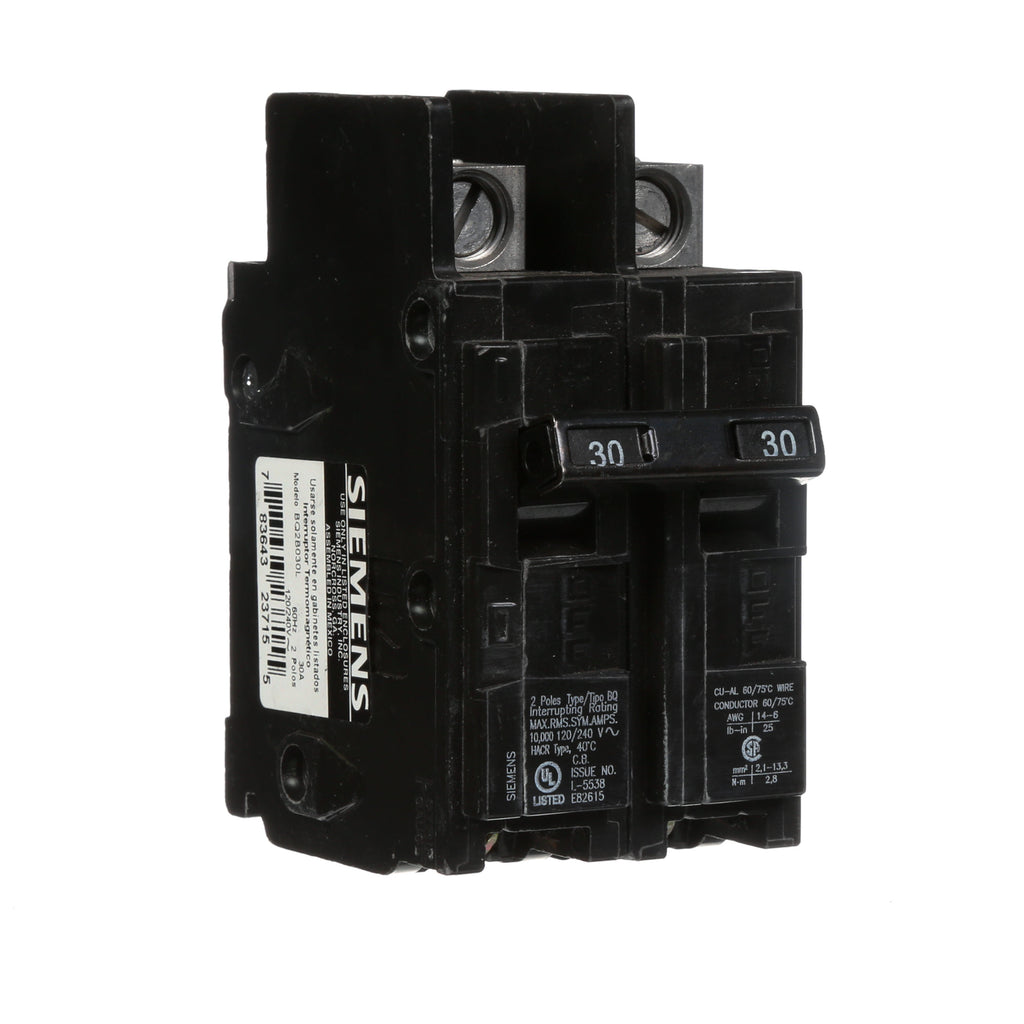

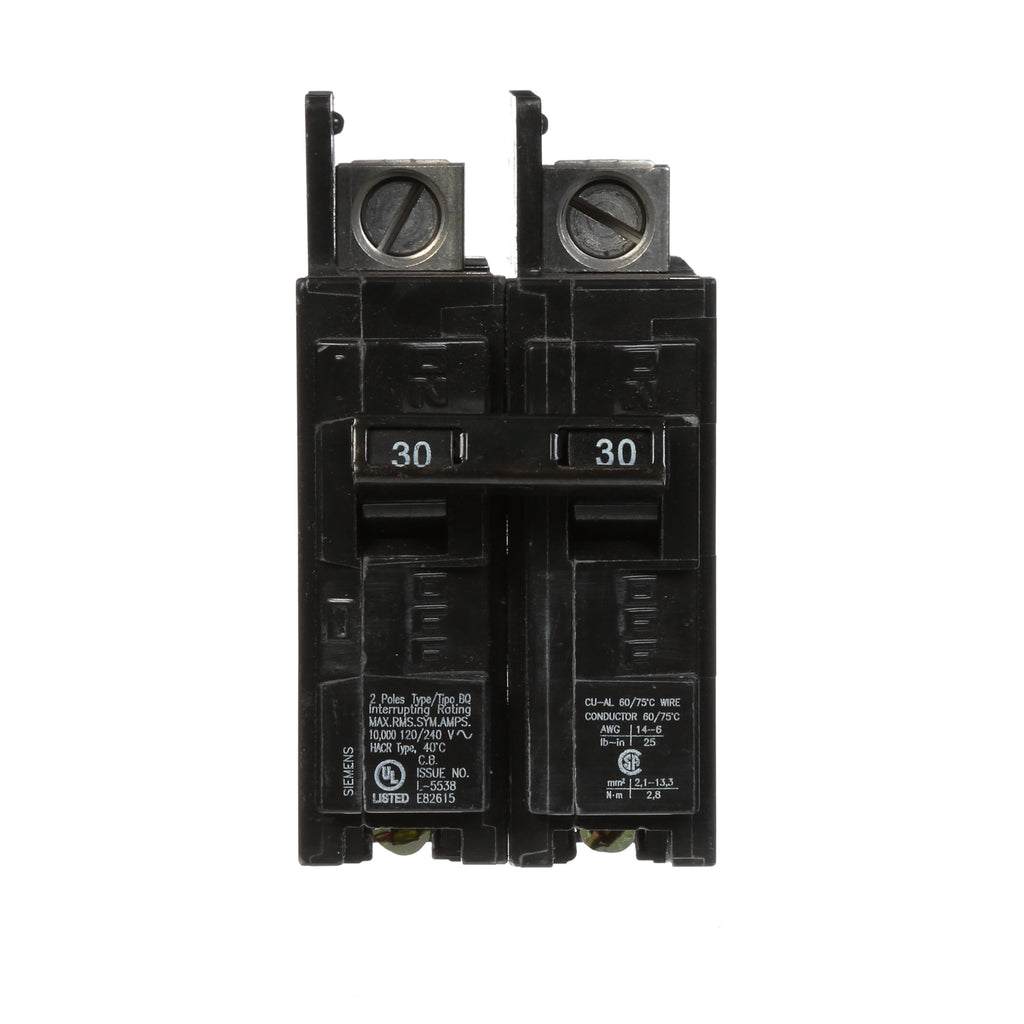

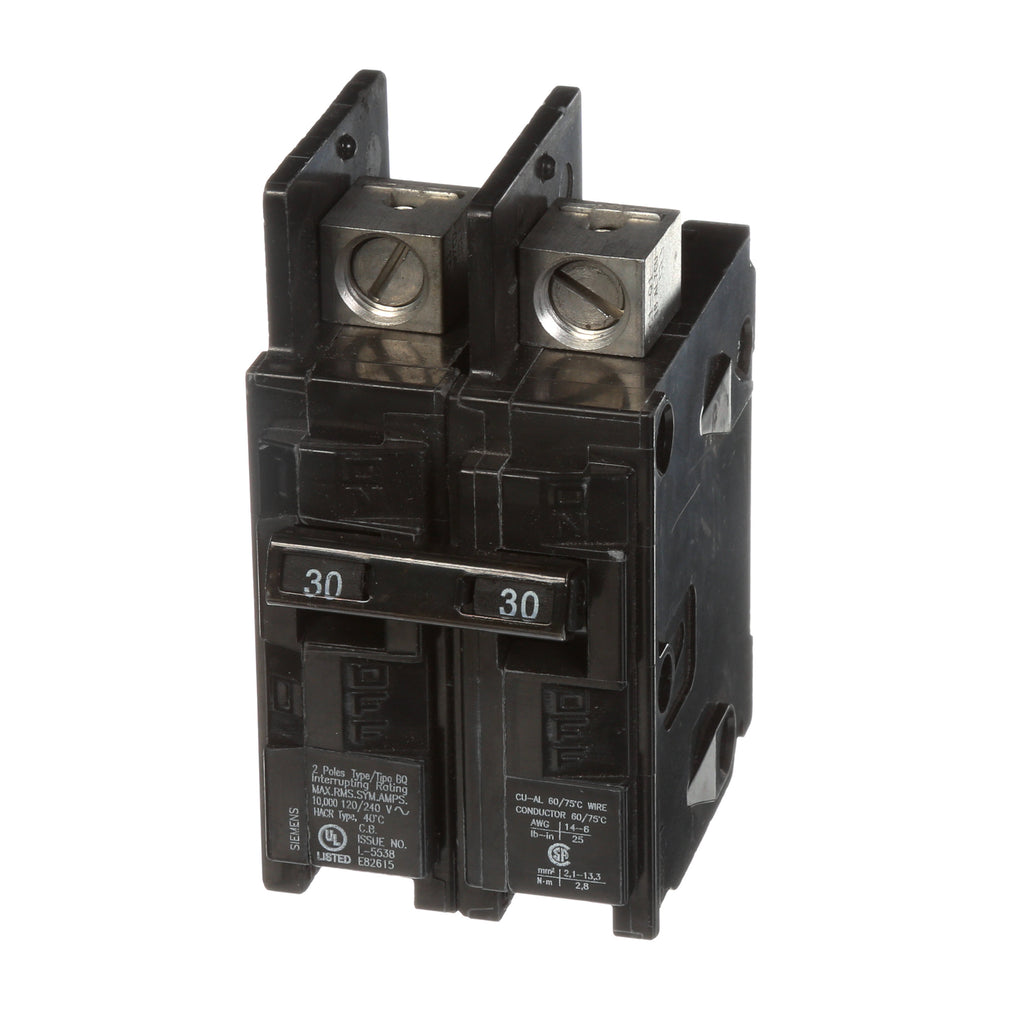

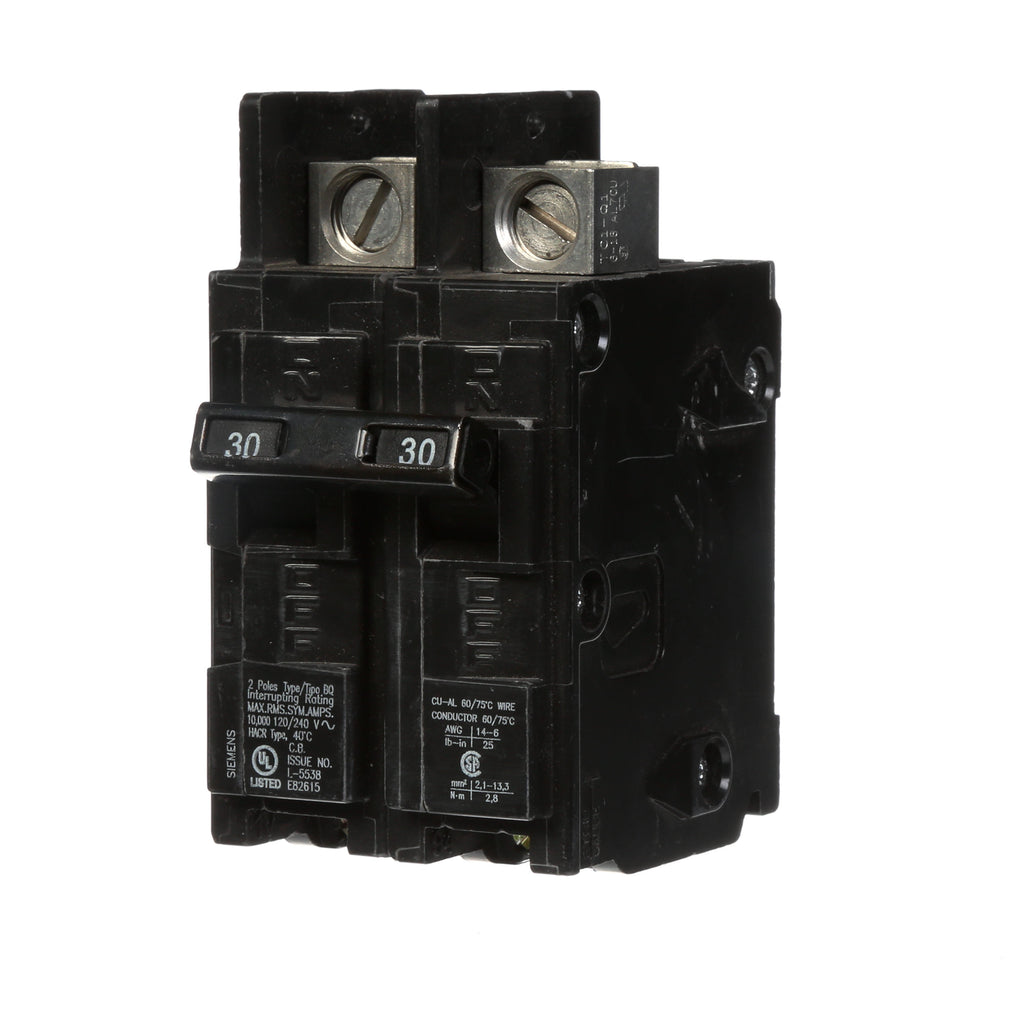

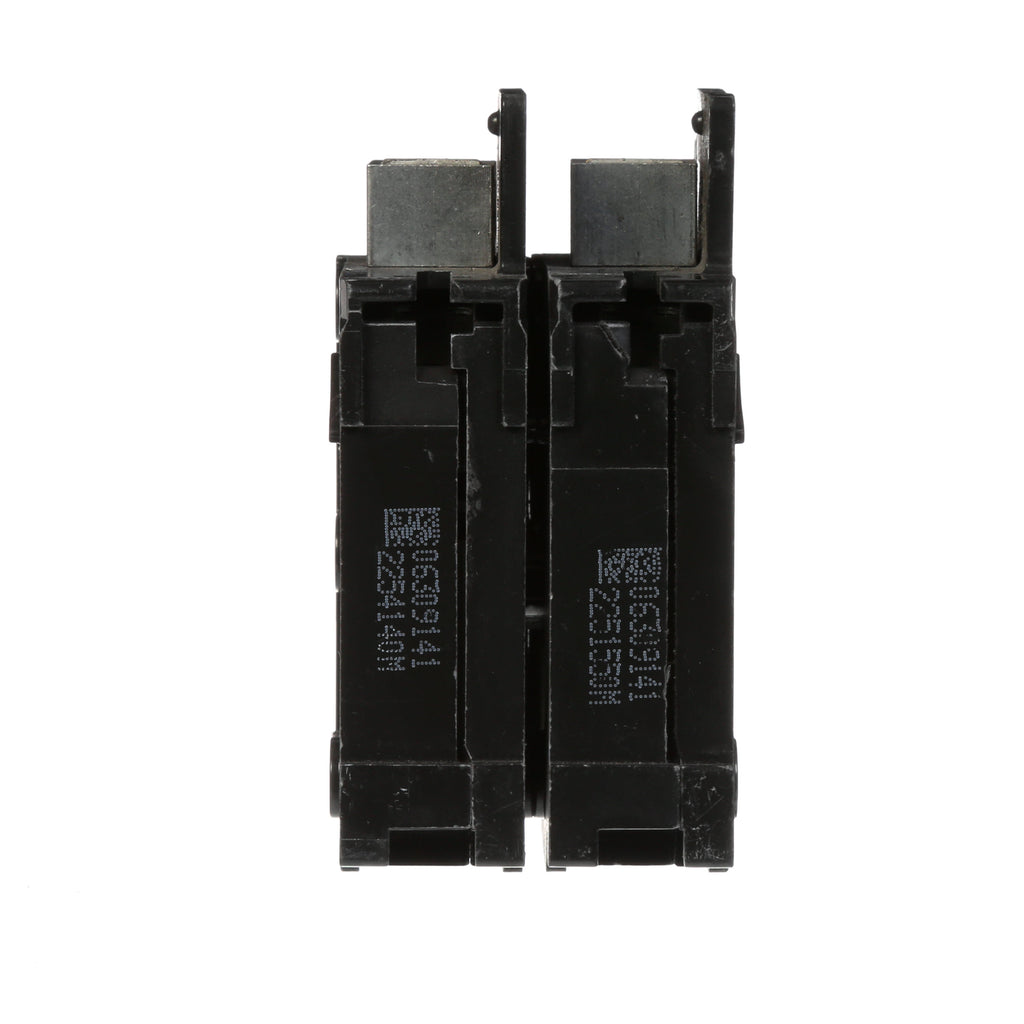

BQ2B030L is a Siemens molded case circuit breaker designed for reliable circuit protection in commercial and industrial applications. This 2-pole, 30A device operates at 120/240VAC and features a BQ frame with thermal magnetic trip technology for dependable performance. Engineered for general-purpose use, the BQ2B030L offers a 10 kA interrupting rating and includes both line and load side lugs for easy installation. Its common-trip design ensures coordinated protection across both poles, making it suitable for a wide range of electrical systems.
- Part Number: BQ2B030L
- Manufacturer: Siemens
- Amperage: 30A
- Voltage: 120/240VAC
- Poles: 2
- Mounting Type: Panel Mount
- Interrupt Rating: 10 kA
- Series/Frame: BQ
- Frame Size: BQ
- Trip Unit: Thermal Magnetic
- Common Trip: Yes
- Line and Load Side Lugs: Included
Specifications
- Part Number: BQ2B030L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BQ Series
- Type : BQ
- Voltage : 240
- Amperage : 30
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Lug
- Protection : Thermal Magnetic
Product Data
- UPC : 783643237155
- GTIN : 00783643237155
- Country of Origin : Mexico
- Dimensions : 2.571 x 2.00 x 3.736 inch
- Weight : 0.617
- Panel Type : Siemens Panelboards
- Standards : HACR Rated, UL Listed
- Certification : CSA, HACR, UL
