Description
BQ2B030

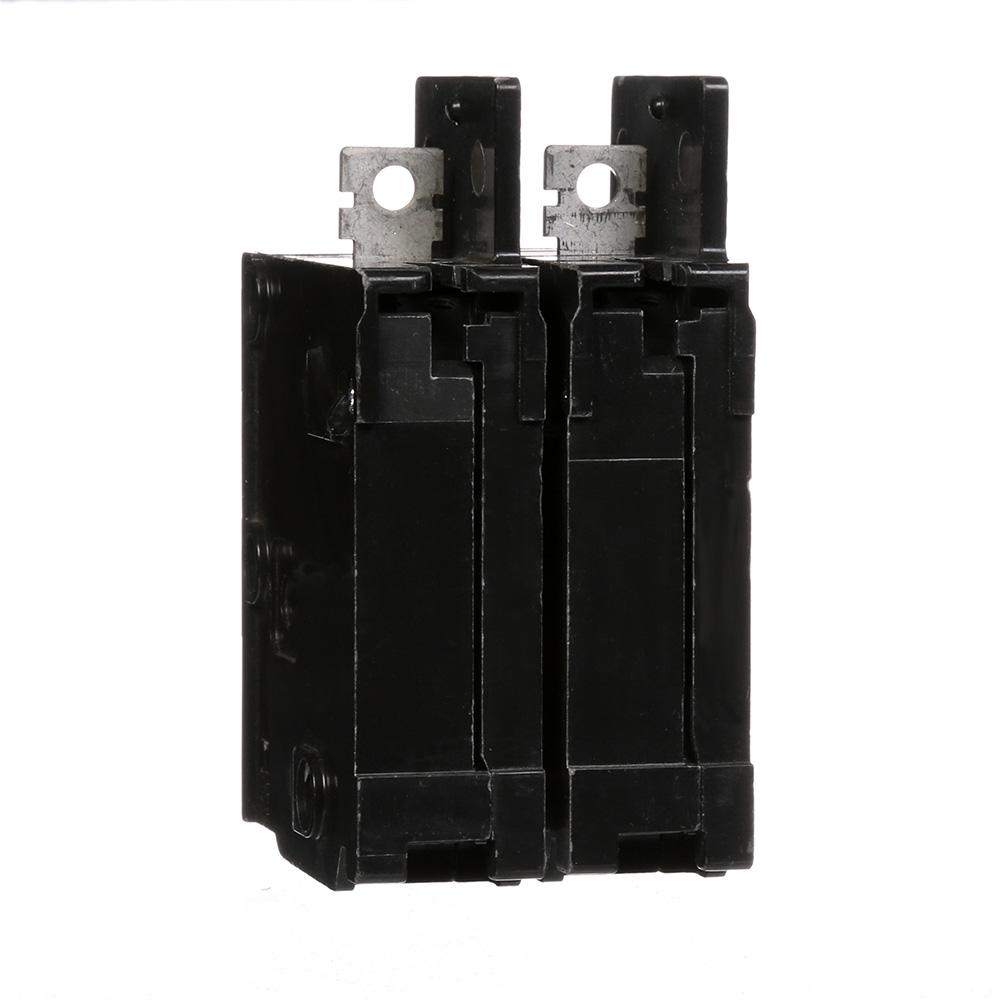

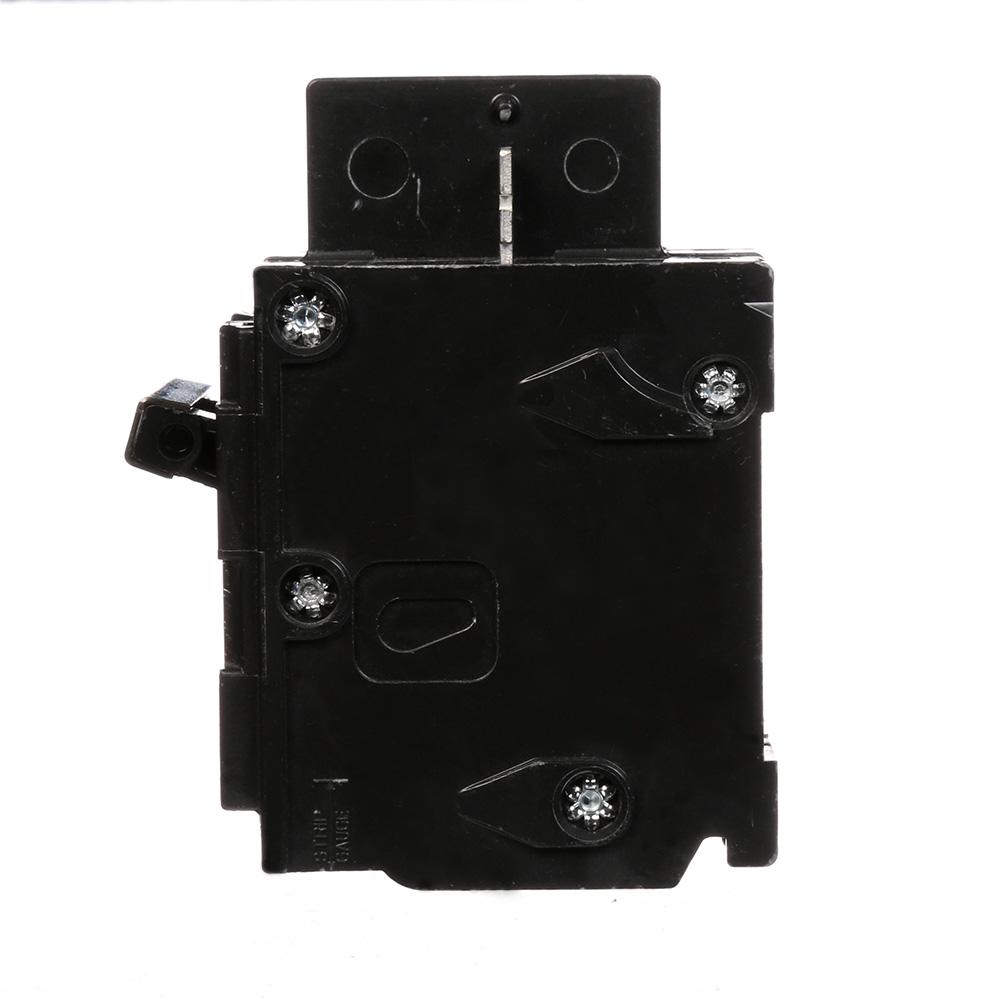

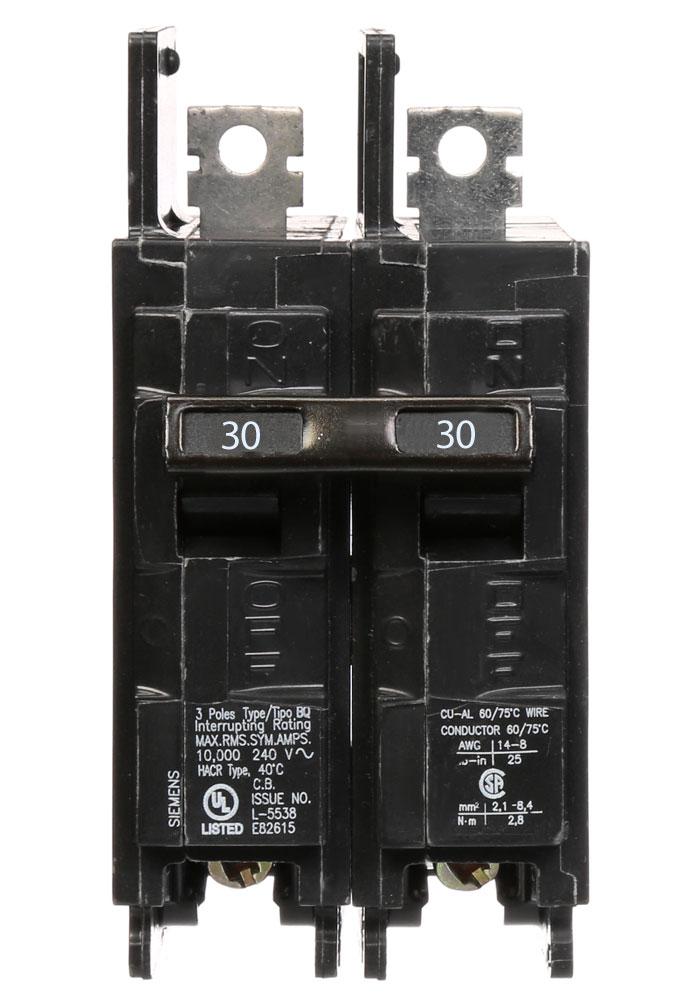

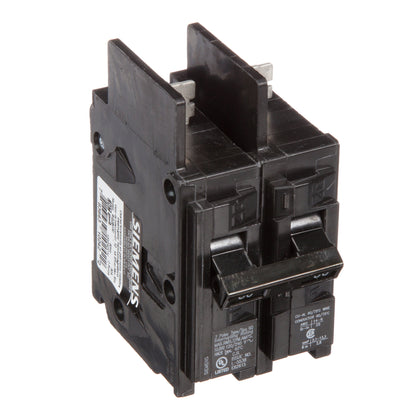

BQ2B030 is a 2-pole molded case circuit breaker from Siemens rated for 30 amps at 120/240VAC with thermal-magnetic protection and a 10kA interrupting rating. This bolt-on circuit breaker features long-time and instantaneous trip functions, making it suitable for general-purpose panelboard applications. Load side lugs are included for convenient installation.
- Amperage: 30 Amps
- Voltage: 120/240VAC at 60 Hz
- Poles: 2
- Frame Type: BQ
- Mounting Type: Bolt-On
- Protection Type: Thermal Magnetic
- Interrupting Rating: 10kAIC at 120/240VAC
- Trip Functions: Long-Time and Instantaneous
- Wire Size: 12 AWG (Cu) to 6 AWG
- Actuator Type: Toggle
- UL Approved
- Includes Load Side Lugs
Specifications
- Part Number: BQ2B030
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BQ Series
- Type : BQ
- Voltage : 120/240
- Amperage : 30
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Bolt-on
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : 125A/BQ
- Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
- MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
Product Data
- UPC : 783643102422
- GTIN : 00783643102422
- Country of Origin : Mexico
- Dimensions : 2.571 x 2.00 x 3.736 inch
- Weight : 0.617
- Panel Type : Siemens Panelboards
- Standards : HACR Rated, UL Listed
- Certification : CSA, HACR, UL
