BQ2B02500S01 - Siemens 25A 2 Pole Bolt-On Miniature Circuit Breaker 120/240V AC 10kA Shunt Trip

BQ2B02500S01

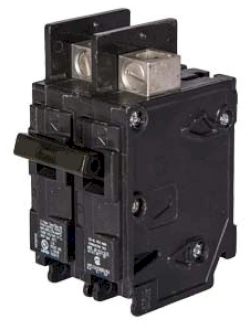

BQ2B02500S01 - Siemens BQ series 2-pole miniature circuit breaker with shunt trip, rated at 25A and 120/240V AC.This Siemens BQ2B02500S01 is a bolt-on miniature circuit breaker featuring shunt trip functionality for remote operation, designed for use with Siemens panelboards. It provides reliable circuit protection with thermal-magnetic trip characteristics and Insta-Wire technology for easy installation using lugs.

• Amperage: 25A
• Voltage: 120/240V AC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 10kA at 120/240V AC
• Series/Frame: BQ
• Trip Type: Shunt Trip
• Phase: Single
• Terminal Connection: Lugs
• Standards: HACR Rated, UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with non-interchangeable 120V shunt trip

Specifications

• Part Number: BQ2B02500S01
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BQ Series
• Type : BQ
• Voltage : 240
• Amperage : 25
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 125A/BQ
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 8 AWG Max. Wire Size 2 AWG (Al), 4 AWG (Cu)
• Breaker Type : Shunt Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 783643088726
• GTIN : 00783643088726
• Country of Origin : Mexico
• Weight : 1.08
• Panel Type : Siemens Panelboards
• Standards : HACR Rated, UL Listed
• Certification : CSA, HACR, UL
